ATXMEGA16C4-AN Overview

IC MCU 8BIT 16KB FLASH 44TQFP

ATXMEGA16C4-AN Parametric

Parameter Name	Attribute value
core processor	AVR
core size	8/16-bit
speed	32MHz
Connectivity	I²C，IrDA，SPI，UART/USART，USB
Peripheral	Undervoltage detection/reset, POR, PWM, WDT
Number of I/Os	34
Program storage capacity	16KB（8K x 16）
Program memory type	flash memory
EEPROM capacity	1K x 8
RAM capacity	2K x 8
Voltage - Power Supply (Vcc/Vdd)	1.6 V ~ 3.6 V
data converter	A/D 16x12b
Oscillator type	internal
Operating temperature	-40°C ~ 105°C（TA）
Package/casing	44-TQFP
Supplier device packaging	44-TQFP（10x10）

Preview

Download Datasheet

View All

8/16-bit Atmel XMEGA C4 Microcontroller

ATxmega32C4

ATxmega16C4

DATASHEET

Feature



High-performance, low-power Atmel

AVR

XMEGA

8/16-bit Microcontroller



Nonvolatile program and data memories



16K - 32KB of In-System Self-Programmable Flash

4KB Boot Code Section with Independent Lock Bits

1KB EEPROM

2K - 4KB Internal SRAM

Peripheral features



Four-channel event system



Four 16-bit timer/counters



Three timer/counters with four output compare or input capture channels



One timer/counter with two output compare or input capture channels



High resolution extension on two timer/counters



Advanced waveform extension (AWeX) on one timer/counter



One USB device interface



USB 2.0 full speed (12Mbps) and low speed (1.5Mbps) device compliant



32 endpoints with full configuration flexibility



Three USARTs with IrDA support for one USART



Two two-wire interfaces with dual address match (I

C and SMBus compatible)



Two serial peripheral interfaces (SPIs)



CRC-16 (CRC-CCITT) and CRC-32 (IEEE

802.3) generator



16-bit real time counter (RTC) with separate oscillator



One sixteen-channel, 12-bit, 300ksps Analog to Digital Converter



Two Analog Comparators with window compare function, and current sources



External interrupts on all general purpose I/O pins



Programmable watchdog timer with separate on-chip ultra low power oscillator



QTouch

library support



Capacitive touch buttons, sliders and wheels

Special microcontroller features



Power-on reset and programmable brown-out detection



Internal and external clock options with PLL and prescaler



Programmable multilevel interrupt controller



Five sleep modes



Programming and debug interface



PDI (program and debug interface)

I/O and packages



34 programmable I/O pins



44-lead TQFP



44-pad QFN



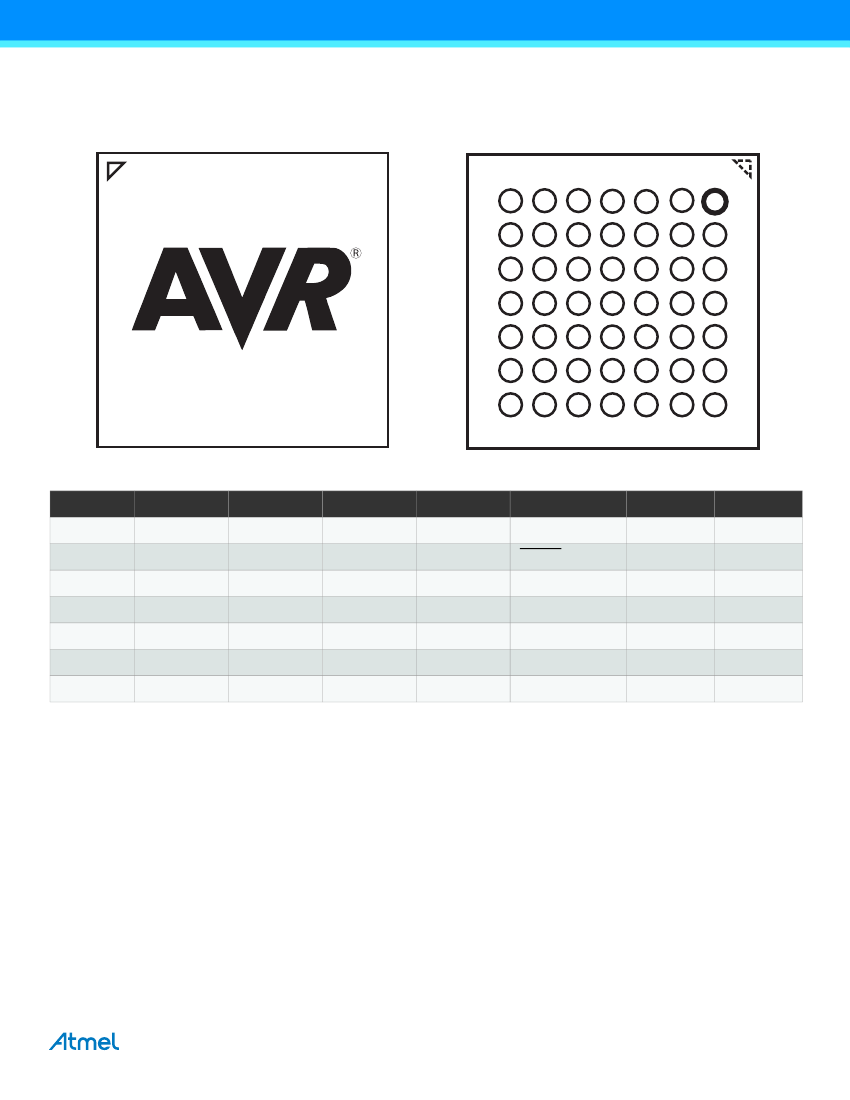

49-ball VFBGA

Operating voltage



1.6 – 3.6V

Operating frequency



0 – 12MHz from 1.6V



0 – 32MHz from 2.7V



Atmel-8493I-AVR-ATxmega16C4-32C4-Datasheet–12/2014

ATXMEGA16C4-AN Related Products

	ATXMEGA16C4-AN	ATXMEGA32C4-CUR	ATXMEGA16C4-CUR	ATXMEGA16C4-MN	ATXMEGA16C4-MNR	ATXMEGA32C4-MN	ATXMEGA32C4-MNR	ATXMEGA32C4-MHR
Description	IC MCU 8BIT 16KB FLASH 44TQFP	8-bit Microcontrollers - MCU 49VFBGA IND TEMP GREEN, 1.6-3.6V	IC MCU 8BIT 16KB FLASH 49VFBGA	IC MCU 8BIT 16KB FLASH 44VQFN	IC MCU 8BIT 16KB FLASH 44VQFN	IC MCU 8BIT 32KB FLASH 64QFN	IC MCU 8BIT 32KB FLASH 64QFN	IC MCU 8BIT 32KB FLASH 44VQFN
core processor	AVR	-	AVR	AVR	AVR	AVR	AVR	AVR
core size	8/16-bit	-	8/16-bit	8/16-bit	8/16-bit	8/16-bit	8/16-bit	8/16-bit
speed	32MHz	-	32MHz	32MHz	32MHz	32MHz	32MHz	32MHz
Connectivity	I²C，IrDA，SPI，UART/USART，USB	-	I²C，IrDA，SPI，UART/USART，USB	I²C，IrDA，SPI，UART/USART，USB	I²C，IrDA，SPI，UART/USART，USB	I²C，IrDA，SPI，UART/USART，USB	I²C，IrDA，SPI，UART/USART，USB	I²C，IrDA，SPI，UART/USART，USB
Peripheral	Undervoltage detection/reset, POR, PWM, WDT	-	Undervoltage detection/reset, POR, PWM, WDT	Undervoltage detection/reset, POR, PWM, WDT	Undervoltage detection/reset, POR, PWM, WDT	Undervoltage detection/reset, POR, PWM, WDT	Undervoltage detection/reset, POR, PWM, WDT	Undervoltage detection/reset, POR, PWM, WDT
Number of I/Os	34	-	34	34	34	34	34	34
Program storage capacity	16KB（8K x 16）	-	16KB（8K x 16）	16KB（8K x 16）	16KB（8K x 16）	32KB（16K x 16）	32KB（16K x 16）	32KB（16K x 16）
Program memory type	flash memory	-	flash memory	flash memory	flash memory	flash memory	flash memory	flash memory
EEPROM capacity	1K x 8	-	1K x 8	1K x 8	1K x 8	1K x 8	1K x 8	1K x 8
RAM capacity	2K x 8	-	2K x 8	2K x 8	2K x 8	4K x 8	4K x 8	4K x 8
Voltage - Power Supply (Vcc/Vdd)	1.6 V ~ 3.6 V	-	1.6 V ~ 3.6 V	1.6 V ~ 3.6 V	1.6 V ~ 3.6 V	1.6 V ~ 3.6 V	1.6 V ~ 3.6 V	1.6 V ~ 3.6 V
data converter	A/D 16x12b	-	A/D 16x12b	A/D 16x12b	A/D 16x12b	A/D 16x12b	A/D 16x12b	A/D 16x12b
Oscillator type	internal	-	internal	internal	internal	internal	internal	internal
Operating temperature	-40°C ~ 105°C（TA）	-	-40°C ~ 85°C（TA）	-40°C ~ 105°C（TA）	-40°C ~ 105°C（TA）	-40°C ~ 105°C（TA）	-40°C ~ 105°C（TA）	-40°C ~ 85°C（TA）
Package/casing	44-TQFP	-	49-VFBGA	44-VFQFN Exposed Pad	44-VFQFN Exposed Pad	64-VFQFN Exposed Pad	64-VFQFN Exposed Pad	44-VFQFN Exposed Pad
Supplier device packaging	44-TQFP（10x10）	-	49-VFBGA（5x5）	44-VQFN（7x7）	44-VQFN（7x7）	64-QFN（9x9）	64-QFN（9x9）	44-VQFN（7x7）
