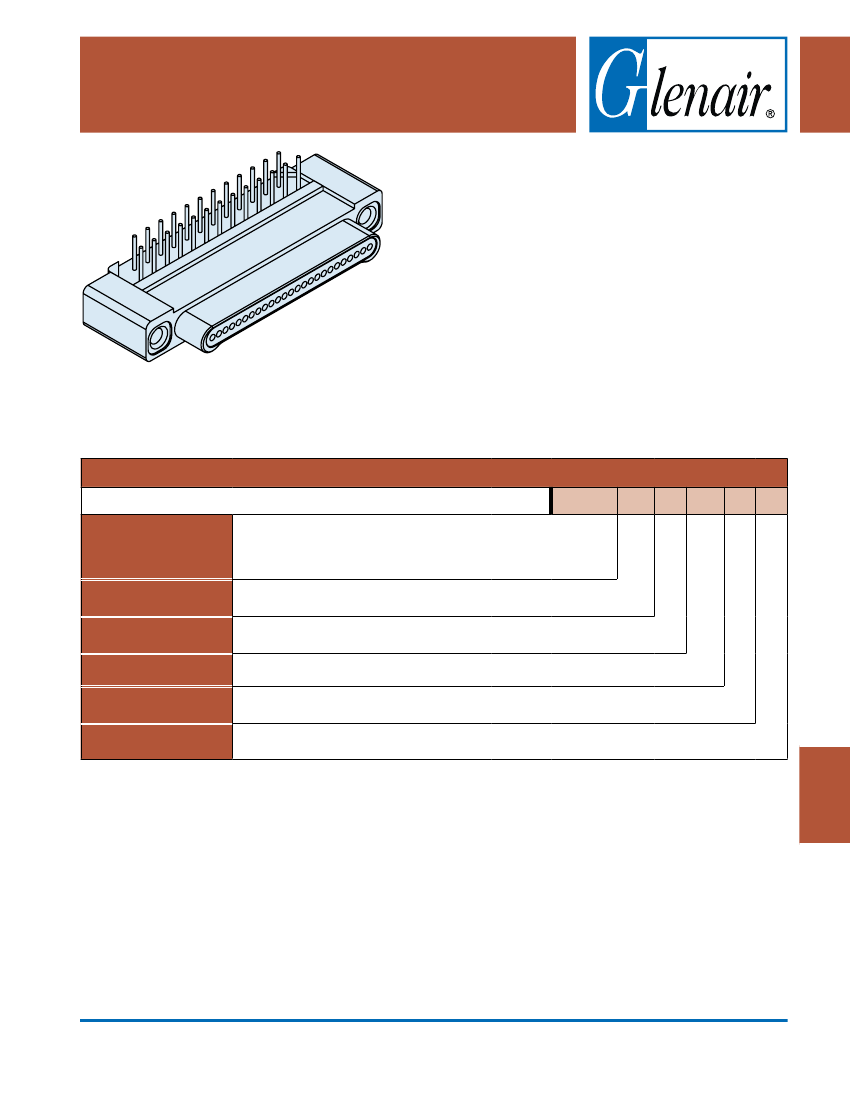

Thru Hole Type
Right Angle Thru Hole PCB Nano Connectors
feature
gold alloy TwistPin contacts. These nanomimiature connectors
offer premium performance and reliability for demanding
applications. Available with #0-80 female threads, or with
jackscrews for use with flexible circuits.
excellent solderability.
Pre-Tinned PC Tails
are coated with Sn63Pb37 tin-lead for
Choose Aluminum, Titanium or Stainless Steel
Shells
in eight layouts from 5 to 51 contacts. Complies to
the requirements of MIL-DTL-32139. These connectors are
intermateable with any corresponding Glenair Series 890
single row metal shell nanominiature connector.
How To Order Right Angle PCB Connectors
Sample Part Number
Series
Insert Arrangement/
Contact Type
Shell Material
and Finish
Termination Type
PC Tail Length
Hardware
890-008
890-008
Plug, Pin Contacts, Single Row, Right Angle Thru-Hole PCB
Nanominiature
890-009
Receptacle, Socket Contacts, Single Row, Right Angle Thru-Hole
PCB Nanominiature
Plugs (890-008):
5P, 9P, 15P, 21P, 25P, 31P, 37P, 51P
Receptacles (890-009):
5S, 9S, 15S, 21S, 25S, 31S, 37S, 51S
A1
- Aluminum Shell, Cadmium Plating
A2
- Aluminum Shell, Electroless Nickel Plating
BRT
- Board Right Angle Thru-Hole
1
- .110 (2.79)
2
- .172 (4.37)
J
- Jackscrew, #0-80
T
- Female Thread, #0-80
3
- .140 (3.55)
T
- Titanium Shell, Unplated
S
- Stainless Steel Shell, Passivated
-51P
A2 -BRT
1
T
Dimensions in inches (millimeters) and are subject to change without notice.
© 2013 Glenair, Inc.
Series 89 Nano Catalog
U.S. CAGE Code 06324/0CA77
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
G-5
E-Mail: sales@glenair.com
Single Row
Connectors
890-008 and 890-009
Right Angle Mount PCB, Single Row Nano Connector
D
E
F
G
890-008 and 890-009
Right Angle Mount PCB, Single Row Nano Connector
Thru Hole Type
D
E
F
G
Single Row
Connectors
A
.115
(2.92)
B
C
.025 (0.64) Typ
.015
(0.38)
B
.345
(8.76)
.018
(0.46)
.050
(1.27)
.050 (1.27)
.025 (0.64)
A
Layout
5P
5S
9P
9S
15P
15S
21P
21S
25P
25S
31P
31S
37P
37S
51P
51S
In. ± .005
.400
.400
.500
.500
.650
.650
.800
.800
.900
.900
1.050
1.050
1.200
1.200
1.550
1.550
© 2013 Glenair, Inc.

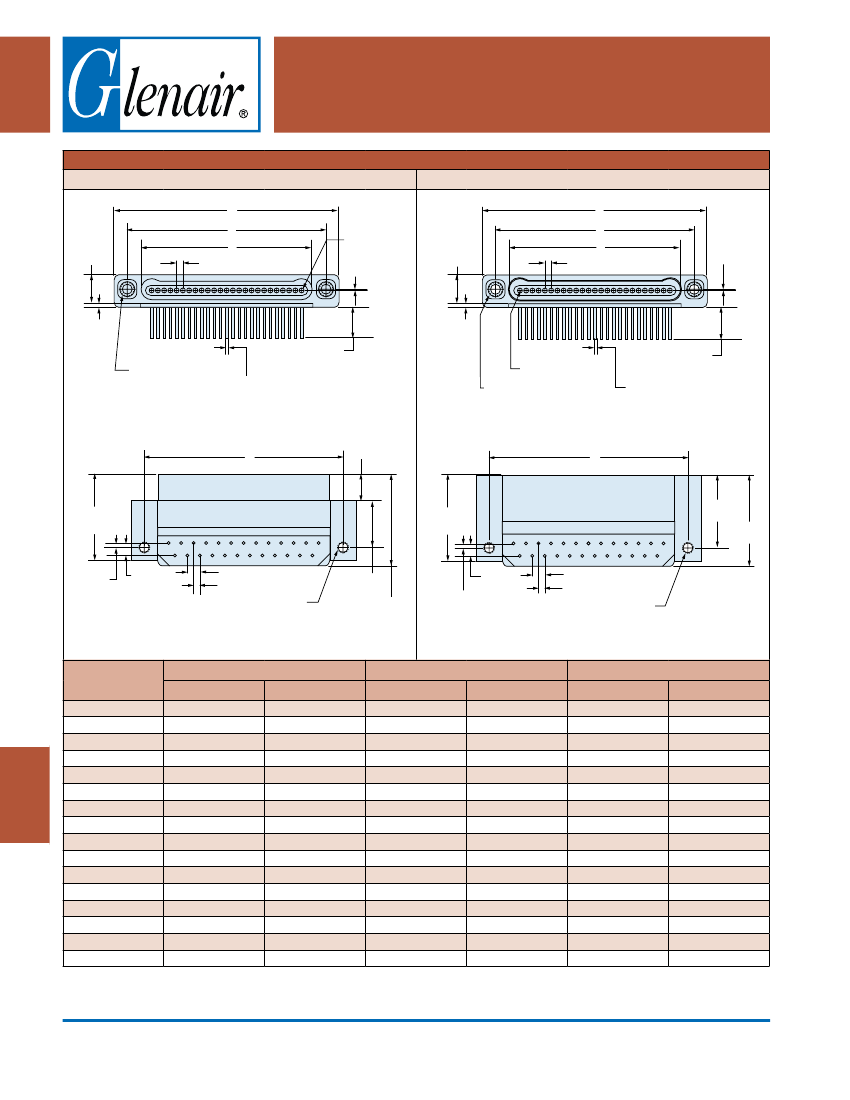

Single Row Nano Right Angle PCB Dimensions
890-008 Plug (Pin) Connectors
890-009 Receptacle (Socket) Connectors
A
Pin 1
.005
(0.13)
B
.115
(2.92)
C
.025 (0.64) Typ
.005
(0.13)
#0-80 UNF-2B, 2X
+.002
Ø .010 -.000 (0.26) Typ
Lead Length
± .015 (0.38)
.015
(0.38)
Socket #1
#0-80 UNF-2B, 2X
Lead Length
± .015 (0.38)
+.002
Ø .010 -.000 (0.26) Typ
.105 ± .003
(2.67)
B
.344
(8.74)
.292
(7.42)
.365
(9.27)
#0-80 UNF-2B, 2X
.187
(4.75)
.365
(9.27)
.018
(0.46)
.050
(1.27)
.050 (1.27)
.025 (0.64)
#0-80 UNF-2B, 2X
B BSC.
mm. ± 0.13
10.16
10.16
12.70
12.70
16.51
16.51
20.32
20.32
22.86
22.86
26.67
26.67
30.48
30.48
39.37
39.37
C BSC.
In.
.295
.295
.395
.395
.545
.545
.695
.695
.795
.795
.945
.945
1.095
1.095
1.445
1.445
mm.
7.49
7.49
10.03
10.03
13.84
13.84
17.65
17.65
20.19
20.19
24.00
24.00
27.81
27.81
36.70
36.70
In.
.184
.185
.284
.285
.434
.435
.584
.585
.684
.685
.834
.835
.984
.985
1.334
1.335
mm.
4.67
4.70
7.21
7.24
11.02
11.05
14.83
14.86
17.37
17.40
21.18
21.21
24.99
24.02
33.88
33.91
Dimensions in inches (millimeters) and are subject to change without notice.
Series 89 Nano Catalog
U.S. CAGE Code 06324/0CA77
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
G-6
E-Mail: sales@glenair.com
Thru Hole Type

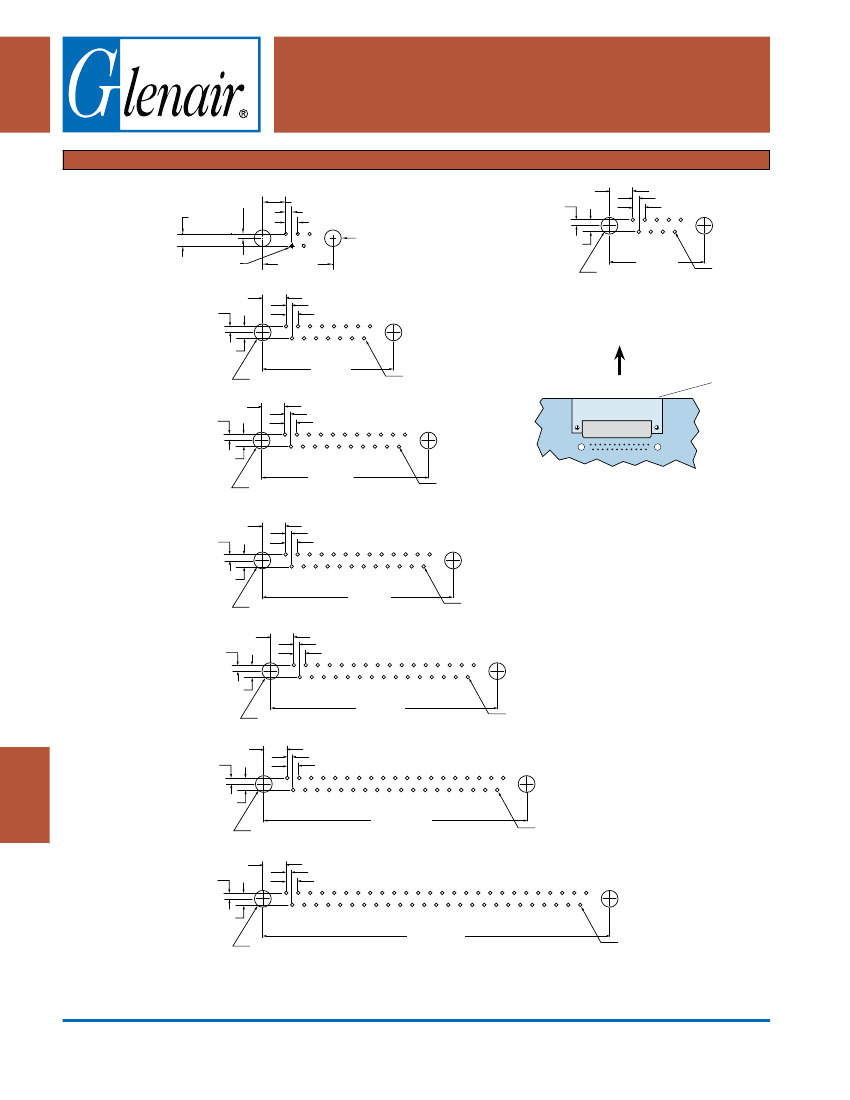

Right Angle PCB Plug (Pin) Connector Layout 890-008
.050 (1.27) Typ
.0975 (2.48)
.025 (0.64) Typ
.050 (1.27) Typ
1 3 5
2 4
5 Contacts
.018 (.46) Typ
9 Contacts
.018 (0.46) Typ
.050 (1.27) Typ
.0975 (2.48)
.025 (0.64) Typ
.050 (1.27) Typ
1 3 5 7 9
2 4 6 8
.295 (7.49)
Ø .016 (.37) Typ
.013
Ø.070 (1.78) 2 PLS "T" Option
Ø.111 (2.82) 2 PLS "J" Option
.018 (0.46) Typ
.0975 (2.48)
.025 (0.64) Typ
.050 (1.27) Typ
4 6
8 10 12 14
.395(10.03)
Ø .070 (1.78) 2X “T” Option
Ø .111 (2.82) 2X “J” Option
Ø.016 (0.37) Typ
.013
15 Contacts
1 3
5 7 9 11 13 15
.050 (1.27) Typ
2
.545(13.84)
Ø .070 (1.78) 2X “T” Option
Ø .111 (2.82) 2X “J” Option
Ø.016 (0.37) Typ
.013
Pin #1
Connector Mating Face
.018 (0.46) Typ
.0975 (2.48)
.025 (0.64) Typ
.050 (1.27) Typ
1 3 5 7 9 11 13 15 17 19 21
2 4 6 8 10 12 14 16 18 20
1 3 5 7 9 11 13 15 17 19 21 23 25
2 4 6 8 10 12 14 16 18 20 22 24
21 Contacts
.050 (1.27) Typ
.695 (17.65)
Ø .070 (1.78) 2X “T” Option
Ø .111 (2.82) 2X “J” Option
.0975 (2.48)
.025 (0.64) Typ
.050 (1.27) Typ
1 3 5
2
4
7 9 11 13 15 17 19 21 23 25
6 8 10 12 14 16 18 20 22 24
Ø.016 (0.37) Typ
.013
Component Mounting Side of PCB
(25P actual size)
25 Contacts
.018 (0.46) Typ
.050 (1.27) Typ
.795 (20.19)
Ø .070 (1.78) 2X “T” Option
Ø .111 (2.82) 2X “J” Option
Ø.016 (0.37) Typ
.013
.018 (0.46) Typ
.0975 (2.48)
.025 (0.64) Typ
.050 (1.27) Typ
1 3 5
2 4
7 9 11 13 15 17 19 21 23 25 27 29 31
6 8 10 12 14 16 18 20 22 24 26 28 30
31 Contacts
.050 (1.27) Typ
Ø .070 (1.78) 2X “T” Option
Ø .111 (2.82) 2X “J” Option
.945 (24.00)
Ø.016 (0.37) Typ
.013
.018 (0.46) Typ
.0975 (2.48)
.025 (0.64) Typ
.050 (1.27) Typ
1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37
2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36
37 Contacts
.050 (1.27) Typ
Ø .070 (1.78) 2X “T” Option
Ø .111 (2.82) 2X “J” Option
.0975 (2.48)
.025 (0.64) Typ
.050 (1.27) Typ
1.095 (27.81)
.016
Ø.013 (0.37) Typ
.018 (0.46) Typ
51 Contacts
.050 (1.27) Typ
1 5 6 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39 41 43 45 47 49 51
2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50
Ø .070 (1.78) 2X “T” Option
Ø .111 (2.82) 2X “J” Option
1.445 (36.71)
Ø.016 (0.37) Typ
.013
Layouts shown are for connector mounting side of PC Board.
© 2013 Glenair, Inc.
Series 89 Nano Catalog
U.S. CAGE Code 06324/0CA77
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
G-7
E-Mail: sales@glenair.com
Single Row
Connectors
890-008 and 890-009
Right Angle Mount PCB, Single Row Nano Connector
D
E
F
G
890-008 and 890-009
Right Angle Mount PCB, Single Row Nano Connector
Thru Hole Type
D
.018 (0.46) Typ
G
Single Row
Connectors
.018 (.46) Typ

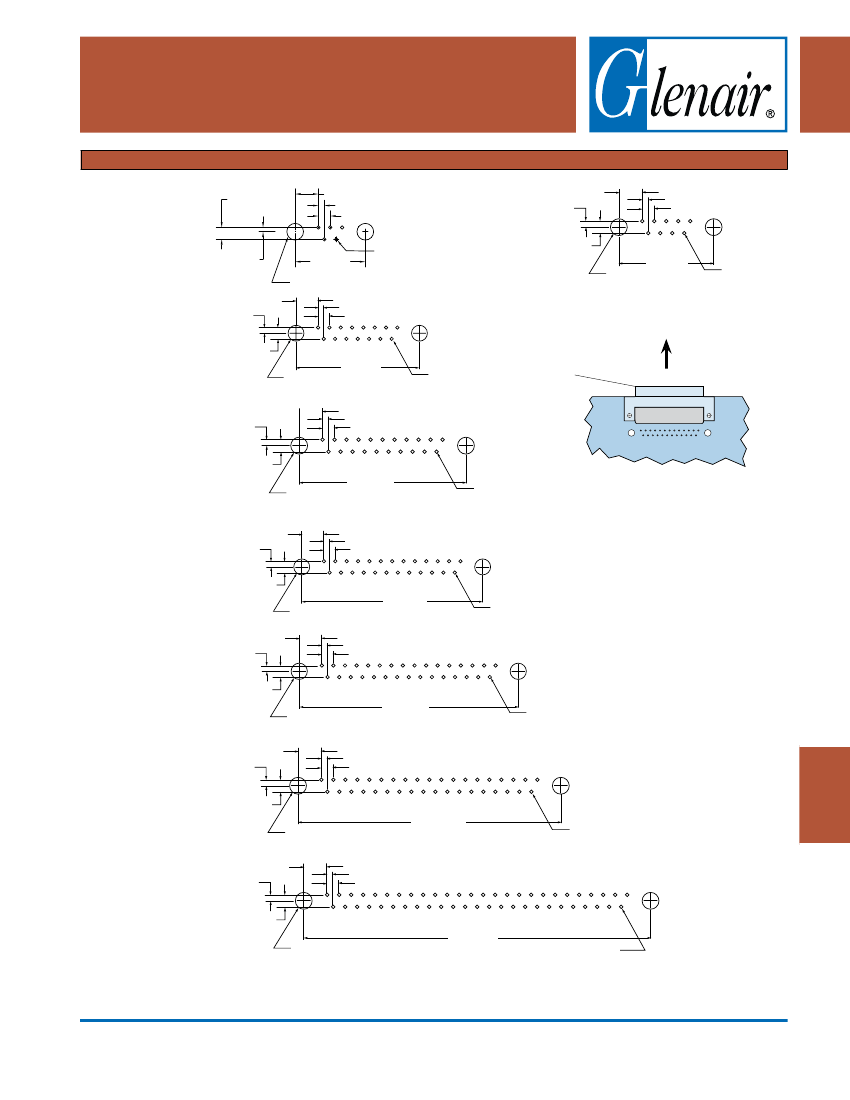

Right Angle PCB Receptacle (Socket) Connector Layout 890-009
.0975 (2.48)
.025 (1.27) Typ
.050 (0.64) Typ
5
3
4
2
1
5 Contacts
.050 (1.27) Typ
Ø.016 (.37) Typ
.013
.295 (7.49)
Ø.070 (1.78) 2 PLS
"T" Option
Ø.111 (2.82) 2 PLS
"J" Option
9 Contacts
.018 (0.46) Typ
.050 (1.27) Typ
.0975 (2.48)
.025 (0.64) Typ
.050 (1.27) Typ
9 7 5 3 1
8 6 4 2
.018 (0.46) Typ
.0975 (2.48)
.025 (0.64) Typ
.050 (1.27) Typ
15 13 11 9 7 5 3 1
14 12 10 8 6 4 2
.395(10.03)
Ø .070 (1.78) 2X “T” Option
Ø .111 (2.82) 2X “J” Option
Ø.016 (0.37) Typ
.013
15 Contacts
.050 (1.27) Typ
.018 (0.46) Typ
.545(13.84)
Ø .070 (1.78) 2X “T” Option
Ø .111 (2.82) 2X “J” Option
.0975 (2.48)
.025 (0.64) Typ
.050 (1.27) Typ
Ø.016 (0.37) Typ
.013
Connector Mating Face
Socket #1
21 Contacts
.050 (1.27) Typ
21 19 17 15 13 11 9 7 5 3 1
20 18 16 14 12 10 8 6 4 2
25 23
21 19 17 15 13 11
9
8
7
6
5
4
3
2
1
24 22 20 18 16 14 12 10
.695 (17.65)
Ø .070 (1.78) 2X “T” Option
Ø .111 (2.82) 2X “J” Option
.0975 (2.48)
.025 (0.64) Typ
.050 (1.27) Typ
25 23 21 19 17 15 13 11 9 7 5 3 1
24 22 20 18 16 14 12 10 8 6 4 2
Ø.016 (0.37) Typ
.013
Component Mounting Side of PCB
(25S actual size)
E
F
25 Contacts
.050 (1.27) Typ
.795 (20.19)
Ø .070 (1.78) 2X “T” Option
Ø .111 (2.82) 2X “J” Option
.018 (0.46) TYP
.0975 (2.48)
.025 (0.64) TYP
.050 (1.27) TYP
Ø.016 (0.37) Typ
.013
31 Contacts
.050 (1.27) TYP
31 29 27 25 23 21 19 17 15 13 11 9 7 5 3 1
30 28 26 24 22 20 18 16 14 12 10 8 6 4 2
.945 (24.00)
Ø .070 (1.78) 2X “T” OPTION
Ø .111 (2.82) 2X “J” OPTION
.018 (0.46) Typ
.0975 (2.48)
.025 (0.64) Typ
.050 (1.27) Typ
37 35 33 31 29 27 25 23 21 19 17 15 13 11 9 7
5 3 1
6 4 2
36 34 32 30 28 26 24 22 20 18 16 14 12 10 8
Ø .016/.013
(0.37) TYP
37 Contacts
.050 (1.27) Typ
Ø .070 (1.78) 2X “T” Option
Ø .111 (2.82) 2X “J” Option
.0975 (2.48)
.025 (0.64) Typ
.050 (1.27) Typ
1.095 (27.81)
Ø.016 (0.37) Typ
.013
.018 (0.46) Typ
51 Contacts
51 49 47 45 43 41 39 37 35 33 31 29 27 25 23 21 19 17 15 13 11 9 7
5 3 1
6 4 2
.050 (1.27) Typ
50 48 46 44 42 40 38 36 34 32 30 28 26 24 22 20 18 16 14 12 10 8
Ø .070 (1.78) 2X “T” Option
Ø .111 (2.82) 2X “J” Option
1.445 (36.71)
Ø.016 (0.37) Typ
.013
Layouts shown are for connector mounting side of PC Board.
© 2013 Glenair, Inc.
Series 89 Nano Catalog
U.S. CAGE Code 06324/0CA77
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
G-8
E-Mail: sales@glenair.com
