MIC5022AJ datasheet, PDF - EEWORLD Datasheet

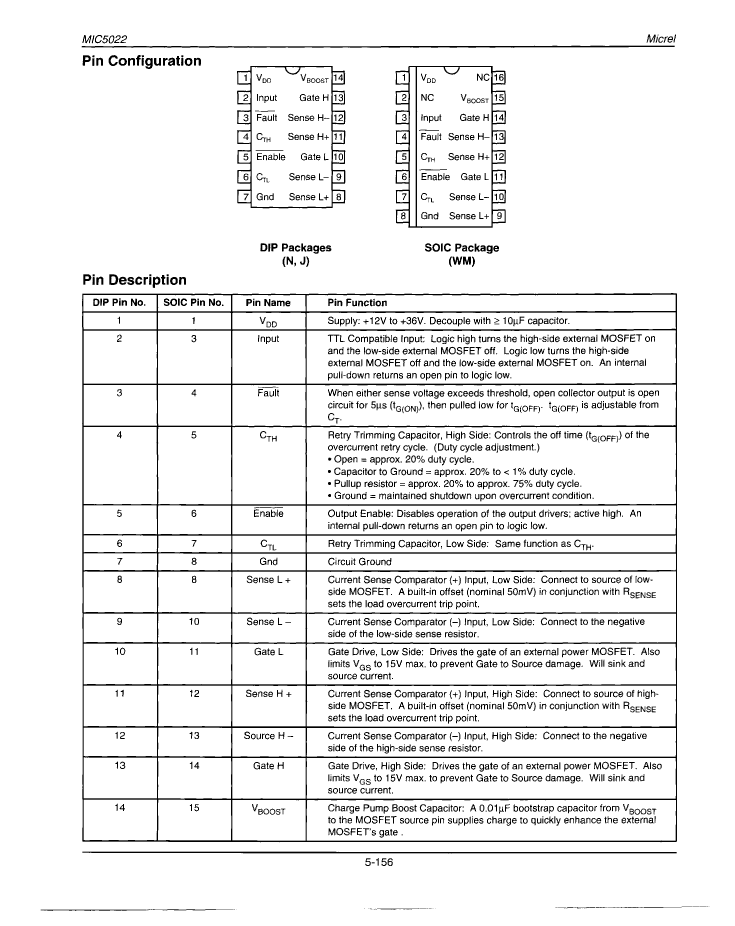

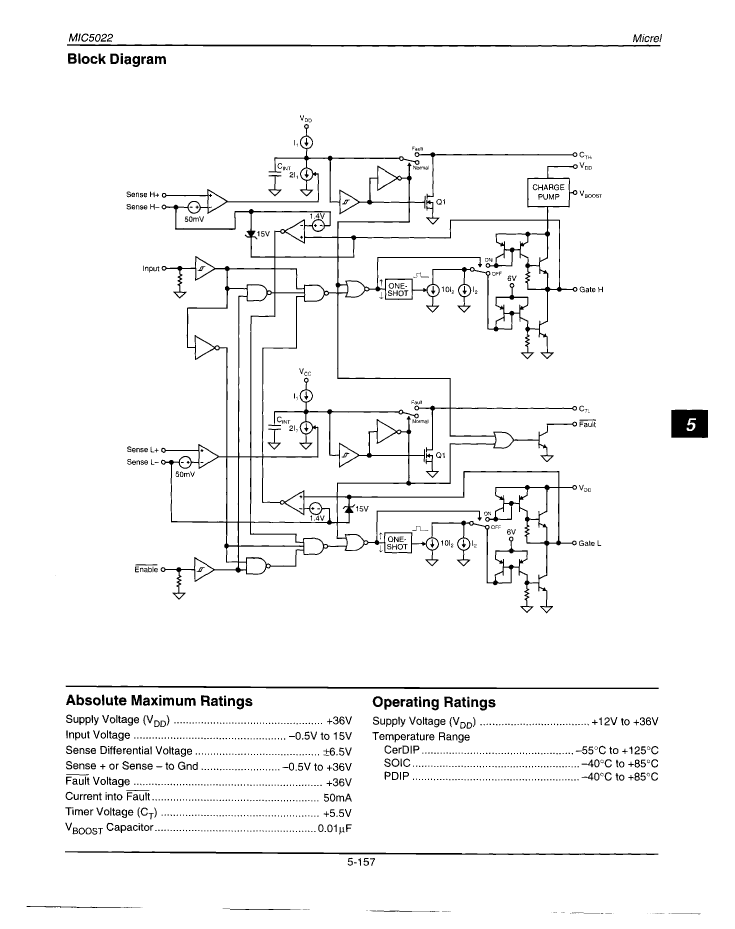

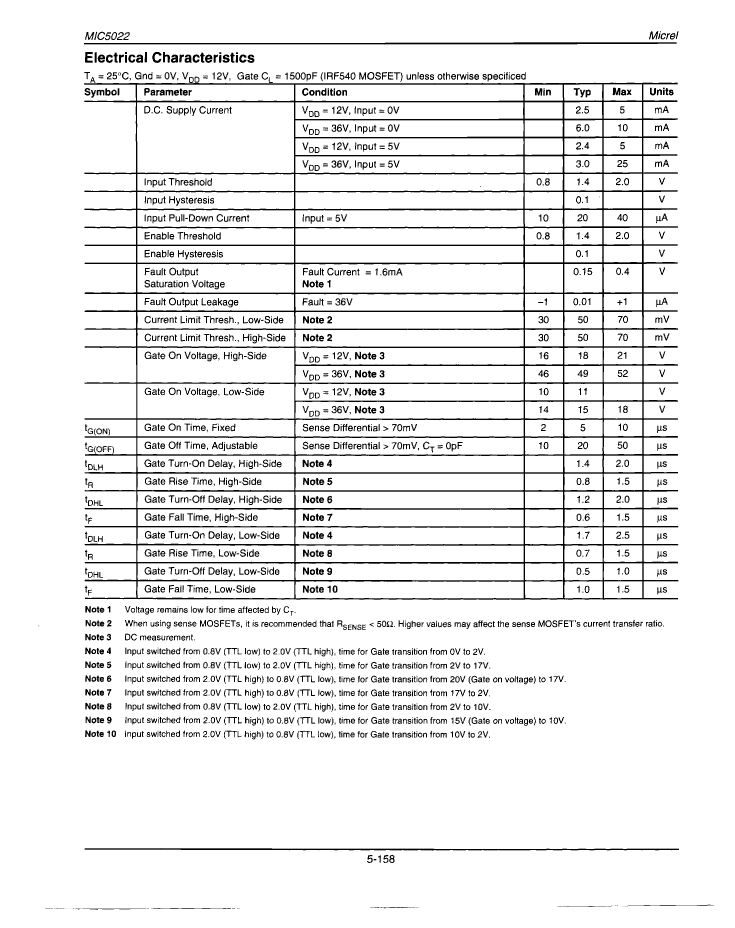

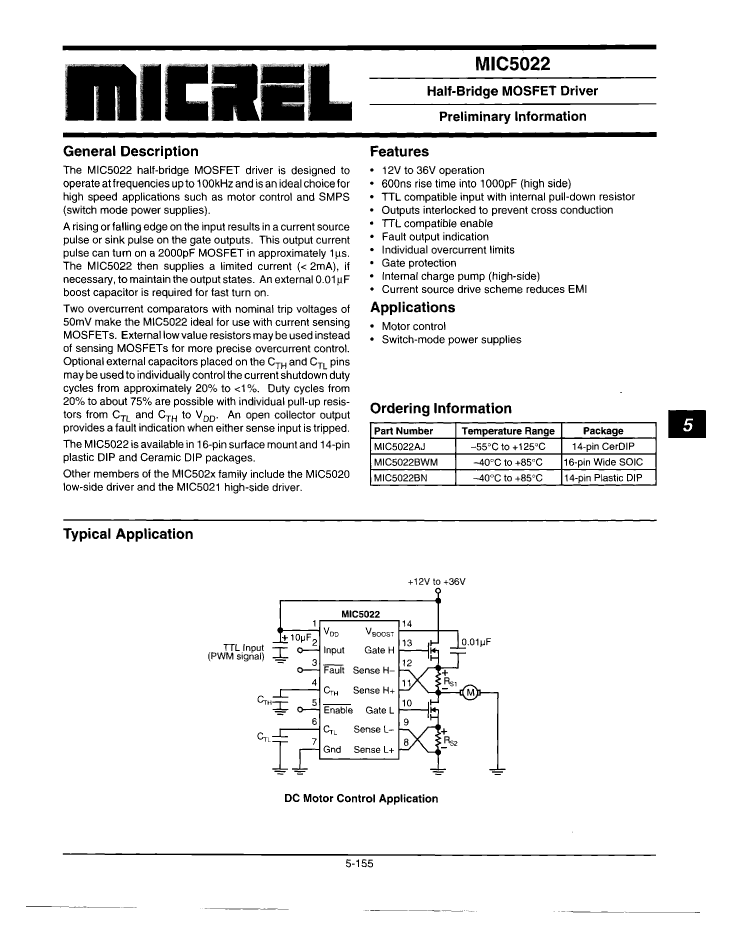

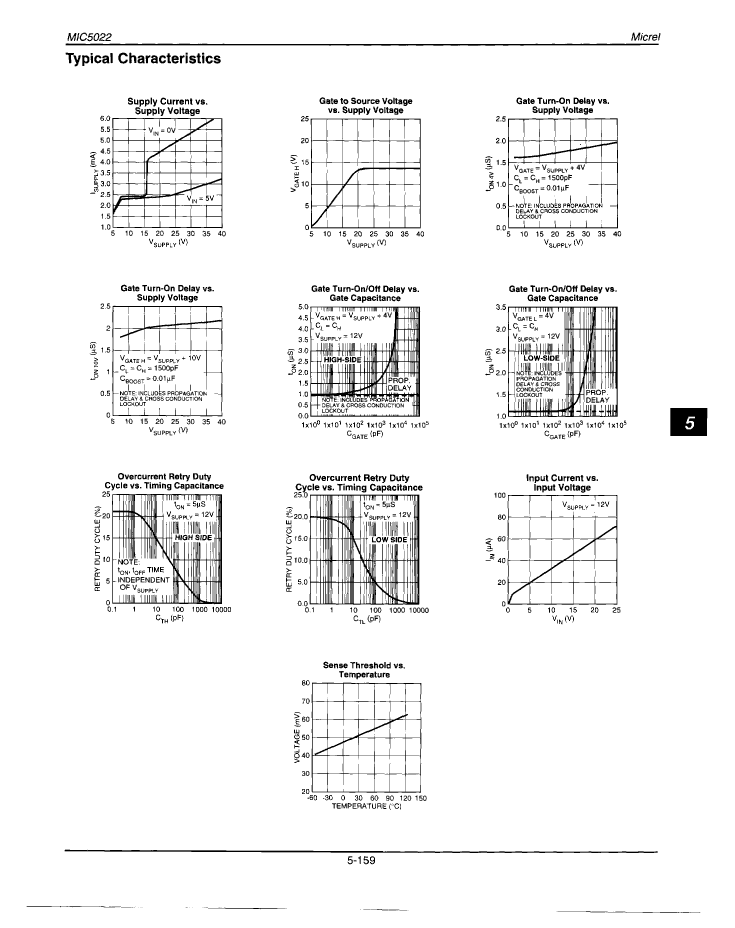

MIC5022AJ: DescriptionHalf Bridge Based MOSFET Driver, BIMOS, CDIP14, CERDIP-14; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size404KB，9 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com; Related ProductsFound2parts with similar functions to MIC5022AJ

Download Datasheet Parametric Compare View All

MIC5022AJ Overview

Half Bridge Based MOSFET Driver, BIMOS, CDIP14, CERDIP-14

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microchip
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	compli
ECCN code	EAR99
high side driver	YES
Input properties	SCHMITT TRIGGER
Interface integrated circuit type	HALF BRIDGE BASED MOSFET DRIVER
JESD-30 code	R-GDIP-T14
JESD-609 code	e0
length	19.304 mm
Number of functions	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	TOTEM-POLE
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	12 V
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum slew rate	25 mA
Maximum supply voltage	36 V
Minimum supply voltage	12 V
Nominal supply voltage	15 V
surface mount	NO
technology	BIMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Disconnect time	2 µs
connection time	2.5 µs
width	7.62 mm

	MIC5022AJ
Description	Half Bridge Based MOSFET Driver, BIMOS, CDIP14, CERDIP-14
Is it Rohs certified?	incompatible
Maker	Microchip
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	compli
ECCN code	EAR99
high side driver	YES
Input properties	SCHMITT TRIGGER
Interface integrated circuit type	HALF BRIDGE BASED MOSFET DRIVER
JESD-30 code	R-GDIP-T14
JESD-609 code	e0
length	19.304 mm
Number of functions	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	TOTEM-POLE
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	12 V
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum slew rate	25 mA
Maximum supply voltage	36 V
Minimum supply voltage	12 V
Nominal supply voltage	15 V
surface mount	NO
technology	BIMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Disconnect time	2 µs
connection time	2.5 µs
width	7.62 mm

Part Number	Manufacturer	Description
MIC5022BN	Micrel ( Microchip )	Half Bridge Based MOSFET Driver, BIMOS, PDIP14, PLASTIC, DIP-14
MIC5022AJB	Microchip(微芯科技)	Half Bridge Based MOSFET Driver, BIMOS, CDIP14, CERDIP-14
