FX10A-140P/14-SV(91) Overview

CONN HEADER 140POS W/POST SMD

FX10A-140P/14-SV(91) Parametric

Parameter Name	Attribute value
Connector type	connector, housing contact
Number of pins	140
spacing	0.020"（0.50mm）
Number of rows	2
Installation type	surface mount
characteristic	Board rails, ground plates, fixed solder tails
Contact plating	gold
Contact plating thickness	3.90µin（0.099µm）
Joint stack height	4mm
board height	0.138"（3.50mm）

FX10A-140P/14-SV(91) Preview

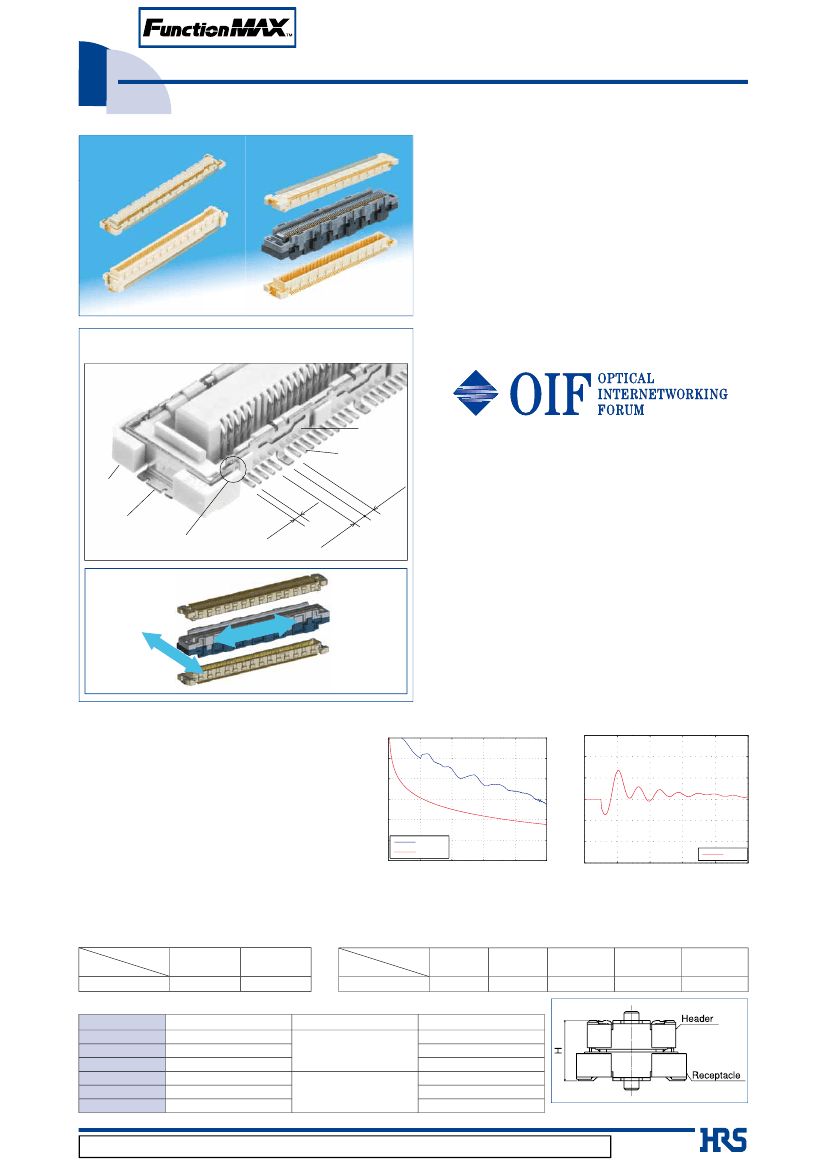

Gbps 0.5mm pitch Stacking Connectors

FX10 Series

Electrical Interface for the OIF 100G Long-Haul DWDM Transmission Module (MSA-100GLH)

■Mechanical

Features

●

0.5mm Pitch

●

Stacking height : 4 to 8mm (2-piece type)

8 to 13mm (3-piece type)

●

Number of Contacts

With ground plate : 80 / 100 / 120 / 140

Without ground plate : 96 / 120 / 144 / 168

3-piece interposer : 120 / 144 /168

●

OIF MSA-100GLH Electrical Interface

■With

GND Plate Type

FX10A-168P/S-SV(83) assembly is specified for the

OIF 100G Long-Haul DWDM Transmission Module

host line card - MSA-100GLH electrical connector.

Ground

plate

Signal contact

Housing

●

Suited to High-Density Applications

The 0.5 mm signal contact pitch provides a smaller

overall connector, using less mounting area on the board.

0.7

0.5

.75

●

Optional Ground Plate

An alternate style without the ground plate is available.

The space provided by the ground plate removal has

been filled with additional signal contacts.

<3-piece type>

●

Smooth floating with high speed transmission

capability supported by unique 3-piece floating

system

●

Multiple connectors are allowed on the same PCB

(Allowable Mis-alignment Range : ± 0.3mm in XY

direction)

Metal fitting

Ground plate and metal

fitting make contact

●Floating

Interposer

ing

Float

Flo

ati

■Signal

Integrity Features

●Insertion-Loss-to-Crosstalk-Ratio(ICR)

The insertion-loss-to-crosstalk-ratio (ICR) with

five-aggressor differential FEXT meets the

extrapolated IEEE 802.3ap specification for

Gbps.

ICR (dB)

Z (Ohm)

115

110

105

100

ICR

ICR spec

Frequency (GHz)

●Differential

Impedance

85ø configuration and 100ø configuration are

available.

S(3,3)

200

400

600

Time (ps)

800

1000

■Stack

Height

●2-piece

type

●With

ground plate

Headers

Receptacles

FX10#-*S/*-SV

FX10#-xP/x-SV

4mm

FX10#–xP/x–SV1

5mm

●Without

ground plate

Headers

Receptacles

FX10#-*S-SV

Interposer

FX10-xIP-xD(Q)-8H

FX10#-xP-SV FX10–xP–SV1 FX10#-xP-SV2

4mm

5mm

6mm

FX10#-xP-SV3

7mm

FX10#-xP-SV4

8mm

●3-piece

type

Stacking Height

8mm

9mm

10mm

11mm

12mm

13mm

Header (Mating side)

FX10#-xP-SV

FX10#-xP-SV1

FX10#-xP-SV2

FX10#-xP-SV3

FX10#-xP-SV4

Header(Fixed side)

FX10#-xP-SV

FX10#-xP-SV1

( )

FX10-xIP-xD(Q)-8PH

(H) : Reference dimension

In cases where the application will demand a high level of reliability, such as automotive,

please contact a company representative for further information.

2016.12

FX10 Series●15

Gbps 0.5mm pitch Stacking Connectors

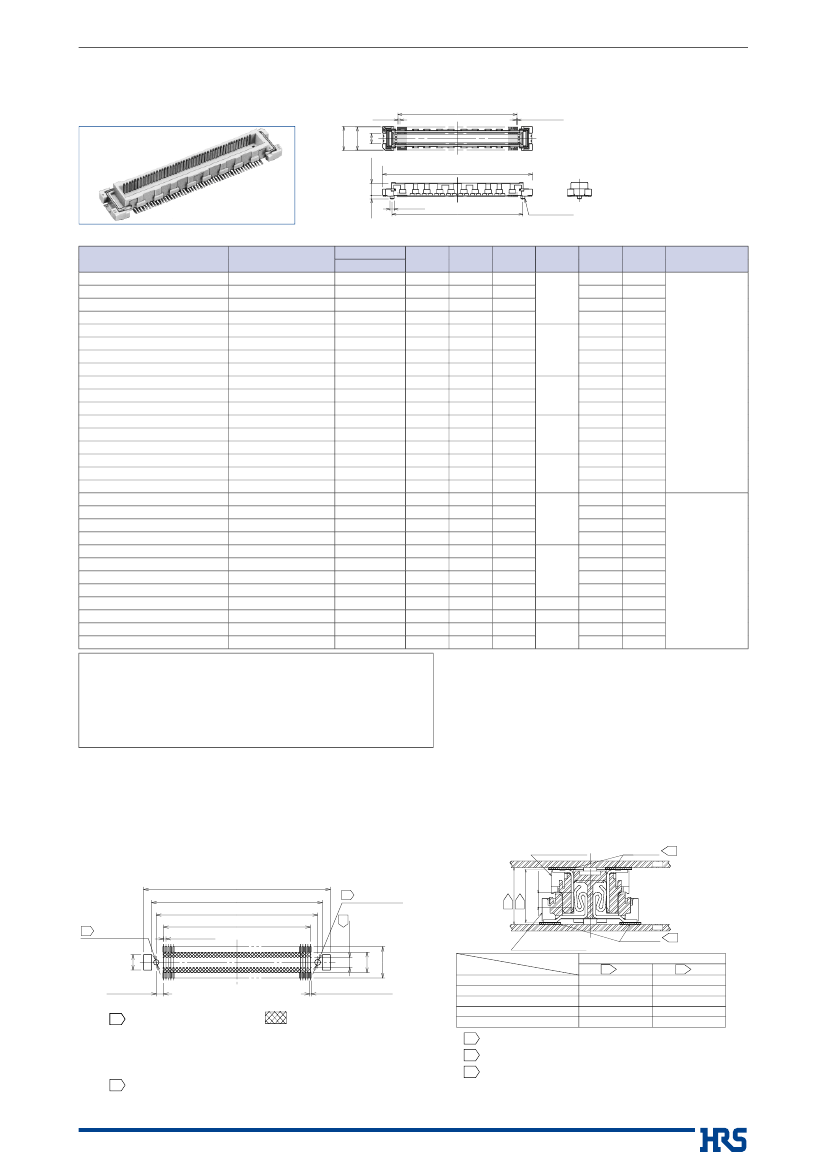

■General

Product Specifications (2 piece type)

Rating

Rated

current

Rated

voltage

0.3 A

50 V AC

Operating temperature

range

Operating humidity

range

-55 to 85ç (Note 1)

Relative humidity 95% max

(No condensation)

Storage

temperature range

Storage humidity

range

-10 to +60ç

(Note 2)

40 to 70%

(Note 2)

Item

1. Insulation resistance

2. Voltage resistance

3. Contact resistance

4. Vibration resistance

5. Shock resistance

Requirements

100Mø min

No flashover or breakdown

60mø max

No electrical discontinuity for 1µs or greater

No damage, cracks, or parts looseness

No electrical discontinuity for 1µs or greater

No damage, cracks, or parts looseness

Conditions

Measured at 100 V DC

150 V AC applied for 1 minute

Measured at 100 mA

Frequency : 10 to 55 Hz, amplitude of 0.75 mm

in 3 axis directions, 10 cycles each.

Acceleration of 490 m/s

, 11ms duration, sine

half-wave waveform, for 3 cycles in both directions

of each of the 3 axes

Contact resistance of 70mø max, insulation

resistance of

Temperature of 40ç, humidity of 90 to 95%,

duration 96 h

100Mø min, no damage, cracks, or parts

looseness

7. Temperature cycle Contact resistance of 70mø max, insulation

Temperature : -55ç

→

15 to 35ç

→

85ç

→

15 to 35ç

resistance of

Time : 30 min.

→

2 to 3 min.

→

30 min.

→

2 to 3 min.

100Mø min, no damage, cracks, or parts

for 5 cycles

looseness

8. Mating Cycles

Contact resistance of 70mø max

50 times

No damage, cracks, or parts looseness

9. Resistance to

No melting of resin portion which affects

Reflow : At the recommended temperature profile

soldering heat

performance

Soldering iron temperature : 360ç for 5 seconds

Note 1 : Includes temperature rise caused by current flow.

Note 2 : The term storage refers to unused products kept for a long time prior to board mounting. Operating temperature

and humidity range are applicable to the non-conducting state after board assembly.

Note 3 : Information contained in this catalog represents general requirements for this series. Contact us for the drawings and

specifications for a specific part number shown.

6. Damp heat

(Steady state)

■Materials

/ Finish

Part

Insulator

Contacts

Ground plate

Metal fitting

Material

LCP

Phosphor bronze

Finish

Beige

Contact Area: Gold plating

Header

Lead Area: Tin plating

Contact Area: Gold plating

Receptacle

Lead Area: Flash plating

Tin plating

Notes

UL94V-0

- -

■Product

Number Structure

Refer to the chart below when determining the product specifications from the product number.

Please select from the product numbers listed in this catalog when placing orders.

FX10 # -

P /

- SV 1 (

)

Series name : FX10

A : With guide post

Connector type

B : Without guide post

Number of contacts

With ground plate

Signal/Ground : 80/8, 100/10, 120/12,

140/14

Without ground plate

Signal : 96, 120, 144, 168

P : Header

S : Receptacle

Mounting style

SV : Straight SMT

Product height

Blank : Standard

: Standard + 1mm

Packaging options

Blank, (71) : Tray packaging

(21), (91) : Embossed tape packaging

FX10 Series●15

Gbps 0.5mm pitch Stacking Connectors

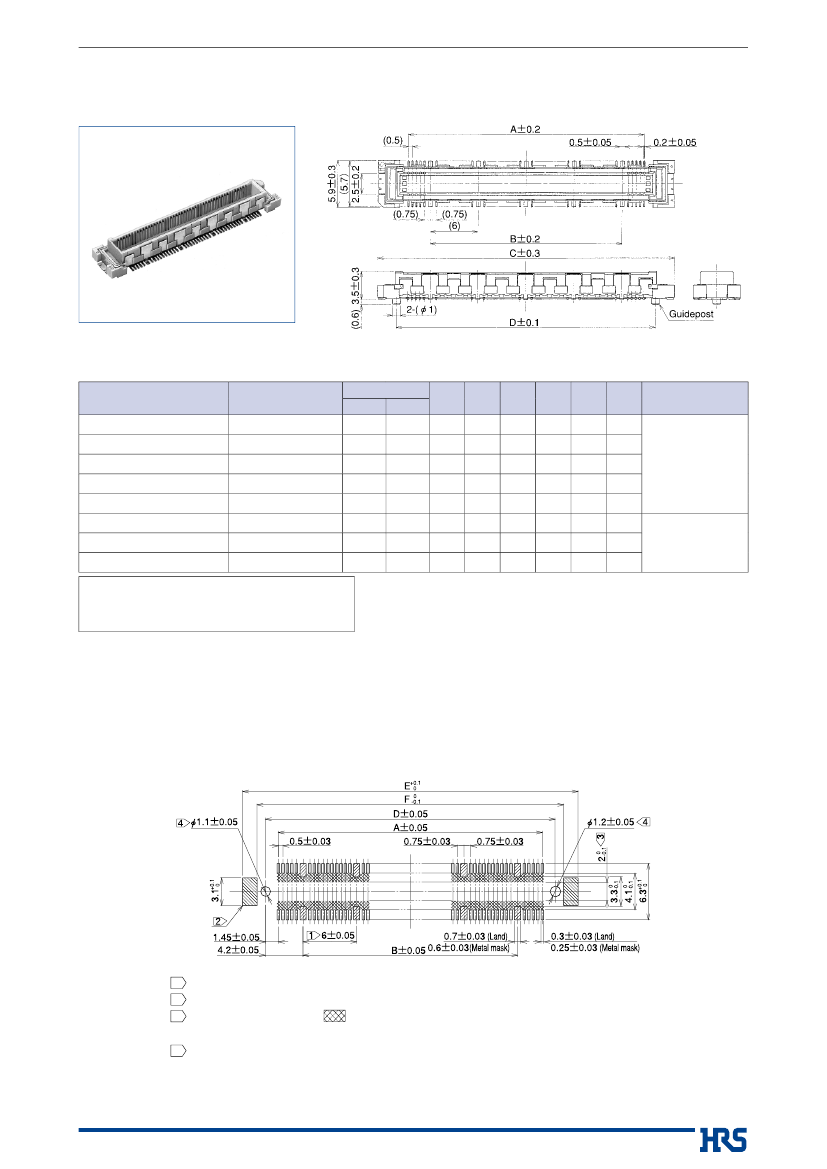

■Headers

without ground plate

●4mm

Stacking Height

5.9±0.3

( 5.7)

D±0.3 2.5±0.2

( 0.5 )

A±0.2

0.2 ±0.05

B±0.3

(0.6)

2-(Ø1)

C±0.1

Guidepost

Unit : mm

Part No.

HRS No.

570-0041-0 **

570-0042-2 **

570-0043-5 **

570-0044-8 **

570-0141-4 **

570-0142-7 **

570-0143-0 **

570-0144-2 **

570-0059-5 **

570-0056-7 **

570-0302-1 **

570-0060-4 **

570-0057-0 **

570-0304-7 **

570-0061-7 **

570-0058-2 **

570-0306-2 **

570-0051-3 **

570-0052-6 **

570-0053-9 **

570-0054-1 **

570-0151-8 **

570-0152-0 **

570-0153-3 **

570-0154-6 **

570-0303-4 **

570-0305-0 **

570-0063-0 **

570-0307-5 **

FX10A-96P-SV(**)

FX10A-120P-SV(**)

FX10A-144P-SV(**)

FX10A-168P-SV(**)

FX10A-96P-SV1(**)

FX10A-120P-SV1(**)

FX10A-144P-SV1(**)

FX10A-168P-SV1(**)

FX10A-120P-SV2(**)

FX10A-144P-SV2(**)

FX10A-168P-SV2(**)

FX10A-120P-SV3(**)

FX10A-144P-SV3(**)

FX10A-168P-SV3(**)

FX10A-120P-SV4(**)

FX10A-144P-SV4(**)

FX10A-168P-SV4(**)

FX10B-96P-SV(**)

FX10B-120P-SV(**)

FX10B-144P-SV(**)

FX10B-168P-SV(**)

FX10B-96P-SV1(**)

FX10B-120P-SV1(**)

FX10B-144P-SV1(**)

FX10B-168P-SV1(**)

FX10B-168P-SV2(**)

FX10B-168P-SV3(**)

FX10B-144P-SV4(**)

FX10B-168P-SV4(**)

No. of Contacts

Signal

120

144

168

120

144

168

120

144

168

120

144

168

120

144

168

120

144

168

120

144

168

144

168

23.5

29.5

35.5

41.5

23.5

29.5

35.5

41.5

29.5

35.5

41.5

29.5

35.5

41.5

29.5

35.5

41.5

23.5

29.5

35.5

41.5

23.5

29.5

35.5

41.5

35.5

41.5

31.1

37.1

43.1

49.1

31.1

37.1

43.1

49.1

37.1

43.1

49.1

37.1

43.1

49.1

37.1

43.1

49.1

31.1

37.1

43.1

49.1

31.1

37.1

43.1

49.1

43.1

49.1

26.4

32.4

38.4

44.4

26.4

32.4

38.4

44.4

32.4

38.4

44.4

32.4

38.4

44.4

32.4

38.4

44.4

—

3.5

31.5

37.5

43.5

49.5

31.5

37.5

43.5

49.5

37.5

43.5

49.5

37.5

43.5

49.5

37.5

43.5

49.5

31.5

37.5

43.5

49.5

31.5

37.5

43.5

49.5

43.5

49.5

28.3

34.3

40.3

46.3

28.3

34.3

40.3

46.3

34.3

40.3

46.3

34.3

40.3

46.3

34.3

40.3

46.3

28.3

34.3

40.3

46.3

28.3

34.3

40.3

46.3

40.3

46.3

Remarks

4.5

5.25

6.25

7.25

With

guideposts

3.5

4.5

5.25

6.25

7.25

Without

guideposts

[Specifications number]-**, (**)

(71) : Tray packaging / AuP 0.1µm

(83) : Embossed tape packaging 1RL : 1000pcs / AuP 0.76µm

(85) : Embossed tape packaging 1RL : 250pcs / AuP 0.76µm

(91) : Embossed tape packaging 1RL : 1000pcs / AuP 0.1µm

(93) : Tray packaging / AuP 0.76µm

Note 1: There is no polarity with respect to board mounting for this product.

Note 2: The coplanarity of this product's SMT leads is 0.1mm or less.

Note 3: Please order embossed tape packaged items by the reel.

Recommended PCB Layout

Dimensions (Metal mask)

Recommended metal mask thickness : 0.15mm

+0.1

-0.1

C ±0.05

A ±0.05

2 Ø1.1 ±0.05

0.5 ±0.03

2 Ø1.2 ±0.05

-0.1

■Board-to-Board

Distance

HEADER CONNECTOR

FX10A(B)-168P-SV*(83)

2 B

1 (A)

(1.1):MATING LENGTH

SOLDER

PCB

3.1

+0.1

RECEPTACLE CONNECTOR

FX10A(B)-168S-SV(83)

4.1

-0.1

SOLDER

6.3

+0.1

1.45±0.05

0.3±0.03(Land)

0.25±0.03(Metal mask)

Note 1 The cross-hatched area

inside the SMT land

may come into contact with the connector contacts

and thus care should be taken that the pattern

does not extend beyond the SMT land width.

2 Not required in products without guideposts.

FX10A(B)-168P-SV(83)

FX10A(B)-168P-SV1(83)

FX10A(B)-168P-SV2(83)

FX10A(B)-168P-SV3(83)

FX10A(B)-168P-SV4(83)

FX10A(B)-168S-SV(83)

1 (A)

2 B

4.3±0.127

5.3±0.127

6.0±0.127

7.0±0.127

8.0±0.127

Note

Stacking height from lead to lead (reference dimensions)

Board-to-board distance

Stencil (metal mask) shall be based on Hirose's

recommended aperture and thickness.

FX10 Series●15

Gbps 0.5mm pitch Stacking Connectors

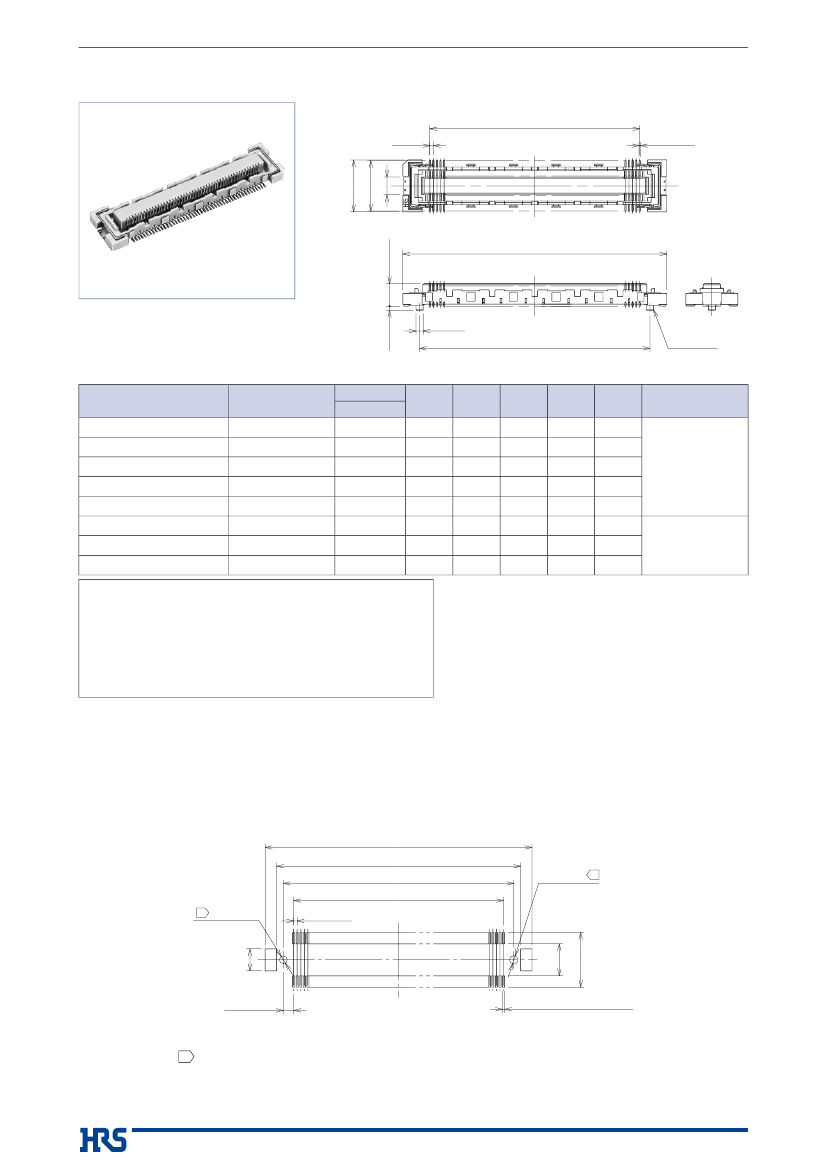

■Receptacles

without ground plate

A±0.2

( 0.5 )

0.2 ±0.05

7.3 ±0.3

2.5 ±0.2

( 7.1 )

3.2±0.3

B±0.3

( 0.6 )

2-(Ø1)

C±0.1

Guidepost

Unit : mm

Part No.

FX10A-96S-SV(**)

FX10A-120S-SV(**)

FX10A-144S-SV(**)

FX10A-168S-SV(**)

FX10B-96S-SV(**)

FX10B-120S-SV(**)

FX10B-144S-SV(**)

FX10B-168S-SV(**)

No. of Contacts

Signal

570-0241-9 **

HRS No.

570-0242-1 **

570-0243-4 **

570-0244-7 **

570-0251-2 **

570-0252-5 **

570-0253-8 **

570-0254-0 **

120

144

168

120

144

168

23.5

29.5

35.5

41.5

23.5

29.5

35.5

41.5

31.1

37.1

43.1

49.1

31.1

37.1

43.1

49.1

26.4

32.4

38.4

44.4

26.4

32.4

38.4

44.4

31.5

37.5

43.5

49.5

31.5

37.5

43.5

49.5

28.3

34.3

40.3

46.3

28.3

34.3

40.3

46.3

Without

guideposts

With

guideposts

Remarks

[Specifications number] -½

½,

(½

½)

Blank: Tray packaging / AuP 0.1µm

(21) : Embossed tape packaging 1RL : 1000pcs / AuP 0.1µm

(83) : Embossed tape packaging 1RL : 1000pcs / AuP 0.76µm

(84) : Embossed tape packaging 1RL : 500pcs / AuP 0.76µm

(85) : Embossed tape packaging 1RL : 250pcs / AuP 0.76µm

(93) : Tray packaging / AuP 0.76µm

Note 1 : There is no polarity with respect to board mounting for this product.

Note 2 : The coplanarity of this product's SMT leads is 0.1mm or less.

Note 3 : Please order embossed tape packaged items by the reel.

Note 4 : Using multiple connectors between two boards is not recommended.

Recommended PCB Layout Dimensions (Metal mask)

Recommended metal mask thickness : 0.15mm

+0.1

-0.1

C±0.05

A±0.05

Ø1.2±0.05

Ø1.1±0.05

3.1

+0.1

0.5±0.03

1.45±0.05

0.3±0.03(Land)

0.25±0.03(Metal mask)

Note 1 Not required in products without guideposts.

4.5

-0.1

7.7

+0.1

FX10 Series●15

Gbps 0.5mm pitch Stacking Connectors

■Headers

with ground plate

●4mm

Stacking Height

Unit : mm

Part No.

FX10A-80P/8-SV(

)

FX10A-100P/10-SV(

)

FX10A-120P/12-SV(

)

FX10A-140P/14-SV(

)

FX10B-80P/8-SV(

)

FX10B-100P/10-SV(

)

FX10B-120P/12-SV(

)

FX10B-140P/14-SV(

)

HRS No.

570-0001-5

570-0002-8

570-0003-0

570-0004-3

570-0021-2

570-0022-5

570-0023-8

570-0024-0

No.of Contacts

Signal Ground

23.5

100

120

140

100

120

140

29.5

35.5

41.5

23.5

29.5

35.5

41.5

Remarks

31.1 26.4 31.5 28.3

37.1 32.4 37.5 34.3

43.1 38.4 43.5 40.3

49.1 44.4 49.5 46.3

31.1

37.1

43.1

49.1

—

31.5 28.3

37.5 34.3

43.5 40.3

49.5 46.3

Without

guideposts

With

guideposts

[Specifications number] -½

½,

(½

½)

(71) : Tray packaging

(91) : Embossed tape packaging

Note 1 : There is no polarity with respect to board mounting for this product.

Note 2 : The coplanarity of this product's SMT leads is 0.1mm or less.

Note 3 : Please order embossed tape packaged items by the reel. (One reel holds 1,000 pieces.)

Note 4 : Using multiple connectors between identical boards is not recommended.

Recommended PCB Layout Dimensions (Metal mask)

Recommended metal mask thickness : 0.15mm

Note 1 Cross-hatched portions, totaling n places, indicate the ground circuits.

2 Cross-hatched portions, 2 places on both sides, indicate the metal fittings.

3 The cross-hatched area

inside the SMT land may come into contact with the connector contacts

and thus care should be taken that the pattern does not extend beyond the SMT land width.

4 Not required in products without guideposts.

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

One of the DC power supply voltage limit indication circuits

Differential circuit using mirror current source as load (c)

Zero-crossing detector circuit diagram B

Two-color simple music lantern controller circuit

Computer motherboard circuit diagram 820 1_16

Help: Does anyone know how to sense a circuit 10 meters or more away? (That is, how to sense the voltage returned by the object or person in front of it) Can anyone tell me? I hope we can communicate with e...; wanxiaotao Automotive Electronics

Data collision processing of RF multi-point communication of cc2530: I'm learning CC2530F256 recently. Now I'm debugging RF communication (simple RF communication, no protocol stack). Considering that there will be data collision during multi-point communication, how t...; FIH RF/Wirelessly

Please advise!!! About the peak detection circuit!!!: Now there is a sinusoidal voltage with a peak-to-peak value of 1 to 1.5V. Can the peak value be detected using the following diagram? If not, is there any better method? Thank you very much! ! ! In ad...; skingshere Embedded System

A relatively novel approach to achieve: I recently found a clever part when I was looking at the code. When you usually use 12864 or 1602 to display numbers, I believe everyone will first split it up, convert it into the corresponding ASCII...; dj狂人 51mcu

[My entry into electronic technology] ----My entry into electronic technology: [font=新宋体] [size=3]I first came into contact with electronics when I was a sophomore. At that time, a teacher in our college began to organize us to learn welding technology. At that time, we welded r...; wangzheyu Talking about work

Please ignore the points: Just for points...; zhangwf Embedded System

Shortcut: L0 L1 L2 L3 L4 L5 L6 L7 L8 L9 LA LB LC LD LE LF LG LH LI LJ LK LL LM LN LO LP LQ LR LS LT LU LV LW LX LY LZ M0 M1 M2 M3 M4 M5 M6 M7 M8 M9 MA MB MC MD ME MF MG MH MI MJ MK ML MM MN MO MP MQ MR MS MT MU MV MW MX MY MZ N0 N1 N2 N3 N4 N5 N6 N7 N8 NA NB NC ND NE NF NG NH NI NJ NK NL NM NN NO NP NQ NR NS NT NU NV NX NZ O0 O1 O2 O3 OA OB OC OD OE OF OG OH OI OJ OK OL OM ON OP OQ OR OS OT OV OX OY OZ P0 P1 P2 P3 P4 P5 P6 P7 P8 P9 PA PB PC PD PE PF PG PH PI PJ PK PL PM PN PO PP PQ PR PS PT PU PV PW PX PY PZ Q1 Q2 Q3 Q4 Q5 Q6 Q8 Q9 QA QB QC QE QF QG QH QK QL QM QP QR QS QT QV QW QX QY R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 RA RB RC RD RE RF RG RH RI RJ RK RL RM RN RO RP RQ RR RS RT RU RV RW RX RY RZ

Popular Components
