BUK661R9-40C,118

Description
MOSFET N-CH 40V 120A D2PAK
CategoryDiscrete semiconductor    The transistor
File Size762KB,15 Pages
ManufacturerNexperia
Websitehttps://www.nexperia.com
Download Datasheet Parametric View All

BUK661R9-40C,118 Overview

MOSFET N-CH 40V 120A D2PAK

BUK661R9-40C,118 Parametric

Parameter NameAttribute value
Brand NameNexperia
MakerNexperia
Parts packaging codeD2PAK
package instructionSMALL OUTLINE, R-PSSO-G2
Contacts3
Manufacturer packaging codeSOT404
Reach Compliance Codenot_compliant
Avalanche Energy Efficiency Rating (Eas)1020 mJ
Shell connectionDRAIN
ConfigurationSINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage40 V
Maximum drain current (ID)120 A
Maximum drain-source on-resistance0.0031 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR
JESD-30 codeR-PSSO-G2
JESD-609 codee3
Humidity sensitivity level1
Number of components1
Number of terminals2
Operating modeENHANCEMENT MODE
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Polarity/channel typeN-CHANNEL
Maximum pulsed drain current (IDM)1107 A
surface mountYES
Terminal surfaceTin (Sn)
Terminal formGULL WING
Terminal locationSINGLE
transistor applicationsSWITCHING
Transistor component materialsSILICON

BUK661R9-40C,118 Preview

BUK661R9-40C
N-channel TrenchMOS intermediate level FET
Rev. 1 — 18 August 2010
Product data sheet
1. Product profile
1.1 General description
Intermediate level gate drive N-channel enhancement mode Field-Effect Transistor (FET)
in a plastic package using advanced TrenchMOS technology. This product has been
designed and qualified to the appropriate AEC Q101 standard for use in high performance
automotive applications.
1.2 Features and benefits
AEC Q101 compliant
Suitable for intermediate level gate
drive sources
Suitable for thermally demanding
environments due to 175 °C rating
1.3 Applications
12 V Automotive systems
Electric and electro-hydraulic power
steering
Motors, lamps and solenoid control
Start-Stop micro-hybrid applications
Transmission control
Ultra high performance power
switching
1.4 Quick reference data
Table 1.
Symbol
V
DS
I
D
P
tot
Quick reference data
Parameter
drain-source
voltage
drain current
total power
dissipation
drain-source
on-state
resistance
Conditions
T
j
25 °C; T
j
175 °C
V
GS
= 10 V; T
mb
= 25 °C;
see
Figure 1
T
mb
= 25 °C; see
Figure 2
[1]
Min
-
-
-
Typ
-
-
-
Max Unit
40
120
306
V
A
W
Static characteristics
R
DSon
V
GS
= 10 V; I
D
= 25 A;
T
j
= 25 °C; see
Figure 11
-
1.6
1.9
mΩ
Nexperia
BUK661R9-40C
N-channel TrenchMOS intermediate level FET
Table 1.
Symbol
E
DS(AL)S
Quick reference data
…continued
Parameter
Conditions
Min
-
Typ
-
Max Unit
1.02 J
Avalanche ruggedness
non-repetitive
I
D
= 120 A; V
sup
40 V;
drain-source
R
GS
= 50
Ω;
V
GS
= 10 V;
avalanche energy T
j(init)
= 25 °C; unclamped
gate-drain charge I
D
= 25 A; V
DS
= 32 V;
V
GS
= 10 V; see
Figure 13;
see
Figure 14
Dynamic characteristics
Q
GD
-
72
-
nC
[1]
Continuous current is limited by package.
2. Pinning information
Table 2.
Pin
1
2
3
mb
Pinning information
Symbol Description
G
D
S
D
gate
Drain
source
mounting base; connected to
drain
2
1
3
mb
D
Simplified outline
Graphic symbol
G
mbb076
S
SOT404 (D2PAK)
3. Ordering information
Table 3.
Ordering information
Package
Name
BUK661R9-40C
D2PAK
Description
Version
plastic single-ended surface-mounted package (D2PAK); 3 leads SOT404
(one lead cropped)
Type number
BUK661R9-40C
All information provided in this document is subject to legal disclaimers.
©
Nexperia B.V. 2017. All rights reserved
Product data sheet
Rev. 1 — 18 August 2010
2 of 15
Nexperia
BUK661R9-40C
N-channel TrenchMOS intermediate level FET
4. Limiting values
Table 4.
Symbol
V
DS
V
GS
I
D
I
DM
P
tot
T
stg
T
j
I
S
I
SM
E
DS(AL)S
E
DS(AL)R
Limiting values
Parameter
drain-source voltage
gate-source voltage
drain current
peak drain current
total power dissipation
storage temperature
junction temperature
source current
peak source current
non-repetitive drain-source
avalanche energy
repetitive drain-source
avalanche energy
T
mb
= 25 °C
t
p
10 µs; pulsed; T
mb
= 25 °C
I
D
= 120 A; V
sup
40 V; R
GS
= 50
Ω;
V
GS
= 10 V; T
j(init)
= 25 °C; unclamped
[4][5][6]
[3]
In accordance with the Absolute Maximum Rating System (IEC 60134).
Conditions
T
j
25 °C; T
j
175 °C
Pulsed
DC
T
mb
= 25 °C; V
GS
= 10 V; see
Figure 1
T
mb
= 100 °C; V
GS
= 10 V; see
Figure 1
T
mb
= 25 °C; t
p
10 µs; pulsed;
see
Figure 3
T
mb
= 25 °C; see
Figure 2
[1]
[2]
[3]
[3]
Min
-
-20
-16
-
-
-
-
-55
-55
-
-
-
-
Max
40
20
16
120
120
1107
306
175
175
120
1107
1.02
-
Unit
V
V
V
A
A
A
W
°C
°C
A
A
J
J
Source-drain diode
Avalanche ruggedness
[1]
[2]
[3]
[4]
[5]
[6]
Accumulated pulse duration not to exceed 5mins.
-16V accumulated duration not to exceed 168 hrs
Continuous current is limited by package.
Single-pulse avalanche rating limited by maximum junction temperature of 175 °C.
Repetitive avalanche rating limited by an average junction temperature of 170 °C.
Refer to application note AN10273 for further information.
BUK661R9-40C
All information provided in this document is subject to legal disclaimers.
©
Nexperia B.V. 2017. All rights reserved
Product data sheet
Rev. 1 — 18 August 2010
3 of 15
Nexperia
BUK661R9-40C
N-channel TrenchMOS intermediate level FET
300
I
D
(A)
003aac385
120
P
der
(%)
80
03na19
200
(1)
100
40
0
0
50
100
150
T
mb
(°C)
200
0
0
50
100
150
T
mb
(°C)
200

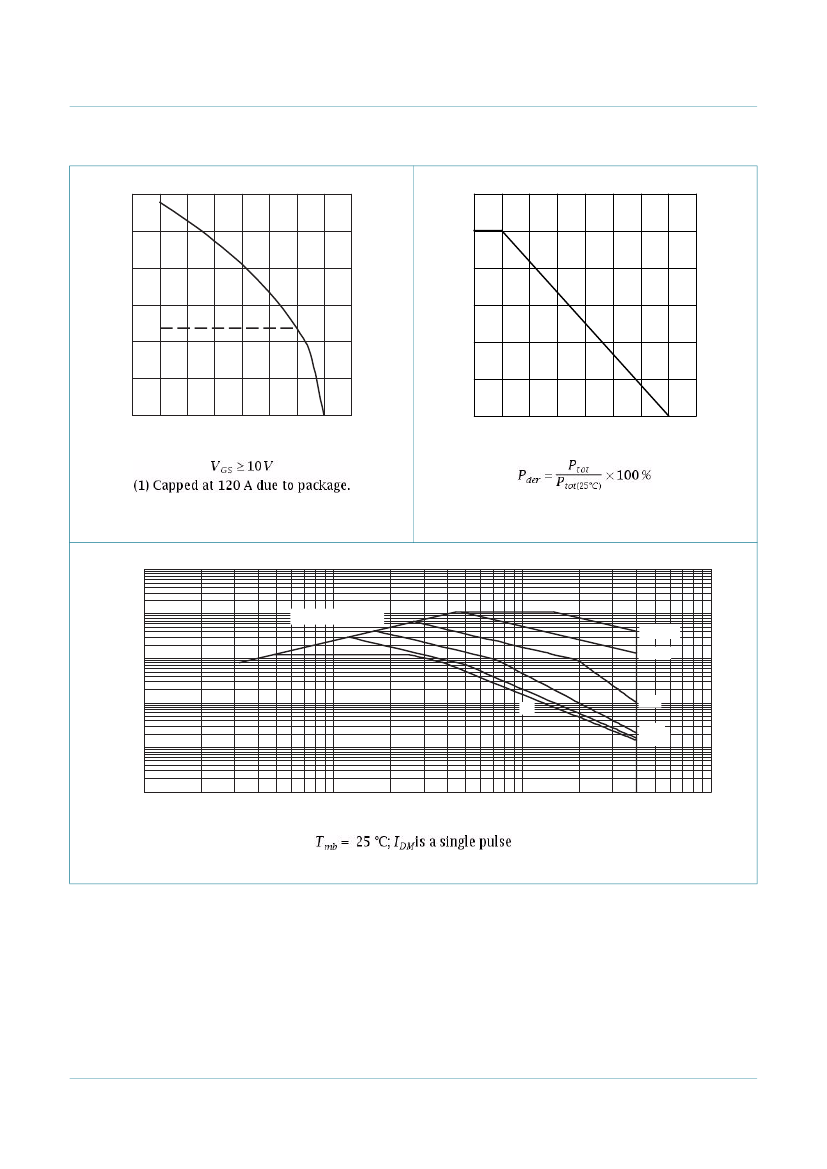

Fig 1.
Continuous drain current as a function of
mounting base temperature
10
4
I
D
(A)
10
3
Limit R
DSon
= V / I
D
DS
Fig 2.
Normalized total power dissipation as a
function of mounting base temperature
003aae247
t
p
=10
µ
s
100
µ
s
10
2
10
DC
1 ms
10 ms
100 ms
1
10
-1
10
-1
1
10
V
DS
(V)
10
2
Fig 3.
Safe operating area; continuous and peak drain currents as a function of drain-source voltage
BUK661R9-40C
All information provided in this document is subject to legal disclaimers.
©
Nexperia B.V. 2017. All rights reserved
Product data sheet
Rev. 1 — 18 August 2010
4 of 15
Nexperia
BUK661R9-40C
N-channel TrenchMOS intermediate level FET
5. Thermal characteristics
Table 5.
Symbol
R
th(j-mb)
R
th(j-a)
Thermal characteristics
Parameter
thermal resistance from
junction to mounting base
thermal resistance from
junction to ambient
Conditions
see
Figure 4
vertical in free air
Min
-
-
Typ
-
60
Max
0.49
-
Unit
K/W
K/W
1
003aae269
Z
th(j-mb)
(K/W)
10
-1
δ
= 0.5
0.2
0.1
0.05
t
p
T
10
-2
0.02
P
δ
=
single shot
10
-3
10
-6
10
-5
10
-4
10
-3
10
-2
10
-1
t
p
T
t
t
p
(s)
1
Fig 4.
Transient thermal impedance from junction to mounting base as a function of pulse duration
BUK661R9-40C
All information provided in this document is subject to legal disclaimers.
©
Nexperia B.V. 2017. All rights reserved
Product data sheet
Rev. 1 — 18 August 2010
5 of 15
