BD8LB600FS-CE2

Description
8CH LOW-SIDE SWITCH
Categorysemiconductor    Power management
File Size1MB,27 Pages
ManufacturerROHM Semiconductor
Websitehttps://www.rohm.com/
Environmental Compliance
Download Datasheet Parametric View All

BD8LB600FS-CE2 Online Shopping

Suppliers Part Number Price MOQ In stock
BD8LB600FS-CE2 - - View Buy Now

BD8LB600FS-CE2 Overview

8CH LOW-SIDE SWITCH

BD8LB600FS-CE2 Parametric

Parameter NameAttribute value
Switch typeUniversal
Number of outputs8
Ratio - Input:Output4:8
Output configurationlow end
Output typeN channel
interfaceSPI
Voltage - Load3 V ~ 5.5 V
Voltage - Power Supply (Vcc/Vdd)3 V ~ 5.5 V
Current - Output (maximum)1A
On-resistance (typ.)1.1 ohm
input typenon-inverting
characteristic-
failsafeCurrent limit (fixed), open load detection, over-temperature, UVLO
Operating temperature-40°C ~ 150°C(TJ)
Package/casing24-SOP (0.213", 5.40mm wide)
Supplier device packaging24-SSOPA

BD8LB600FS-CE2 Preview

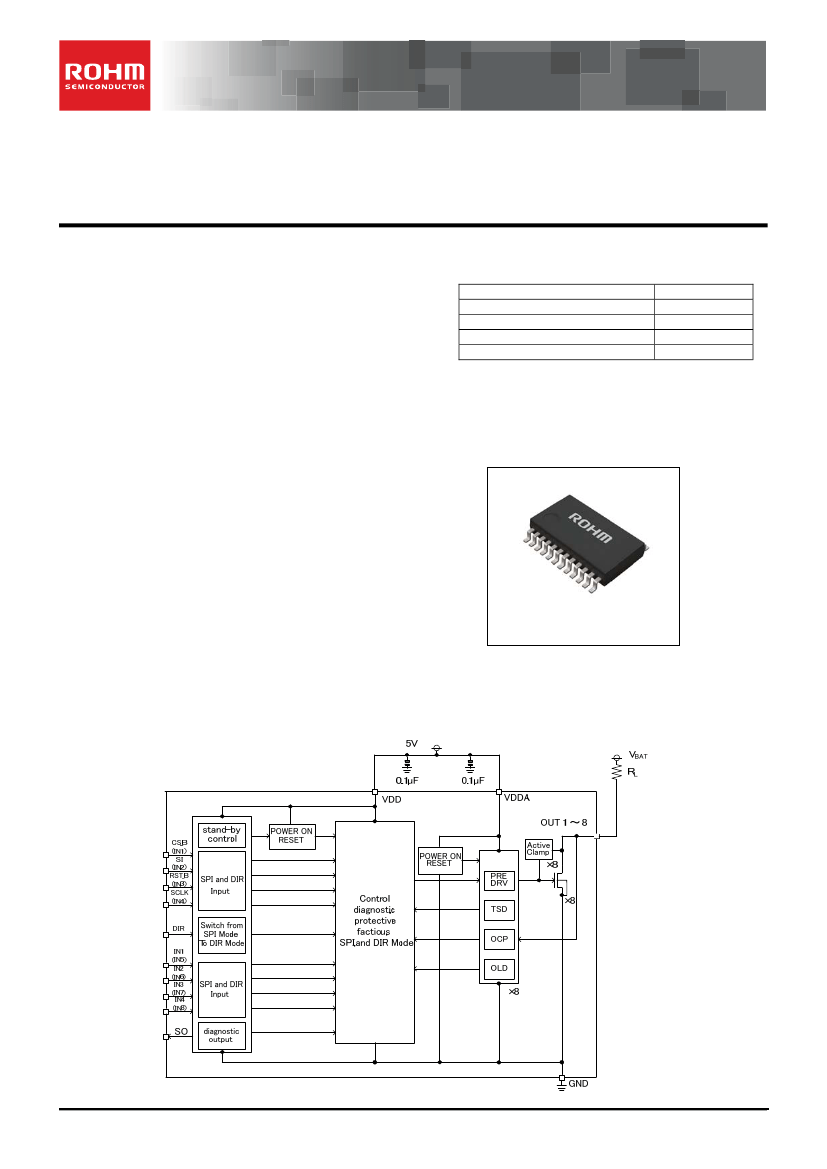

Datasheet
IPD series for Automotive
8ch Low-side switch
BD8LB600FS-C
Features
Monolithic power IC that has a built-in control part
(CMOS) and a power MOS FET on 1chip
8ch Low-side switch for driving resistive, inductive,
capacitive load
16bit Serial peripheral interface(SPI) for diagnostics
and control
Built-in Open Load Detection circuit in output-off state
Built-in Self restart Over Current Protection circuit
(OCP)
Built-in Over Voltage Protection for Output circuit
Built-in Self restart Over Heating Protection circuit
(TSD)
Low On resistance of R
ON
=600mΩ(V
IN
=5V, Tj=25°C,
I
Dn
=0.2A)
Surface mount SSOP-A24 Package
AEC-Q100 Qualified
(1)
(1)Grade 1
Product Summary
Digital part Operating voltage
Analog part Operating voltage
On-state resistance(25°C,Typ)
Over current limit(Typ)
Active clamp energy(25°C)
3.0V to 5.5V
4.0V to 5.5V
600mΩ
1.80A
70mJ
Package
SSOP-A24
10.00mm x 7.80mm x 2.10mm
Overview
BD8LB600FS-C is an Automotive 8ch Low-Side switch.
It has a built-in Over Current Protection circuit, Thermal
Shutdown circuit, Open Load Detection circuit, Under
Voltage Lock Out circuit, and has a Diagnostic
Output(SO) function during abnormal detection.
Application
8ch Low-side switch for driving resistive,
inductive, capacitive load
SSOP-A24
Basic Application Circuit (Recommendation)
Product
configuration: Silicon monolithic integrated circuit
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
TSZ22111・14・001
○The
product is not designed for radiation resistance.
1/24
TSZ02201-0G3G0BD00050-1-2
08.Jun.2017 Rev.004
BD8LB600FS-C
Pin Descriptions
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
(1)
(2)
Datasheet
Symbol
GND
GND
OUT1
OUT2
OUT3
OUT4
OUT5
OUT6
OUT7
OUT8
GND
GND
VDD
IN4(IN8)
IN3(IN7)
IN2(IN6)
IN1(IN5)
DIR
SO
SCLK(IN4)
RST_B(IN3)
SI(IN2)
CS_B(IN1)
VDDA
I
I
I
I
I
I
I
I
I
I/O
(1)
-
-
O
O
O
O
O
O
O
O
-
-
-
PD
PD
PD
PD
PD
O
PD
PD
PD
-
GND
GND
Channel 1 output
Channel 2 output
Channel 3 output
Channel 4 output
Channel 5 output
Channel 6 output
Channel 7 output
Channel 8 output
GND
GND
Digital power supply
Function
Control input for Channel 4 and 8 (DIR=L) / Control input for Channel 8 (DIR=H)
Control input for Channel 3 and 7 (DIR=L) / Control input for Channel 7 (DIR=H)
Control input for Channel 2 and 6 (DIR=L) / Control input for Channel 6 (DIR=H)
Control input for Channel 1 and 5 (DIR=L) / Control input for Channel 5 (DIR=H)
SPI mode, DIR mode change input terminal
Serial data output terminal
Serial clock (DIR=L) / Control input for Channel 4 (DIR=H)
Reset terminal (DIR=L) / Control input for Channel 3 (DIR=H)
Serial data input (DIR=L) / Control input for Channel 2 (DIR=H)
Analog power supply
PU/PD
(2)
SPI enable input (DIR=L) / Control input for Channel 1 (DIR=H)
O:Output terminal, I:Input terminal
PD:Pull Down terminal, PU:Pull Up terminal
Pull Up at DIR=Low setting, Pull Down at DIR=High
Pin Configurations
SSOP-A24
(TOP VIEW)
1.GND
2.GND
3.OUT1
4.OUT2
5.OUT3
6.OUT4
7.OUT5
8.OUT6
9.OUT7
10.OUT8
11.GND
12.GND
24.VDDA
23.CS_B(IN1)
22.SI(IN2)
21.RST_B(IN3)
20.SCLK(IN4)
19.SO
18.DIR
17.IN1(IN5)
16.IN2(IN6)
15.IN3(IN7)
14.IN4(IN8)
13.VDD
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
2/24
TSZ02201-0G3G0BD00050-1-2
08.Jun.2017 Rev.004
BD8LB600FS-C
Absolute Minimum Ratings
Item
DRAIN-SOURCE voltage
Power supply voltage (Logic)
Power supply voltage (Analog)
Diagnostic output voltage
Output current (DC)
Output current (Pulse)
Input voltage
Power consumption
Operating temperature range
Storage temperature range
Maximum junction temperature
Active clamp energy
(single pulse)
(T
j(0)
= 25°C)
(T
j(0)
= 150°C)
Symbol
V
DS
V
DD
V
DDA
V
SO
I
OUT
I
OP
V
IN
Pd
T
opr
T
stg
T
jmax
E
AV
Limit values
45(Internally limited)
7
(1)
7
-0.3 to +7
1.0(Internally limited)
Internally limited
(3)
-0.3 to +7
1.0(SSOP-A24)
(4)
-40 to +150
-55 to +150
150
70
(5)
50
(6)
(2)
Datasheet
Unit
V
V
V
V
A
A
V
W
°C
°C
°C
mJ
mJ
(1) However、V
DD
< V
DDA
+ 0.3V
(2) However, exceed neither Pd nor ASO.
(3) Internally limited by the overcurrent limiting circuit.
(4) IC mounted on ROHM standard board (70×70*1.6[mm], glass epoxy 1 layer board).
Derate by 8.0mW/℃ above 25℃.
(5) Min Active clamp energy at T
j ( 0 )
= 25°C, using single non-repetitive pulse of 0.5A
(6) Min Active clamp energy at T
j ( 0 )
=150°C, using single non-repetitive pulse of 0.5A. Not 100% tested.
Operating Voltage Ratings
Item
Digital part Operating voltage
Analog part Operating voltage
Code
V
DD
V
DDA
Limit values
3.0 to 5.5
4.0 to 5.5
Unit
V
V
Heat Dissipation Characteristic
Pd[W½
2.0
1.5
1.0
0.5
0
25
50
75
100
125
150
Ta[°C½
(SSOP-A24) IC mounted on ROHM standard board (70×70*1.6[mm], glass epoxy 1 layer board).
Derate by 8.0mW/
°C
above 25
°C
.
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
3/24
TSZ02201-0G3G0BD00050-1-2
08.Jun.2017 Rev.004
BD8LB600FS-C
Electrical Characteristics
(unless
otherwise specified, VDDA=5V,VDD=5V,-40°C
≤Tj ≤+150°C
Item
[Power Supply Block]
VDDA Standby current
(All output on standby mode)
VDD Standby current
(All output on standby mode)
VDDA Operating current)
VDD Operating current)
VDDA power on reset
Threshold Voltage
VDD power on reset
Threshold Voltage
[Input PIN]
L level input voltage
H level input voltage
Input Hysteresis
L level input current 1
(RST_B,DIR,IN1 to IN4,SCLK,SI)
L level input current 2(CS_B)
H level input current 1
(RST_B,DIR,IN1 to IN4,SCLK,SI)
H level input current 2(CS_B)
[Power MOS Output]
-
Output ON resistance
R
DS(ON)
-
Output sink current
Output leak current
(Open load detected)
Switching time
t
OFF
Slew rate on
Slew rate off
PWM Output range
Output clamp voltage
Minimum Output Voltage
(Load short-circuited)
(1) n means ch number
Datasheet
Symbol
Min
-
-
-
-
-
-
0
VDD×0.7
0.1
-10
-100
25
-10
Limit values
Typ
0
0
2
0.5
-
-
-
-
0.3
0
-50
50
0
Max
20
20
5
1
4.0
2.7
VDD×0.2
VDD
0.5
10
-25
100
10
Unit
Condition
VDDA=VDD=5V,
CS_B=5V, RST_B=0V
VDDA=VDD=5V,
CS_B=5V, RST_B=0V
VDDA=VDD=5V
VDDA=VDD=5V
I
DDAS
I
DDS
I
DDA
I
DD
V
PORA
V
POR
V
INL
V
INH
V
HYS
I
INL1
I
INL2
I
INH1
I
INH2
μA
μA
mA
mA
V
V
V
V
V
μA
μA
μA
μA
RST_B=DIR=IN1 to IN4=SCLK
=SI=0V
CS_B(DIR=L)=0V
RST_B=DIR=IN1 to IN4=SCLK
=SI=5V
CS_B(DIR=L)=5V
VDD=VDDA=5V, I
DS
=0.2A,
Tj=25°C
VDD=VDDA=5V, I
DS
=0.2A,
Tj=150°C
V
DS
=30V, Tj=25°C
V
DS
=30V, Tj=150°C
V
DS
=40V
VDD=VDDA=5V,CS_B=0V/5V,
R
L
=60Ω,VB=12V
VDD=VDDA=5V,CS_B=0V/5V,
R
L
=60Ω,VB=12V
VDD=VDDA=5V,CS_B=0V/5V,
R
L
=60Ω,VB=12V
VDD=VDDA=5V,CS_B=0V/5V,
R
L
=60Ω,VB=12V
VDD=VDDA=5V,INn=0V/5V,
R
L
=60Ω,VB=12V
I
DS
=1mA(at Output turn off)
INn
(1)
=5V,RL=0Ω
0.6
1.1
10
15
50
20
20
1
1
-
50
-
0.8
1.4
20
40
100
50
50
3
3
1.2
55
-
μA
μA
μA
μs
μs
V/μs
V/μs
kHz
V
V
I
L(OFF)
I
OL
t
ON
-
-
25
-
-
0.3
0.3
-
45
31
dV/dt
ON
-dV/dt
OFF
f
PWM
V
CL
V
DS(S)
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
4/24
TSZ02201-0G3G0BD00050-1-2
08.Jun.2017 Rev.004
BD8LB600FS-C
Electrical Characteristics(
unless otherwise specified, VDDA=5V,VDD=5V,-40°C
≤Tj ≤+150°C
Item
[Serial Output]
L level output voltage
H level output voltage
Serial out output leak current
[Protect circuit]
Over current detection current
Over current release current
Over current detection time
Open Load release voltage
Open load detection threshold
voltage
Open load detection time
(1)
(2)
Not 100% tested
n means ch number
Datasheet
Symbol
Min
-
VDD-0.6
-5
1.00
0.70
(1)
50
0.70
1.00
50
Limit values
Typ
0.3
VDD-0.3
0
1.80
1.26
(1)
250
1.50
1.75
300
Max
0.6
-
5
3.00
2.10
(1)
600
2.70
3.00
600
Unit
Condition
V
SOL
V
SOH
I
SO(OFF)
I
OCP(ON)
I
OCP(OFF)
t
OCP
V
OLD(ON)
V
OLD(OFF)
t
OLD
V
V
μA
A
A
μs
V
V
μs
I
SO
=1mA
I
SO
=-1mA
INn
(2)
=0V
INn
(2)
=0V
INn
(2)
=0V
Definition
Figure 1. Definition
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
5/24
TSZ02201-0G3G0BD00050-1-2
08.Jun.2017 Rev.004
SMT machine rack production tutorial and rack material list
SMT rack production tutorial and rack material list download address:...
net2uizoo Creative Market
Please explain the relevant knowledge of ADC and DMA in detail. It is really painful for me.
//DMA1 channel configurationDMA_DeInit(DMA1_Channel1); //Set to CH1 DMA contains 7 channels (CH1-CH7) DMA_InitStructure.DMA_PeripheralBaseAddr = ADC1_DR_Address; //Give DMA the starting addressDMA_Ini...
wubaobao1993 stm32/stm8
I need an expert to answer my question about hardware circuit design of 7128. I am confused. . .
My program has been debugged on the test box. But I don't know how to design the hardware board. The main thing is to connect the 0832DA conversion part. Because I used to use a single-chip microcompu...
渡渡鸟 FPGA/CPLD
MIMO Smart Antenna Technology in 4G
I. Introduction Smart antennas are also commonly referred to as adaptive antenna arrays. They can form specific antenna beams to achieve directional transmission and reception, and are mainly used to ...
呱呱 Industrial Control Electronics
Good news, TI's TM4C129X with PHY network port is out, the DEMO board is already in hand, and the picture will be posted tomorrow
Good news, TI's TM4C129X with PHY network port is out, DEMO board is already in hand, will post pictures tomorrow :Laugh::Laugh::Laugh: The main difference is that the package is only BGA212, TQFP128 ...
fengzhang2002 Microcontroller MCU
Sharing the process of WEBENCH design + designing a 3.7V lithium battery to boost 12V power supply
[b]Idea of a solution[/b] When designing portable instruments or handheld devices, lithium batteries are used to power the MCU. Most of the batteries here use 18650 type 3.7V output lithium batteries....
yyl830113 Analogue and Mixed Signal

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

Index Files: 276  981  1014  701  1503  6  20  21  15  31
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
