31007103 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 31007103

31007103: DescriptionSCREW TYPE TERMINAL BLOCK, PLUG,; CategoryThe connector; File Size331KB，5 Pages; ManufacturerMETZ CONNECT USA Inc.; Environmental Compliance

Download Datasheet Parametric Compare View All

31007103 Overview

SCREW TYPE TERMINAL BLOCK, PLUG,

31007103 Parametric

Parameter Name	Attribute value
type	Plug without shroud
Number of pins	3
Number of pins per level	3
Number of levels	1
spacing	0.197"（5.00mm）
Needle seat direction	-
Plug entrance	90°
Terminal type	Screws - leaf springs, wire guards
Installation type	free hanging
Current - IEC	-
Current - UL	15A
Voltage - UL	300V
Wire Gauge or Range - AWG	12-22 AWG
Wire gauge or range - mm²	0.33-2.5mm²
color	black
Operating temperature	-40°C ~ 105°C
Contact mating surface treatment	gold, nickel alloy
characteristic	-
Material flammability rating	UL94 V-0
Intrusion protection	-
Screw size	M3
Torque - Screws	0.79 Nm（7.0 Lb-In）
Wire stripping length	-
Contact material	Beryllium copper
Shell material	Polyamide (PA66), Nylon 6/6
Contact tail length	-
Insulation height	0.504"（12.80mm）

Preview

Download Datasheet

View All

Data Sheet

RP025xxIBWC

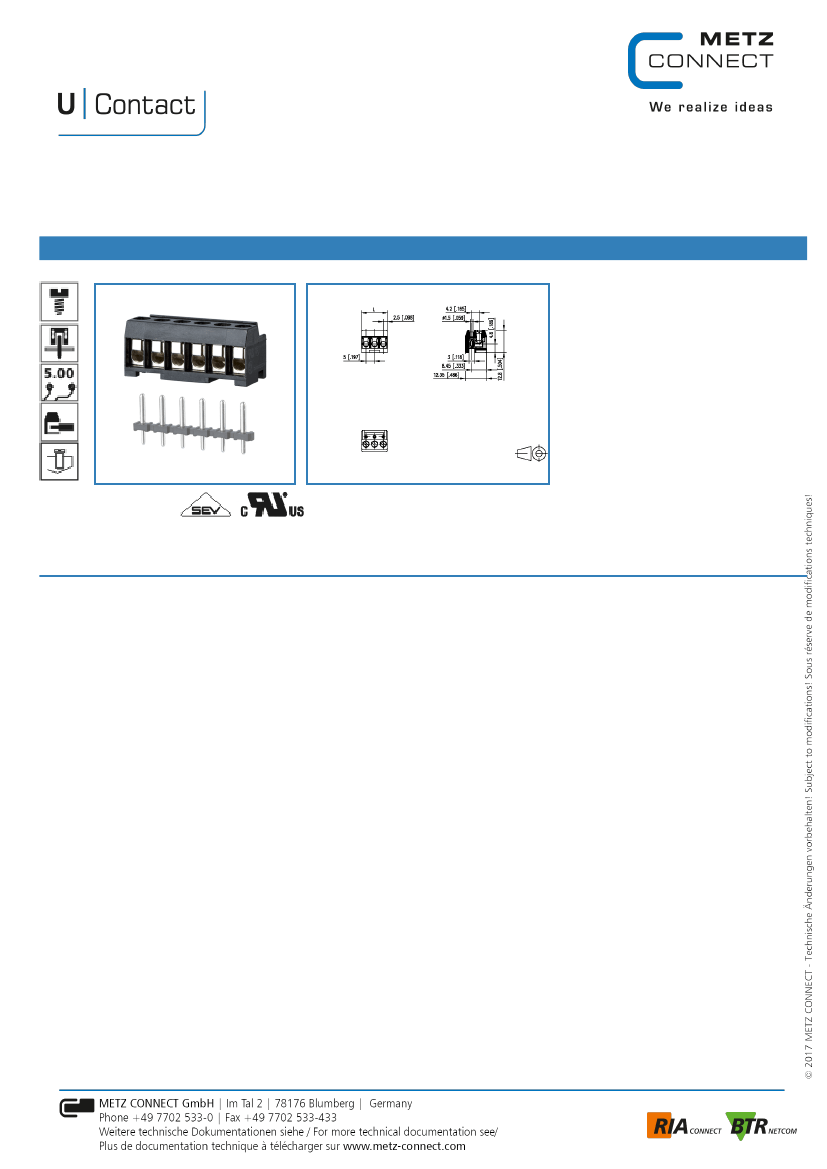

Illustration

Page 1/5

P/N

310071xx

xx=number of poles

2017/05/04

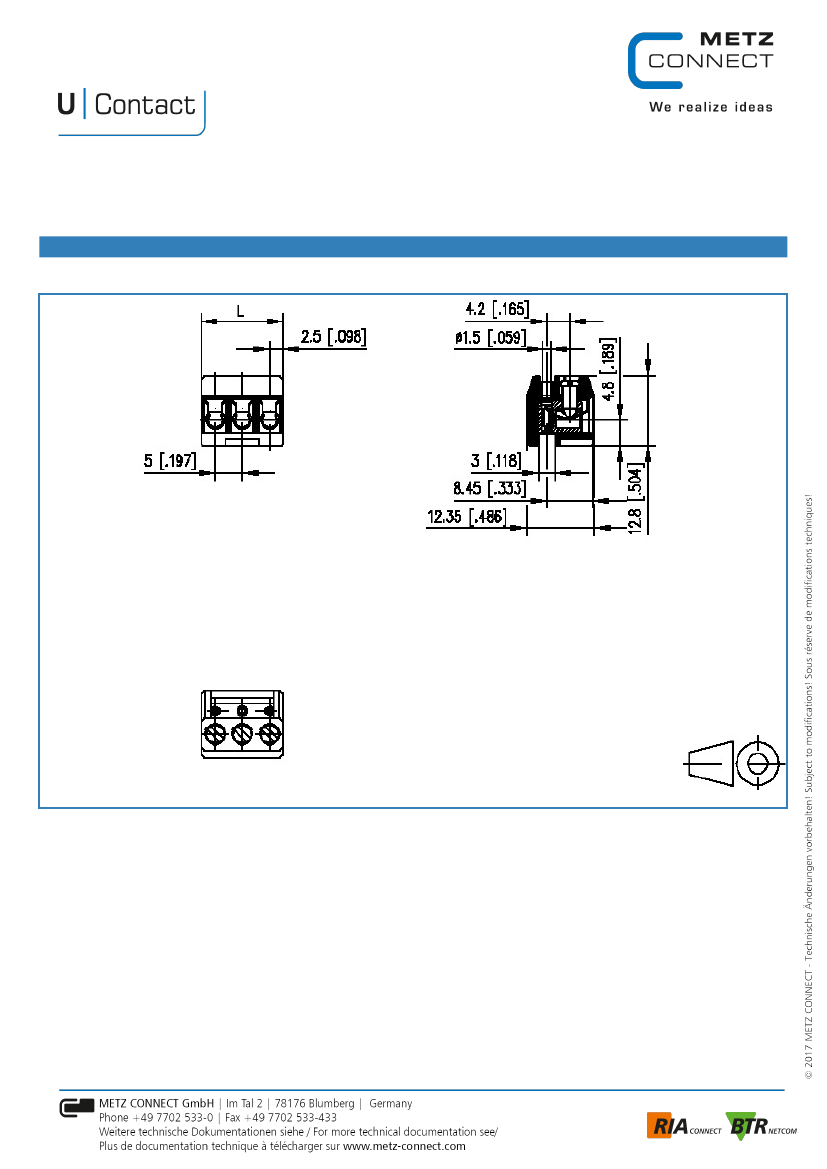

see enlarged drawing at the end of the document

Product specification

• screw type terminal block, pluggable

• centerline 5.00 mm, direction of connection 90°

• wire protector, fittable without loss of poles

• color black

• wire entry perpendicular to plug direction, lamella

31007103 Related Products

	31007103	31007102	31007104	31007106
Description	SCREW TYPE TERMINAL BLOCK, PLUG,	SCREW TYPE TERMINAL BLOCK, PLUG,	SCREW TYPE TERMINAL BLOCK, PLUG,	SCREW TYPE TERMINAL BLOCK, PLUG,
type	Plug without shroud	Plug without shroud	Plug without shroud	Plug without shroud
Number of pins	3	2	4	6
Number of pins per level	3	2	4	6
Number of levels	1	1	1	1
spacing	0.197"（5.00mm）	0.197"（5.00mm）	0.197"（5.00mm）	0.197"（5.00mm）
Plug entrance	90°	90°	90°	90°
Terminal type	Screws - leaf springs, wire guards	Screws - leaf springs, wire guards	Screws - leaf springs, wire guards	Screws - leaf springs, wire guards
Installation type	free hanging	free hanging	free hanging	free hanging
Current - UL	15A	15A	15A	15A
Voltage - UL	300V	300V	300V	300V
Wire Gauge or Range - AWG	12-22 AWG	12-22 AWG	12-22 AWG	12-22 AWG
Wire gauge or range - mm²	0.33-2.5mm²	0.33-2.5mm²	0.33-2.5mm²	0.33-2.5mm²
color	black	black	black	black
Operating temperature	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C
Contact mating surface treatment	gold, nickel alloy	gold, nickel alloy	gold, nickel alloy	gold, nickel alloy
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Screw size	M3	M3	M3	M3
Torque - Screws	0.79 Nm（7.0 Lb-In）	0.79 Nm（7.0 Lb-In）	0.79 Nm（7.0 Lb-In）	0.79 Nm（7.0 Lb-In）
Contact material	Beryllium copper	Beryllium copper	Beryllium copper	Beryllium copper
Shell material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Insulation height	0.504"（12.80mm）	0.504"（12.80mm）	0.504"（12.80mm）	0.504"（12.80mm）
