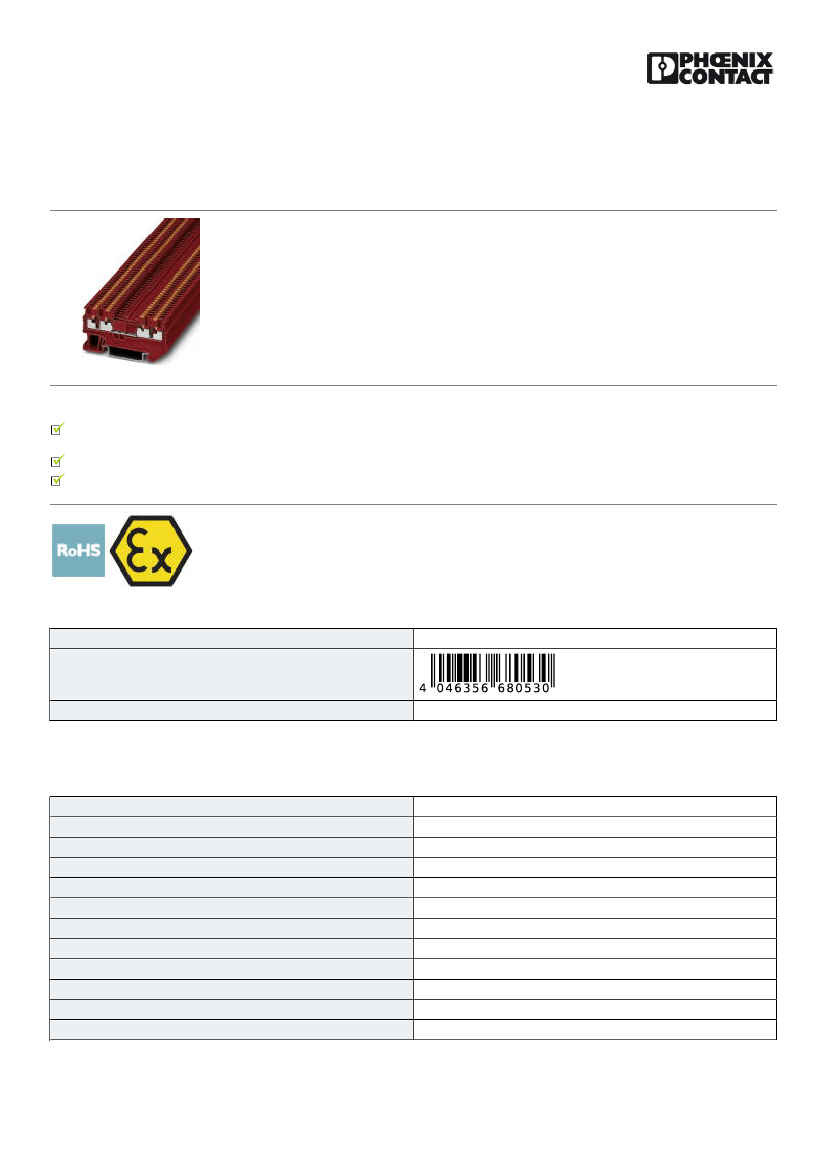

Feed-through terminal block - PT 1,5/S-QUATTRO RD - 3208200
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Feed-through terminal block, nom. voltage: 500 V, nominal current: 17.5 A, connection method: Push-in
connection, number of connections: 4, cross section:0.14 mm² - 1.5 mm², AWG: 26 - 16, width: 3.5 mm,
height: 30.5 mm, color: red, mounting type: NS 35/7,5, NS 35/15
Your advantages
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free
wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection
Key Commercial Data
Packing unit
GTIN
GTIN
4046356680530
50 pc
Technical data
General
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Maximum power dissipation for nominal condition
1
4
1
1.5 mm²
red
PA
V0
6 kV
3
III
I
0.56 W
10/21/2018 Page 1 / 5
https://www.phoenixcontact.com/pi/products/3208200
Feed-through terminal block - PT 1,5/S-QUATTRO RD - 3208200
Technical data
General
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
17.5 A
17.5 A
500 V
Yes
Dimensions
Width
End cover width
Length
Height
Height NS 35/7,5
Height NS 35/15
3.5 mm
2.2 mm
63.2 mm
30.5 mm
32 mm
39.5 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Stripping length
Internal cylindrical gage
Push-in connection
IEC 60947-7-1
0.14 mm²
1.5 mm²
26
16
0.14 mm²
1.5 mm²
26
16
0.14 mm²
0.14 mm²
1 mm² Using the AI-S 1-8 TQ ferrule, Order No. 1200293, is
recommended
8 mm
A1 / B1
Conductor cross section flexible, with ferrule without plastic sleeve max. 1.5 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
CSA
IEC 60947-7-1
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
10/21/2018 Page 2 / 5
https://www.phoenixcontact.com/pi/products/3208200
Feed-through terminal block - PT 1,5/S-QUATTRO RD - 3208200
Circuit diagram
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / CSA / GL / LR / VDE Zeichengenehmigung / IECEE CB Scheme / EAC / BV / ABS / NK / cULus Recognized
Ex Approvals
EAC Ex / IECEx / ATEX
Approval details
UL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
D
600 V
5A
26-14
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
B
300 V
15 A
26-14
C
300 V
15 A
26-14
FILE E 60425
cUL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
D
600 V
5A
26-14
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
B
300 V
15 A
26-14
C
300 V
15 A
26-14
FILE E 60425
CSA
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
D
600 V
5A
26-14
http://www.csagroup.org/services-industries/product-listing/
B
300 V
15 A
26-14
C
300 V
15 A
26-14
13631
10/21/2018 Page 3 / 5
https://www.phoenixcontact.com/pi/products/3208200
Feed-through terminal block - PT 1,5/S-QUATTRO RD - 3208200
Approvals
GL
http://exchange.dnv.com/tari/
2040111 HH
LR
http://www.lr.org/en
12/20038 (E3)
VDE Zeichengenehmigung
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://www2.vde.com/de/Institut/Online-Service/
VDE-gepruefteProdukte/Seiten/Online-Suche.aspx
500 V
17.5 A
0.14-1.5
40039739
IECEE CB Scheme
Nominal voltage UN
mm²/AWG/kcmil
http://www.iecee.org/
DE1-53792_M1
500 V
0.14-1.5
EAC
EAC-Zulassung
BV
http://www.veristar.com/portal/veristarinfo/generalinfo/
approved/approvedProducts/equipmentAndMaterials
39980/A0 BV
ABS
http://www.eagle.org/eagleExternalPortalWEB/
16-HG1591536-PDA
NK
http://www.classnk.or.jp/hp/en/
14ME0912
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
10/21/2018 Page 4 / 5
https://www.phoenixcontact.com/pi/products/3208200
