Part Number

Search

31369106

Description
SCREW TYPE TERMINAL BLOCK, PLUG,
CategoryThe connector
File Size280KB,5 Pages
ManufacturerMETZ CONNECT USA Inc.
Environmental Compliance
Download Datasheet Parametric Compare View All

31369106 Overview

SCREW TYPE TERMINAL BLOCK, PLUG,

31369106 Parametric

Parameter NameAttribute value
typeplug, female socket
Number of pins6
Number of pins per level6
Number of levels1
spacing0.150"(3.81mm)
Needle seat direction-
Plug entrance180°
Terminal typeScrews - Lift Cage Clamp
Installation typefree hanging
Current - IEC-
Current - UL8A
Voltage - UL300V
Wire Gauge or Range - AWG16-28 AWG
Wire gauge or range - mm²0.08-1.5mm²
colorblack
Operating temperature-40°C ~ 105°C
Contact mating surface treatmenttin
characteristic-
Material flammability ratingUL94 V-0
Intrusion protection-
Screw sizeM2
Torque - Screws0.34 Nm(3.0 Lb-In)
Wire stripping length-
Contact materialcopper zinc
Shell materialPolyamide (PA66), Nylon 6/6
Contact tail length-
Insulation height0.437"(11.10mm)

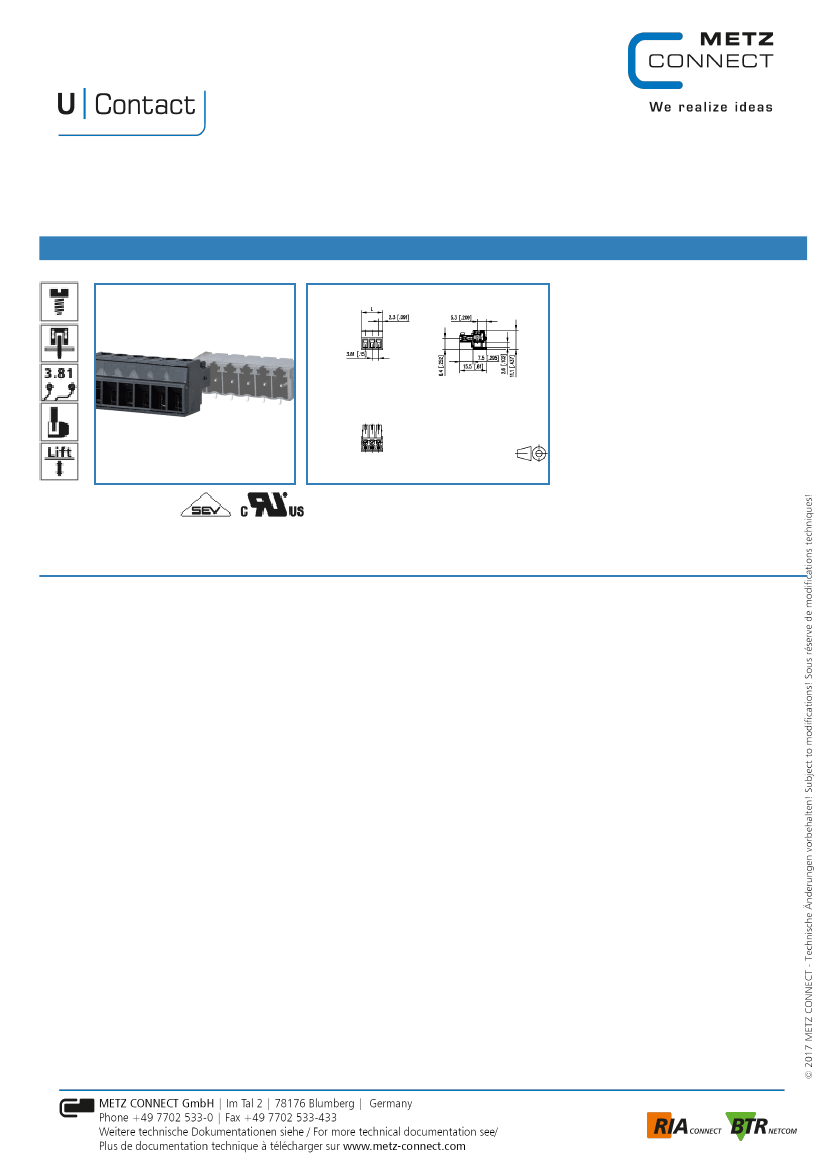

Data Sheet
RP034xxVBLN
Illustration
Page 1/5
P/N
313691xx
xx=number of poles
2017/05/05

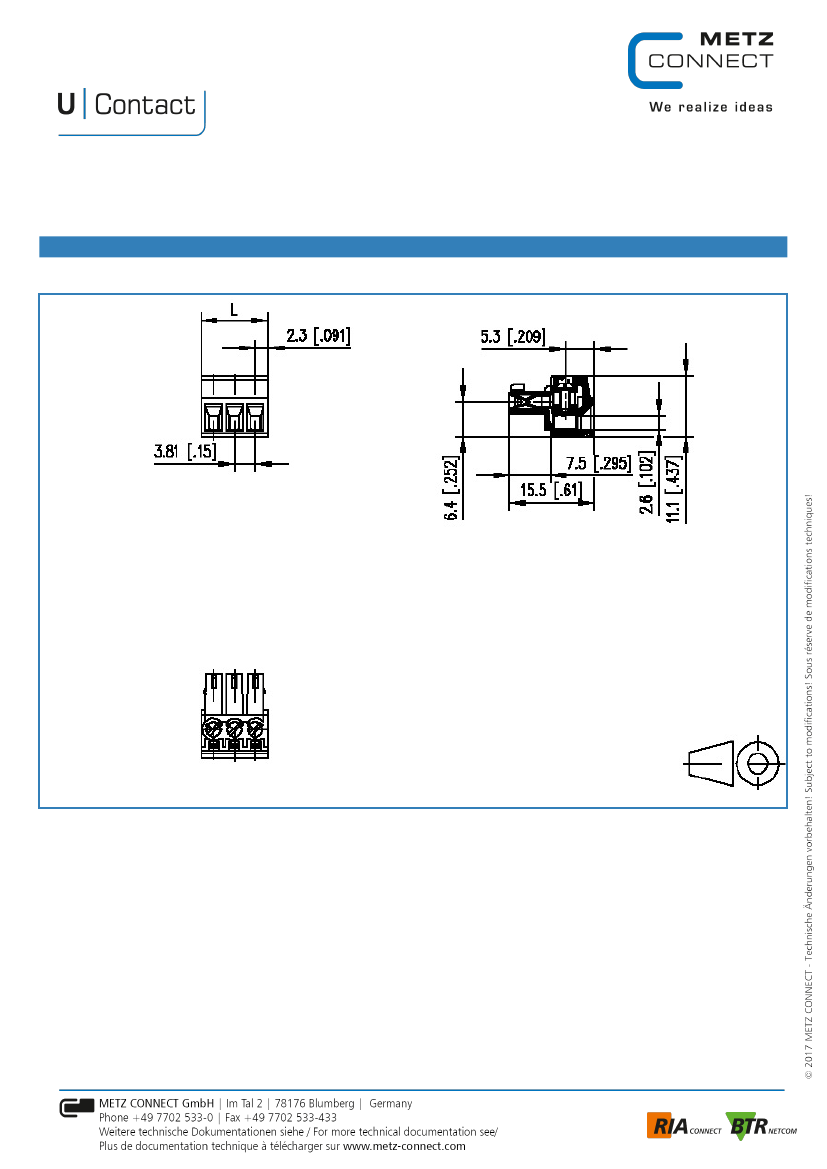

see enlarged drawing at the end of the document
Product specification
• screw type terminal block, pluggable
• centerline 3.81 mm, direction of connection vertical 0°
• lift system
• color black
• wire entry codeable side perpendicular to plug direction

31369106 Related Products

31369106 31369104 31369102 31369103
Description SCREW TYPE TERMINAL BLOCK, PLUG, SCREW TYPE TERMINAL BLOCK, PLUG, SCREW TYPE TERMINAL BLOCK, PLUG, SCREW TYPE TERMINAL BLOCK, PLUG,
type plug, female socket plug, female socket plug, female socket plug, female socket
Number of pins 6 4 2 3
Number of pins per level 6 4 2 3
Number of levels 1 1 1 1
spacing 0.150"(3.81mm) 0.150"(3.81mm) 0.150"(3.81mm) 0.150"(3.81mm)
Plug entrance 180° 180° 180° 180°
Terminal type Screws - Lift Cage Clamp Screws - Lift Cage Clamp Screws - Lift Cage Clamp Screws - Lift Cage Clamp
Installation type free hanging free hanging free hanging free hanging
Current - UL 8A 8A 8A 8A
Voltage - UL 300V 300V 300V 300V
Wire Gauge or Range - AWG 16-28 AWG 16-28 AWG 16-28 AWG 16-28 AWG
Wire gauge or range - mm² 0.08-1.5mm² 0.08-1.5mm² 0.08-1.5mm² 0.08-1.5mm²
color black black black black
Operating temperature -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C
Contact mating surface treatment tin tin tin tin
Material flammability rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Screw size M2 M2 M2 M2
Torque - Screws 0.34 Nm(3.0 Lb-In) 0.34 Nm(3.0 Lb-In) 0.34 Nm(3.0 Lb-In) 0.34 Nm(3.0 Lb-In)
Contact material copper zinc copper zinc copper zinc copper zinc
Shell material Polyamide (PA66), Nylon 6/6 Polyamide (PA66), Nylon 6/6 Polyamide (PA66), Nylon 6/6 Polyamide (PA66), Nylon 6/6
Insulation height 0.437"(11.10mm) 0.437"(11.10mm) 0.437"(11.10mm) 0.437"(11.10mm)
