AST0820606 datasheet, PDF - EEWORLD Datasheet

AST0820606: DescriptionSPRING CLAMP TERMINAL BLOCK, PCB; CategoryThe connector; File Size290KB，5 Pages; ManufacturerMETZ CONNECT USA Inc.; Environmental Compliance

Download Datasheet Parametric Compare View All

AST0820606 Overview

SPRING CLAMP TERMINAL BLOCK, PCB

Parameter Name	Attribute value
Number of levels	1
Number of pins per level	6
spacing	0.098"（2.50mm）
Mating direction	Vertical, with board
current	6A
Voltage	150V
Wire gauge	20-26 AWG
Installation type	Through hole
wire termination	No Screws - Spring Cage/Tension Clamp
characteristic	push button
color	green
Operating temperature	-40°C ~ 105°C
Shell material	Polyamide (PA66), Nylon 6/6
Contact material - plating	Copper alloy, tin plated
Fixture Material - Plating	steel
Screw material - coating	-
Torque - Screws	-
Thread	-

Data Sheet

ST072xxVGNN

Illustration

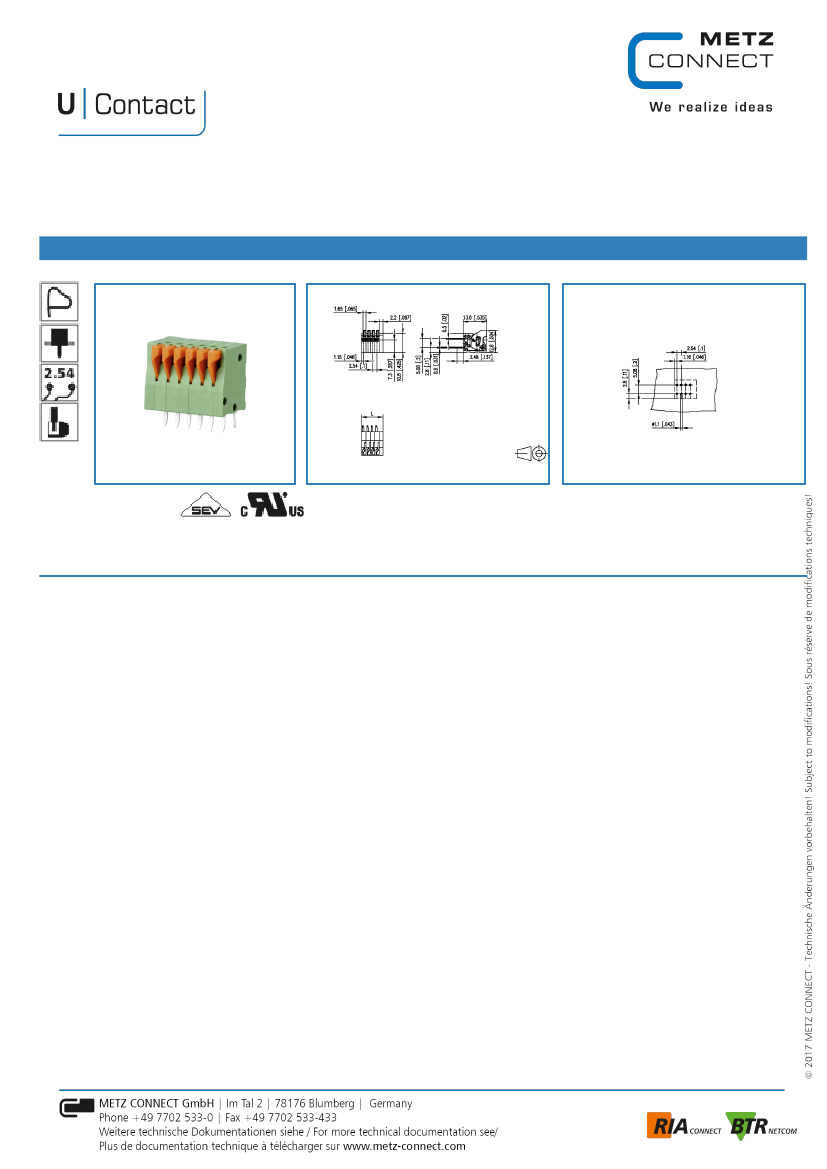

Page 1/5

P/N

AST082xx

xx=number of poles

2017/05/05

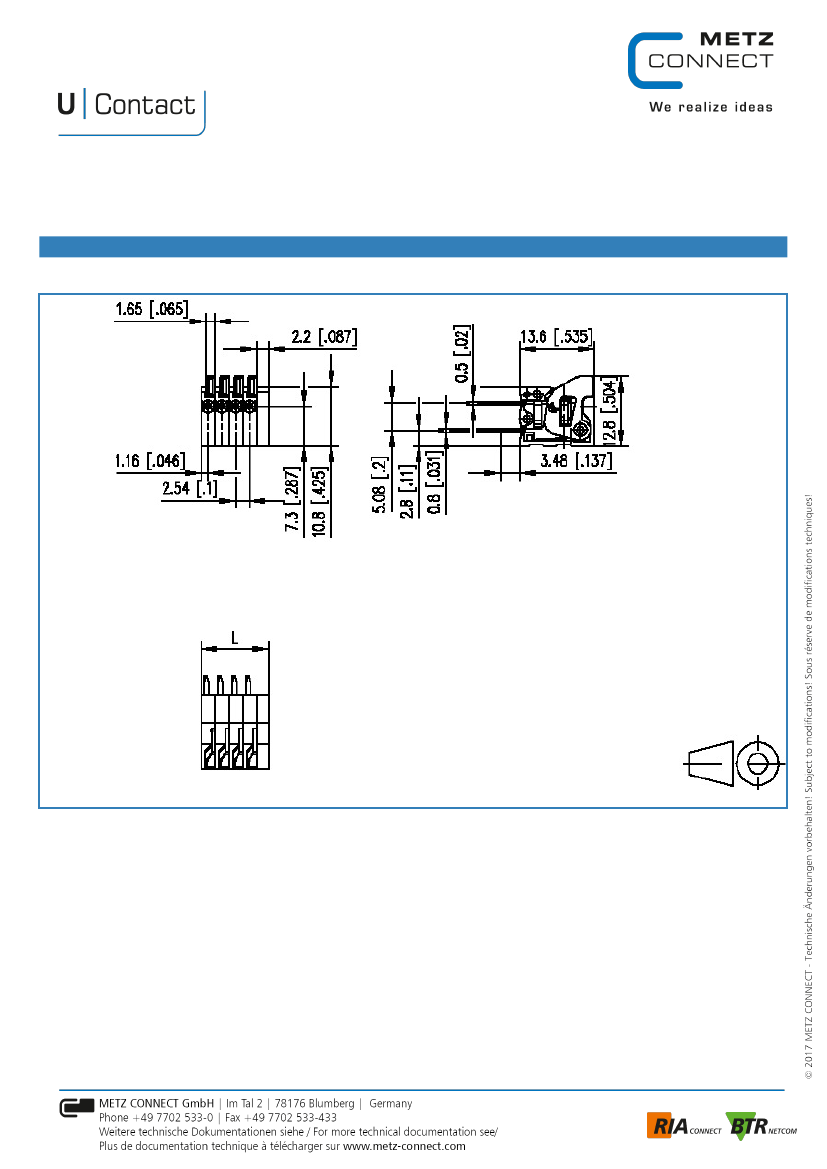

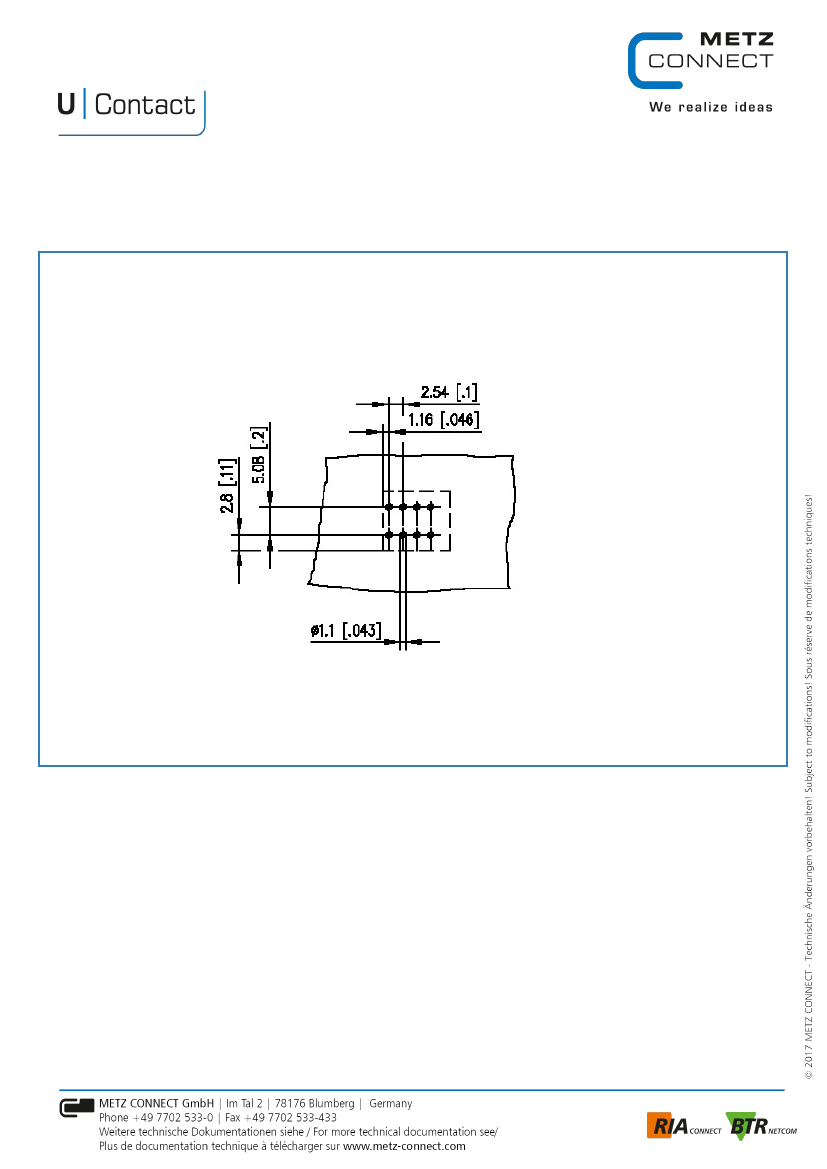

see enlarged drawing at the end of the document

Product specification

• spring clamp terminal block, solderable, double solder pins

• centerline 2.54 mm, direction of connection vertical 0°

• color green

• push-button

	AST0820606	AST0820206	AST0820306	AST0820406
Description	SPRING CLAMP TERMINAL BLOCK, PCB	SPRING CLAMP TERMINAL BLOCK, PCB	SPRING CLAMP TERMINAL BLOCK, PCB	SPRING CLAMP TERMINAL BLOCK, PCB
Number of levels	1	1	1	1
Number of pins per level	6	2	3	4
spacing	0.098"（2.50mm）	0.098"（2.50mm）	0.098"（2.50mm）	0.098"（2.50mm）
Mating direction	Vertical, with board	Vertical, with board	Vertical, with board	Vertical, with board
current	6A	6A	6A	6A
Voltage	150V	150V	150V	150V
Wire gauge	20-26 AWG	20-26 AWG	20-26 AWG	20-26 AWG
Installation type	Through hole	Through hole	Through hole	Through hole
wire termination	No Screws - Spring Cage/Tension Clamp	No Screws - Spring Cage/Tension Clamp	No Screws - Spring Cage/Tension Clamp	No Screws - Spring Cage/Tension Clamp
characteristic	push button	push button	push button	push button
color	green	green	green	green
Operating temperature	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C
Shell material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Contact material - plating	Copper alloy, tin plated	Copper alloy, tin plated	Copper alloy, tin plated	Copper alloy, tin plated
Fixture Material - Plating	steel	steel	steel	steel
