Long distance and multi-target sensor 12-Pin OLGA T/R
VL53L1CBV0FY/1 Parametric
Parameter Name
Attribute value
EU restricts the use of certain hazardous substances
Compliant
ECCN (US)
EAR99
Part Status
Active
HTS
8541.40.60.50
Product Category
Time of Flight Ranging Sensor
Packaging
Tape and Reel
Supplier Package
LGA
Pin Count
12
Mounting
Surface Mount
Package Height
1.56
Package Length
4.9
Package Width
2.5
PCB changed
12
Lead Shape
No Lead
VL53L1CBV0FY/1 Preview
VL53L1
Data brief

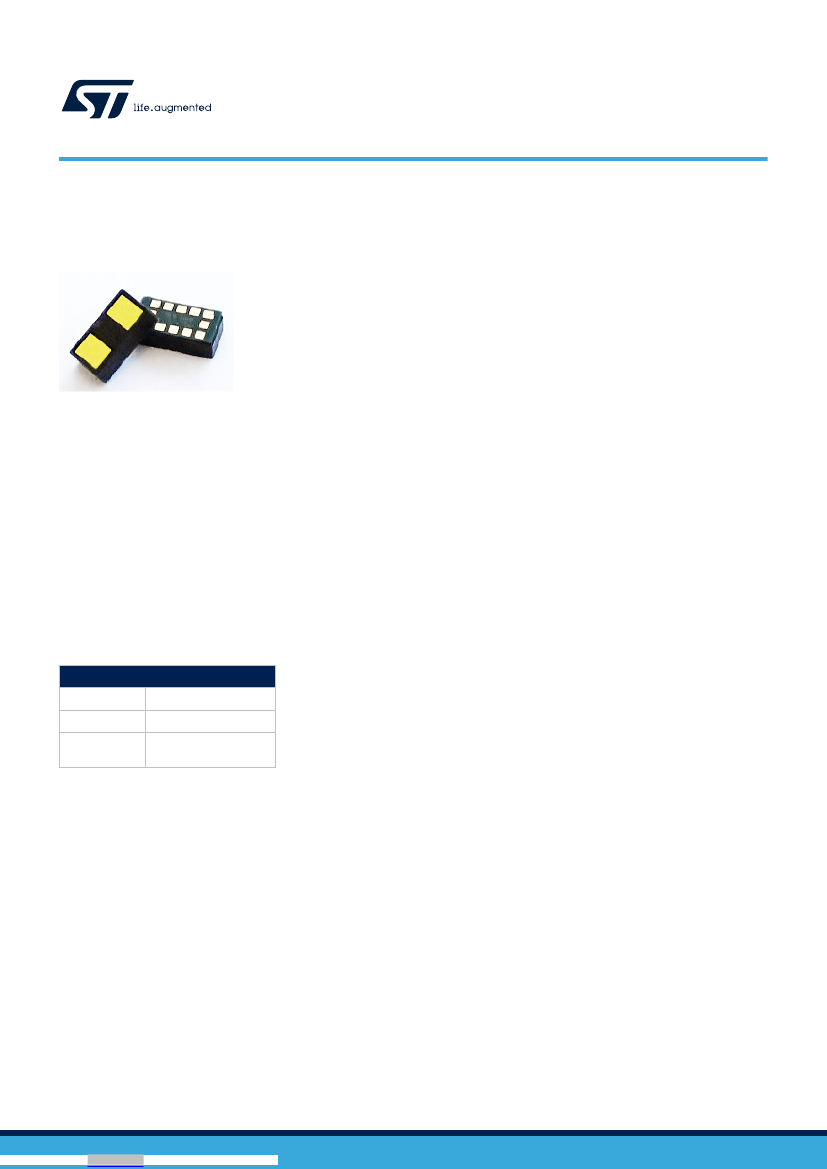

New generation Time-of-Flight ranging sensor with advanced multizone and
multi‑object detection
Features
•
Fully integrated miniature module
–
Emitter: 940 nm invisible laser (VCSEL) and its analog driver
–
Receiving array with integrated lens
–
Low-power microcontroller running advanced digital firmware
–
Size: 4.9 x 2.5 x 1.56 mm
Fast, accurate distance ranging
–
8 m detection with full field of view (FoV)
–
60 Hz ranging capable up to 300 cm
–
Immune to cover glass crosstalk and fingerprint smudge at long distance
with patented algorithms (direct ToF)
–
Multi-object detection capable
–
Multizone scanning with selectable array (2x2, 3x3, 4x4, or defined by user
through software)
Easy integration
–
Single reflowable component
–
Single power supply 2v8
–
Works with many types of cover glass material
–
I²C interface (up to 1 MHz)
–
Xshutdown (Reset) and interrupt GPIO
–
Full set of software driver (Linux and Android compatible) for turnkey
ranging
•
•
Product summary
Order code
Package
Packing
VL53L1CBV0FY/1
Optical LGA12 with liner
Tape and reel (with
liner)
Applications
•
Laser assisted autofocus: enhances the camera AF system speed and
robustness, especially in difficult scenes (low light and low contrast). Ideal
companion for PDAF sensors.
Video focus tracking assistance at 60 Hz
Scene understanding with multi-object detection: “choose the focus point”
Dual camera stereoscopy and 3D depth assistance thanks to multizone
measurement
Presence detection (autonomous timed mode), typically to lock/unlock and
power on/off devices like notebooks, tablets or white goods
•
•
•
•
Description
The VL53L1 is a state of the art Time-of-Flight (ToF) laser-ranging miniature sensor,
enhancing the ST Flight Sense product family. Housed in a miniature and reflowable
package, it integrates a Single Photon Avalanche Diodes (SPAD) array, physical
infrared filters and optics to achieve the best ranging performance in various ambient
lighting conditions, with range of cover glass options.
Unlike conventional IR sensors, VL53L1 uses ST’s latest generation direct ToF
technology which allows absolute distance measurement whatever the target color
and reflectance. It provides accurate ranging up to 8 m and can work at fast speed
(60 Hz), which makes it the fastest miniature ToF sensor on the market.
DB3195
-
Rev 3
-
October 2020
For further information contact your local STMicroelectronics sales office.
www.st.com
VL53L1
With patented algorithms and ingenious module construction, VL53L1 is also able
to detect different objects within the field of view (FoV) with depth information
(histogram) at 60 Hz.
Scene browsing and multi-zone detection is now possible with VL53L1, thanks to
software customizable detection array for quicker “touch to focus” or mini depth map
use cases.
DB3195
-
Rev 3
page 2/5
VL53L1
Technical specification
1
Technical specification
Figure 1.

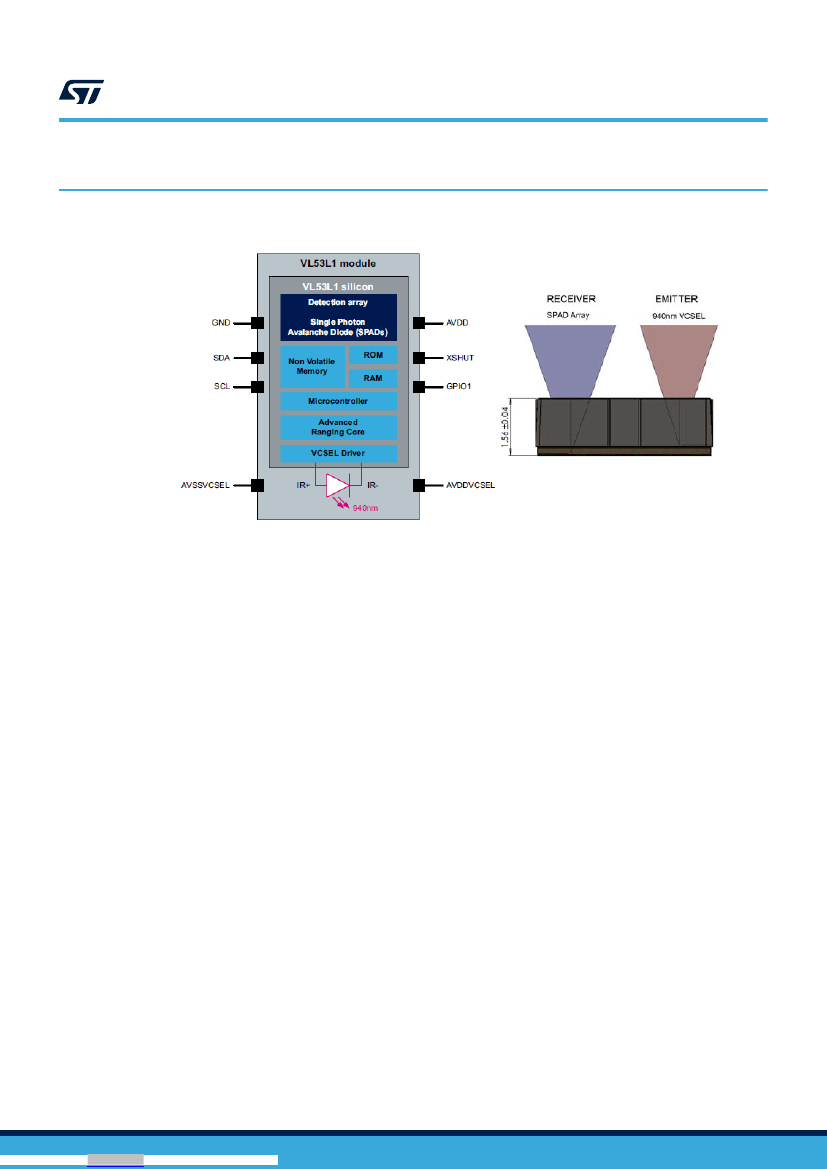

VL53L1 block diagram
DB3195
-
Rev 3
page 3/5
VL53L1
Revision history
Table 1.
Document revision history
Date
14-Fev-2017
17-Fev-2017
30-Oct-2020
Version
1
2
3
Initial release
update Table 1: Ordering information
Increase ranging distance from 4 m to 8 m
Remove Eco-Pack section
Changes
DB3195
-
Rev 3
page 4/5
VL53L1
