4308R-104-331/471L datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> 4308R-104-331/471L

4308R-104-331/471L: DescriptionRES NETWORK 12 RES MULT OHM 8SIP; CategoryPassive components The resistor; File Size808KB，23 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric View All

4308R-104-331/471L Overview

RES NETWORK 12 RES MULT OHM 8SIP

4308R-104-331/471L Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	SIP, 7808
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	9 weeks
Other features	DUAL TERMINATOR
structure	Molded
Component power consumption	0.2 W
The first element resistor	330 Ω
JESD-609 code	e3
Lead length	3.43 mm
lead spacing	2.54 mm
Installation features	THROUGH HOLE MOUNT
Network Type	TERMINATOR
Number of components	2
Number of functions	6
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	4.95 mm
Package length	19.92 mm
Package shape	RECTANGULAR PACKAGE
Package form	SIP
Package width	2.16 mm
Rated power dissipation(P)	1 W
Rated temperature	70 °C
resistance	330 Ω
Resistor type	ARRAY/NETWORK RESISTOR
Second/last element resistor	470 Ω
surface mount	NO
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Temperature coefficient tracking	50 ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal shape	FLAT
Tolerance	2%
Operating Voltage	100 V
Base Number Matches	1

Preview

Download Datasheet

View All

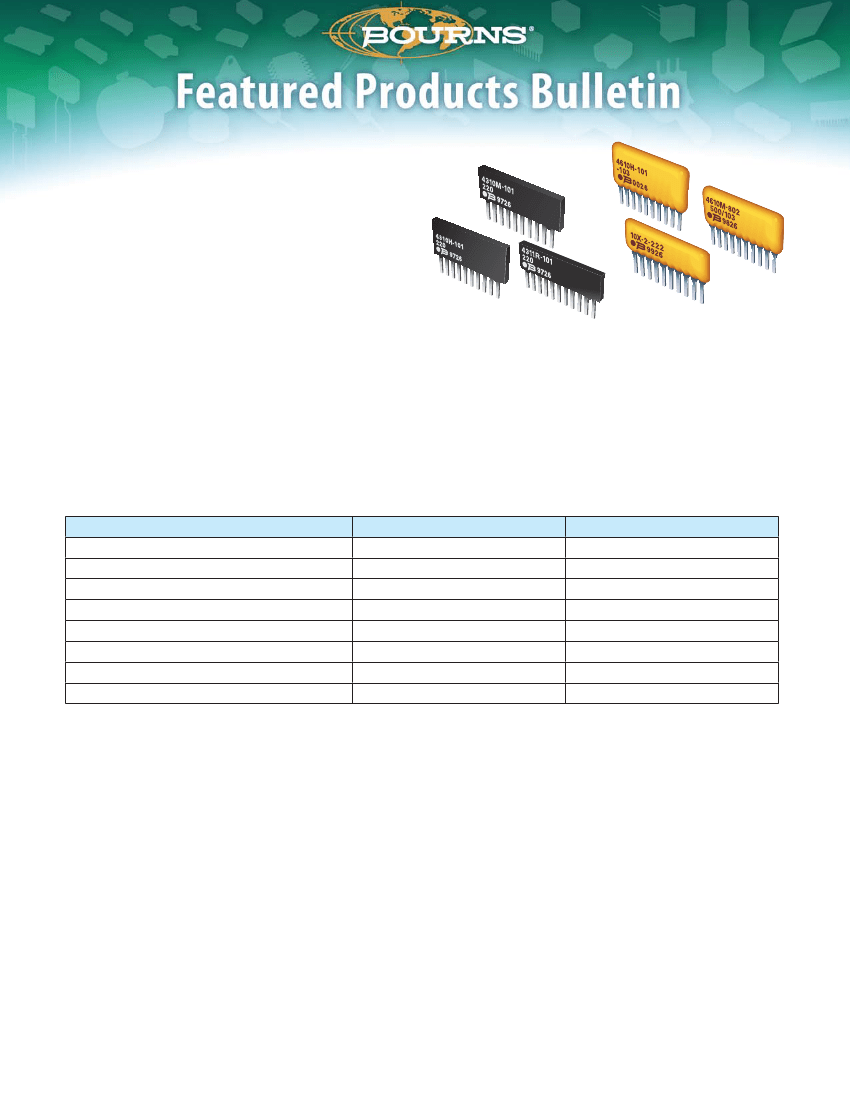

RESISTOR NETWORKS

Model 4300 vs. Model 4600

Riverside, California - May 18, 2010 - At present, the lead time for the Model 4600 conformal single in line

(SIP) resistor network series has been extended to over 40 weeks.

The

4300 molded SIP resistor network series

from Bourns is a valid alternative to the

4600 conformal coated

SIP resistor network series.

The following matrix shows a technical comparison between the two models.

Characteristic

Low Proﬁle Available

Medium Proﬁle Available

High Proﬁle Available

Number Of Pins

Isolated Circuit (102) Available

Bussed Circuit (101) Available

Dual Terminator (104) Available

Ammo Pack Available

The Model 4300 has a standard lead time of 6 weeks.

A complete cross reference between all available Model 4300 part numbers and their Model 4600 series

equivalents is available and follows on page 2.

4300 Series

Yes

Between 6 and 11

Yes

4600 Series

Yes

Between 4 and 14

Yes

Features

■

Wide assortment of pin packages enhances design ﬂexibility

Marking on contrasting background for permanent identiﬁcation

RoHS compliant* versions available

*RoHS Directive 2002/95/EC Jan 27 2003 including Annex.

N1027
