WM072C,BK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> WM072C,BK

WM072C,BK: DescriptionBOX PLSTC BLK/CLR 6.88"LX4.88"W; CategoryTopical application Mechanical and electrical/engineering/automation; File Size580KB，2 Pages; ManufacturerSERPAC; Environmental Compliance

Download Datasheet Parametric Compare View All

WM072C,BK Overview

BOX PLSTC BLK/CLR 6.88"LX4.88"W

WM072C,BK Parametric

Parameter Name	Attribute value
Container type	box with mounting flange
size/dimensions	6.880" long x 4.880" wide (174.75mm x 123.95mm)
high	1.600"（40.64mm）
Area (L x W)	33.6 in²（217 cm²）
design	Cover included
Material	Plastic - Polycarbonate
color	Black, clear cover/door
thickness	0.100"（2.54mm）
characteristic	PCB support, wall mounting
grade	IP40，NEMA 1
Material flammability rating	-
delivery information	Shipping from Digi-Key
weight	0.41 lbs (185.97g)

Preview

Download Datasheet

View All

WM072C

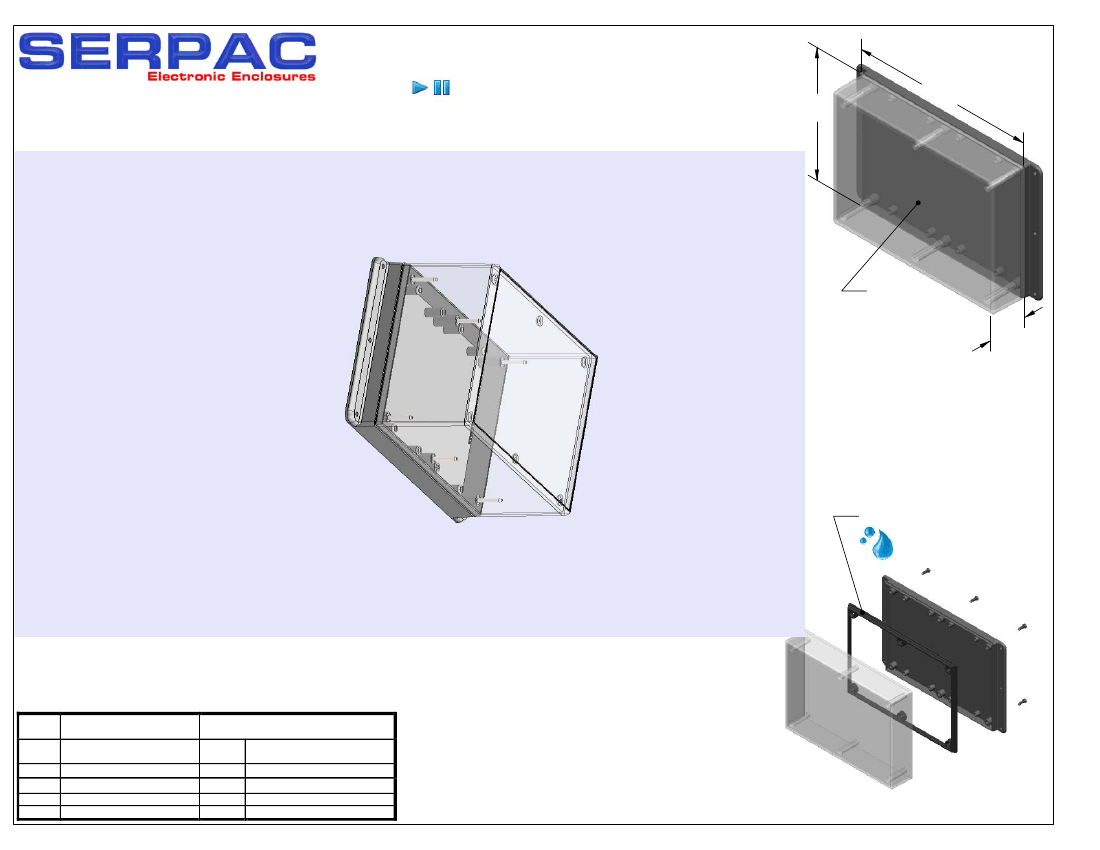

(3D exploded)

-Click on image to show toolbar. Use

to Play/Pause Animation*.

-Left click and drag on image to move 3D model.

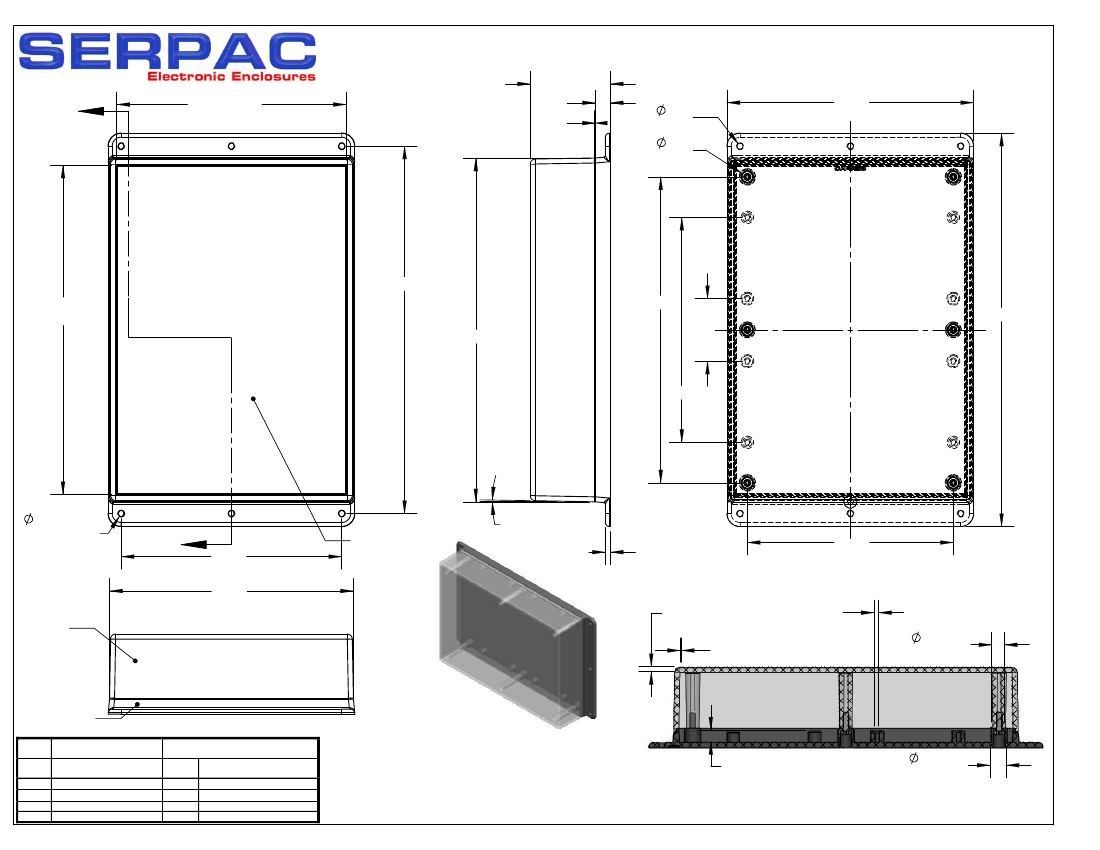

4.88

6.88

7-2C TOP

i-plate area

4.59" X 6.59"

1.60

Water proofing gasket

PS17 optional.

see note #2

3D model options:

a) Zoom in & out with center wheel.

b) Pause at any moment to view and or print views.

c) Change the views to ortho and section views if needed from the Views pull down menu.

d) Explore options included in the tool bar like: Views, Transparency of model, Lighting type, etc.

(To have full interaction with the animated PDF files, please use free Adobe Reader 9 or newer version.)

PART

NO.

7-2C

WM07

6005

DESCRIPTION

(Included)

TOP

BOTTOM

#4 self tapping screw (6)

ACCSESSORIES

(Optional) More

available; see website

PART

DESCRIPTION

NO.

Non-s kid Feet

PS17

Perimeter Seal

6004

Screw f or circuit board

Notes:

Enclosure weight .44 lbs / 201 gm

1) Enclosure meets or exceeds IP40 and NEMA 1

2) When used with PS17 the enclosure meets or exceeds

IP 67 and NEMA 4X, 12 and 13 MIL-STD-810G 506.5

3) Circuit Board drawings can be download at:

http://www.serpac.com/Accessories/CircuitBoard/drawings/370-470.pdf

4) All components are RoHS Compliant.

Ph. (626) 331-0517 Fx. (626) 331-8584 serpac.com

ALL DIMENSIONS ARE ± .010"

5/18/10

(1 of 2)

2009 Wright Ave. La Verne, CA 91750

WM072C,BK Related Products

	WM072C,BK	WM072C,AL	WM072C,GY
Description	BOX PLSTC BLK/CLR 6.88"LX4.88"W	BOX PLSTC AMD/CL 6.88"L X 4.88"W	BOX PLSTC GRAY/CLR 6.88"LX4.88"W
Container type	box with mounting flange	box with mounting flange	box with mounting flange
size/dimensions	6.880" long x 4.880" wide (174.75mm x 123.95mm)	6.880" long x 4.880" wide (174.75mm x 123.95mm)	6.880" long x 4.880" wide (174.75mm x 123.95mm)
high	1.600"（40.64mm）	1.600"（40.64mm）	1.600"（40.64mm）
Area (L x W)	33.6 in²（217 cm²）	33.6 in²（217 cm²）	33.6 in²（217 cm²）
design	Cover included	Cover included	Cover included
Material	Plastic - Polycarbonate	Plastic - Polycarbonate	Plastic - Polycarbonate
color	Black, clear cover/door	Almond color, clear cover/door	Gray, clear cover/door
thickness	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）
characteristic	PCB support, wall mounting	PCB support, wall mounting	PCB support, wall mounting
grade	IP40，NEMA 1	IP40，NEMA 1	IP40，NEMA 1
delivery information	Shipping from Digi-Key	Shipping from Digi-Key	Shipping from Digi-Key
weight	0.41 lbs (185.97g)	0.41 lbs (185.97g)	0.41 lbs (185.97g)
