Part Number

Search

8190

Description
MAGNET CYLINDRICAL NDFEB AXIAL
CategoryThe sensor
File Size102KB,1 Pages
ManufacturerRadial Magnet Inc.
Environmental Compliance
Download Datasheet Parametric View All

8190 Online Shopping

Suppliers Part Number Price MOQ In stock
8190 - - View Buy Now

8190 Overview

MAGNET CYLINDRICAL NDFEB AXIAL

8190 Parametric

Parameter NameAttribute value
shapecylinder
magnetizationAxial
MaterialNeodymium Iron Boron (NdFeB)
surfaceNiCuNi
gradeN35
Gaussian intensity5411G (surface magnetic field strength)
size0.500" diameter x 0.500" height (12.7mm x 12.7mm)
Operating temperature-

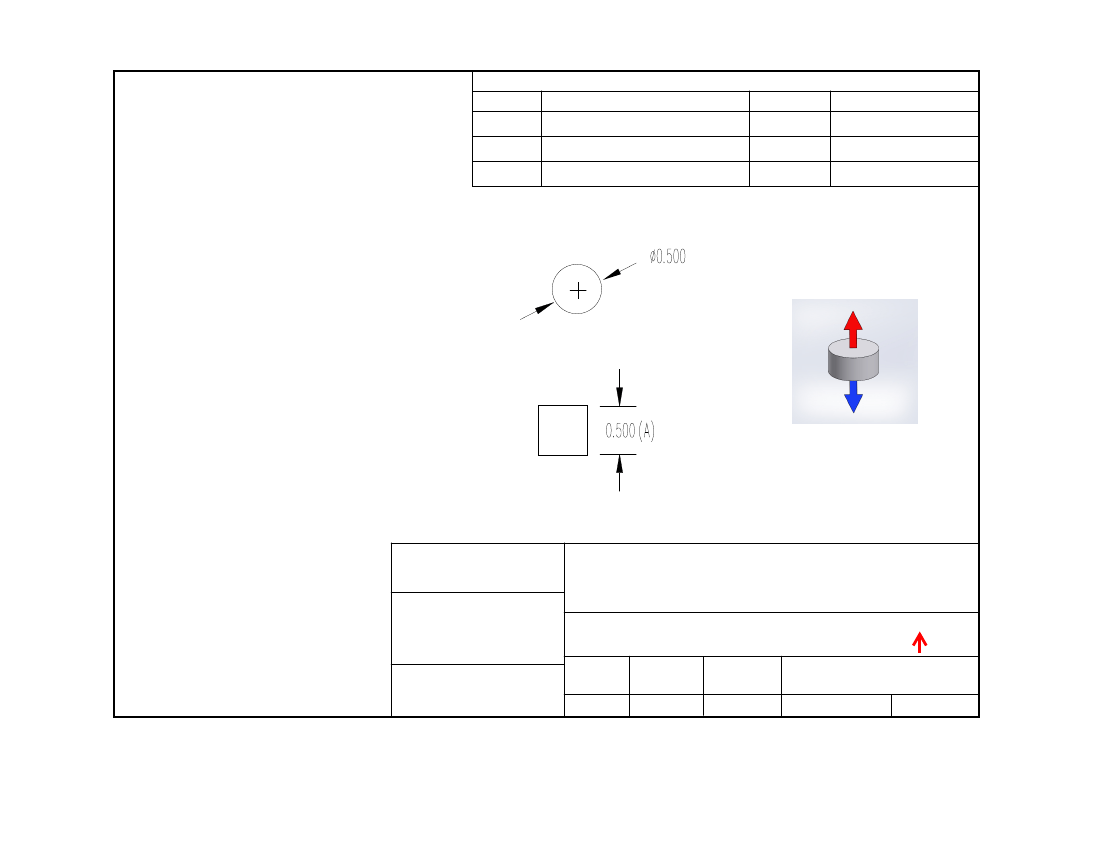

REVISIONS
LTR
DESCRIPTION
INITIAL RELEASE
DATE
APPROVED
H D
_
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTONS:
DECIMALS:
ANGLES:
± 1/64
± 0.015
±1°
SHAPE
RADIAL MAGNETS INC.
108B NW 20th St. BOCA RATON,FL 33431 (561)392-2103
STRENGTH
PLATING
NiCuNi
SIZE AND DIRECTION OF MAGNETIZATION (A)
DISC
SIZE
A
SCALE 1 : 1
N35
PART #
8190
D 1/2" x 1/2"
DRAWING #
RM8190
MATERIAL:
FINISH:
NdFeB
NiCuNi
REVISION
-
APPROVED:
HD
PAGE 1 OF
1
DRAWN: CG
CHECKED: HD
