CT2473-2 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> CT2473-2

Preview

CT2473-2: DescriptionADAPTER 4MM BANANA PLUG TO JACK; CategoryThe connector; File Size88KB，1 Pages; ManufacturerCal Test Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

CT2473-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CT2473-2	-	-	View	Buy Now

CT2473-2 Overview

ADAPTER 4MM BANANA PLUG TO JACK

CT2473-2 Parametric

Parameter Name	Attribute value
Convert from (adapter side)	banana plug
Convert to (adapter side)	banana jack
characteristic	-
color	red
Rated current	10A
Length - total	2.090"（53.09mm）
Operating temperature	-20°C ~ 80°C

Preview

Download Datasheet

View All

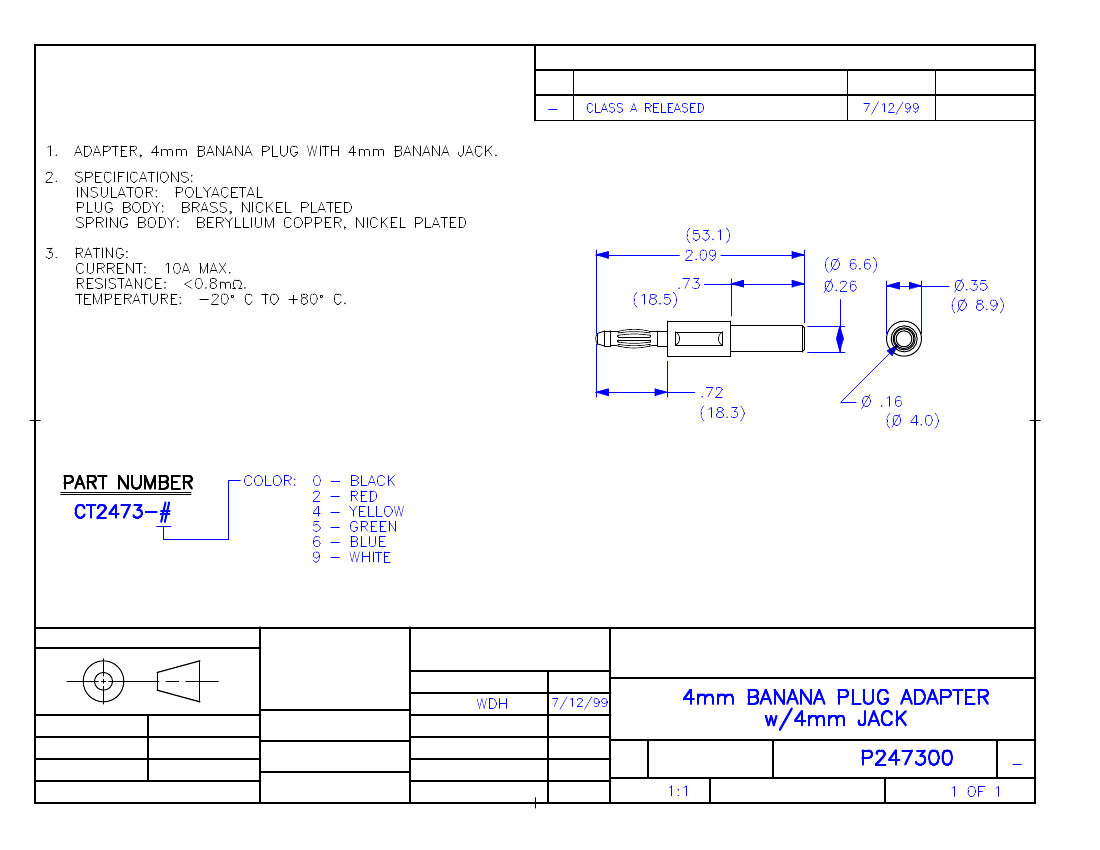

THIS IS ISSUED IN STRICT CONFIDENCE THAT

IT IS NOT USED AS A BASIS FOR

MANUFACTURE OR SALE AND THAT IT IS NOT

COPIED, REPRINTED OR DISCLOSED TO A

THIRD PARTY EITHER WHOLLY OR IN PART

WITHOUT THE PRIOR WRITTEN CONSENT OF

CAL TEST ELECTRONICS, INC.

REVISIONS

REV.

DESCRIPTIONS

DATE

APPROVED

THIRD ANGLE PROJECTION

UNLESS OTHERWISE SPECIFIED

DIMENSIONS ARE IN INCHES

TOLERANCES ARE:

FRACTIONS

DECIMALS

± 1/32

.XX ± .02

.XXX ±.005

DO NOT SCALE DRAWING

MATERIAL

CONTRACT NO.

Cal Test Electronics

DATE

TITLE

22820 Savi Ranch Parkway

Yorba Linda, CA 92887-4610

APPROVALS

DRAWN

CHECKED

ENGR.

DESIGN ACTIVITY

FINISH

NEXT ASSY

APPLICATION

USED ON

SIZE

A

CAGE CODE

43F45

DWG. NO.

REV.

SCALE

SHEET

CT2473-2 Related Products

	CT2473-2	CT2473-0	CT2473-4	CT2473-5	CT2473-6	CT2473-9
Description	ADAPTER 4MM BANANA PLUG TO JACK	ADAPTER, 4MM BANANA PLUG TO JACK	ADAPTER 4MM BANANA PLUG TO JACK	ADAPTER 4MM BANANA PLUG TO JACK	ADAPTER 4MM BANANA PLUG TO JACK	ADAPTER 4MM BANANA PLUG TO JACK
Convert from (adapter side)	banana plug	banana plug	banana plug	banana plug	banana plug	banana plug
Convert to (adapter side)	banana jack	banana jack	banana jack	banana jack	banana jack	banana jack
color	red	black	yellow	green	blue	White
Rated current	10A	10A	10A	10A	10A	10A
Length - total	2.090"（53.09mm）	2.090"（53.09mm）	2.090"（53.09mm）	2.090"（53.09mm）	2.090"（53.09mm）	2.090"（53.09mm）
Operating temperature	-20°C ~ 80°C	-20°C ~ 80°C	-20°C ~ 80°C	-20°C ~ 80°C	-20°C ~ 80°C	-20°C ~ 80°C
