Panel feed-through - SACC-E-M12MS-5CON-PG9/0,5 - 1671111
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in
the user's documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)

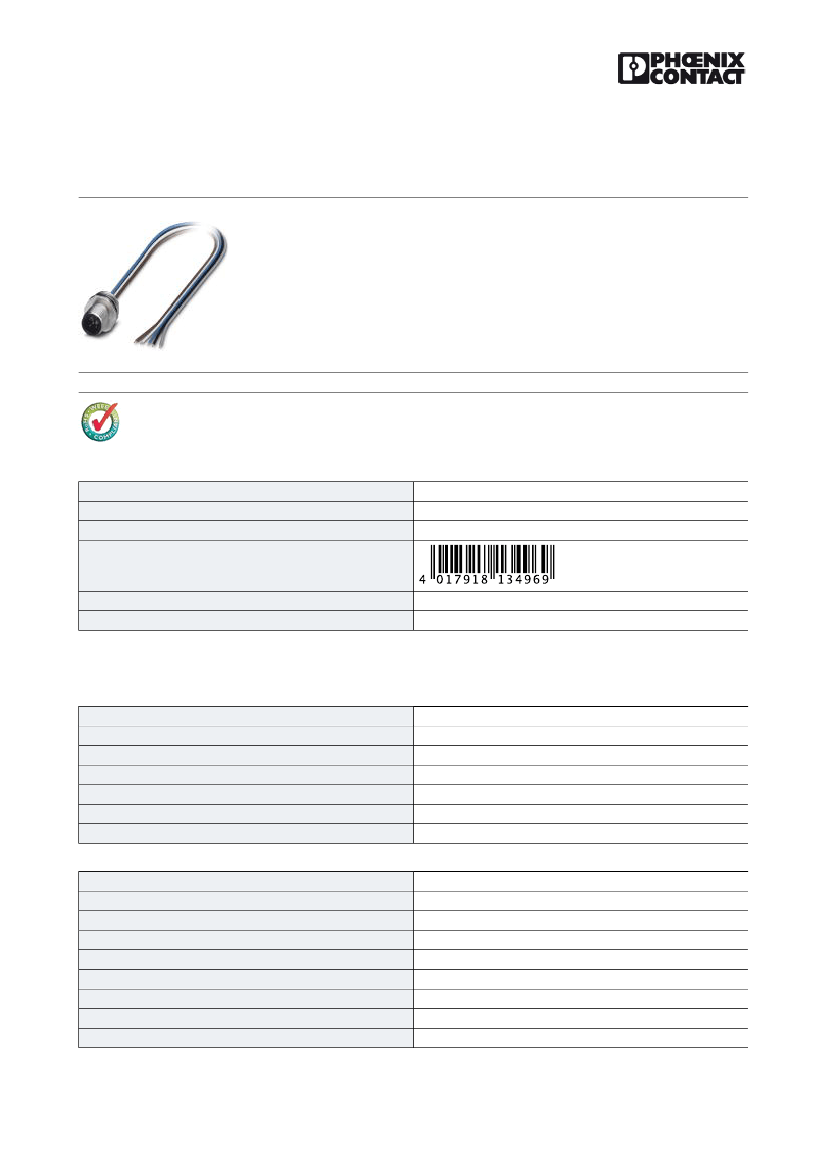

Sensor/Actuator flush-type plug, 5-pos., M12, A-coded, front/screw mounting with PG9 thread, with
0.5 m TPE litz wire, 5 x 0.34 mm²
Key commercial data
Packing unit
Minimum order quantity
Catalog page
GTIN
Custom tariff number
Country of origin
85366990
GERMANY
1
1
Page 27 (PC-2011)
Technical data
General data
Rated current at 40°C
Rated voltage
Number of positions
Volume resistance
Insulation resistance
Length of cable
Ambient temperature (operation)
4A
60 V
5
≤ 3 mΩ
> 100 MΩ
0.5 m
-25 °C ... 85 °C (Male connector / female connector)
General characteristics
Standards/regulations
Coding
Surge voltage category
Pollution degree
Degree of protection
Contact material
Contact surface material
Contact carrier material
Material, knurls
M12 plug-in connector IEC 61076-2-101
A - standard
II
3
IP67
CuZn
Ni/Au
PA66
Nickel-plated brass
05.10.2012 Page 1 / 4
https://www.phoenixcontact.com/us/produkte/1671111
Panel feed-through - SACC-E-M12MS-5CON-PG9/0,5 - 1671111
Technical data
General characteristics
Sealing material
Mounting type
Connection method
Status display
NBR
Front mounting Pg9
Individual wires
No
Conductor data
Cable type
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
Wire colors
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, conductor
Test voltage, conductor
Ambient temperature (operation)
TPE litz wire
0.34 mm²
22
7x 0.25 mm
1.2 mm ±0.07 mm
0.21 mm
Black, brown,blue, white, gray
TPE
Tin-plated Cu litz wires
≥ 20 MΩ*km
≤ 57.6 Ω/km
300 V
2000 V AC
-25 °C ... 90 °C (cable, fixed installation)
Classifications
eclass
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
27140815
27140815
27143423
27143423
27143423
27449001
etim
ETIM 2.0
ETIM 3.0
ETIM 4.0
EC001297
EC002061
EC002061
unspsc
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
31251501
31251501
31251501
31251501
31251501
05.10.2012 Page 2 / 4
https://www.phoenixcontact.com/us/produkte/1671111
Panel feed-through - SACC-E-M12MS-5CON-PG9/0,5 - 1671111
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / GOST / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
26-2
4A
60 V
cUL Recognized
Nominal current IN
Nominal voltage UN
4A
125 V
GOST
cULus Recognized
Accessories
Accessories
Assembly
05.10.2012 Page 3 / 4
https://www.phoenixcontact.com/us/produkte/1671111
Panel feed-through - SACC-E-M12MS-5CON-PG9/0,5 - 1671111
Accessories
Flat nut - SACC-E-MU-PG9 - 1504084
Flat nut with Pg9 thread

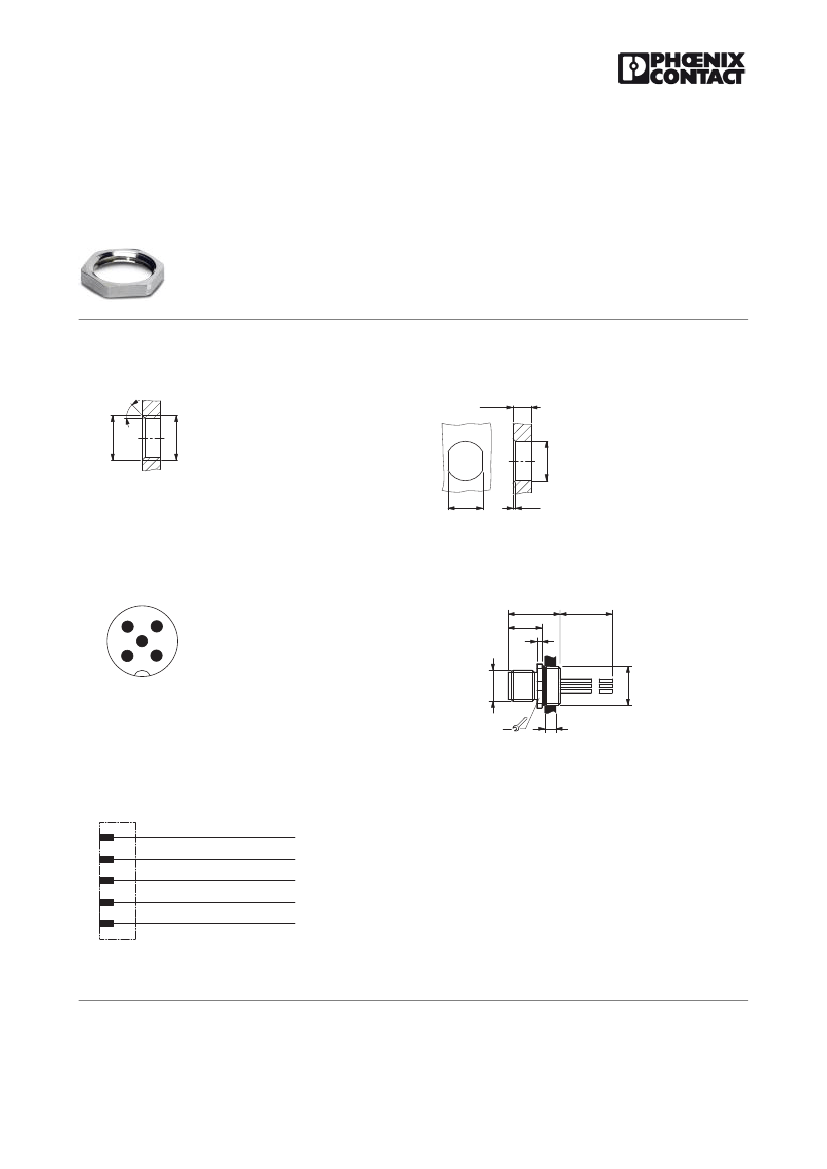

Drawings
Dimensioned drawing
45
°
Dimensioned drawing
max.4,5
PG9
Ø16
Housing cutout for Pg9 fastening thread, mounting panel with thread
13,5
+0,1
1x45°
Housing cutout for Pg9 fastening thread, mounting panel with feed-
through hole (alternatively with surface as protection against rotation)
Schematic diagram
4
5
3
Dimensioned drawing
20
13
2
500
M12x1
1
2
Ø15,3
+0,1
Pin assignment M12 male connector, 5-pos., A-coded, male side
17
min.2,5
M12 flush-type connector, can be positioned
Circuit diagram
1
2
4
3
5
BN
WH
BK
BU
GY
Contact assignment of the M12 plug and the M12 socket
© Phoenix Contact 2012 - all rights reserved
http://www.phoenixcontact.com
05.10.2012 Page 4 / 4
