FEX35-35-21/T710/M2 datasheet, PDF

Datasheet> All Categories > Thermal management products> FEX35-35-21/T710/M2

FEX35-35-21/T710/M2: DescriptionFAN AXIAL 34.6X19.8MM 5VDC 2510; CategoryThermal management products; File Size266KB，4 Pages; ManufacturerCTS [CTS Corporation]; Environmental Compliance

Download Datasheet Parametric Compare View All

FEX35-35-21/T710/M2 Overview

FAN AXIAL 34.6X19.8MM 5VDC 2510

FEX35-35-21/T710/M2 Parametric

Parameter Name	Attribute value
type	Plug-in board level
cooling package	-
Joining method	clips, tape
shape	square, fins
length	1.378"（35.00mm）
width	1.378"（35.00mm）
diameter	-
Height from base (fin height)	0.827"（21.00mm）
Power dissipation at different temperature rises	-
Thermal resistance at different forced airflows	-
Thermal resistance under natural conditions	1.92°C/W
Material	-
Material plating	-

Preview

Download Datasheet

View All

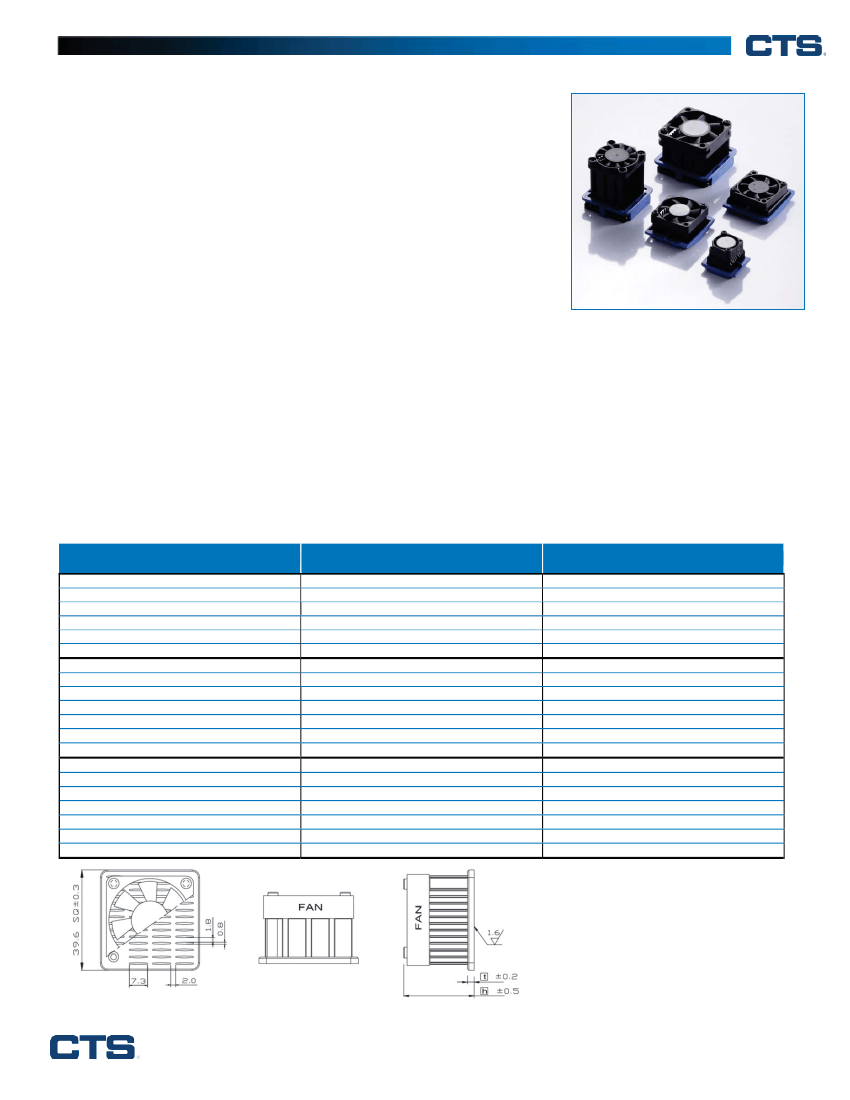

High Operating Temperature Integrated Fan Heat Sinks

DESIGN FEATURES

Industry-leading maximum operating temperature of 90°C

Compatible with chipset footprints ranging from 21x21 mm to 45x45

Total heights from 16.1 mm for low profile applications to 44.6 mm

for lowest thermal resistance

Common 5VDC @ 0.5 A (max) USB 2.0 fan electrical specifications

Forged and extruded versions available

Choice of elliptical, round pin, and plate fin styles

DESCRIPTION

The FHS-090 Series of integrated-fan heat sinks is uniquely designed to absorb and disperse heat away from

high temperature devices while offering key features such as an operating temperature range of -10°C to 90°C,

calculated MTTF @ 90°C: 86,858 hours (GEM, 90% confidence) and various package sizes to best fit the

application. Thermal resistance values range from 4.07°C/W to as low as 1.24°C/W.

These new fansinks can maintain superior thermal dissipation for devices that emit high amount of heat. CTS’

fansinks are available in a wide range of footprints and fin heights which make them suitable for many elevated

temperature applications such as component testing, burn-in, high density servers, high- speed computing and

video, and use in areas where the system airflow is constrained.

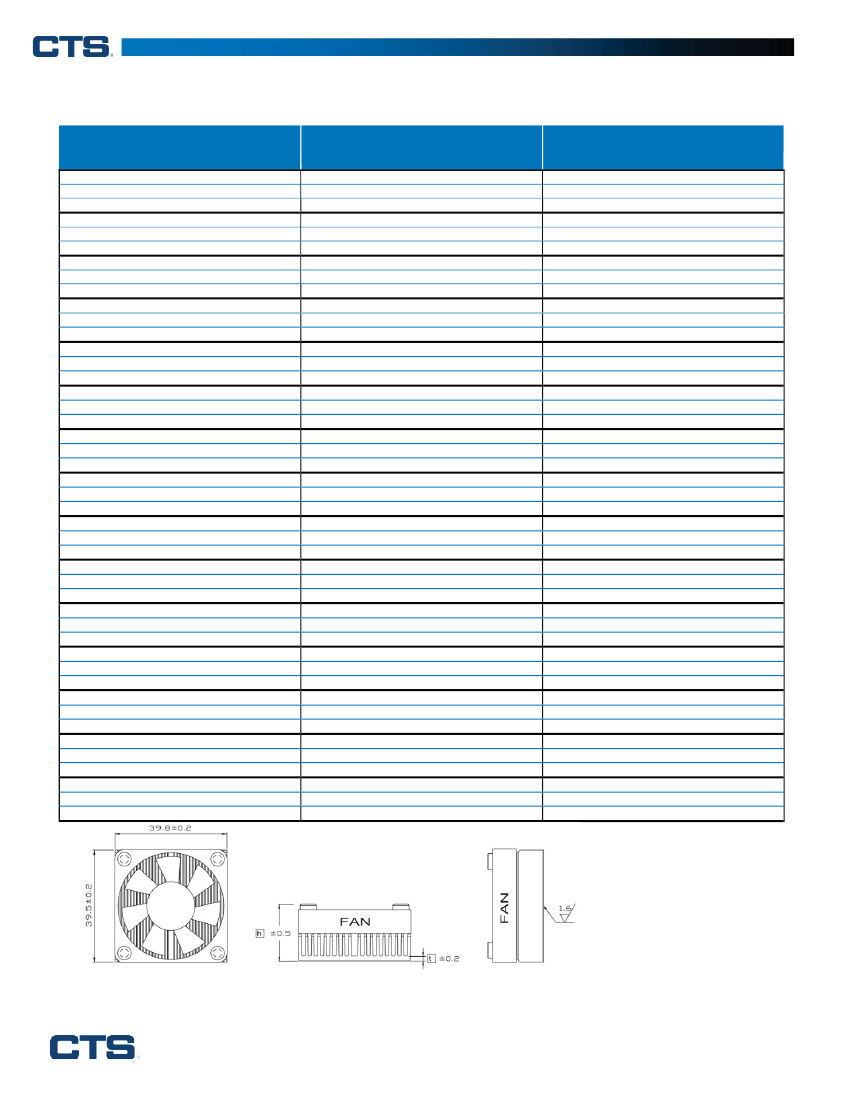

HIGH TEMP FAN HEAT SINKS - FHS-090 SERIES

Elliptical Fins

Part Number

FHE35-35-26

FHE35-35-30

FHE35-35-33

FHE35-35-35

FHE35-35-40

FHE35-35-45

FHE40-40-24

FHE40-40-27

FHE40-40-30

FHE40-40-33

FHE40-40-35

FHE40-40-40

FHE40-40-45

FHE43-43-22

FHE43-43-25

FHE43-43-28

FHE43-43-31

FHE43-43-33

FHE43-43-38

FHE43-43-43

Length x Width x Height

(mm)

35 x 35 x 26.0

35 x 35 x 29.6

35 x 35 x 32.6

35 x 35 x 34.6

35 x 35 x 39.6

35 x 35 x 44.6

40 x 40 x 23.6

40 x 40 x 26.6

40 x 40 x 29.6

40 x 40 x 32.6

40 x 40 x 34.6

40 x 40 x 39.6

40 x 40 x 44.6

42.5 x 42.5 x 21.6

42.5 x 42.5 x 24.6

42.5 x 42.5 x 27.6

42.5 x 42.5 x 30.6

42.5 x 42.5 x 32.6

42.5 x 42.5 x 37.6

42.5 x 42.5 x 42.6

Thermal Resistance (R

)

1.65

1.54

1.48

1.46

1.40

1.36

1.75

1.54

1.42

1.34

1.32

1.27

1.24

1.65

1.46

1.33

1.28

1.26

1.23

1.19

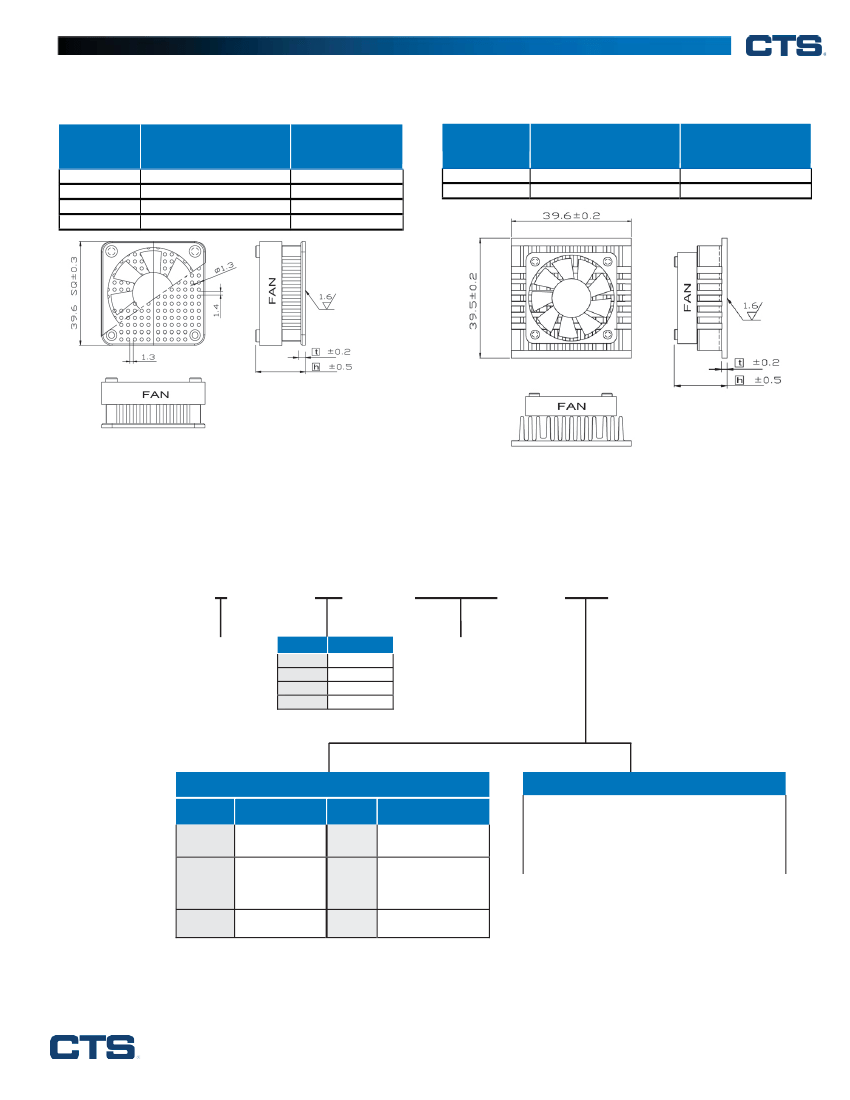

FHE40-40-xx

North Americas: +1-800-757-6686 • International: +1-508-435-6831 • Asia: +65-655-17551 • thermalsales@ctscorp.com

Specifications are subject to change without notice.

RevD1014

FEX35-35-21/T710/M2 Related Products

	FEX35-35-21/T710/M2	FHE35-35-26/T710/T	FHL31-31-17/T710/T	FHP27-27-20/T710/M	FHL43-43-17/T710/T	FEX40-40-21/T710/M2
Description	FAN AXIAL 34.6X19.8MM 5VDC 2510	FAN AXIAL 34.6X26.6MM 5VDC 2510	FAN AXIAL 30.8X18.1MM 5VDC 2510	FAN AXIAL 26.6X20.9MM 5VDC 2510	FAN AXIAL 42.3X16.1MM 5VDC 2510	FAN AXIAL 39.6X19.8MM 5VDC 2510
type	Plug-in board level	Plug-in board level	Plug-in board level	Plug-in board level	Plug-in board level	Plug-in board level
Joining method	clips, tape	clips, tape	clips, tape	clips, tape	clips, tape	clips, tape
shape	square, fins	square, fins	square, fins	square, fins	square, fins	square, fins
length	1.378"（35.00mm）	1.378"（35.00mm）	1.220"（30.99mm）	1.063"（27.00mm）	1.693"（43.00mm）	1.575"（40.00mm）
width	1.378"（35.00mm）	1.378"（35.00mm）	1.220"（30.99mm）	1.063"（27.00mm）	1.693"(43.00mm）	1.575"（40.00mm）
Height from base (fin height)	0.827"（21.00mm）	1.023"（26.00mm）	0.670"（17.00mm）	0.790"（20.00mm）	0.670"（17.00mm）	0.835"（21.20mm）
Thermal resistance under natural conditions	1.92°C/W	1.65°C/W	3.01°C/W	3.35°C/W	3.16°C/W	1.79°C/W
