Thermal Gap Filler
CoMplianT 2.8 W/mK TherMally ConduCTive Gap Filler
Tflex
™
500 is a compliant elastomer gap filler designed to provide excellent thermal
performance while remaining cost effective. This soft interface pad conforms well with
minimal pressure, resulting in little or no stress on mating parts. Tflex
™
500’s unique
silicone and filler combination has extremely low silicone extractables compared to many
other silicone interface products. Tflex
™
500 meets NASA outgassing specification.
Tflex
™
500 is naturally tacky, no adhesive coating is required. Tflex
™
500 is electrically
insulating, stable from -50ºC to 200ºC and is certified to UL 94V0 flammability rating.
FeaTureS and BeneFiTS
•
•
•
•
Thermal conductivity 2.8 W/mK
Highly compliant and cost effective
Low thermal resistance even at low pressure
Available in thicknesses from 0.020-inch (0.25mm) through
0.200-inch (5.0mm) in 0.010-inch increments
• Naturally tacky for easy assembly
• Low silicone extractables
appliCaTionS
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Cooling components to chassis
Telecommunication hardware
Thermal module for notebook computer
LED solid state lighting
Power electronics
Computer servers
Graphics cards
Gaming systems
LCD and PDP flat panel displays
Industrial automation equipment
Wireless infrastructure
Fragile ASIC components
Automotive engine control
IT devices
Military electronics
global
solutions:
local
support
Americas: +1.800.843.4556
Europe: +49.8031.2460.0
Asia: +86.755.2714.1166
CLV-customerservice@lairdtech.com
www.lairdtech.com/thermal
TM
Tflex
TM
500 Series
Thermal Gap Filler
Innovative
Technology
for a
Connected
World
Tflex
TM
500 TypiCal properTieS
Thermal Gap Filler
Preliminary
Tflex
TM
500
Preliminary
TEST METHOD
Thermal Resistance (°C-in2/W)

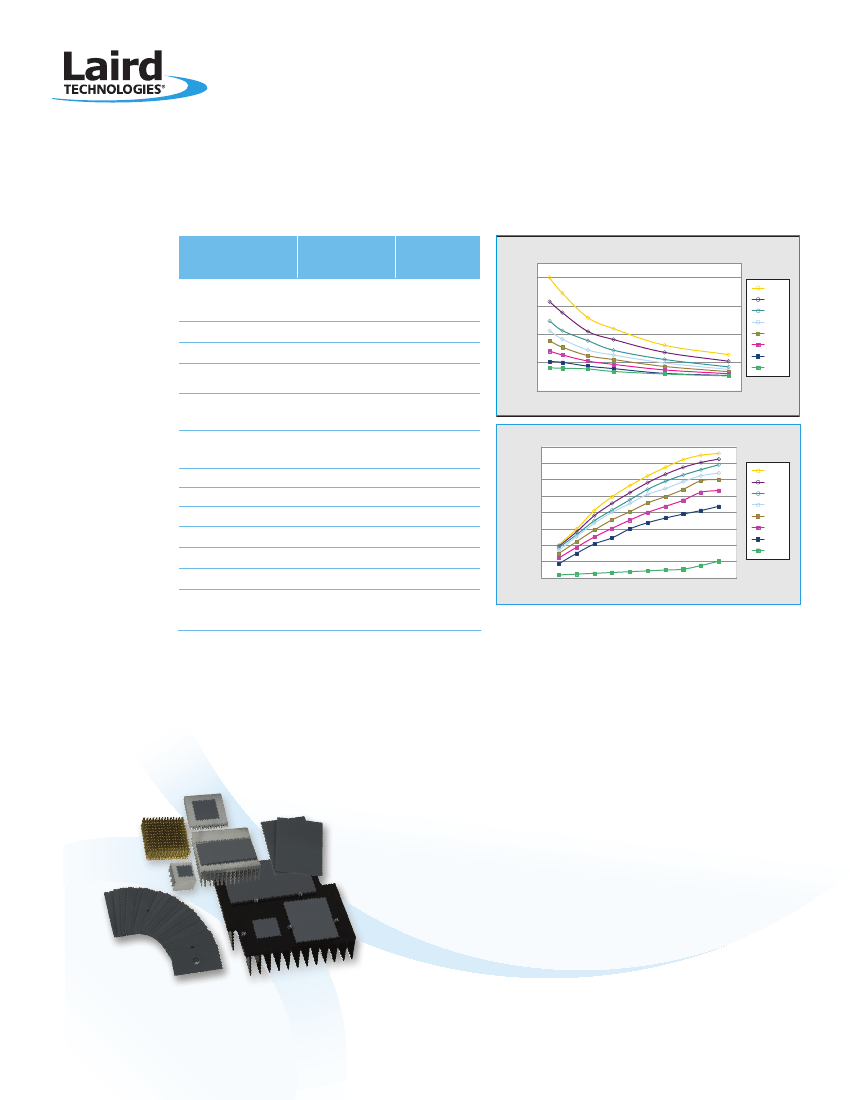

Tflex 500 Thermal Resistance verse Pressure
2.0
5200
1.5
5160
5120
5100
1.0
580
560
0.5
540
520
Construction
Color
Thermal Conductivity
Hardness (Shore 00)
Density
Standard Thickness
Range
Thickness Tolerance
UL Flammability Rating
Temperature Range
Volume Resistivity
Outgassing TML
Outgassing CVCM
Coefficient Thermal
Expansion (CTE)
Filled silicone
elastomer
Light Blue
2.8 W/mK
40
(at 3 second delay)
3.0 g/cc
0.020" - 0.200"
(0.5 - 5.1mm)
±10%
94 V0
-50ºC to 200ºC
10
^
13 ohm-cm
0.29%
0.04%
37.4 ppm/ºC
70ºC-130ºC
NA
Visual
ASTM D5470
ASTM D2240
Helium
Pycnometer
0.0
0
10
20
30
40
50
60
70
80
Pressure (psi, 1 psi = 6.9 KPa)
Tflex 500 Defection verse Pressure (ASTM D575)
80%
70%
60%
% Deflection
5200
5160
5120
5100
580
560
540
520
UL
NA
ASTM D257
ASTM E595
ASTM E595
IPC-TM-650
2.4.24
50%
40%
30%
20%
10%
0%
0
10
20
30
40
50
60
70
80
90
100
110
Pressure (psi, 1 psi = 6.9 KPa)
STandard ThiCKneSSeS
0.020 to 0.200-inch (0.25 to 5.0mm).
0.020 to 0.030-inch (0.5 to 0.76mm) thick material come standard with fiberglass reinforcement.
0.020 through 0.200 thick material available in 0.010-inch (0.25mm) increments.
opTionS
Proprietary DC1 option available to eliminate tack from top side to aid in handling.
MaTerial naMe and ThiCKneSS
Tflex
™
indicates Laird Technologies’ brand thermally conductive elastomeric gap filler
product. 5xxx indicates ‘500 series’ 2.8 W/mK material, and xxx indicates thickness in -mil
(0.001-inches); -DC1 designates proprietary tack eliminating option
Examples:
Tflex
™
5120 = 0.120-inch thick material
Tflex
™
5120-DC1 = 0.0120-inch thick material with proprietary DC1 option
THR-DS-Tflex-500 0110
Any information furnished by Laird Technologies and its agents is believed to be accurate and reliable. Responsibility for the use and application of Laird Technologies
materials rests with the end user since Laird Technologies and its agents cannot be aware of all potential uses. Laird Technologies makes no warranties as to the fitness,
merchantability, or suitability of any Laird Technologies materials or products for any specific or general uses. Laird Technologies shall not be liable for incidental or
consequential damages of any kind. All Laird Technologies products are sold pursuant to the Laird Technologies domestic terms and conditions of sale in effect from time to
time, a copy of which will be furnished upon request.damages of any kind. All Laird Technologies’ products are sold pursuant to the Laird Technologies’ domestic terms and
conditions of sale in effect from time to time, a copy of which will be furnished upon request.
Document A15958-00 Rev B, 11/2009.
© 2010 All Rights Reserved. Laird Technologies is a registered trademark of Laird Technologies, Inc.
