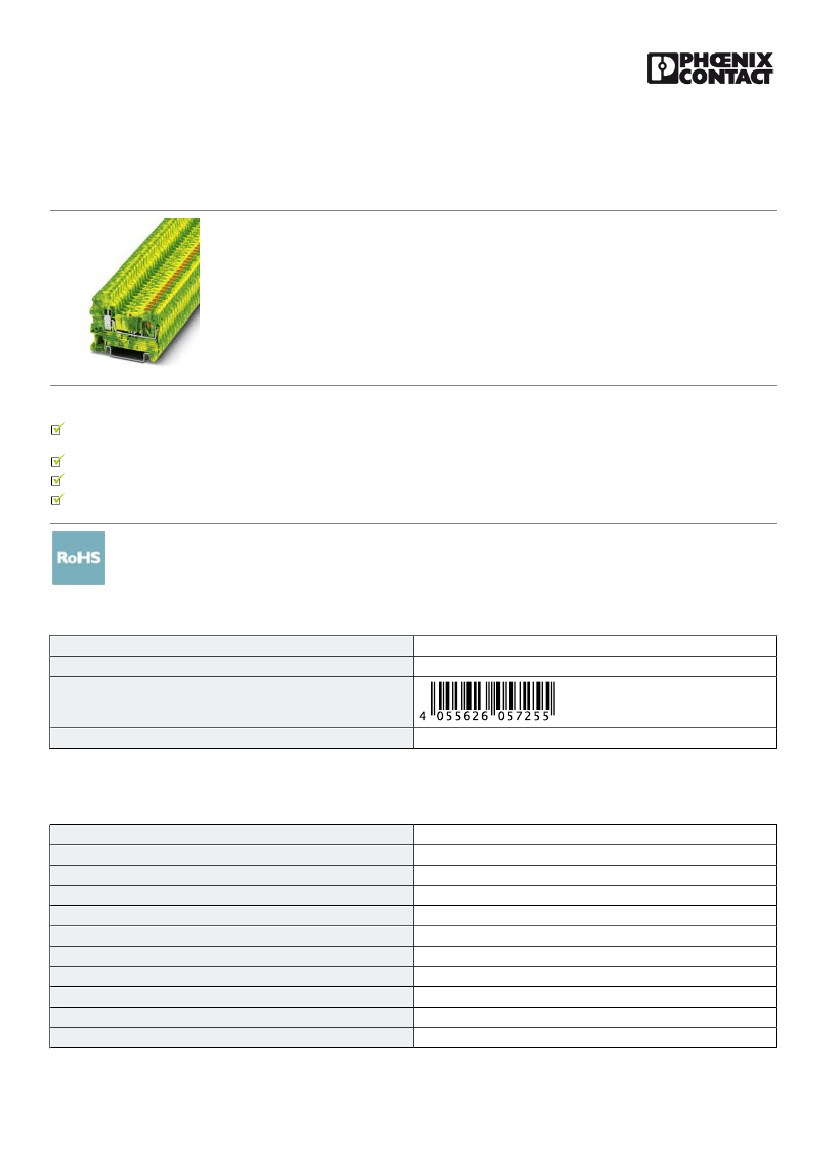

Ground modular terminal block - PTU 2,5-PE - 3209521
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Ground modular terminal block, connection method: Push-in connection, Screw connection, cross section:
0.14 mm² - 4 mm², AWG: 26 - 14, width: 5.2 mm, color: green-yellow, mounting: NS 35/7,5, NS 35/15
Your advantages
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free
wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection
The push-in connection is used inside the control cabinet and the universal screw connection is used on the end customer side
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
4055626057255
50 pc
50 pc
Technical data
General
Number of levels
Number of connections
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Connection method
1
2
2.5 mm²
green-yellow
PA
V0
8 kV
3
III
I
Push-in connection
10/21/2018 Page 1 / 5
https://www.phoenixcontact.com/pi/products/3209521
Ground modular terminal block - PTU 2,5-PE - 3209521
Technical data
General
Connection in acc. with standard
Connection method
Connection in acc. with standard
Nominal voltage U
N
Open side panel
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
IEC 60947-7-2
Screw connection
IEC 60947-7-2
800 V
Yes
130 °C
130 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
End cover width
5.2 mm
53.5 mm
42.8 mm
50.3 mm
2.2 mm
Connection data
Connection method
Connection in acc. with standard
Stripping length
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Push-in connection
IEC 60947-7-2
8 mm ... 10 mm
0.14 mm²
4 mm²
26
12
0.14 mm²
2.5 mm²
26
14
10/21/2018 Page 2 / 5
https://www.phoenixcontact.com/pi/products/3209521
Ground modular terminal block - PTU 2,5-PE - 3209521
Technical data
Connection data
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Connection method
Connection in acc. with standard
Screw thread
Tightening torque, min
Tightening torque max
Stripping length
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
0.14 mm²
0.14 mm²
2.5 mm²
0.34 mm²
4 mm²
0.34 mm²
2.5 mm²
0.34 mm²
Screw connection
IEC 60947-7-2
M3
0.5 Nm
0.6 Nm
8 mm ... 10 mm
0.14 mm²
4 mm²
26
12
0.14 mm²
2.5 mm²
26
14
0.14 mm²
0.14 mm²
2.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max. 2.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max. 2.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max. 2.5 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
IEC 60947-7-2
IEC 60947-7-2
V0
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
10/21/2018 Page 3 / 5
https://www.phoenixcontact.com/pi/products/3209521
Ground modular terminal block - PTU 2,5-PE - 3209521
Technical data
Environmental Product Compliance
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Circuit diagram
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / CSA / cULus Recognized
Ex Approvals
Approval details
UL Recognized
mm²/AWG/kcmil
D
26-12
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
B
26-12
C
26-12
FILE E 60425
cUL Recognized
mm²/AWG/kcmil
D
26-12
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
B
26-12
C
26-12
FILE E 60425
CSA
mm²/AWG/kcmil
http://www.csagroup.org/services-industries/product-listing/
26-12
13631
10/21/2018 Page 4 / 5
https://www.phoenixcontact.com/pi/products/3209521
Ground modular terminal block - PTU 2,5-PE - 3209521
Approvals
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
