0683002006 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 0683002006

0683002006: DescriptionKK 100 HDR ASSY BKWY 05CKT; CategoryThe connector; File Size289KB，2 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

0683002006 Overview

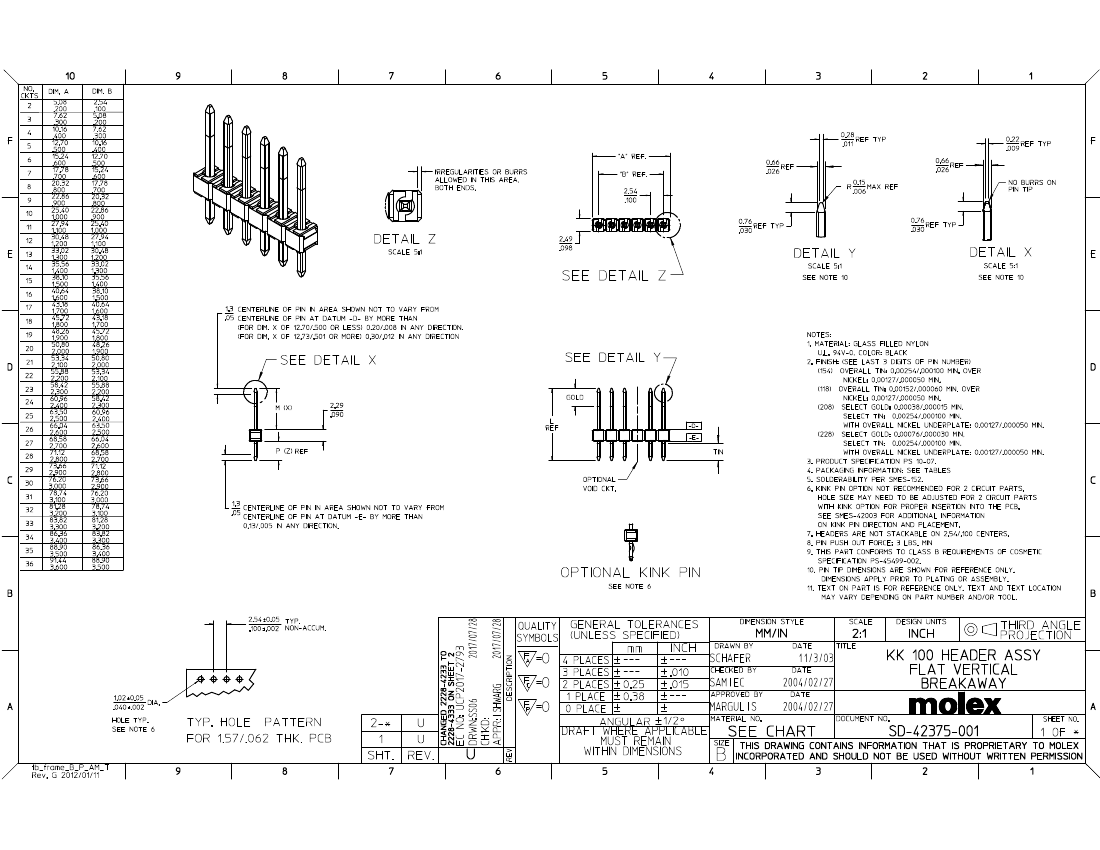

KK 100 HDR ASSY BKWY 05CKT

0683002006 Parametric

Parameter Name	Attribute value
Connector type	Needle hub, separate
Contact type	Male pin
Spacing - Mating	0.100"（2.54mm）
Number of pins	5
Number of rows	1
Line spacing - patching	-
Number of pins loaded	all
style	Board to Board or Cable
shield	Uncovered
Installation type	Through hole
Termination	welding
Fastening type	push-pull
Contact Length - Mating	0.250"（6.35mm）
Contact length - terminal	0.200"（5.08mm）
Overall contact length	0.540"（13.72mm）
Insulation height	0.090"（2.29mm）
Contact shape	Square
Contact surface treatment - mating	gold
Contact Surface Treatment Thickness - Mating	15.0µin（0.38µm）
Contact Surface Preparation - Column	tin
Contact material	-
Insulation Materials	Polyamide (PA), nylon, glass fiber reinforced
characteristic	-
Operating temperature	-
Intrusion protection	-
Material flammability rating	UL94 V-0
Insulation color	black
Rated current	-
Rated voltage	-
Joint stack height	-
Contact Surface Treatment Thickness - Column	100.0µin（2.54µm）
application	Automotive, general, medical, telecommunications

Preview

Download Datasheet

View All

0683002006 Related Products

	0683002006	0683002000	0683002007	0683002008	0683002001	0683002002
Description	KK 100 HDR ASSY BKWY 05CKT	KK 100 HDR ASSY BKWY 02CKT	KK 100 HDR ASSY BKWY 08CKT	KK 100 HDR ASSY BKWY 03CKT	KK 100 HDR ASSY BKWY 03CKT	KK 100 HDR ASSY BKWY 08CKT
Connector type	Needle hub, separate	Needle hub, separate	Needle hub, separate	Needle hub, separate	Needle hub, separate	Needle hub, separate
Contact type	Male pin	Male pin	Male pin	Male pin	Male pin	Male pin
Spacing - Mating	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）
Number of pins	5	2	8	3	3	8
Number of rows	1	1	1	1	1	1
Number of pins loaded	all	all	7	all	all	7
style	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable
shield	Uncovered	Uncovered	Uncovered	Uncovered	Uncovered	Uncovered
Installation type	Through hole	Through hole	Through hole	Through hole	Through hole	Through hole
Termination	welding	welding	welding	welding	welding	welding
Fastening type	push-pull	push-pull	push-pull	push-pull	push-pull	push-pull
Contact Length - Mating	0.250"（6.35mm）	0.250"（6.35mm）	0.232"（5.90mm）	0.232"（5.90mm）	0.250"（6.35mm）	0.250"（6.35mm）
Contact length - terminal	0.200"（5.08mm）	0.200"（5.08mm）	0.153"（3.89mm）	0.153"（3.89mm）	0.200"（5.08mm）	0.200"（5.08mm）
Overall contact length	0.540"（13.72mm）	0.540"（13.72mm）	0.475"（12.07mm）	0.475"（12.07mm）	0.540"（13.72mm）	0.540"（13.72mm）
Insulation height	0.090"（2.29mm）	0.090"（2.29mm）	0.090"（2.29mm）	0.090"（2.29mm）	0.090"（2.29mm）	0.090"（2.29mm）
Contact shape	Square	Square	Square	Square	Square	Square
Contact surface treatment - mating	gold	gold	gold	gold	gold	gold
Contact Surface Treatment Thickness - Mating	15.0µin（0.38µm）	15.0µin（0.38µm）	15.0µin（0.38µm）	15.0µin（0.38µm）	15.0µin（0.38µm）	15.0µin（0.38µm）
Contact Surface Preparation - Column	tin	tin	tin	tin	tin	tin
Insulation Materials	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation color	black	black	black	black	black	black
Contact Surface Treatment Thickness - Column	100.0µin（2.54µm）	100.0µin（2.54µm）	100.0µin（2.54µm）	100.0µin（2.54µm）	100.0µin（2.54µm）	100.0µin（2.54µm）
application	Automotive, general, medical, telecommunications	Automotive, general, medical, telecommunications	Automotive, general, medical, telecommunications	Automotive, general, medical, telecommunications	Automotive, general, medical, telecommunications	Automotive, general, medical, telecommunications
