EDR-S-30B-L-SSTA-GR datasheet, PDF

Datasheet> All Categories > Optical fiber> EDR-S-30B-L-SSTA-GR

EDR-S-30B-L-SSTA-GR: DescriptionLED Emitter, 1260nm Min, 1340nm Max, ST Connector, Through Hole Mount, ROHS COMPLIANT, PACKAGE-3; CategoryOptical fiber; File Size150KB，4 Pages; ManufacturerSource Photonics; Environmental Compliance

Download Datasheet Parametric Compare View All

EDR-S-30B-L-SSTA-GR Overview

LED Emitter, 1260nm Min, 1340nm Max, ST Connector, Through Hole Mount, ROHS COMPLIANT, PACKAGE-3

EDR-S-30B-L-SSTA-GR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Source Photonics
Reach Compliance Code	unknown
Is Samacsys	N
body height	26 mm
Body length or diameter	8.4 mm
Connection Type	ST CONNECTOR
maximum descent time	2.5 ns
Fiber optic equipment types	LED EMITTER
Fiber type	9/125, SMF
Installation features	THROUGH HOLE MOUNT
Number of channels	1
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Maximum operating wavelength	1340 nm
Minimum operating wavelength	1260 nm
Nominal operating wavelength	1300 nm
Rise Time	1.5 ns
Spectral width	80 nm
Supply current	40 mA
Maximum supply voltage	2 V
Nominal supply voltage	1.2 V
surface mount	NO
Transmission type	DIGITAL
Base Number Matches	1

Preview

Download Datasheet

View All

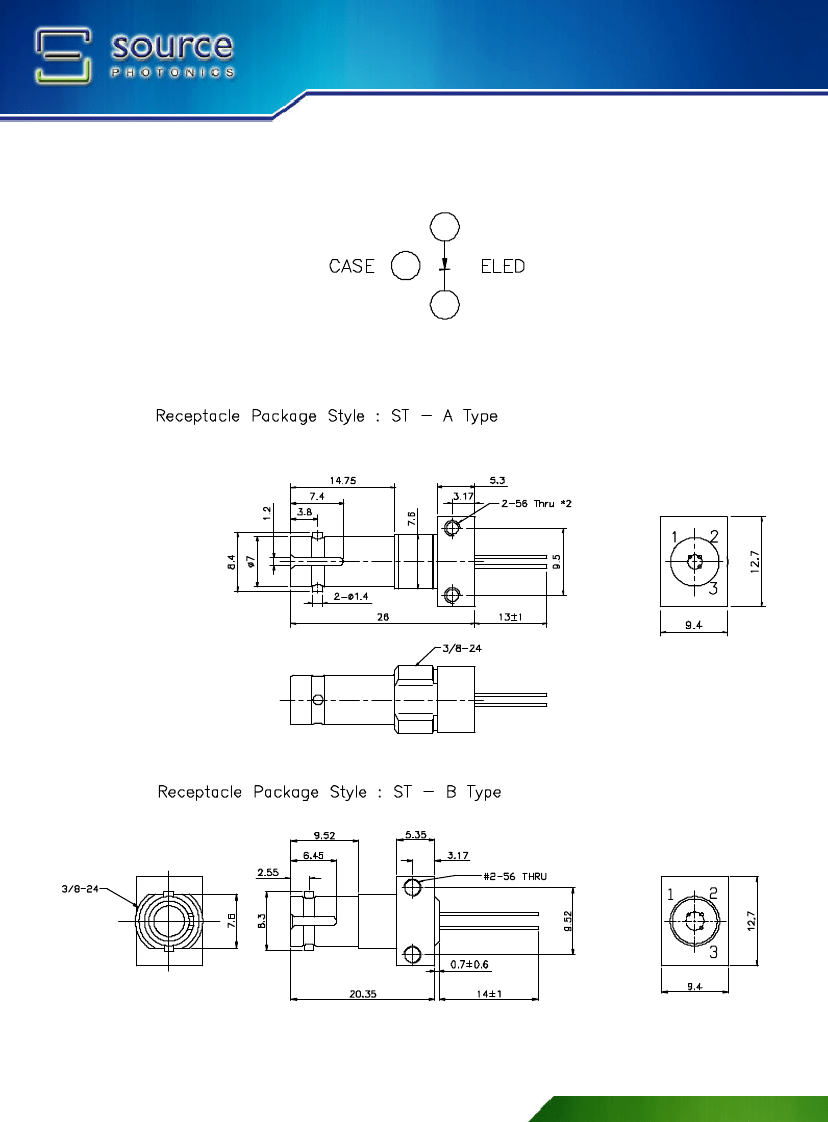

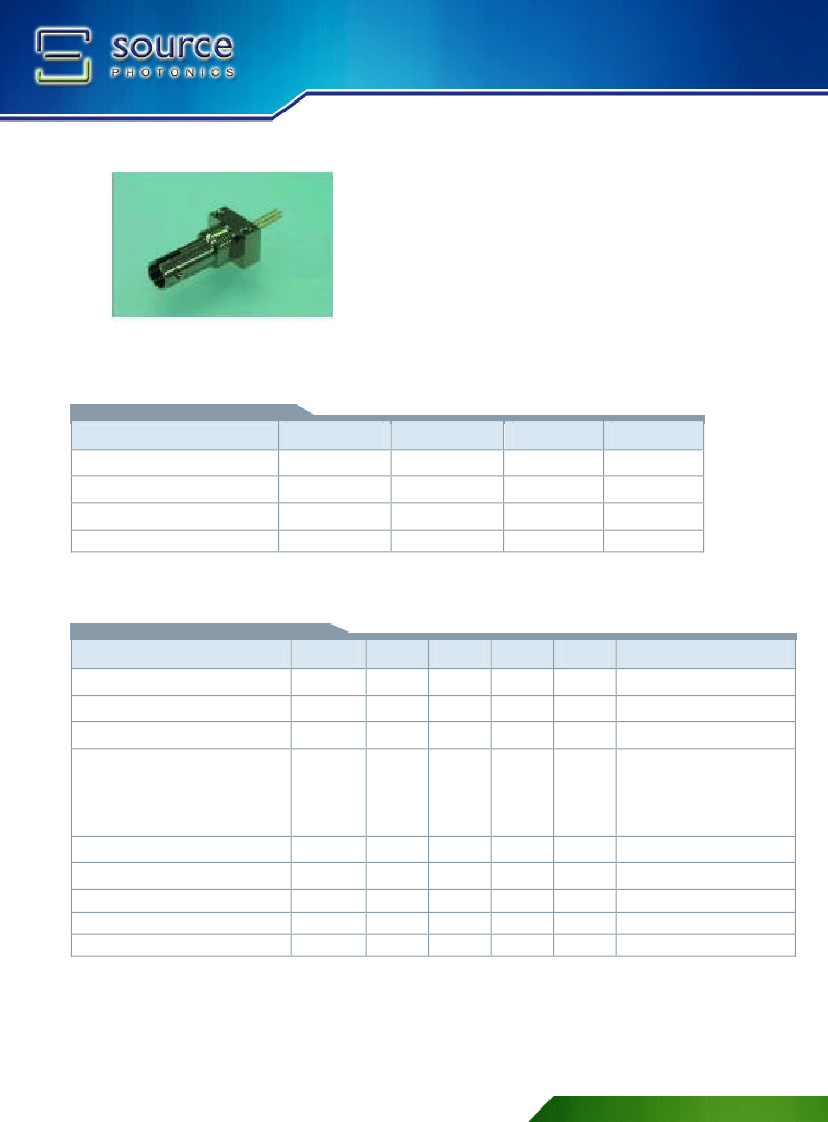

P/N: EDR-S-30B-X-SSTX-XX

ELED ST Receptacle

Features

1300nm Wavelength

High Optical Power

High Operating Current

High Operating Temperature

Low Modal Noise

For Single-mode use

ST-A and ST Receptacle Package

-B

For Datacom or Measurement Applications

RoHS Compliant available

Absolute Maximum Ratings

Parameter

Reverse Voltage

Forward Current

Operating Temperature

Storage Temperature

(Tc=25

℃

)

Symbol

opr

stg

Condition

Rating

2.5

150

-20 ~ 70

-40 ~ 85

Unit

℃

(All optical data refer to a coupled 9/125

m SM fiber)

Optical and Electrical Characteristics 1300nm (Tc=25°

Parameter

Wavelength

Spectral Width

Operating Current

Output Power (SM, 9/125μm)

Spectral Ripple

Forward Voltage

Rise Time

Fall Time

Output Power Variation

Symbol

Δλ

Iop

Min.

1260

Typ.

1300

Max.

1340

Unit

Notes

CW (FWHM)

1.2

1.5

2.5

μW

CW at Iop=40mA

λ±

10nm

25° to 70° Iop=30mA

DS-5419

Rev 0.0 2009-03-30

P/N: EDR-S-30B-X-SSTX-XX

ELED ST Receptacle

Warnings

Handling Precautions:

This device is susceptible to damage as a result of electrostatic discharge (ESD). A static

free environment is highly recommended. Follow guidelines according to proper ESD procedures.

Laser Safety:

Radiation emitted by laser devices can be dangerous to human eyes. Avoid eye exposure to direct or

indirect radiation.

Legal Notice

IMPORTANT NOTICE!

All information contained in this document is subject to change without notice, at Source Photonics’s sole and

absolute discretion. Source Photonics warrants performance of its products to current specifications only in

accordance with the company’s standard o

ne-year warranty; however, specifications designated as “preliminary”

are given to describe components only, and Source Photonics expressly disclaims any and all warranties for said

products, including express, implied, and statutory warranties, warranties of merchantability, fi tness for a particular

purpose, and non-infringement of proprietary rights. Please refer to the company’s Terms and Conditions of Sale for

further warranty information.

Source Photonics assumes no liability for applications assistance, customer product design, software performance,

or infringement of patents, services, or intellectual property described herein. No license, either express or implied,

is granted under any patent right, copyright, or intellectual property right, and Source Photonics makes no

representations or warranties that the product(s) described herein are free from patent, copyright, or intellectual

property rights. Products described in this document are NOT intended for use in implantation or other life support

applications where malfunction may result in injury or death to persons. Source Photonics customers using or

selling products for use in such applications do so at their own risk and agree to fully defend and indemnify Source

Photonics for any damages resulting from such use or sale.

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROVIDED ON AN

“AS

IS” BASIS. Customer agrees

that Source Photonics is not liable for any actual, consequential, exemplary, or other damages arising directly or

indirectly from any use of the information contained in this document. Customer must contact Source Photonics to

obtain the latest version of this publication to verify, before placing any order, that the information contained herein is

current.

DS-5419

Rev 0.0 2009-03-30

EDR-S-30B-L-SSTA-GR Related Products

	EDR-S-30B-L-SSTA-GR	EDR-S-30B-L-SSTA-G5	EDR-S-30B-L-SSTA	EDR-S-30B-H-SSTA-G5	EDR-S-30B-L-SSTB-G5	EDR-S-30B-H-SSTA-GR	EDR-S-30B-H-SSTA	EDR-S-30B-L-SSTB	EDR-S-30B-L-SSTB-GR
Description	LED Emitter, 1260nm Min, 1340nm Max, ST Connector, Through Hole Mount, ROHS COMPLIANT, PACKAGE-3	LED Emitter, 1260nm Min, 1340nm Max, ST Connector, Through Hole Mount	LED Emitter, 1260nm Min, 1340nm Max, ST Connector, Through Hole Mount	LED Emitter, 1260nm Min, 1340nm Max, ST Connector, Through Hole Mount	LED Emitter, 1260nm Min, 1340nm Max, ST Connector, Through Hole Mount, PACKAGE-3	LED Emitter, 1260nm Min, 1340nm Max, ST Connector, Through Hole Mount, ROHS COMPLIANT, PACKAGE-3	LED Emitter, 1260nm Min, 1340nm Max, ST Connector, Through Hole Mount	LED Emitter, 1260nm Min, 1340nm Max, ST Connector, Through Hole Mount	LED Emitter, 1260nm Min, 1340nm Max, ST Connector, Through Hole Mount, ROHS COMPLIANT, PACKAGE-3
Is it lead-free?	Lead free	Contains lead	Contains lead	Contains lead	Contains lead	Lead free	Contains lead	Contains lead	Lead free
Is it Rohs certified?	conform to	incompatible	incompatible	incompatible	incompatible	conform to	incompatible	incompatible	conform to
Maker	Source Photonics	Source Photonics	Source Photonics	Source Photonics	Source Photonics	Source Photonics	Source Photonics	Source Photonics	Source Photonics
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow	unknow
body height	26 mm	26 mm	26 mm	26 mm	20.35 mm	26 mm	26 mm	20.35 mm	20.35 mm
Body length or diameter	8.4 mm	8.4 mm	8.4 mm	8.4 mm	8.3 mm	8.4 mm	8.4 mm	8.3 mm	8.3 mm
Connection Type	ST CONNECTOR	ST CONNECTOR	ST CONNECTOR	ST CONNECTOR	ST CONNECTOR	ST CONNECTOR	ST CONNECTOR	ST CONNECTOR	ST CONNECTOR
maximum descent time	2.5 ns	2.5 ns	2.5 ns	2.5 ns	2.5 ns	2.5 ns	2.5 ns	2.5 ns	2.5 ns
Fiber optic equipment types	LED EMITTER	LED EMITTER	LED EMITTER	LED EMITTER	LED EMITTER	LED EMITTER	LED EMITTER	LED EMITTER	LED EMITTER
Fiber type	9/125, SMF	9/125, SMF	9/125, SMF	9/125, SMF	9/125, SMF	9/125, SMF	9/125, SMF	9/125, SMF	9/125, SMF
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of channels	1	1	1	1	1	1	1	1	1
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Maximum operating wavelength	1340 nm	1340 nm	1340 nm	1340 nm	1340 nm	1340 nm	1340 nm	1340 nm	1340 nm
Minimum operating wavelength	1260 nm	1260 nm	1260 nm	1260 nm	1260 nm	1260 nm	1260 nm	1260 nm	1260 nm
Nominal operating wavelength	1300 nm	1300 nm	1300 nm	1300 nm	1300 nm	1300 nm	1300 nm	1300 nm	1300 nm
Rise Time	1.5 ns	1.5 ns	1.5 ns	1.5 ns	1.5 ns	1.5 ns	1.5 ns	1.5 ns	1.5 ns
Spectral width	80 nm	80 nm	80 nm	80 nm	80 nm	80 nm	80 nm	80 nm	80 nm
Supply current	40 mA	40 mA	40 mA	40 mA	40 mA	40 mA	40 mA	40 mA	40 mA
Maximum supply voltage	2 V	2 V	2 V	2 V	2 V	2 V	2 V	2 V	2 V
Nominal supply voltage	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Transmission type	DIGITAL	DIGITAL	DIGITAL	DIGITAL	DIGITAL	DIGITAL	DIGITAL	DIGITAL	DIGITAL
