SMU02M-15: DescriptionDC DC CONVERTER 15V 2W; CategoryPower/power management; File Size48KB，1 Pages; ManufacturerMEAN WELL; Websitehttp://www.meanwell.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SMU02M-15 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SMU02M-15	-	-	View	Buy Now

SMU02M-15 Overview

DC DC CONVERTER 15V 2W

SMU02M-15 Parametric

Parameter Name	Attribute value
type	isolation module
Number of outputs	1
Voltage - Input (minimum)	10.8V
Voltage - input (maximum)	13.2V
Voltage - Output 1	15V
Voltage - Output 2	-
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (maximum)	133mA
Power (W)	2W
Voltage - Isolation	1500V
application	ITE (Business)
characteristic	OCP，SCP
Operating temperature	-40°C ~ 85°C (with derating)
efficiency	85%
Installation type	Through hole
Package/casing	4-SIP module
size/dimensions	0.46" long x 0.30" wide x 0.40" high (11.6mm x 7.5mm x 10.1mm)
Supplier device packaging	-

Preview

Download Datasheet

View All

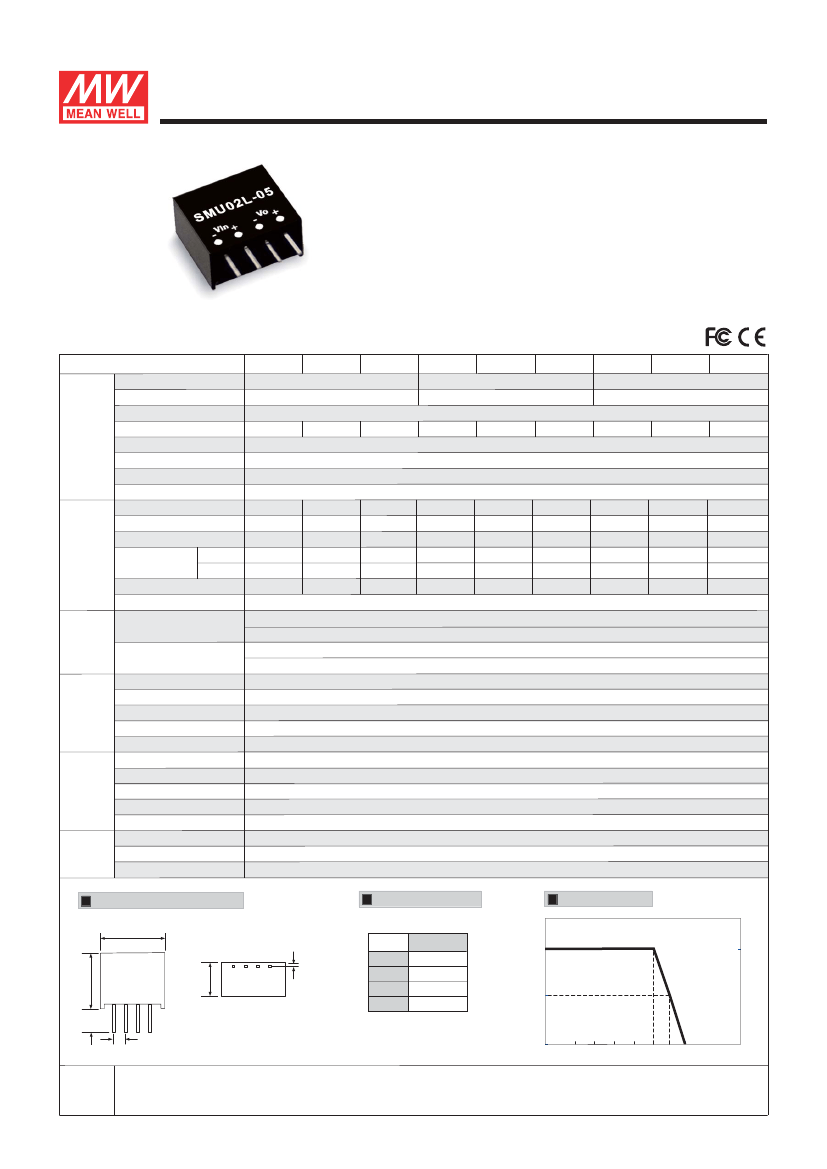

2W DC-DC Unregulated Single Output Converter

■

Features :

SIP packge

Industry standard pinout

S M U 0 2

series

1500VDC I/O isolation

Built-in EMI filter without external components

Cooling by free air convection

Non-conductive plastic case

100% burn-in test

Low cost / High reliability

2 years warranty

SPECIFICATION

ORDER NO.

DC VOLTAGE

CURRENT RANGE

RATED POWER

OUTPUT

SMU02L-05

5V

80 ~ 400mA

2W

60mVp-p

80mVp-p

SMU02M-05 SMU02N-05 SMU02L-12 SMU02M-12 SMU02N-12 SMU02L-15 SMU02M-15 SMU02N-15

12V

33 ~ 167mA

15V

27 ~ 133mA

RIPPLE & NOISE (max.)

Note.2

50mVp-p

LINE REGULATION

Note.3

±1.2%

for 1% input variation

LOAD REGULATION

Note.4

±8.0%

VOLTAGE ACCURACY

VOLTAGE RANGE

EFFICIENCY(Typ.)

NORMAL VOLTAGE

±

2.0%

4.5 ~ 5.5V

79%

5V

Full load 500mA

No load 50mA

SWITCHING FREQUENCY(Typ.)

100KHz

10.8 ~ 13.2V 21.6 ~ 26.4V 4.5 ~ 5.5V

82%

80%

83%

24V

12V

5V

210mA

25mA

250mA

107mA

15mA

150mA

500mA

50mA

500mA

10.8 ~ 13.2V 21.6 ~ 26.4V 4.5 ~ 5.5V

85%

84%

24V

12V

5V

210mA

25mA

250mA

107mA

15mA

150mA

500mA

50mA

500mA

10.8 ~ 13.2V 21.6 ~ 26.4V

85%

84%

24V

12V

210mA

25mA

250mA

107mA

15mA

150mA

INPUT

INPUT CURRENT

PROTECTION (FUSE RECOMMENDED)

500mA

FILTER

OVERLOAD

PROTECTION

SHORT CIRCUIT

WORKING TEMP.

WORKING HUMIDITY

ENVIRONMENT STORAGE TEMP., HUMIDITY

TEMP. COEFFICIENT

VIBRATION

WITHSTAND VOLTAGE

ISOLATION RESISTANCE

SAFETY &

ISOLATION CAPACITANCE

EMC

EMI RADIATION

EMS IMMUNITY

OTHERS

MTBF

DIMENSION (L*W*H)

WEIGHT

Capacitor type

Momentary

Protection type : Broken

Momentary

Protection type : Broken

-40 ~ +85

℃

(Refer to "Derating Curve")

20% ~ 90% RH non-condensing

-55 ~ +125

℃

, 10 ~ 95% RH

±

0.05% /

℃

(0 ~ 50

℃

)

10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes

I/P-O/P:1.5KVDC

I/P-O/P: 100M Ohms / 500VDC / 25

℃

/ 70% RH

80pF max.

Compliance to EN55022 Class B, FCC part 15 Class B

Compliance to EN61000-4-2,3,4,5,6,8 light industry level, criteria A

100Khrs min. MIL-HDBK-217F(25

℃

)

11.6*7.5*10.14mm or 0.46"*0.30"*0.40" inch

1.3g

Mechanical Specification

11.6 (0.46)

Unit: mm (inch)

Pin Configuration

Pin No.

Output

+Vin

-Vout

+Vout

Derating Curve

100

FRONT

VIEW

7.5 (0.30)

1.2 (0.05)

1

2

3

4

2

3

4

LOAD (%)

10.14 (0.40)

1

-Vin

50

3.81 (0.15)

2.54 (0.10)

BOTT ON VIEW

-40

0

20

40

60

71 85 100

Ta (

℃

)

NOTE

1.All parameters are specified at normal input, rated load, 25

℃

70% RH ambient.

2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.

3.Line regulation is measured from low line to high line at rated load.

4.Load regulation is measured from 20% to 100% rated load.

File Name: SMU02-SPEC 2016-06-22

SMU02M-15 Related Products

	SMU02M-15	SMU02N-05	SMU02L-15	SMU02M-12	SMU02N-15	SMU02L-05	SMU02L-12	SMU02M-05	SMU02N-12
Description	DC DC CONVERTER 15V 2W	DC DC CONVERTER 5V 2W	DC DC CONVERTER 15V 2W	DC DC CONVERTER 12V 2W	DC DC CONVERTER 15V 2W	DC DC CONVERTER 5V 2W	DC DC CONVERTER 12V 2W	DC DC CONVERTER 5V 2W	DC DC CONVERTER 12V 2W
type	isolation module	isolation module	isolation module	isolation module	-	isolation module	isolation module	isolation module	-
Number of outputs	1	1	1	1	-	1	1	1	-
Voltage - Input (minimum)	10.8V	21.6V	4.5V	10.8V	-	4.5V	4.5V	10.8V	-
Voltage - input (maximum)	13.2V	26.4V	5.5V	13.2V	-	5.5V	5.5V	13.2V	-
Voltage - Output 1	15V	5V	15V	12V	-	5V	12V	5V	-
Current - Output (maximum)	133mA	400mA	133mA	167mA	-	400mA	167mA	400mA	-
Power (W)	2W	2W	2W	2W	-	2W	2W	2W	-
Voltage - Isolation	1500V	1500V	1500V	1500V	-	1500V	1500V	1500V	-
application	ITE (Business)	ITE (Business)	ITE (Business)	ITE (Business)	-	ITE (Business)	ITE (Business)	ITE (Business)	-
characteristic	OCP，SCP	OCP，SCP	OCP，SCP	OCP，SCP	-	OCP，SCP	OCP，SCP	OCP，SCP	-
Operating temperature	-40°C ~ 85°C (with derating)	-40°C ~ 85°C (with derating)	-40°C ~ 85°C (with derating)	-40°C ~ 85°C (with derating)	-	-40°C ~ 85°C (with derating)	-40°C ~ 85°C (with derating)	-40°C ~ 85°C (with derating)	-
efficiency	85%	80%	84%	85%	-	79%	83%	82%	-
Installation type	Through hole	Through hole	Through hole	Through hole	-	Through hole	Through hole	Through hole	-
Package/casing	4-SIP module	4-SIP module	4-SIP module	4-SIP module	-	4-SIP module	4-SIP module	4-SIP module	-
size/dimensions	0.46" long x 0.30" wide x 0.40" high (11.6mm x 7.5mm x 10.1mm)	0.46" long x 0.30" wide x 0.40" high (11.6mm x 7.5mm x 10.1mm)	0.46" long x 0.30" wide x 0.40" high (11.6mm x 7.5mm x 10.1mm)	0.46" long x 0.30" wide x 0.40" high (11.6mm x 7.5mm x 10.1mm)	-	0.46" long x 0.30" wide x 0.40" high (11.6mm x 7.5mm x 10.1mm)	0.46" long x 0.30" wide x 0.40" high (11.6mm x 7.5mm x 10.1mm)	0.46" long x 0.30" wide x 0.40" high (11.6mm x 7.5mm x 10.1mm)	-
