200W Slim Type with PFC Switching Power Supply
UHP-200
series
Bauar t gepruft
Sicherheit
egel ma ge
od
o s
be wac
g
www. tuv.com
ID 2000000000
R33100
RoHS
GB4943
UL60950-1
EN60950-1
EN60335-1
IEC60950-1
■
Features
Slim and Low profile (26mm)
Fanless design,200W convection
Withstand 300VAC surge input for 5 seconds
Built-in active PFC function
150
%
peak load capability(100ms)
-
30
~+
70
℃
working temperature
Protections: Short circuit / Overload /
Over voltage / Over temperature
DC OK active signal and redundant function(option)
Operating altitude up to 5000 meter (Note.5)
LED indicator for power on
3 years warranty
■
Applications
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments
or apparatus
Household appliances
LED display
application
■
Description

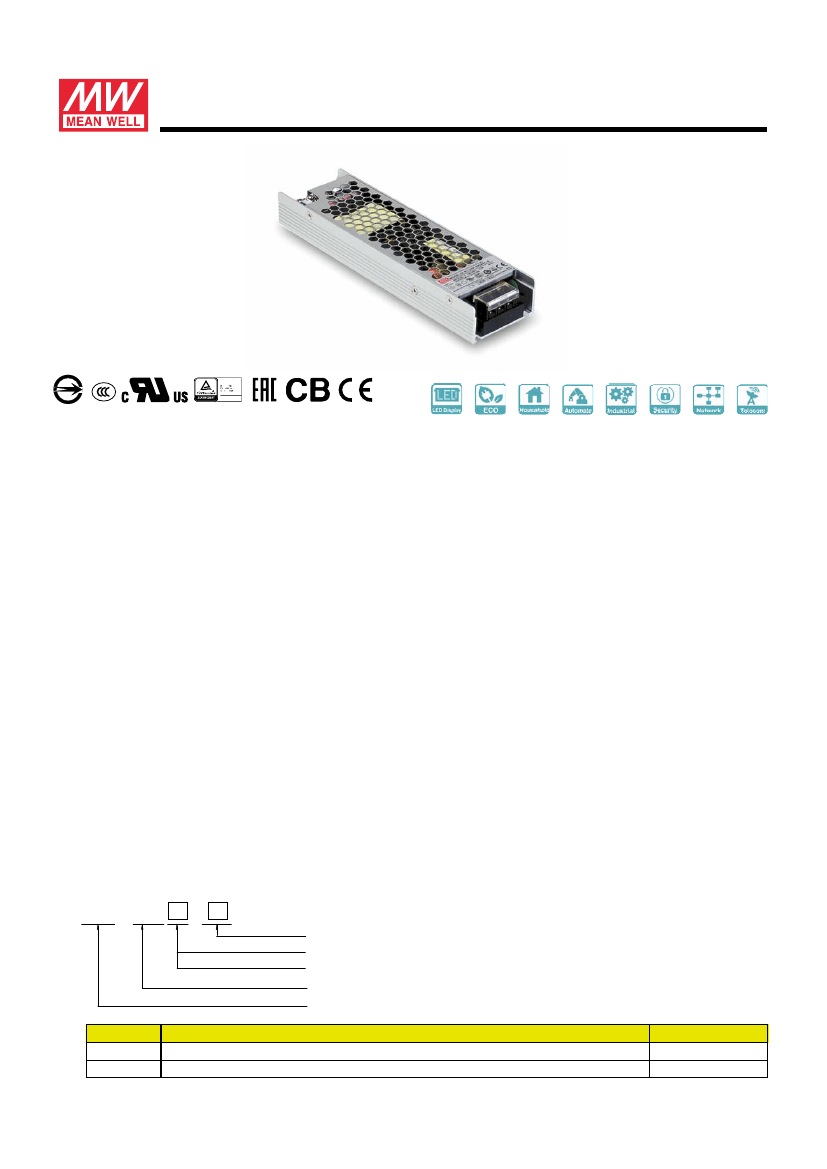

UHP-200 series is a 200W single-output slim type power supply with 26mm of low profile design.
Adopting the full range 90~264VAC input, the entire series provides an output voltage line of 3.3V,
4.2V, 5V, 12V, 15V, 24V, 36V and 48V. In addition to the high efficiency up to 94%, that the whole
series operates from -30
℃
~ 70
℃
under air convection without fan. UHP-200 has the complete
protection functions and 5G anti-vibration capability;It is complied with the international safety
regulations such as TUV EN60950-1, EN60335-1, UL60950-1 and GB4943. UHP-200 series
serves as a high performance power supply solution for various industrial applications.
■
Model Encoding
UHP - 200
- 5
Output Voltage
Blank
R
Rated
wattage
Series name
Type
Blank
R
Enclosed
Built-in DC OK active signal and redundant function.
Description
Note
In Stock
In Stock
File Name:UHP-200-SPEC 2018-09-13
200W Slim Type with PFC Switching Power Supply
SPECIFICATION
MODEL
DC VOLTAGE
RATED CURRENT
RATED POWER
(convection)
UHP-200
3.3V
40A
132W
-3.3 UHP-200
4.2V
40A
168W
150mVp-p
3.6~4.4V
±2.0%
±0.5%
±1.0%
-4.2 UHP-200
5V
40A
200W
200mVp-p
4.5~5.5V
±2.0%
±0.5%
±1.0%
-5 UHP-200
12V
16.7A
200.4W
240mVp-p
11.4~12.6V
±1.0%
±0.3%
±0.5%
-12 UHP-200
15V
13.4A
201W
240mVp-p
14.3~15.8V
±1.0%
±0.3%
±0.5%
UHP-200
-15 UHP-200
24V
8.4A
201.6W
240mVp-p
22.8~25.2V
±1.0%
±0.3%
±0.5%
-24 UHP-200
36V
5.6A
201.6W
240mVp-p
34.2~37.8V
±1.0%
±0.3%
±0.5%
series
-48
-36 UHP-200
48V
4.2A
201.6W
300mVp-p
45.6~50.4V
±1.0%
±0.3%
±0.5%
RIPPLE & NOISE (max.)
Note.2
150mVp-p
VOLTAGE ADJ. RANGE
OUTPUT
3.2~3.5V
VOLTAGE TOLERANCE
Note.3
±2.0%
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
VOLTAGE RANGE
FREQUENCY RANGE
POWER FACTOR (Typ.)
Note.4
±0.5%
±1.0%
2000ms, 80ms/230VAC
10ms/230VAC
90 ~ 264VAC
47 ~ 63Hz
3000ms, 80ms/115VAC at full load
10ms/115VAC
127 ~ 370VDC
PF
≥
0.94/230VAC PF
≥
0.98/115VAC at full load
89%
2.2A/115VAC
90%
1.1A/230VAC
80A/230VAC
91%
93%
94%
94%
94%
94%
INPUT
EFFICIENCY (Typ.)
AC CURRENT (Typ.)
INRUSH CURRENT (Typ.)
LEAKAGE CURRENT
OVERLOAD
Cold start 40A/115VAC
<0.75mA / 240VAC
110~140% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
3.8~ 4.6V
OVER VOLTAGE
OVER TEMPERATURE
DC OK SIGNAL(Optional)
FUNCTION
REDUNDANT(Optional)
WORKING TEMP.
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
SAFETY &
EMC
(Note.6)
PROTECTION
4.62 ~ 5.46V
5.75 ~ 6.75V
13.2 ~ 15.6V
16.5 ~ 19.5V
26.4 ~ 31.2V
39.6 ~46.8V
52.8 ~ 62.4V
Protection type :Shut down O/P voltage,re-power on to recover
Protection type :Shut down O/P voltage, recovers automatically after
temperature goes down
Contact rating(max.):15Vdc/10mA resistive load
For parallel connection protection:For parallel applications, when one PSU can not work , the another one will be automatically
enabled. This can prevent the system crash, and provide the reliability of system
-30 ~ +70
℃
(Refer to “Derating Curve")
20 ~ 90% RH non-condensing
-40 ~ +85
℃
, 10 ~ 95% RH non-condensing
±
0.03%/
℃
(0 ~ 50
℃)
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
UL60950-1,TUV EN60950-1,EN60335-1, CCC GB4943, EAC TP TC 004, BSMI CNS14336-1 approved, Design refer to EN61558-1,-2-16
I/P-O/P:3.75KVAC
I/P-FG:2KVAC
O/P-FG:1.25KVAC
WITHSTAND VOLTAGE
ISOLATION RESISTANCE
EMC EMISSION
EMC IMMUNITY
MTBF
I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500VDC/25
℃
/ 70%RH
Compliance to EN55032,GB9254,Class B, EN55014,EN61000-3-2,-3,EAC TP TC 020,BSMI CNS13438
Compliance to EN61000-4-2,3,4,5,6,8,11;EN61000-6-2 (EN50082-2), heavy industry level ,criterial A,EAC TP TC 020
257K hrs min.
MIL-HDBK-217F (25
℃
)
OTHERS
DIMENSION
PACKING
194*55*26mm (L*W*H)
0.468kg;24pcs/12.2kg/0.49CUFT
NOTE
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25
℃
of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance :includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5.
The
ambient temperature derating of 5
℃
/1000m is needed for operating altitude greater than 2000m(6500ft)
6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that
it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to EMI testing of component power supplies.
(as available on http://www.meanwell.com)
File Name:UHP-200-SPEC 2018-09-13
200W Slim Type with PFC Switching Power Supply
STATIC CHARACTERISTIC
UHP-200
series
100
90
80
LOAD (%)
70
60
50
40
90
100
110
120
140
160 180
200
220 240
264
INPUT VOLTAGE (V) 60Hz
Function Manual
1.DC_OK Signal
DC_OK is a collector shorted signal. It is used by an optocoupler in the power supply
which indicates the output status of the power supply as exhibited below.
+V
DC OK +V
1K
Optocoupler C-E Pin Conduction
C
PSU turns on
PSU turns off
DC ok
DC fail
Optocoupler C-E Pin Open
Optocoupler Rating(max.)
COM
15Vdc/10mA resistive load
GND
PSU
2.Redundant function
(1) UHP-200R is built-in redundant function and can be connected 2 units in parallel .
(2) When in parallel operation the maximum load should not be greater than the rated power of any PSU.
PSU
+V
-V
+V
LOAD
-V
PSU
+V
-V
E
File Name:UHP-200-SPEC 2018-09-13
