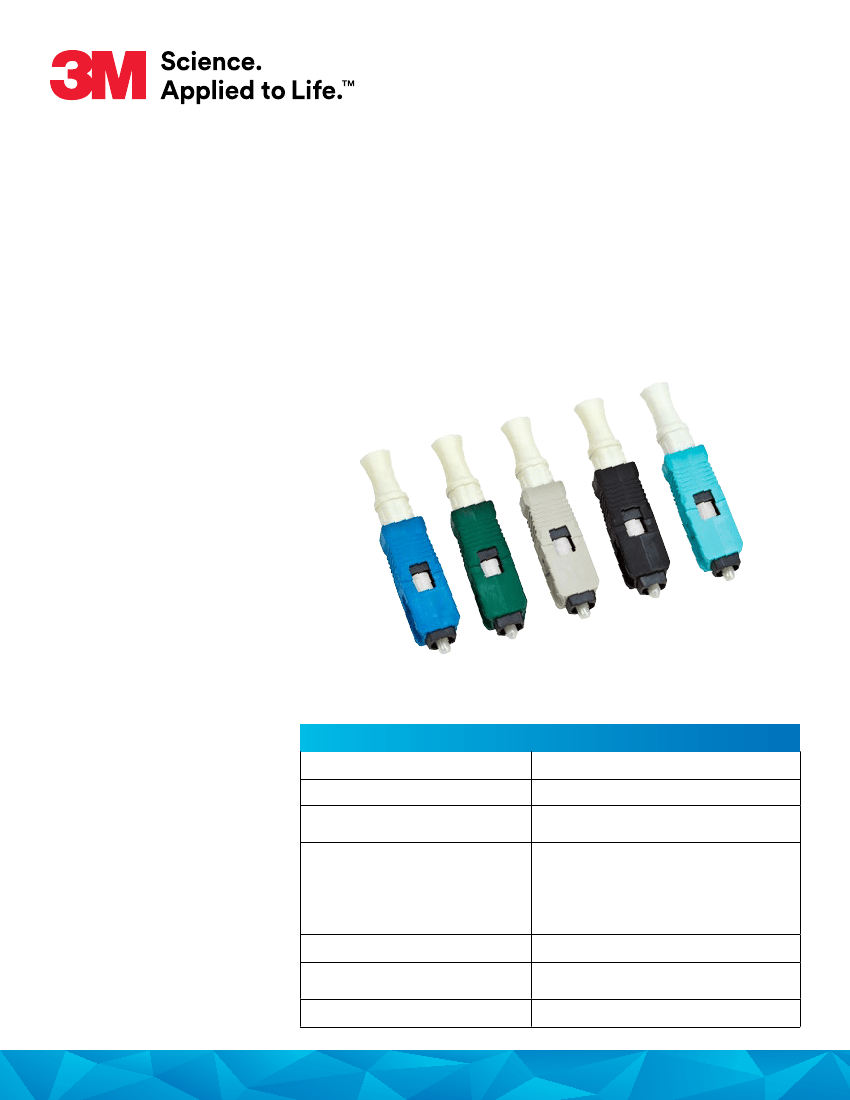

The Crimplok+ Connectors and Tools are RoHS compliant.*
Features
No splice, gel or adhesive
Simple one-piece assembly tools
Angle nano finishing tool for
SC/APC connectors
Polishing film/Protrusion-setting cap
with every connector
APC:
Green lapping film /
Translucent white cap
UPC:
White lapping film /
Translucent blue cap
One-piece, pre-assembled design
Field termination
SC/APC angle polish
Benefits
No splice interface/potential optical loss point
Fast, easy installation without electrical power
Helps eliminate high CapEx of angle cleaver
Always have new polishing film and appropriate
protrusion-setting caps for respective APC and
UPC connectors
No small, loose parts
Always the right cable length with virtually no cable
slack to store
Low reflectance, <-60 dB for outdoor temperatures
3M
™
Crimplok
™
+ Connector SC Specifications
Multimode
6700-AT/62.5
(OM3/4)
Insertion Loss (dB) typical
Reflectance (dB) typical at
room temp
Reflectance (dB) max over
operating temperature range
Operating temperature
range (°C)
Storage temperature (°C)
Connector identification
Field termination kit
0.2
<-25
<-25
-10°C to 60°C
-10°C to 60°C
beige/white
8765T-UPC
Multimode
6700-AT/50 (OM2)
0.2
<-30
<-30
-10°C to 60°C
-10°C to 60°C
black/white
8765T-UPC
Multimode
6700-AT/50LOMMF
(OM1)
0.2
<-30
<-30
-10°C to 60°C
-10°C to 60°C
aqua/white
8765T-UPC
Singlemode
8700-AT/UPC
0.2
<-40
<-35
-40°C to 75°C
-40°C to 85°C
blue/white
8765T-UPC
Singlemode
8700-AT/APC
0.25
<-65
<-60
-40°C to 75°C
-40°C to 85°C
green/white
8765T-APC
Specifications Common to all 3M
™
Crimplok
™
+ Connectors
Material
Connector ferrule
Connector housing and body
Boot
Dimensions
Zirconia ceramic
Engineered resin
Thermoplastic elastomer
8.1 x 9.0 x 45 mm (0.3'' x 0.3'' x 1.8'')
3M
™
Crimplok
™

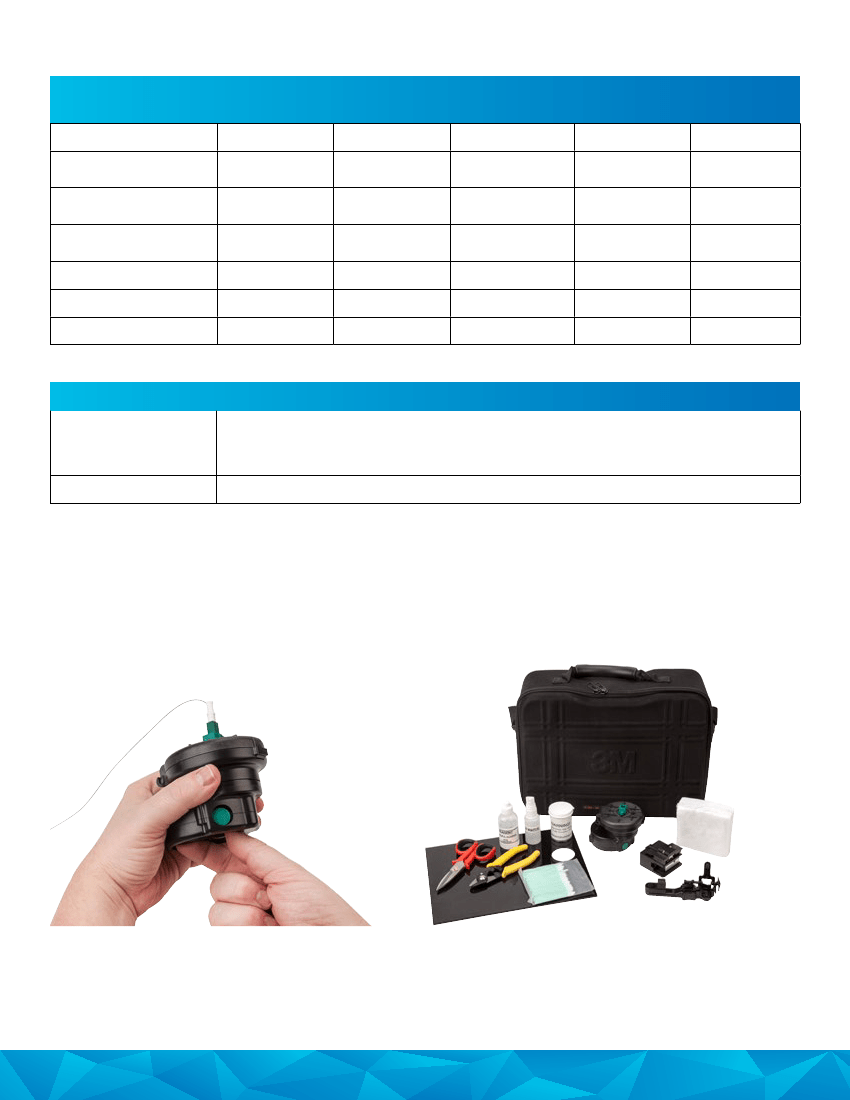

+ Nano Finishing Tool SC/APC 8765-NF/APC
3M
™
Crimplok
™
+ Connector Kit SC/APC 8765T-APC contains all the
tools necessary for 3M
™
Crimplok
™
+ Connector 8700-AT/APC
3M
™
Crimplok
™
+ Activation Tool with
a 3M
™
Crimplok
™
+ SC/APC connector
3M
™
Crimplok
™
+ Connectors SC/UPC and
SC/APC with Protrusion-setting Caps
3M
™
Crimplok
™
+ Connector Ordering Information
Product Number
8700-AT/APC
8700-AT/UPC
6700-AT/62.5
6700-AT/50
6700-AT/50LOMMF
8765-AT/APC
8765-AT/UPC
8765T-APC
8765T-UPC
8700-AT/APC/C
8700-AT/UPC/C
6700-AT/62.5/C-60
6700-AT/50/C-60
6700-AT/50LOMMF/C-60
Product Descriptions
3M
™
Crimplok
™
+ Connector SC/APC SM 250/900 µm with Activation Tool
3M
™
Crimplok
™
+ Connector SC/UPC SM 250/900 µm with Activation Tool
3M
™
Crimplok
™
+ Connector SC MM 62.5 µm, (OM1) with Activation Tool
63M
™
Crimplok
™
+ Connector SC MM 50 µm, (OM2) with Activation Tool
3M
™
Crimplok
™
+ Connector SC MM 50 µm, (OM3/4) with Activation Tool
3M
™
Crimplok
™
+ SC/APC Activation Tool
3M
™
Crimplok
™
+ SC/UPC Activation Tool
3M
™
Crimplok
™

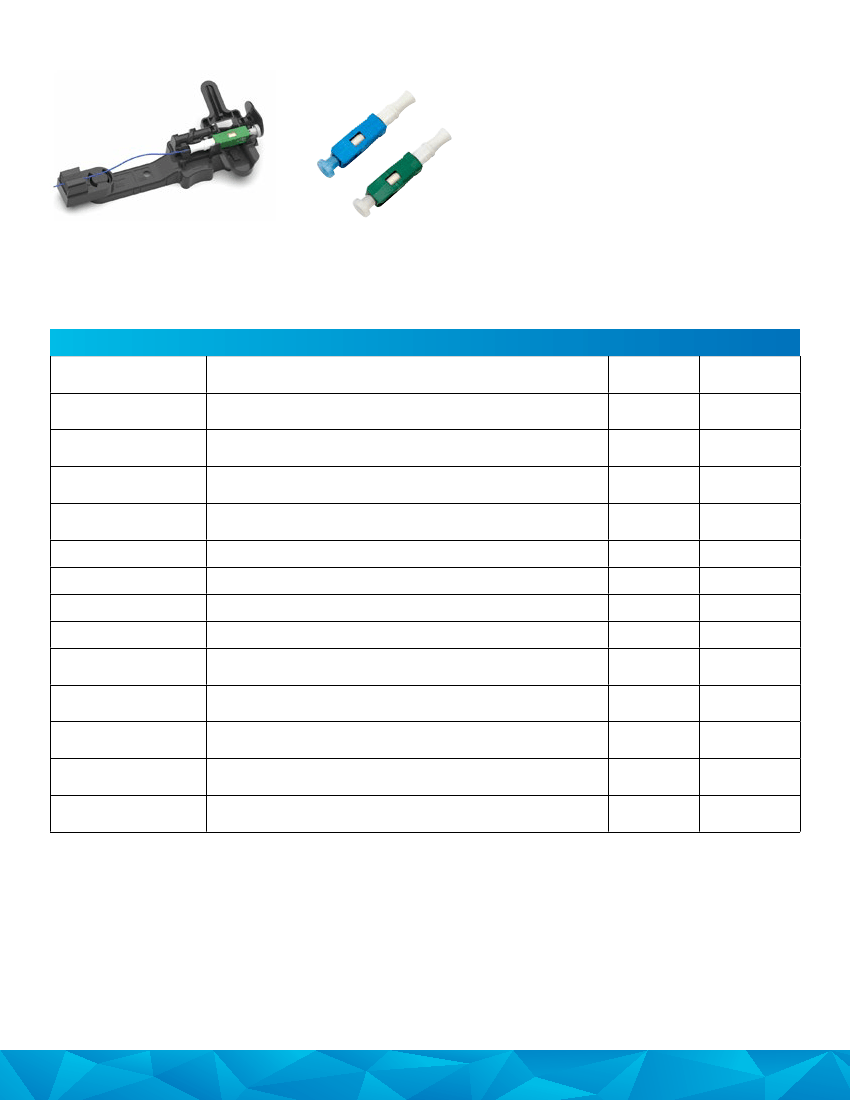

+ SC/APC Connector Installation Kit
3M
™
Crimplok
™
+ SC/UPC Connector Installation Kit
3M
™
Crimplok
™
+ Connector SC/APC SM 250/900 µm with Activation Tool,
Easy Cleaver
3M
™
Crimplok
™
+ Connector SC/UPC SM 250/900 µm with Activation Tool,
Easy Cleaver
3M
™
Crimplok
™
+ Connector SC MM 62.5 µm, (OM1) with Activation Tool,
Easy Cleaver
3M
™
Crimplok
™
+ Connector SC MM 50 µm, (OM2) with Activation Tool,
Easy Cleaver
3M
™
Crimplok
™
+ Connector SC MM 50 µm, (OM3/4) with Activation Tool,
Easy Cleaver
Packaging
60 connector/
pack
60 connector/
pack
60 connector/
pack
60 connector/
pack
60 connector/
pack
1 tool/pack
1 tool/pack
1 kit/pack
1 kit/pack
120 connector/
pack
120 connector/
pack
60 connector/
pack
60 connector/
pack
60 connector/
pack
3M ID
80611622004
80611622087
80611622111
80611622095
80611622103
80611621907
80611621998
80611622145
80611622459
80611622335
80611622343
80611622418
80611622400
80611622426
*“RoHS 2011/65/EU” means that the product or part does not contain any of the substances in excess of the maximum concentration values (“MCVs”) in EU RoHS Directive
2011/65/EU. The MCVs are by weight in homogeneous materials. This information represents 3M’s knowledge and belief, which may be based in whole or in part on
information provided by third party suppliers to 3M.
3M and Crimplok are trademarks of 3M Company.
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the
accuracy or completeness is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application.
You assume all risks and liability associated with such use. Any statements related to the product which are not contained in 3M’s current publications,
or any contrary statements contained on your purchase order shall have no force or effect unless expressly agreed upon, in writing, by an authorized
officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of 12 months from the time of purchase.
3M MAKES NO OTHER
WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product
or refund the purchase price of the 3M product. Except where prohibited by law, 3M will not be liable for any loss or damage arising from this 3M
product, whether direct, indirect, special, incidental or consequential regardless of the legal theory asserted.
