DSA7102
Silicon PNP epitaxial planar type
For low frequency amplification
Complementary to DSC7102
Features
Low collector-emitter saturation voltage V
CE(sat)
Halogen-free / RoHS compliant
(EU RoHS / UL-94 V-0 / MSL: Level 1 compliant)

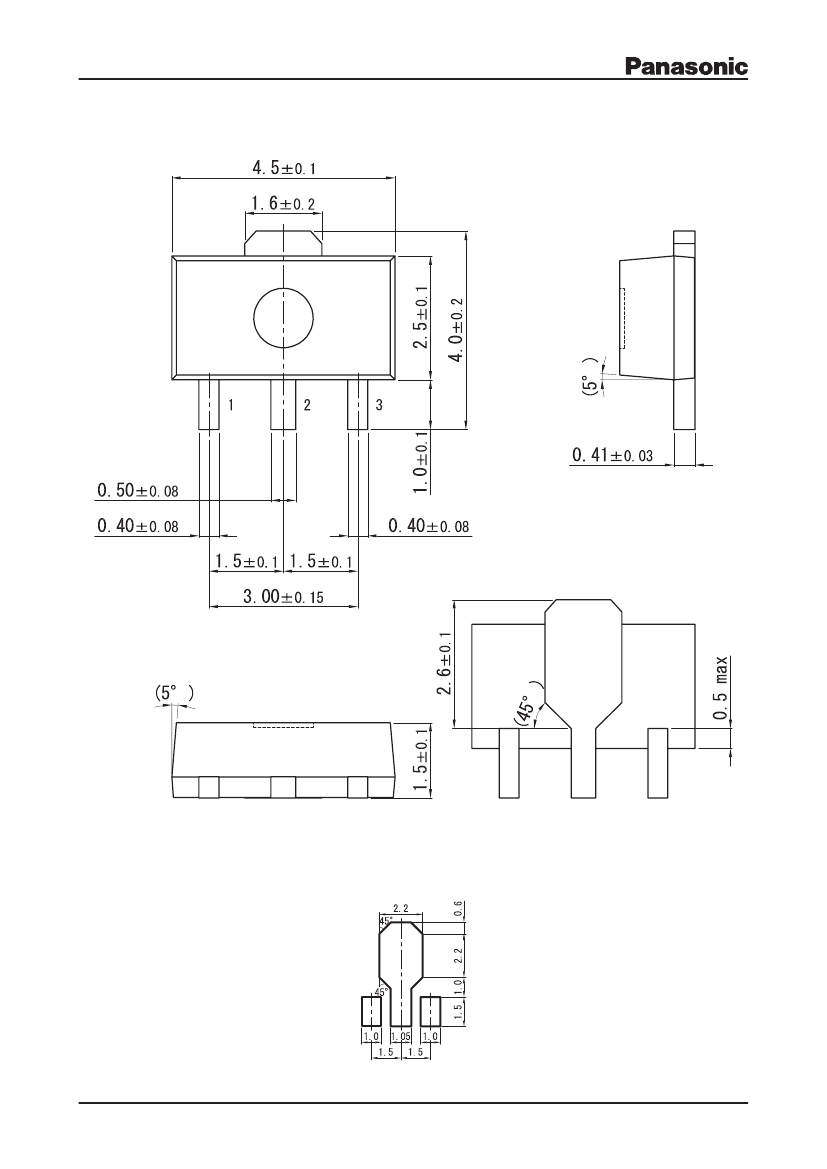

Unit: mm
Marking Symbol: 4D
Packaging
DSA7102×0L Embossed type (Thermo-compression sealing): 1 000 pcs / reel (standard)
Absolute Maximum Ratings
T
a
= 25°C
Parameter
Collector-base voltage (Emitter open)
Collector-emitter voltage (Base open)
Emitter-base voltage (Collector open)
Collector current
Peak collector current
Collector power dissipation
*1
Junction temperature
Operating ambient temperature
Storage temperature
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
CP
P
C
T
j
T
opr
T
stg
Rating
–80
–80
–5
–1
–1.5
1
150
–40 to +85
–55 to +150
Unit
V
V
V
A
A
W
°C
°C
°C
1: Base
2: Collector
3: Emitter
Panasonic
JEITA
Code
MiniP3-F2-B
SC-62
TO-243
Note) *1: Printed circuit board: Copper foil area of 1 cm
2
or more, and the board thickness
of 1.7 mm for the collector portion
Absolute maximum rating without heat sink for P
C
is 0.5 W

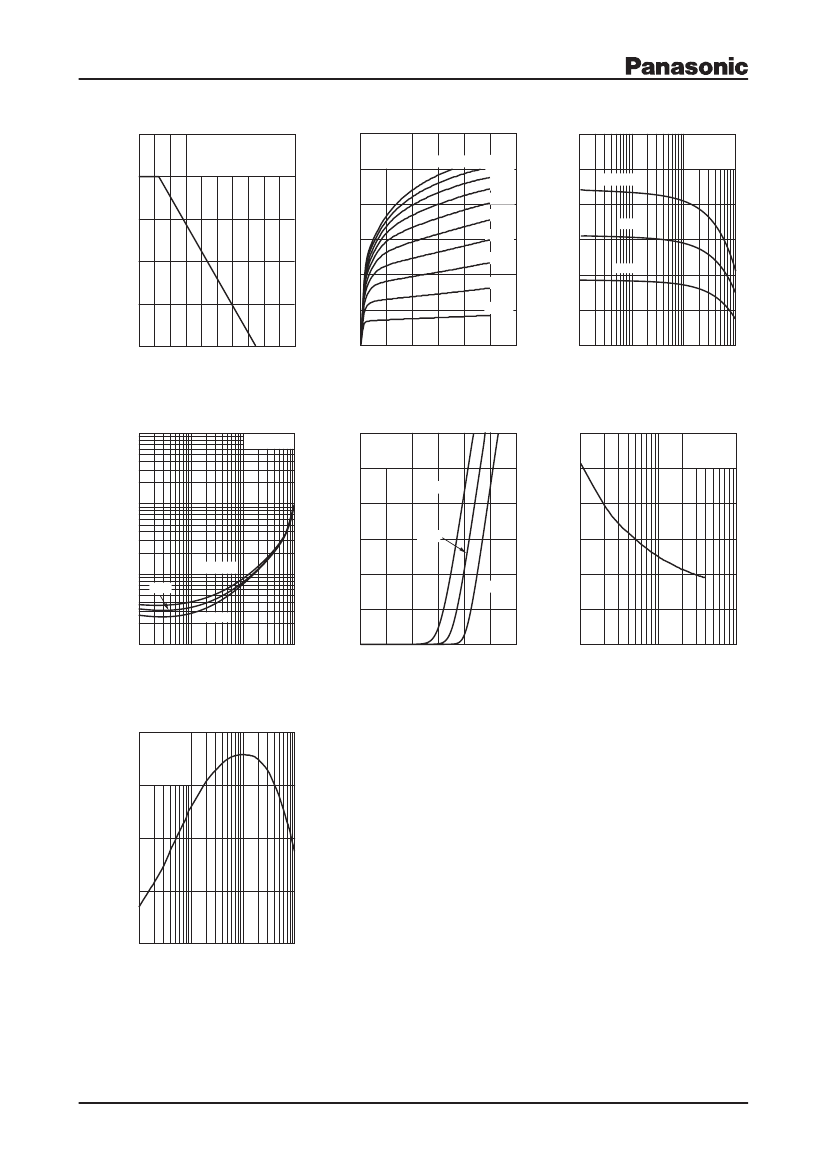

Electrical Characteristics
T
a
= 25°C±3°C
Parameter
Collector-base voltage (Emitter open)
Collector-emitter voltage (Base open)
Emitter-base voltage (Collector open)
Collector-base cutoff current (Emitter open)
Forward current transfer ratio
*1
Collector-emitter saturation voltage
*1
Base-emitter saturation voltage
*1
Transition frequency
Collector output capacitance
(Common base, input open circuited)
Symbol
V
CBO
V
CEO
V
EBO
I
CBO
h
FE1 *2
h
FE2
V
CE(sat)
V
BE(sat)
f
T
C
ob
Conditions
I
C
= –10
mA,
I
E
= 0
I
C
= –1 mA, I
B
= 0
I
E
= –10
mA,
I
C
= 0
V
CB
= –40 V, I
E
= 0
V
CE
= –2 V, I
C
= –100 mA
V
CE
= –2 V, I
C
= –500 mA
I
C
= –500 mA, I
B
= –50 mA
I
C
= –500 mA, I
B
= –50 mA
V
CE
= –10 V, I
C
= –50 mA
V
CB
= –10 V, I
E
= 0, f = 1 MHz
120
60
– 0.2
– 0.95
150
12
30
– 0.3
–1.2
Min
–80
–80
–5
– 0.1
340
Typ
Max
Unit
V
V
V
mA
V
V
MHz
pF
Note) 1. Measuring methods are based on JAPANESE INDUSTRIAL STANDARD JIS C 7030 measuring methods for transistors.
2. *1: Pulse measurement
*
2: Rank classification
Code
Rank
h
FE1
Marking Symbol
R
R
120 to 240
4DR
S
S
170 to 340
4DS
Publication date: February 2014
Ver. EED
1
