ECS-160-12-30BQ-AEN-TR

Description
CRYSTAL 16MHZ 12PF SMD
CategoryPassive components    Crystal/resonator
File Size551KB,2 Pages
ManufacturerECS
Websitehttp://www.ecsxtal.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

ECS-160-12-30BQ-AEN-TR Online Shopping

Suppliers Part Number Price MOQ In stock
ECS-160-12-30BQ-AEN-TR - - View Buy Now

ECS-160-12-30BQ-AEN-TR Overview

CRYSTAL 16MHZ 12PF SMD

ECS-160-12-30BQ-AEN-TR Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerECS
package instructionSMD, 4 PIN
Reach Compliance Codecompliant
Factory Lead Time9 weeks
Ageing5PPM/FIRST YEAR
Crystal/Resonator TypePARALLEL - FUNDAMENTAL
Drive level100 µW
frequency stability0.005%
frequency tolerance25 ppm
JESD-609 codee4
load capacitance12 pF
Installation featuresSURFACE MOUNT
Nominal operating frequency16 MHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
physical size5.0mm x 3.2mm x 0.85mm
Series resistance50 Ω
surface mountYES
Terminal surfaceGold (Au)

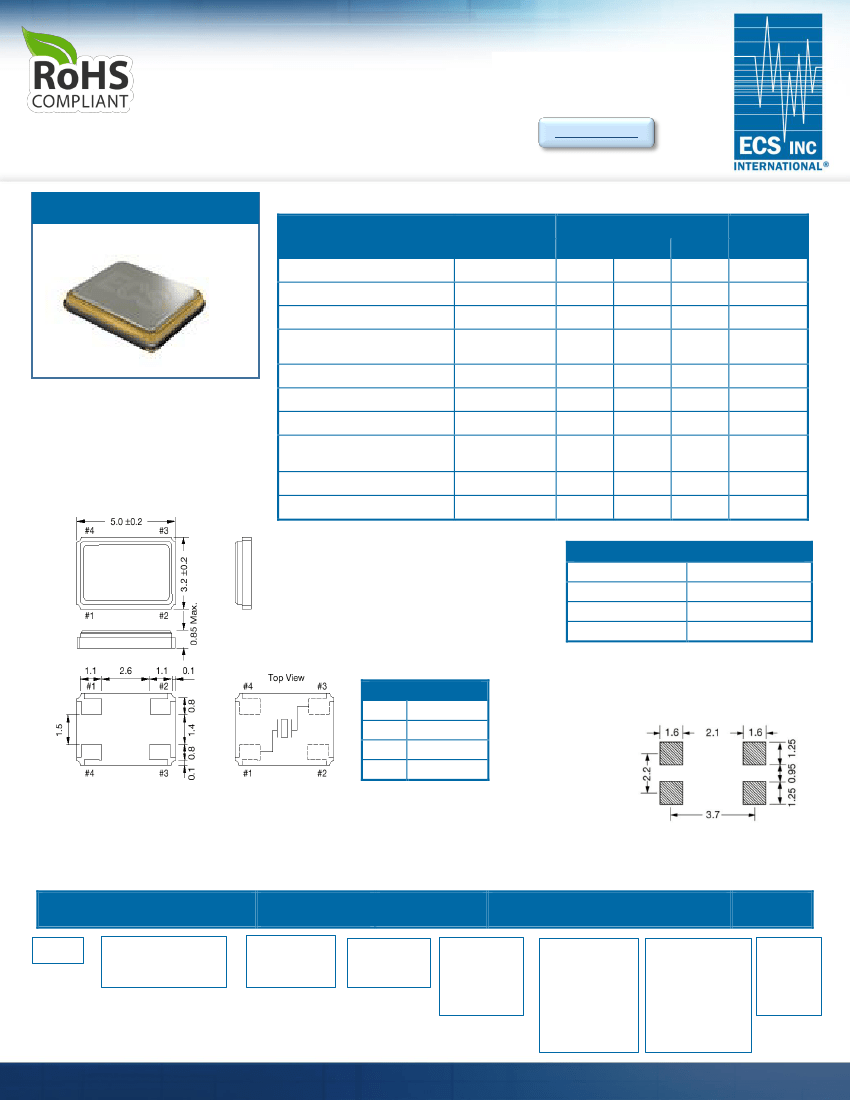

ECX-53BQ
SMD CRYSTAL
The ECX-53BQ is a miniature SMD Crystal with a 3.2 x 5 mm
footprint. AEC-Q200 Qualified.
Request a Sample
ECX-53BQ SMD CRYSTAL
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Frequency
Mode of Oscillation
Frequency Tolerance*
Frequency Stability*
Shunt Capacitance
Fundamental
@ +25°C
-40 ~ +125°C
(DS Option)
CONDITIONS
MIN
ECX-53BQ
TYP
MAX
UNITS
40.000
± 30
± 100
7
MHz
ppm
ppm
pF
pF
μW
°C
°C
ppm
ESR Ω Max.
80
50
40
30
10.000
Co
Specify in P/N
D
L
T
opr
(DS Option)
Compact and low profile
Extended Temp. Range Option
RoHS Compliant
AEC-Q200 Qualified
Load Capacitance
Drive Level
Operating Temperature*
Storage Temperature
Aging (First Year)
10
20
Series
100
-40
-55
+125
+125
±5
DIMENSIONS (mm)
T
stg
@ +25°C ±3°C
Frequency (MHz)
10.000 ~ 15.999
16.000 ~ 19.999
20.000 ~ 23.999
24.000 ~ 40.000
Pad Connections
1
In/Out
2
Gnd
3
Out/In
4
Gnd
Figure 1)
Top, Side, and Bottom
Crystal is symmetrical, pad 1 & 3 are interchangeable.
Chamfer on the bottom pad has no electrical
significance.
PART NUMBERING GUIDE: Example ECS-200-20-30BQ-DU-TR
ECS - FREQUENCY ABBREVIATION
LOAD
CAPACITANCE
20 = 20 pF
S = Series
Figure 2)
Suggested land
pattern

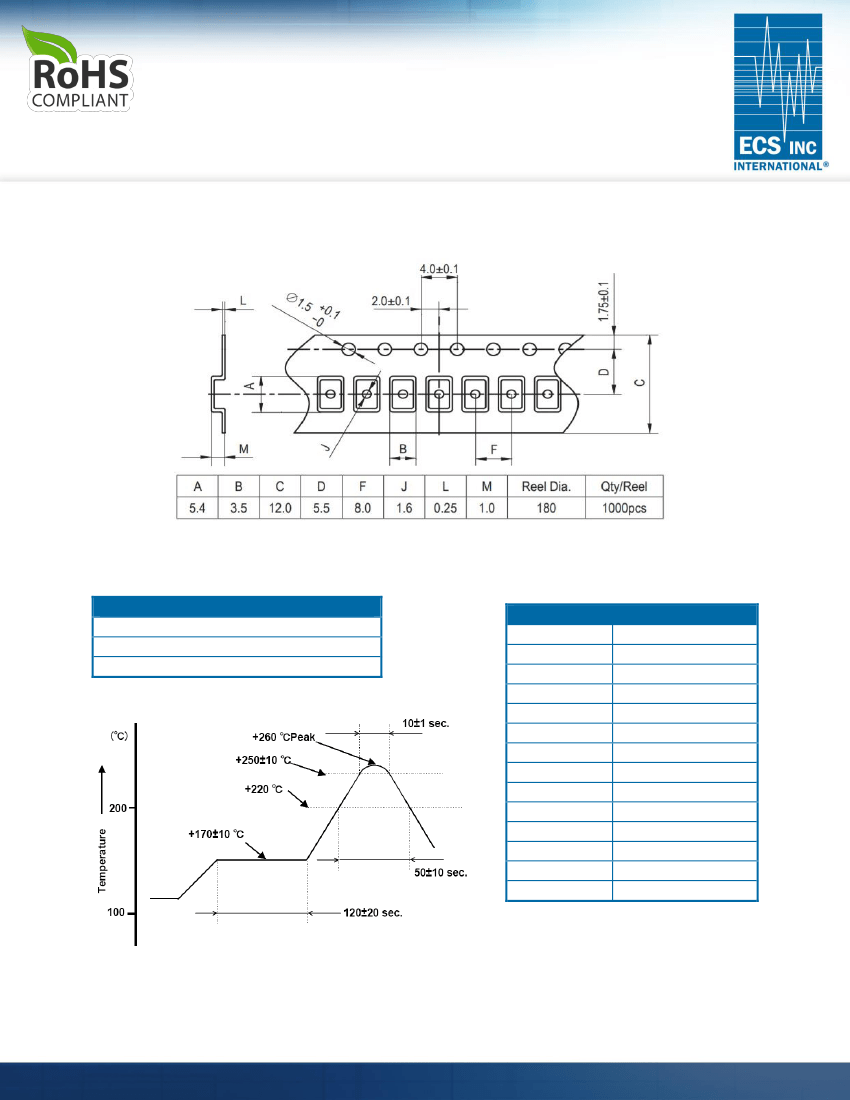

PACKAGING
Temp Range
Blank= Std
L = -10 ~ +70°C
M = -20 ~ +70°C
Y = -30 ~ +85°C
N = -40 ~ +85°C
P = -40 ~ +105°C
S = -40 ~ +125°C
U = -55 ~ +125°C
TR =
Tape
& Reel
1K/Reel
PACKAGE
Tolerance
30BQ =
ECX-53BQ
Blank = Std
A = ± 25
ppm
J = ± 20
ppm
R = ± 15
ppm
C = ± 10
ppm
AVAILABLE OPTIONS
Stability
Blank= Std
D= ±100 ppm
E = ± 50 ppm
G = ± 30 ppm
H = ± 25 ppm
T = ± 20 ppm †
W = ±15 ppm †
K = ± 10 ppm †
ECS
200 = 20.000 MHz
See P/N Guide
* Specify available options in P/N.
† Contact ECS for availability over extended temp range.
Rev.2017
15351 West 109
th
Street
|
Lenexa, KS 66219
|
Phone: 913.782.7787
|
Fax: 913.782.6991
|
www.ecsxtal.com
