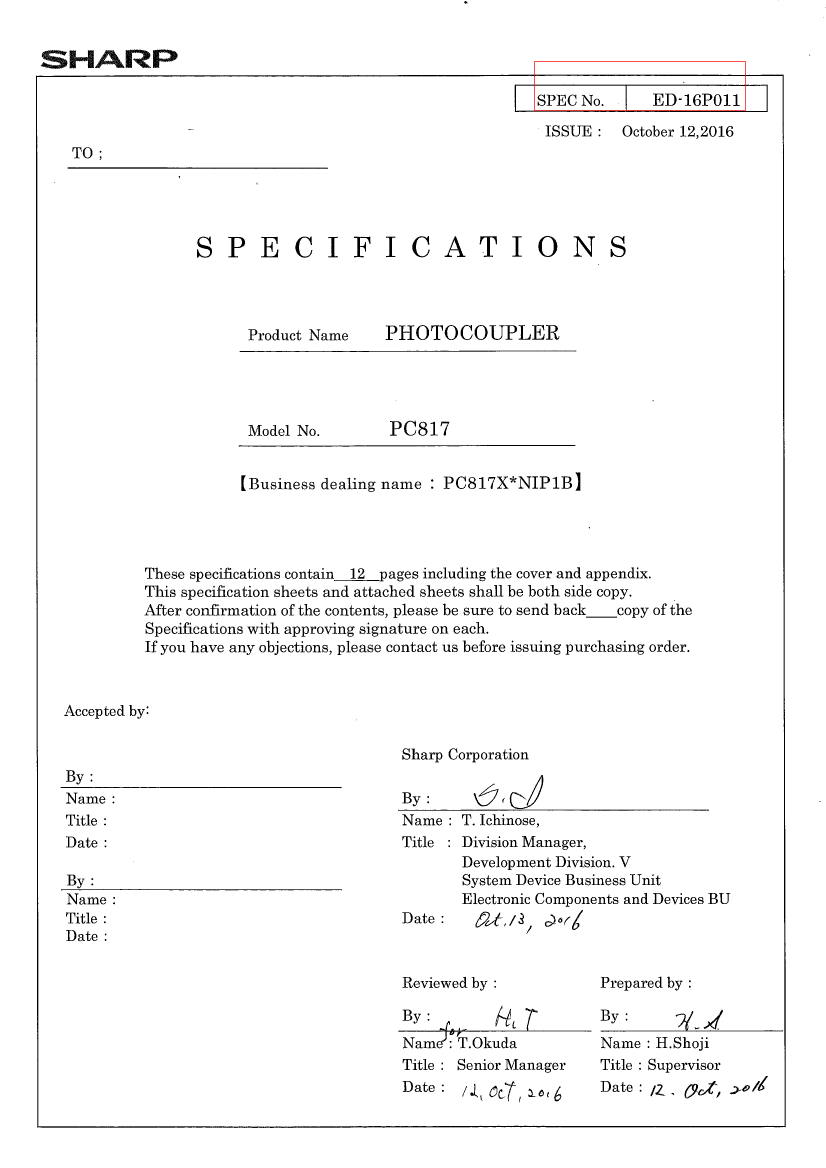

PC817X*NIP1B
REFERENCE
1. These specification sheets include materials protected under copyright of Sharp Corporation ("Sharp").
Please handle with great cares and do not reproduce or cause anyone to reproduce them without Sharp's consent.
2. When using this Sharp product, please observe the absolute maximum ratings, other conditions and instructions for use
described in the specification sheets, as well as the precautions mentioned below.
Sharp assumes no responsibility for any damages resulting from use of the product which does not comply with absolute
maximum ratings, other conditions and instructions for use included in the specification sheets, and the precautions
mentioned below.
(Precautions)
(1) In making catalogue or instruction manual based on the specification sheets, please verify the validity of the catalogue
or instruction manuals after assembling Sharp products in customer's products at the responsibility of customer.
(2) This Sharp product is designed for use in the following application areas ;
• Computers • OA equipment • Telecommunication equipment (Terminal) • Measuring equipment
• Tooling machines
・Audio
visual equipment • Home appliances
If the use of the Sharp product in the above application areas is for equipment listed in paragraphs (3) or (4),
please be sure to observe the precautions given in those respective paragraphs.
(3) Appropriate measures, such as fail-safe design and redundant design considering the safety design of the overall
system and equipment, should be taken to ensure reliability and safety when Sharp product is used for equipment
in responsibility of customer which demands high reliability and safety in function and precision, such as ;
• Transportation control and safety equipment (aircraft, train, automobile etc.)
• Traffic signals • Gas leakage sensor breakers • Rescue and security equipment
• Other safety equipment
(4)Sharp product is designed for consumer goods and controlled as consumer goods in production and quality.
Please do not use this product for equipment which require extremely high reliability and safety in function and
precision, such as ;
• Space equipment • Telecommunication equipment (for trunk lines)
• Nuclear power control equipment • Medical equipment
(5) Please contact and consult with a Sharp sales representative if there are any question regarding interpretation of
the above four paragraphs.
3. Disclaimer
The warranty period for Sharp product is one (1) year after shipment.
During the period, if there are any products problem, Sharp will repair (if applicable), replace or refund.
Except the above, both parties will discuss to cope with the problems.
The failed Sharp product after the above one (1) year period will be coped with by Sharp, provided that both parties
shall discuss and determine on sharing responsibility based on the analysis results thereof subject to the above scope
of warranty.
The warranty described herein is only for Sharp product itself which are purchased by or delivered to customer.
Damages arising from Sharp product malfunction or failure shall be excepted.
Sharp will not be responsible for the Sharp product due to the malfunction or failures thereof which are caused by:
(1) storage keep trouble during the inventory in the marketing channel.
(2) intentional act, negligence or wrong/poor handling.
(3) equipment which Sharp products are connected to or mounted in.
(4) disassembling, reforming or changing Sharp products.
(5) installation problem.
(6) act of God or other disaster (natural disaster, fire, flood, etc.)
(7) external factors (abnormal voltage, abnormal electromagnetic wave, fire, etc.)
(8) special environment (factory, coastal areas, hotspring area, etc.)
(9) phenomenon which cannot be foreseen based on the practical technologies at the time of shipment.
(10) the factors not included in the product specification sheet.
4. Please contact and consult with a Sharp sales representative for any questions about Sharp product.
1/10
PC817X*NIP1B
REFERENCE
1.
Application
This specification applies to the outline and characteristics of photocoupler Model No. PC817series(Lead-Free Type).
2. Outline
3. Ratings and characteristics
4. Reliability
5. Outgoing inspection
Refer to the attached sheet, page 4.
Refer to the attached sheet, page 5, 6.
Refer to the attached sheet, page 7.
Refer to the attached sheet, page 8.
6. Supplement
6.1 Isolation voltage shall be measured in the following method.
(1) Short between anode and cathode on the primary side and between collector and emitter on the secondary side.
(2) The dielectric withstanding tester with zero-cross circuit shall be used.
(3) The wave form of applied voltage shall be a sine wave.
(It is recommended that the isolation voltage be measured in insulation oil.)
6.2 Package specifications
6.3 Business dealing name
Refer to the attached sheet, page 9, 10.
("○" mark indicates business dealing name of ordered product)
Rank mark
with or without
A
B
C
D
A or B
B or C
C or D
A, B or C
B, C or D
A, B, C or D
Ic (mA)
2.5 to 30.0
4.0 to 8.0
6.5 to 13.0
10.0 to 20.0
15.0 to 30.0
4.0 to 13.0
6.5 to 20.0
10.0 to 30.0
4.0 to 20.0
6.5 to 30.0
4.0 to 30.0
Test conditions
I
F
=5mA
V
CE
=5V
Ta=25℃
Ordered product Business dealing name
PC817XNNIP1B
PC817X1NIP1B
PC817X2NIP1B
PC817X3NIP1B
PC817X4NIP1B
PC817X5NIP1B
PC817X6NIP1B
PC817X7NIP1B
PC817X8NIP1B
PC817X9NIP1B
PC817X0NIP1B
6.4 This Model is approved by UL.
(Under preparation).
Approved Model No. : PC817
UL file No. : E64380
6.5 This Model is approved by CSA.
(Under preparation).
Approved Model No. : PC817
CSA approved mark "
" shall be indicated on minimum unit package.
6.6 This product is not designed against irradiation.
This product is assembled with electrical input and output.
This product incorporates non-coherent light emitting diode.
2/10
PC817X*NIP1B
REFERENCE
6.7 ODS materials
This product shall not contain the following materials.
Also, the following materials shall not be used in the production process for this product.
Materials for ODS : CFC
S
, Halon, Carbon tetrachloride, 1.1.1-Trichloroethane (Methyl chloroform)
6.8 Specified brominated flame retardants
Specified brominated flame retardants (PBB and PBDE) are not used in this device at all
6.9 Compliance with each regulation
(1) The RoHS directive(2011/65/EU)
This product complies with the RoHS directive(2011/65/EU) .
Object substances: mercury, lead, cadmium, hexavalent chromium, polybrominated biphenyls（PBB）
and polybrominated diphenyl ethers（PBDE）
(2) Content of six substances specified in Management Methods for Control of Pollution Caused by Electronic
Information Products Regulation (Chinese :
电子信息产品污染控制管理办法).
Marking Styles for the Names and Contents of the Hazardous Substances
Hazardous Substances
Hexavalent
Polybrominated
Lead
Mercury
Cadmium
chromium
biphenyls
(Pb)
(Hg)
(Cd)
(Cr
6+
)
(PBB)
○
○
○
○
○
Category
Polybrominated
diphenyl ethers
(PBDE)
○
Photocoupler
This table is prepared in accordance with the provisions of SJ/T 11364.
○：Indicates
that said hazardous substance contained in all of the homogeneous materials for this part is
below the limit requirement of GB/T 26572
7. Notes
Precautions for photocouplers
：
Attachment-1
3/10
Power technology
