M83723/74W1005N-LC: DescriptionMIL Series Connector, 5 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle,; CategoryThe connector The connector; File Size266KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

M83723/74W1005N-LC Overview

MIL Series Connector, 5 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle,

M83723/74W1005N-LC Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Other features	STANDARD: MIL-C-83723, COMPATIBLE CONTACT: M39029/4-110
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	YES
Environmental characteristics	CORROSION RESISTANT; ENVIRONMENT RESISTANT; FLUID RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	CADMIUM PLATED
Shell material	ALUMINUM ALLOY
Housing size	10
Termination type	CRIMP
Total number of contacts	5

Preview

Download Datasheet

View All

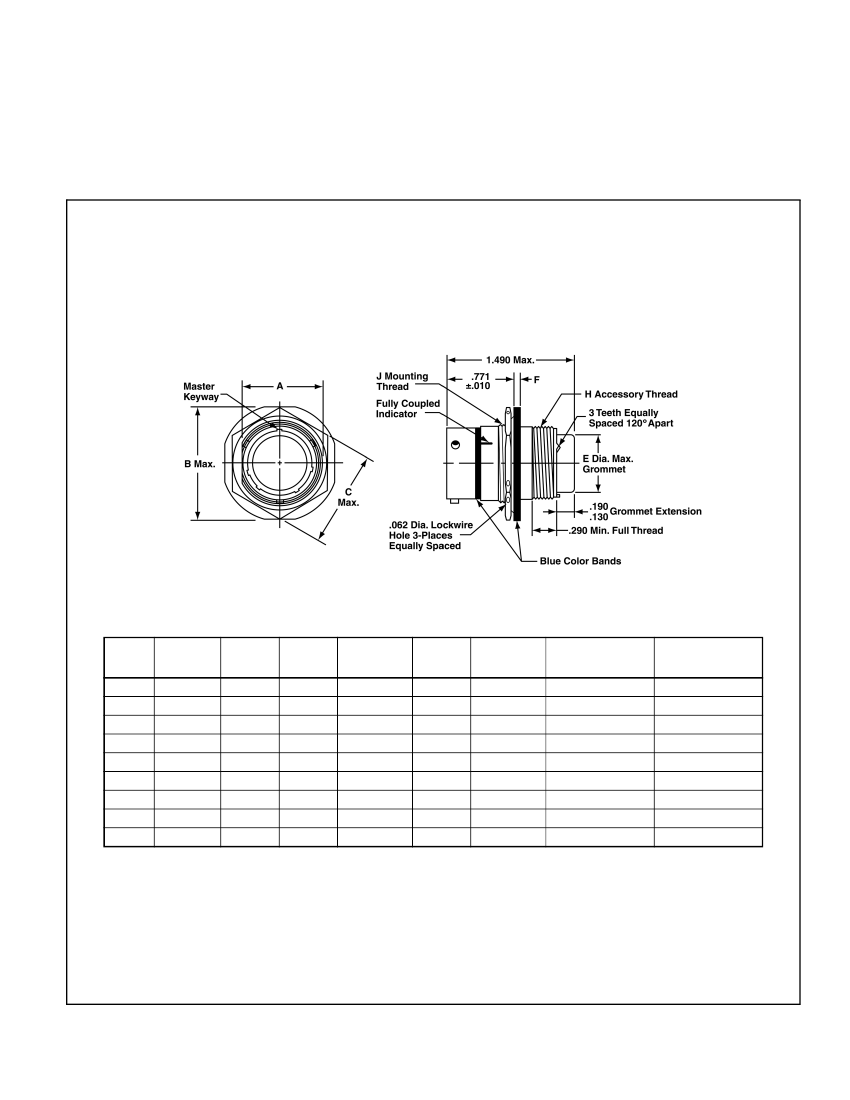

Miniature Cylindrical MIL-C-83723, Series III

Bayonet Coupling

M83723/73 & 74

jam nut receptacle

Receptacle Shell, Single Hole Mount Jam Nut,

Bayonet Coupling

Military No. M83723/73 with socket contacts

M83723/74 with pin contacts

Amphenol/Matrix No. MB34

To complete order number see how to order for bayonet coupling connectors, page 9.

H

Accessory Thread

Class 2A

J

Mounting Thread

Class 2A

Shell

Size

A

B

Max.

C

Max.

D

Dia.

E Dia.

Max.

F

8

10

12

14

16

18

20

22

24

.596/.590

.721/.715

.908/.902

.971/.965

1.096/1.090

1.220/1.214

1.345/1.339

1.470/1.464

1.595/1.589

.979

1.104

1.291

1.391

1.516

1.641

1.766

1.954

2.079

.829

.954

1.142

1.205

1.329

1.455

1.579

1.705

1.829

.536/.531

.659/.654

.829/.824

.898/.893

1.025/1.020

1.131/1.126

1.256/1.251

1.381/1.376

1.506/1.501

.305

.405

.531

.665

.790

.869

.994

1.119

1.244

.137/.097

.113/.097

.137/.097

.169/.128

.168/.128

.5000-20 UNF

.6250-24 UNEF

.7500-20 UNEF

.8750-20 UNEF

1.0000-20 UNEF

1.0625-18 UNEF

1.1875-18 UNEF

1.3125-18 UNEF

1.4375-18 UNEF

.6250-20 UN

.7500-20 UNEF

.9375-20 UNEF

1.0000-20 UNEF

1.1250-20 UN

1.2500-18 UNEF

1.3750-18 UNEF

1.5000-20 UNEF

1.6250-18 UNEF

7
