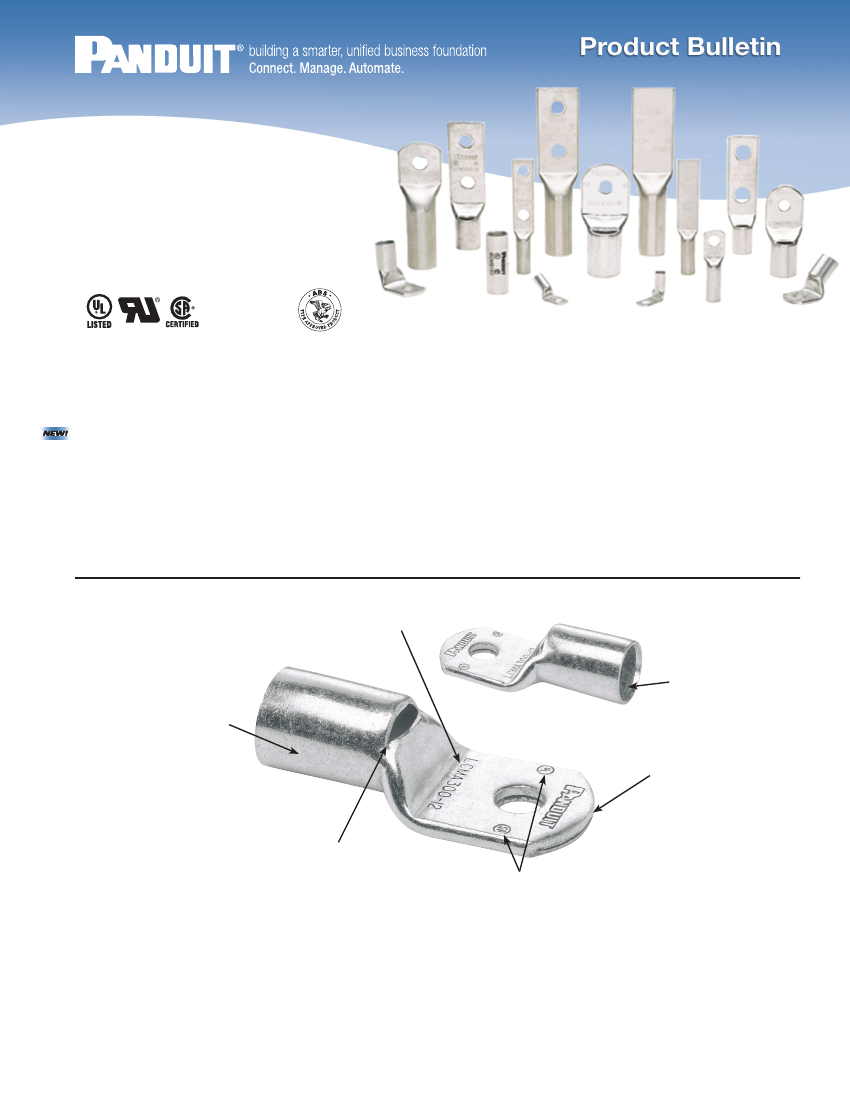

Copper Compression
Metric Lugs and Splices
• Optimum reliability and safety
With Metric
Conductors
• Worldwide availability
• RoHS compliant
• Standard barrel lugs and splices for copper class 2r rigid stranded conductor sizes 4mm
2
– 630mm
2
,
copper class 5f flexible stranded conductor sizes 4mm
2
– 300mm
2
and copper class 6f flexible stranded
conductor sizes 10mm
2
– 240mm
2
• Standard barrel lugs with 45° and 90° bent palms for copper class 2r rigid stranded conductor sizes 10mm
2
–
300 mm
2
, copper class 5f flexible stranded conductor sizes 10mm
2
– 300mm
2
and copper class 6f flexible stranded
conductor sizes 10mm
2
– 240mm
2
• Long barrel lugs for copper class 2r rigid stranded conductor sizes 10mm
2
– 630mm
2
, copper class 5f
flexible stranded conductor sizes 10mm
2
– 300mm
2
, and copper class 6f flexible stranded conductor sizes
10mm
2
– 240mm
2

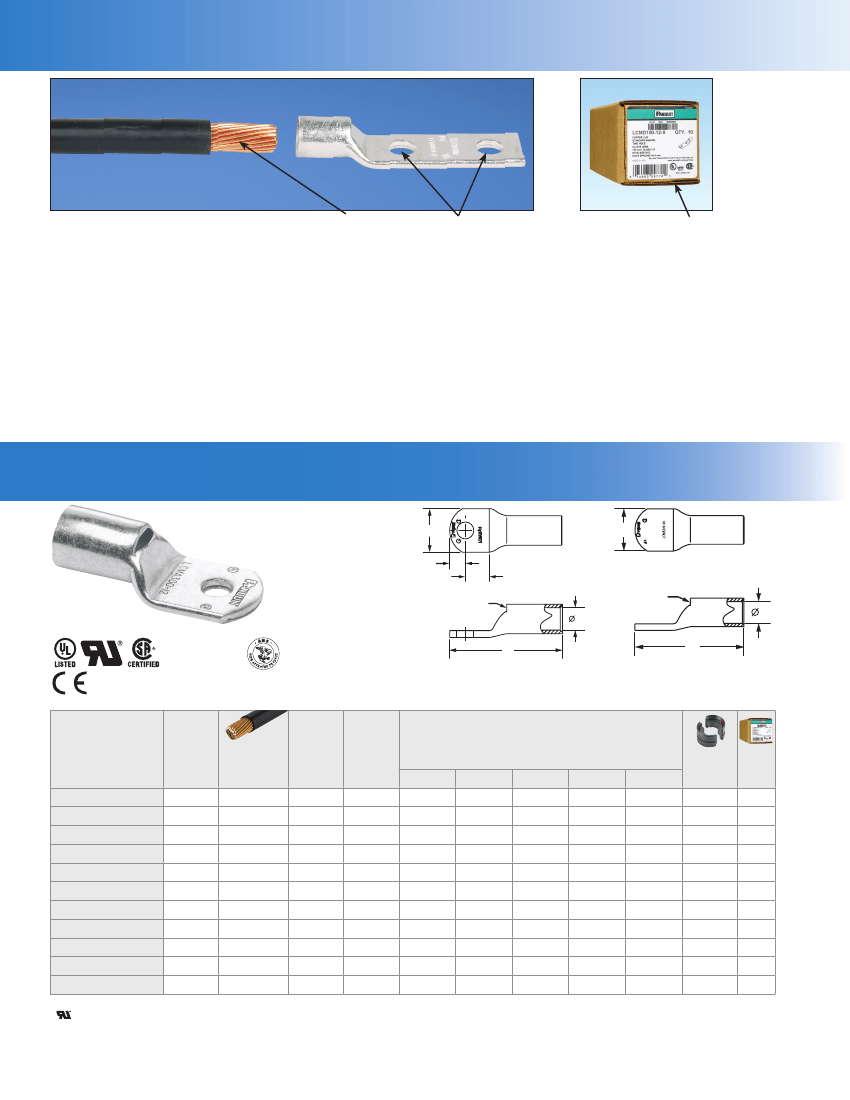

Key Features and Benefits
Product Information Marked
on Connector for easy
selection and installation
Internally Beveled
Wire Entry for fast
and easy installation
99.9% Pure Copper
and Tin Plated to a
nominal thickness of
320μ in (8μ m) to
provide a high quality
connection
Inspection Window for
Standard Barrel Lugs
allows a visually
verifiable, high
quality crimp
Rounded Tongue for
One-Hole Lugs
convenient for use
in tight spaces
UL Listed or UL Recognized
and CSA Certified with Metric
Conductors allows specification
to ensure safety and reliability
w w w. p a n d u i t . c o m
Part Number System
LCMD
LCMA
Type
LCMD = Two-Hole Standard Barrel Lug, Class 2r
LCMA = One-Hole Standard Barrel Lug, Class 2r
SCMS = Splice, Class 2r
LCMDX = Two-Hole Standard Barrel Lug, Class 5f and 6f
LCMAX = One-Hole Standard Barrel Lug, Class 5f and 6f
SCMSX = Splice, Class 5f and 6f
LCMA-H = One-Hole Standard Barrel 45° Bent Lug, Class
2r, 5f and 6f
LCMA-F = One-Hole Standard Barrel 90° Bent Lug, Class
2r, 5f and 6f
LCMB = One-Hole Long Barrel Lug, Class 2r, 5f and 6f
LCMC = Two-Hole Long Barrel Lug, Class 2r, 5f and 6f
*Class 2r wire size for LCMA-H, LCMA-F, LCMB and LCMC lugs
150
150
Conductor Size
150 = 150mm *
2
–
–
12
12
Stud Hole Size
12 = M12
H
Palm Angle
–
–
Two Stud
Hole Spacing
H = 45°
F = 90°
No Letter = Straight
Std. Pkg. Qty.
1=1
3=3
5=5
6=6
X = 10
E = 20
Q = 25
L = 50
C = 100
X
X
No Letter = 44.5mm
CD = 22.0 – 25.0mm
00 = Blank Tongue
Rigid Stranded Metric Conductor, One-Hole, Standard Barrel
with Window Lug
B
B
N
M
INSPECTION
WINDOW
INSPECTION
WINDOW
I
I
L
To 35 KV**
Rated to 90°C
and EN 61238-1:2003/IEC 61238-1:2003 Class B, sizes 4mm
2
– 240mm
2
Class 2r
L
Figure 1.
One-Hole
Figure 2.
Blank Tongue
Part Number
LCMA6-5-C*
LCMA6-6-C*
LCMA6-8-C*
LCMA10-5-C
LCMA10-6-C
LCMA10-8-C
LCMA10-10-C
LCMA16-5-C*
LCMA16-6-C*
LCMA16-8-C*
LCMA16-10-C*
Figure
No.
1
1
1
1
1
1
1
1
1
1
1
Copper
Conductor
Size Class 2r
(mm
2
)
4 – 6
4 – 6
4 – 6
10
10
10
10
16
16
16
16
Current
Rating
(Amps)
30
30
30
—
—
—
—
65
65
65
65
Stud
Hole
Size
(mm)
M5
M6
M8
M5
M6
M8
M10
M5
M6
M8
M10
Figure Dimensions
(mm)
ØI
3.8
3.8
3.8
4.5
4.5
4.5
4.4
5.5
5.5
5.5
5.5
B
10.0
10.8
13.0
11.0
11.0
13.0
14.5
13.0
13.0
13.0
15.0
M
7.8
7.8
8.0
9.8
9.8
8.5
8.5
10.3
10.3
10.3
10.2
N
6.2
6.2
8.0
6.0
6.0
8.0
8.0
6.5
6.5
6.5
8.0
L
27.5
27.5
30.5
30.8
30.8
30.8
30.8
34.5
34.5
34.5
36.7
Panduit
Die Index
No.‡
P10
P10
P10
P21
P21
P21
P21
P24
P24
P24
P24
Std.
Pkg.
Qty.
100
100
100
100
100
100
100
100
100
100
100
‡See page 16 for tool and die information.
* UL Recognized.
**Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V.
2
Rigid Stranded Metric Conductor, One-Hole, Standard Barrel
with Window Lug (continued)
Figure
No.
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
2
Copper
Conductor
Size Class 2r
(mm
2
)
25
25
25
35
35
35
35
50
50
50
50
70
70
70
70
95
95
95
95
120
120
120
120
150
150
150
150
150
185
185
185
185
240
240
240
240
300
300
300
300
400
400
400
500
500
500
500
630
630
630
Current
Rating
(Amps)
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Stud
Hole
Size
(mm)
M6
M8
M10
M6
M8
M10
M12
M6
M8
M10
M12
M6
M8
M10
M12
M8
M10
M12
M16
M8
M10
M12
M16
M8
M10
M12
M16
M20
M10
M12
M16
M20
M10
M12
M16
M20
M10
M12
M16
M20
M12
M16
M20
M12
M16
M20
Blank
M16
M20
Blank
Figure Dimensions
(mm)
ØI
6.9
6.9
6.9
8.2
8.2
8.2
8.2
9.8
9.8
9.8
9.8
11.5
11.5
11.5
11.5
13.5
13.5
13.5
13.5
15.2
15.2
15.2
15.2
16.5
16.5
16.5
16.5
16.5
18.6
18.6
18.6
18.6
20.8
20.8
20.8
20.8
23.5
23.5
23.5
23.5
27.0
27.0
27.0
31.0
31.0
31.0
31.0
34.5
34.5
34.5
B
14.0
15.5
15.5
15.5
15.5
15.5
21.5
18.0
18.0
18.0
23.0
20.8
20.8
20.8
20.8
24.5
24.5
24.5
24.5
27.5
27.5
27.5
27.5
30.5
30.5
30.5
30.5
30.5
33.5
33.5
33.5
33.5
37.5
37.5
37.5
37.5
42.5
42.5
42.5
42.5
49.5
49.5
49.5
57.5
57.5
57.5
57.5
63.0
63.0
63.0
M
10.0
10.0
10.0
12.3
12.3
12.3
14.5
11.5
11.5
11.5
14.0
14.5
14.5
14.5
14.5
15.0
15.0
15.0
15.0
15.5
15.5
15.5
15.5
18.0
18.0
18.0
18.0
22.0
16.5
16.5
16.5
21.0
21.0
21.0
21.0
21.0
22.0
22.0
22.0
22.0
26.5
26.5
26.5
28.5
28.5
28.5
—
28.5
28.5
—
N
8.0
8.0
8.0
8.5
8.5
8.5
11.5
10.0
10.0
10.0
11.0
11.5
11.5
11.5
11.5
13.5
13.5
13.5
13.5
14.5
14.5
14.5
14.5
16.5
16.5
16.5
16.5
16.5
17.5
17.5
17.5
17.5
19.5
19.5
19.5
19.5
20.0
20.0
20.0
20.0
23.5
23.5
23.5
25.5
25.5
25.5
—
27.5
27.5
—
L
37.0
37.0
37.0
42.0
42.0
42.0
48.0
46.5
46.5
46.5
50.0
53.5
53.5
53.5
53.5
60.5
60.5
60.5
60.5
65.0
65.0
65.0
65.0
70.5
70.5
70.5
70.5
74.0
72.5
72.5
72.5
77.0
86.5
86.5
86.5
86.5
94.5
94.5
94.5
94.5
107.0
107.0
107.0
120.0
120.0
120.0
120.0
131.0
131.0
131.0
Panduit
Die Index
No.‡
P29
P29
P29
P29
P29
P29
P29
P37
P37
P37
P37
P45
P45
P45
P45
P54
P54
P54
P54
P62
P62
P62
P62
P66
P66
P66
P66
P66
P76
P76
P76
P76
P87
P87
P87
P87
P94
P94
P94
P94
P106
P106
P106
P125
P125
P125
P125
P125
P125
P125
Std.
Pkg.
Qty.
100
100
100
100
100
100
100
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
10
10
10
10
10
10
10
10
10
10
10
10
10
5
5
5
5
5
5
5
1
1
1
1
1
1
1
Part Number
LCMA25-6-C
LCMA25-8-C
LCMA25-10-C
LCMA35-6-C
LCMA35-8-C
LCMA35-10-C
LCMA35-12-C
LCMA50-6-L
LCMA50-8-L
LCMA50-10-L
LCMA50-12-L
LCMA70-6-L
LCMA70-8-L
LCMA70-10-L
LCMA70-12-L
LCMA95-8-L
LCMA95-10-L
LCMA95-12-L
LCMA95-16-L
LCMA120-8-L
LCMA120-10-L
LCMA120-12-L
LCMA120-16-L
LCMA150-8-X
LCMA150-10-X
LCMA150-12-X
LCMA150-16-X
LCMA150-20-X
LCMA185-10-X
LCMA185-12-X
LCMA185-16-X
LCMA185-20-X
LCMA240-10-X
LCMA240-12-X
LCMA240-16-X
LCMA240-20-X
LCMA300-10-5
LCMA300-12-5
LCMA300-16-5
LCMA300-20-5
LCMA400-12-5
LCMA400-16-5
LCMA400-20-5
LCMA500-12-1
LCMA500-16-1
LCMA500-20-1
LCMA500-00-1*
LCMA630-16-1
LCMA630-20-1
LCMA630-00-1*
‡See page 16 for tool and die information.
* UL Recognized.
**Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V.
3

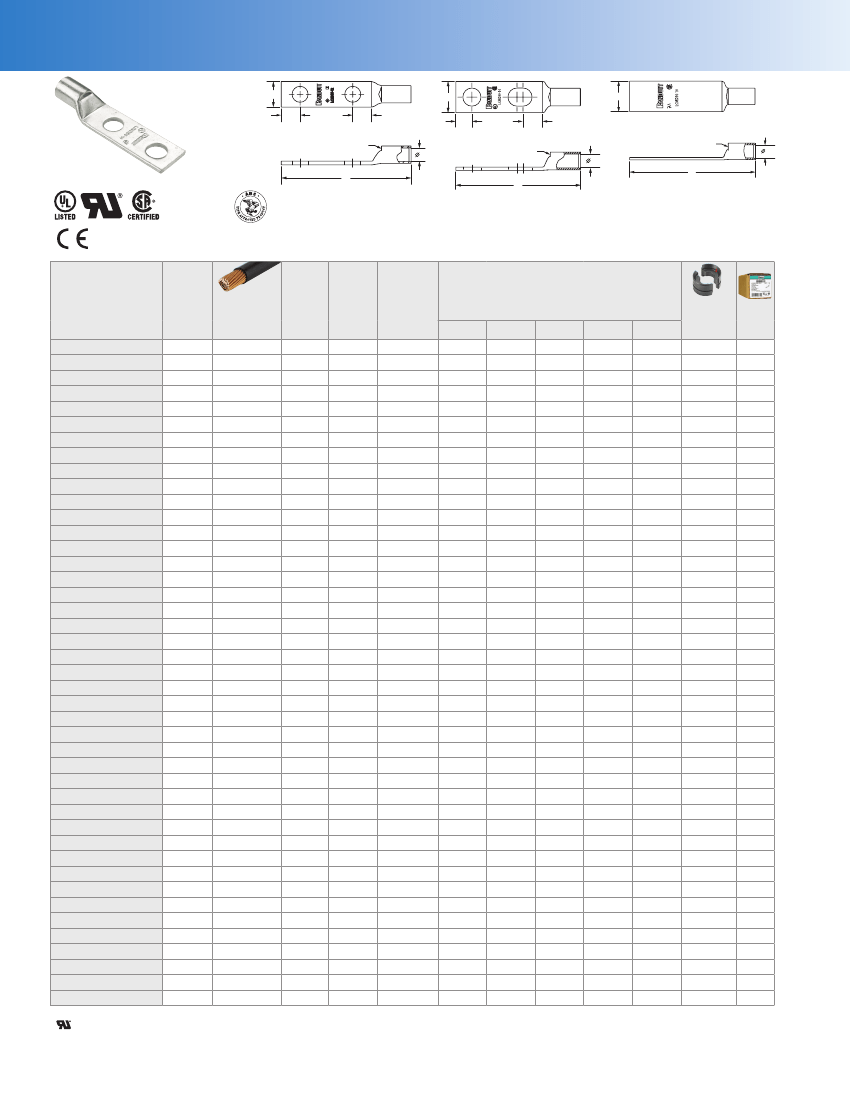

Rigid Stranded Metric Conductor, Two-Hole, Standard Barrel with
Window Lug
B
N
STUD HOLE
SPACING
B
M
STUD HOLE
SPACING
B
N
M
INSPECTION
WINDOW
INSPECTION
WINDOW
I
INSPECTION
WINDOW
I
I
L
L
L
To 35 KV**
Rated to 90°C
Figure 1.
Two-Hole
Figure 2.
Two-Hole Slotted
Figure 3.
Blank Tongue
and EN 61238-1:2003/IEC 61238-1:2003 Class B, sizes 4mm
2
– 630mm
2
Class 2r
Part Number
LCMD6-5CD-Q*
LCMD10-6CD-Q
LCMD10-8-Q
LCMD10-00-Q*
LCMD16-6CD-Q*
LCMD16-8-Q*
LCMD16-00-Q*
LCMD25-8CD-Q
LCMD25-8-Q
LCMD25-10-Q
LCMD25-12-Q
LCMD25-00-Q*
LCMD35-8CD-Q
LCMD35-10-Q
LCMD35-12-Q
LCMD35-00-Q*
LCMD50-10CD-X
LCMD50-10-X
LCMD50-12-X
LCMD50-00-X*
LCMD70-10CD-X
LCMD70-10-X
LCMD70-12-X
LCMD70-00-X*
LCMD95-10CD-X
LCMD95-12-X
LCMD95-14-X
LCMD95-00-X*
LCMD120-10CD-X
LCMD120-12-X
LCMD120-14-X
LCMD120-00-X*
LCMD150-10CD-X
LCMD150-12-X
LCMD150-14-X
LCMD150-00-X*
LCMD185-10CD-X
LCMD185-12-X
LCMD185-14-X
LCMD185-00-X*
LCMD240-10CD-5
LCMD240-12-5
LCMD240-14-5
Figure
No.
2
2
1
3
2
1
3
2
1
1
1
3
2
1
1
3
2
1
1
3
2
1
1
3
2
1
1
3
2
1
1
3
2
1
1
3
2
1
1
3
2
1
1
Copper
Conductor
Size Class 2r
(mm
2
)
4 – 6
10
10
10
16
16
16
25
25
25
25
25
35
35
35
35
50
50
50
50
70
70
70
70
95
95
95
95
120
120
120
120
150
150
150
150
185
185
185
185
240
240
240
Current
Rating
(Amps)
30
—
—
—
65
65
65
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Stud
Hole
Size
(mm)
M5
M6
M8
Blank
M6
M8
Blank
M8
M8
M10
M12
Blank
M8
M10
M12
Blank
M10
M10
M12
Blank
M10
M10
M12
Blank
M10
M12
M14
Blank
M10
M12
M14
Blank
M10
M12
M14
Blank
M10
M12
M14
Blank
M10
M12
M14
Stud
Hole
Spacing
(mm)
22.0 – 25.0
22.0 – 25.0
44.5
—
22.0 – 25.0
44.5
—
22.0 – 25.0
44.5
44.5
44.5
—
22.0 – 25.0
44.5
44.5
—
22.0 – 25.0
44.5
44.5
—
22.0 – 25.0
44.5
44.5
—
22.0 – 25.0
44.5
44.5
—
22.0 – 25.0
44.5
44.5
—
22.0 – 25.0
44.5
44.5
—
22.0 – 25.0
44.5
44.5
—
22.0 – 25.0
44.5
44.5
Figure Dimensions
(mm)
ØI
3.8
4.5
4.5
4.4
5.5
5.5
5.5
6.9
6.9
6.9
7.1
7.1
8.2
8.2
8.2
8.2
9.8
9.8
9.8
9.8
11.5
11.5
11.5
11.5
13.5
13.5
13.5
13.5
15.2
15.2
15.2
15.2
16.5
16.5
16.5
16.5
18.6
18.6
18.6
18.6
20.8
20.8
20.8
B
10.0
11.0
13.0
14.5
13.0
13.0
15.0
15.5
15.5
15.5
20.0
20.0
15.5
15.5
21.5
21.5
18.0
18.0
23.0
23.0
20.5
20.8
20.8
20.8
24.5
24.5
24.5
24.5
27.5
27.5
27.5
27.5
30.5
30.5
30.5
30.5
33.5
33.5
33.5
33.5
37.5
37.5
37.5
M
7.8
9.8
8.5
—
10.3
10.3
—
10.0
10.0
10.0
14.5
—
12.3
12.3
14.5
—
11.5
11.5
14.0
—
14.5
14.5
14.5
—
15.0
15.0
15.0
—
15.5
15.5
15.5
—
18.0
18.0
22.0
—
16.5
16.5
21.0
—
21.0
21.0
21.0
N
6.2
6.0
8.0
—
6.5
6.5
—
8.0
8.0
8.0
11.5
—
8.5
8.5
11.5
—
10.0
10.0
11.0
—
11.0
11.5
11.5
—
13.0
13.5
13.5
—
14.0
14.5
14.5
—
16.0
16.5
16.5
—
17.0
17.5
17.5
—
19.0
19.5
19.5
L
52.5
55.8
75.3
75.3
59.5
79.0
81.2
62.0
81.5
81.5
89.5
89.5
67.0
86.5
92.5
92.5
71.5
91.0
94.5
94.5
78.5
98.0
98.0
98.0
85.5
105.0
105.0
105.0
90.0
109.5
109.5
109.5
95.5
115.0
118.5
118.5
97.5
117.0
121.5
121.5
111.5
131.0
131.0
Panduit
Die Index
No.‡
P10
P21
P21
P21
P24
P24
P24
P29
P29
P29
P29
P29
P29
P29
P29
P29
P37
P37
P37
P37
P45
P45
P45
P45
P54
P54
P54
P54
P62
P62
P62
P62
P66
P66
P66
P66
P76
P76
P76
P76
P87
P87
P87
Std.
Pkg.
Qty.
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
5
5
5
‡See page 16 for tool and die information.
* UL Recognized.
**Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V.
4

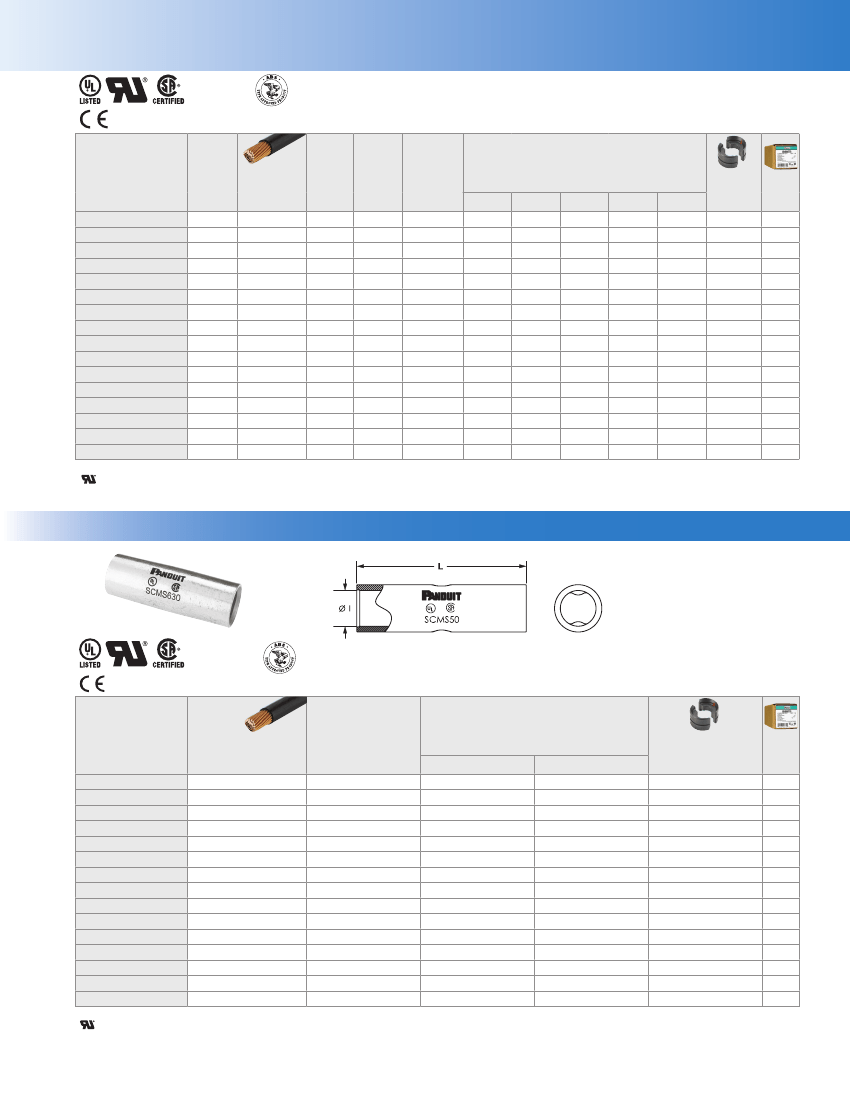

Rigid Stranded Metric Conductor, Two-Hole, Standard Barrel
with Window Lug (continued)
To 35 KV**
Rated to 90°C
and EN 61238-1:2003/IEC 61238-1:2003 Class B, sizes 4mm
2
– 630mm
2
Class 2r
Part Number
LCMD240-00-5*
LCMD300-12-5
LCMD300-14-5
LCMD300-00-5*
LCMD400-12-5
LCMD400-14-5
LCMD400-16-5
LCMD400-00-5*
LCMD500-12-1
LCMD500-14-1
LCMD500-16-1
LCMD500-00-1*
LCMD630-12-1
LCMD630-14-1
LCMD630-16-1
LCMD630-00-1*
Figure
No.
3
1
1
3
1
1
1
3
1
1
1
3
1
1
1
3
Copper
Conductor
Size Class 2r
(mm
2
)
240
300
300
300
400
400
400
400
500
500
500
500
630
630
630
630
Current
Rating
(Amps)
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Stud
Hole
Size
(mm)
Blank
M12
M14
Blank
M12
M14
M16
Blank
M12
M14
M16
Blank
M12
M14
M16
Blank
Stud
Hole
Spacing
(mm)
—
44.5
44.5
—
44.5
44.5
44.5
—
44.5
44.5
44.5
—
44.5
44.5
44.5
—
Figure Dimensions
(mm)
ØI
20.8
23.5
23.5
23.5
27.0
27.0
27.0
27.0
31.0
31.0
31.0
31.0
34.5
34.5
34.5
34.5
B
37.5
42.5
42.5
42.5
49.5
49.5
49.5
49.5
57.5
57.5
57.5
57.5
63.0
63.0
63.0
63.0
M
—
22.0
22.0
—
26.5
26.5
26.5
—
28.5
28.5
28.5
—
28.5
28.5
28.5
—
N
—
20.0
20.0
—
23.5
23.5
23.5
—
25.5
25.5
25.5
—
27.5
27.5
27.5
—
L
131.0
139.0
139.0
139.0
151.5
151.5
151.5
151.5
164.5
164.5
164.5
164.5
175.5
175.5
175.5
175.5
Panduit
Die Index
No.‡
P87
P94
P94
P94
P106
P106
P106
P106
P125
P125
P125
P125
P125
P125
P125
P125
Std.
Pkg.
Qty.
5
5
5
5
5
5
5
5
1
1
1
1
1
1
1
1
‡See page 16 for tool and die information.
* UL Recognized.
**Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V.
Rigid Stranded Metric Conductor, Standard Barrel, Butt Splice
To 35 KV**
Rated to 90°C
and EN 61238-1:2003/IEC 61238-1:2003 Class B, sizes 10mm
2
– 630mm
2
Class 2r
Part Number
SCMS10-C*
SCMS16-C*
SCMS25-L
SCMS35-L
SCMS50-L
SCMS70-L
SCMS95-Q
SCMS120-Q
SCMS150-X
SCMS185-X
SCMS240-X
SCMS300-5
SCMS400-5
SCMS500-6
SCMS630-6
Copper Conductor
Size Class 2r
(mm
2
)
10
16
25
35
50
70
95
120
150
185
240
300
400
500
630
Current
Rating
(Amps)
50
65
—
—
—
—
—
—
—
—
—
—
—
—
—
Figure Dimensions
(mm)
ØI
4.5
5.5
6.9
8.2
9.8
11.5
13.5
15.2
16.5
18.6
20.8
23.5
27.0
31.0
34.5
L
30.0
35.0
36.0
36.0
49.0
52.0
54.0
57.0
57.0
61.0
72.0
75.0
95.0
96.0
131.0
Panduit
Die Index
No.‡
P21
P24
P29
P29
P37
P45
P54
P62
P66
P76
P87
P94
P106
P125
P125
Std.
Pkg.
Qty.
100
100
50
50
50
50
25
25
10
10
10
5
5
6
6
‡See page 16 for tool and die information.
* UL Recognized.
**Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V.
5
京公网安备 11010802033920号
EEWORLD
