Distributor - VS-ASI-J-Y-N-PUR-1,0-M12FS SCO - 1404430
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)

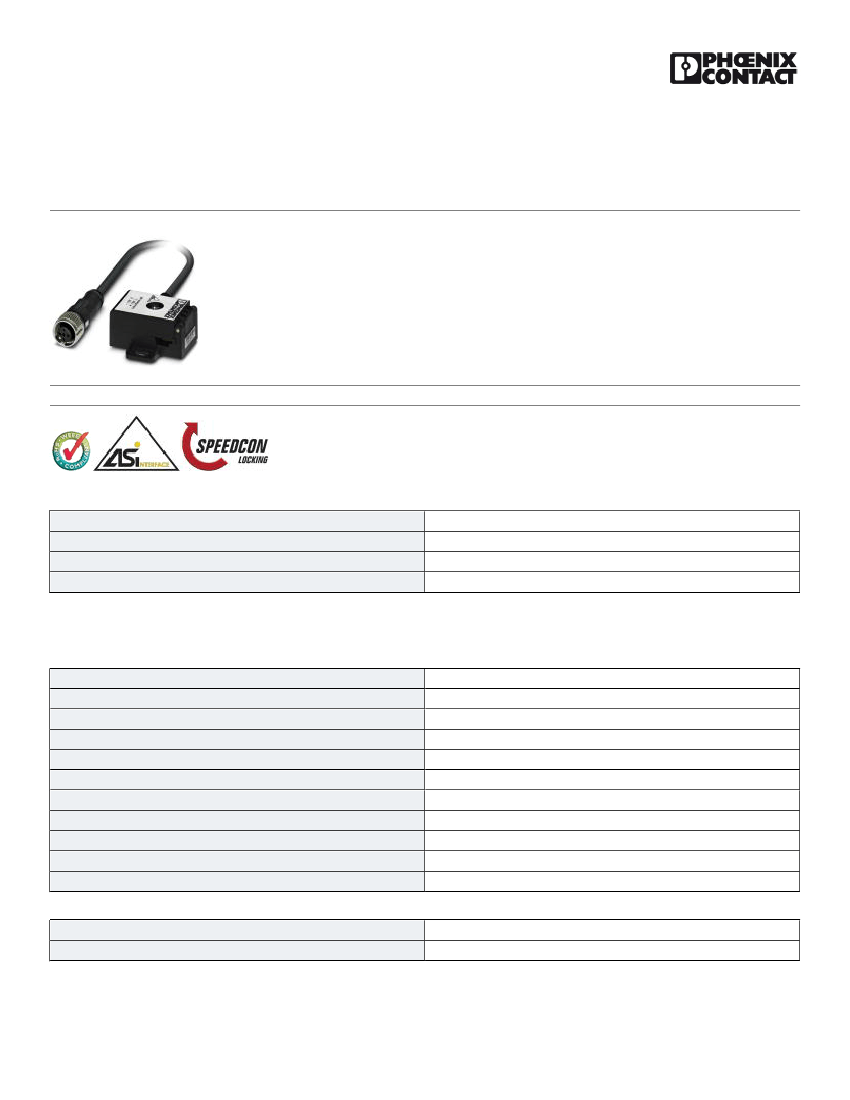

AS-Interface distributor with IP67 protection for one flat-ribbon conductor, with 1.0 m PUR round conductor and a
molded, straight, A-coded, 2-pos. M12 SPEEDCON socket
Key commercial data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
64.1 GRM
85444290
Vietnam
Technical data
Mechanical characteristics
Number of positions
Shielded
Insertion/withdrawal cycles
Connection method
Cable diameter
Type of cable
Cable structure
Duty cycle testing
Length of cable
Color
Tightening torque, min.
2
No
≥ 100 (M12 connector)
AS-i penetration technique
4.70 mm
Round cable
4x 0.34 mm²
Flexible cable conduit capable
1m
black
1.65 Nm
Ambient conditions
Ambient temperature (operation)
-25 °C ... 75 °C (Distributor)
-25 °C ... 75 °C (cable, fixed installation)
04/01/2014 Page 1 / 4
https://www.phoenixcontact.com/us/products/1404430
Distributor - VS-ASI-J-Y-N-PUR-1,0-M12FS SCO - 1404430
Technical data
Ambient conditions
-5 °C ... 75 °C (cable, flexible installation)
Ambient temperature (storage/transport)
Degree of protection
-25 °C ... 80 °C
IP65/67
Material data
Housing material
Contact carrier material
Contact material
Contact surface material
Material
PA-GF
TPE-U
CuZn
Ni/Au
CuSn (M12 contact)
TPU GF (M12 contact carrier)
Ni/Au (M12 contact surface)
TPU (M12 handle)
Cable gland material
Outer sheath, material
External sheath, color
Zinc die-cast, nickel-plated
PUR
deep black RAL 9005
Electrical characteristics
Rated voltage (III/3)
Rated current
≤ 35 V
≤4A
Line characteristics
Cable type
Cable abbreviation
UL AWM style
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
External cable diameter
Wire colors
External sheath, color
Transmission medium
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Overall twist
PUR halogen-free black
Li9Y11Y-HF
20549 / 10493 (80°C/300 V)
4x 0.34 mm²
22
42x 0.10 mm
1.27 mm ±0.02 mm
≥ 0.21 mm
4.7 mm ±0.15 mm
brown, white, blue, black
Black-gray RAL 7021
Copper
≥ 1 GΩ*km
≤ 58000000 Ω/km
≤ 300 V
≥ 3000 V
4 wires, twisted
04/01/2014 Page 2 / 4
https://www.phoenixcontact.com/us/products/1404430
Distributor - VS-ASI-J-Y-N-PUR-1,0-M12FS SCO - 1404430
Technical data
Line characteristics
Outer sheath, material
Material conductor insulation
Conductor material
Cable weight
Minimum bending radius, fixed installation
Minimum bending radius, flexible installation
Max. bending cycles
Minimum bending radius, drag chain applications
Traversing path
Traversing rate
Acceleration
Special properties
PUR
PP
Bare Cu litz wires
30 kg/km
5xD
10 x D
4000000
10 x D
10 m
3 m/s
10 m/s²
Flexible cable conduit capable
Silicone-free
Free of substances which would hinder coating with paint or varnish
Flexible
Flame resistance
Halogen-free
Resistance to oil
Other resistance
in accordance with DIN UL-Style 20549
in accordance with FT1 as per UL 758
in accordance with DIN VDE 0472 part 815
in accordance with DIN EN 60811-2-1
Highly resistant to acids, alkaline solutions and solvents
hydrolysis and microbe resistant
partly UV-resistant in accordance with DIN EN ISO 4892-2-A
Low adhesion
abrasion-resistant
Ambient temperature (operation)
-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27140815
27140815
27143423
27143423
27143423
27449001
27449001
04/01/2014 Page 3 / 4
https://www.phoenixcontact.com/us/products/1404430
Distributor - VS-ASI-J-Y-N-PUR-1,0-M12FS SCO - 1404430
Classifications
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000200
EC001856
EC000313
EC000313
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
31261501
31261501
31261501
31261501
31261501

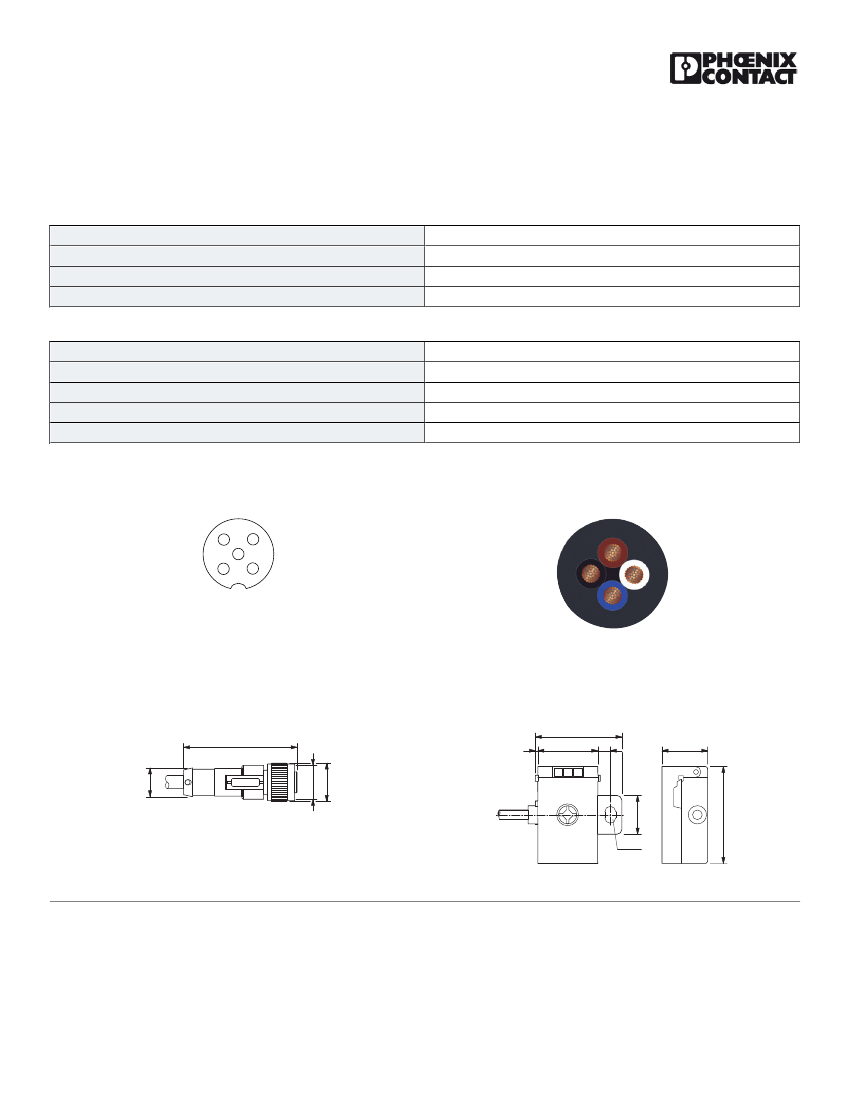

Drawings
Schematic diagram
3
5
4
Cable cross section
2
1
Pin assignment M12, PIN 1: AS-i +, PIN 3: AS-i -, PIN 2,4,5: Not used
PUR halogen-free black [PUR]
Dimensioned drawing
Dimensioned drawing
36
44
1
25
5
19
Ø14,8
Ø11
M12
16
7x4,2
Phoenix Contact 2014 © - all rights reserved
http://www.phoenixcontact.com
04/01/2014 Page 4 / 4
