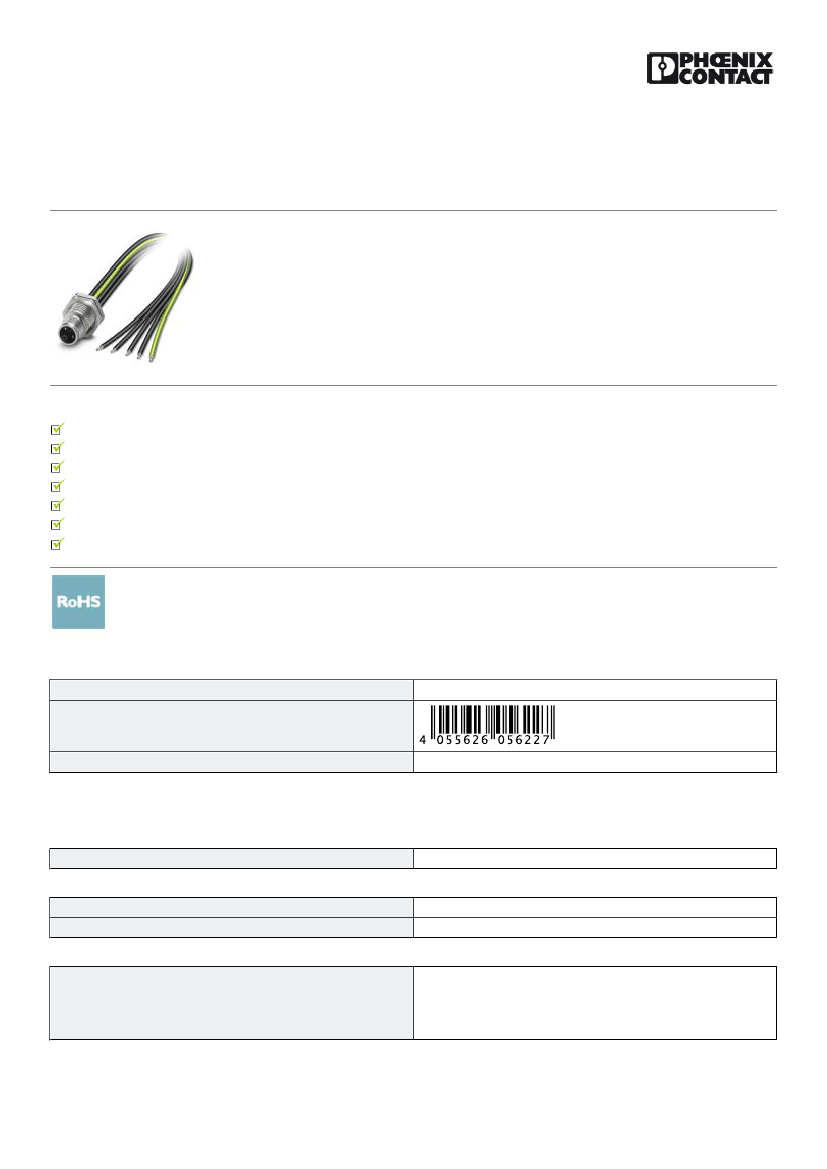

Flush-type connector - SACC-DSI-M12MSK-4PE-M16XL/0,2 - 1415293
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Flush-type connector, Power, 5-position, Plug, M12, K - Power, Rear mounting, M16 x 1.5, Individual wires,
cable length: 0.2 m
Your advantages
For compact devices: transmit high power in a confined space
Easy-to-install, optimized XL housing contour with wrench size 19
Mechanical tightening limitation for long-term-stable gasket
Pre-assembled with litz wires for immediate use
Customer-specific assemblies and litz wire lengths available
Sealed on the litz wire side for optimum leak-tightness
For high transmission safety: shield connection to the housing with optional EMC nut
Key Commercial Data
Packing unit
GTIN
GTIN
4055626056227
1 pc
Technical data
Dimensions
Length of cable
0.2 m
Ambient conditions
Ambient temperature (operation)
Degree of protection
-25 °C ... 85 °C (Plug / socket)
IP67
General
Note
The electrical and mechanical data specified assume that the connector
pair is correctly locked and mounted. If the connector is unlocked and if
there is a danger of contamination, the connector must be sealed using
a protective cap > IP54. Influences arising from litz wires, cables or PCB
assembly must also be taken into consideration.
10/19/2018 Page 1 / 3
https://www.phoenixcontact.com/pi/products/1415293
Flush-type connector - SACC-DSI-M12MSK-4PE-M16XL/0,2 - 1415293
Technical data
General
Rated current at 40°C
Rated voltage
Rated surge voltage
Number of positions
Coding
Standards/regulations
Signal type/category
Status display
Overvoltage category
Degree of pollution
Connection method
Insertion/withdrawal cycles
Mounting type
16 A
630 V
6 kV
5
K - Power
M12 connector IEC 61076-2-111 In line with
Power
No
III
3
Individual wires
> 100
Rear mounting M16 x 1.5 With flat nut
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material, knurls
Sealing material
Additional material specifications
V0
CuZn
Au
PA
Zinc die-cast, nickel-plated
FKM
PU 2K (Grout material)
Cable
Cable type
Conductor cross section
AWG signal line
Wire colors
Material conductor insulation
Conductor material
Standards/specifications
Test voltage Core/Core
Flame resistance
Halogen-free
Other resistance
Ambient temperature (operation)
PEX litz wire
2.5 mm²
14
Black 1, black 2, black 3, black 4, green/yellow
PE-X
Tin-plated Cu litz wires
M12 connector IEC 61076-2-111 In line with
6 kV
in acc. with UL FT-2
according to IEC 60754-1
Hydrolysis-resistant
-40 °C ... 85 °C (without mechanical actuation)
-40 °C ... 105 °C (cable, fixed installation)
-25 °C ... 105 °C
Standards and Regulations
Standard designation
Standards/regulations
M12 connector
IEC 61076-2-111
10/19/2018 Page 2 / 3
https://www.phoenixcontact.com/pi/products/1415293
Flush-type connector - SACC-DSI-M12MSK-4PE-M16XL/0,2 - 1415293
Technical data
Standards and Regulations
Flame resistance
Halogen-free
Other resistance
Flammability rating according to UL 94
in acc. with UL FT-2
according to IEC 60754-1
Hydrolysis-resistant
V0
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Schematic diagram
PE
Dimensional drawing
28,2
20,1
0,9
L
1
2 3
4
M16x1,5
Connector pin assignment of M12 plug, 5-pos.,
K-coded, pin side view
M12x1
10,2
2,8
19
M12 flush-type plug
