Printed-circuit board connector - FKC 2,5 HC/ 3-ST - 1942167
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Plug component, Nominal current: 16 A, Rated voltage (III/2): 320 V, Number of positions: 3, Pitch: 5 mm,
Connection method: Spring-cage connection, Color: green, Contact surface: Tin, COMBICON connectors may
only be activated under no load conditions. If for operating reasons small loads must be switched, experimental
values are available upon request.

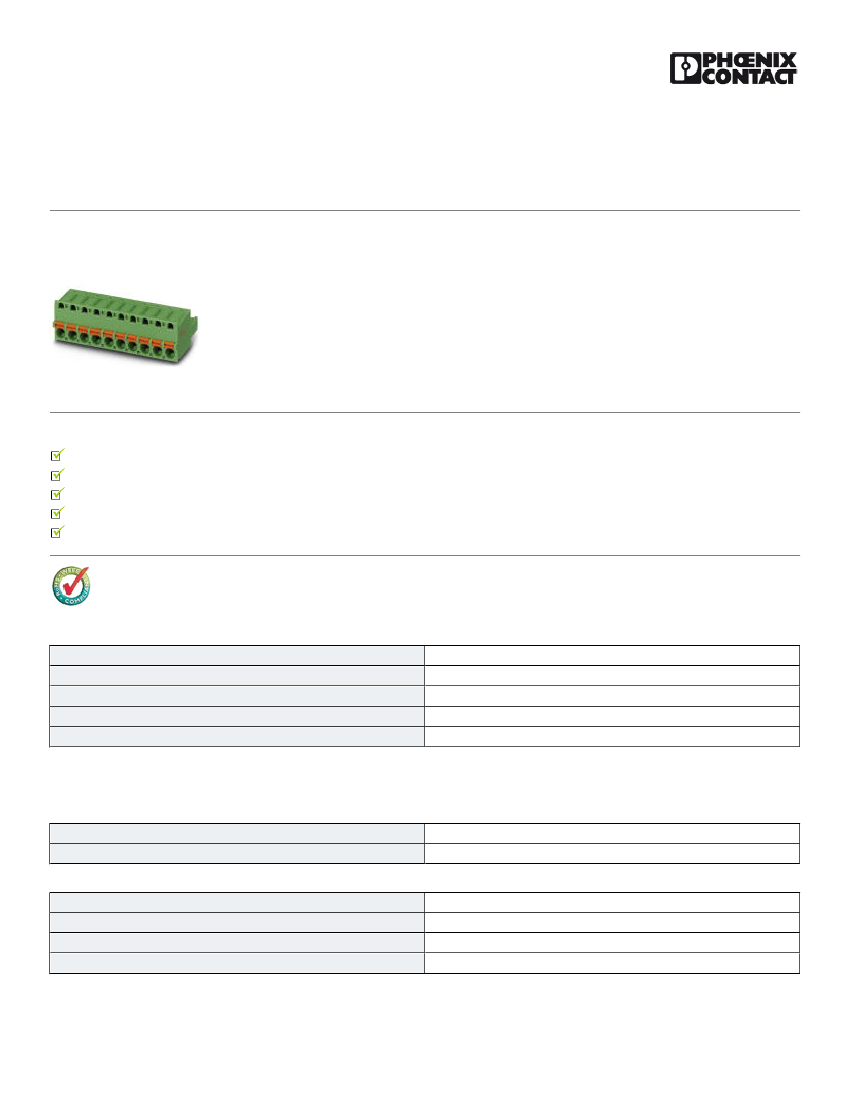

The figure shows a 10-position
version of the product
Product Features
Two integrated test connections
HC plugs may only be used with HC base strips
Coding profiles (CP) as protection against mismatching
Inverted versions with pin contact (FKIC 2,5 HC); e.g., for cable/cable connections or motor outputs
Push-in spring-cage plug as a "High Current" (HC) version for 16 A
Key commercial data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
50 pc
5.66 GRM
85366990
Germany
Technical data
Dimensions
Pitch
Dimension a
5 mm
10 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
FKC 2,5 HC/..-ST
I
4 kV
4 kV
10/27/2014 Page 1 / 5
https://www.phoenixcontact.com/us/products/1942167
Printed-circuit board connector - FKC 2,5 HC/ 3-ST - 1942167
Technical data
General
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Maximum load current
Insulating material
Inflammability class according to UL 94
Internal cylindrical gage
Stripping length
Number of positions
4 kV
250 V
320 V
630 V
EN-VDE
16 A
2.5 mm²
16 A (with 2.5 mm² conductor cross section)
PA
V0
A2
10 mm
3
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section stranded, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve min.
Conductor cross section stranded, with ferrule with plastic sleeve max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
0.25 mm²
2.5 mm²
0.25 mm²
1.5 mm²
24
12
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with plastic
1.5 mm²
sleeve, max.
Minimum AWG according to UL/CUL
Maximum AWG according to UL/CUL
26
12
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
272607xx
27260701
27260701
10/27/2014 Page 2 / 5
https://www.phoenixcontact.com/us/products/1942167
Printed-circuit board connector - FKC 2,5 HC/ 3-ST - 1942167
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27260701
27260704
27440402
27440402
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002638
EC002638
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211810
39121409
39121409
39121409
39121409
Approvals
Approvals
Approvals
UL Recognized / VDE Gutachten mit Fertigungsüberwachung / cUL Recognized / GOST / IECEE CB Scheme / GOST / CCA / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
B
26-12
16 A
D
26-12
10 A
10/27/2014 Page 3 / 5
https://www.phoenixcontact.com/us/products/1942167
Printed-circuit board connector - FKC 2,5 HC/ 3-ST - 1942167
Approvals
Nominal voltage UN
B
300 V
D
300 V
VDE Gutachten mit Fertigungsüberwachung
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
0.2-2.5
16 A
250 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-12
16 A
300 V
D
26-12
10 A
300 V
GOST
IECEE CB Scheme
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
0.2-2.5
16 A
250 V
GOST
CCA
mm²/AWG/kcmil
Nominal current IN
0.2-2.5
16 A
10/27/2014 Page 4 / 5
https://www.phoenixcontact.com/us/products/1942167
Printed-circuit board connector - FKC 2,5 HC/ 3-ST - 1942167
Approvals
Nominal voltage UN
250 V
cULus Recognized

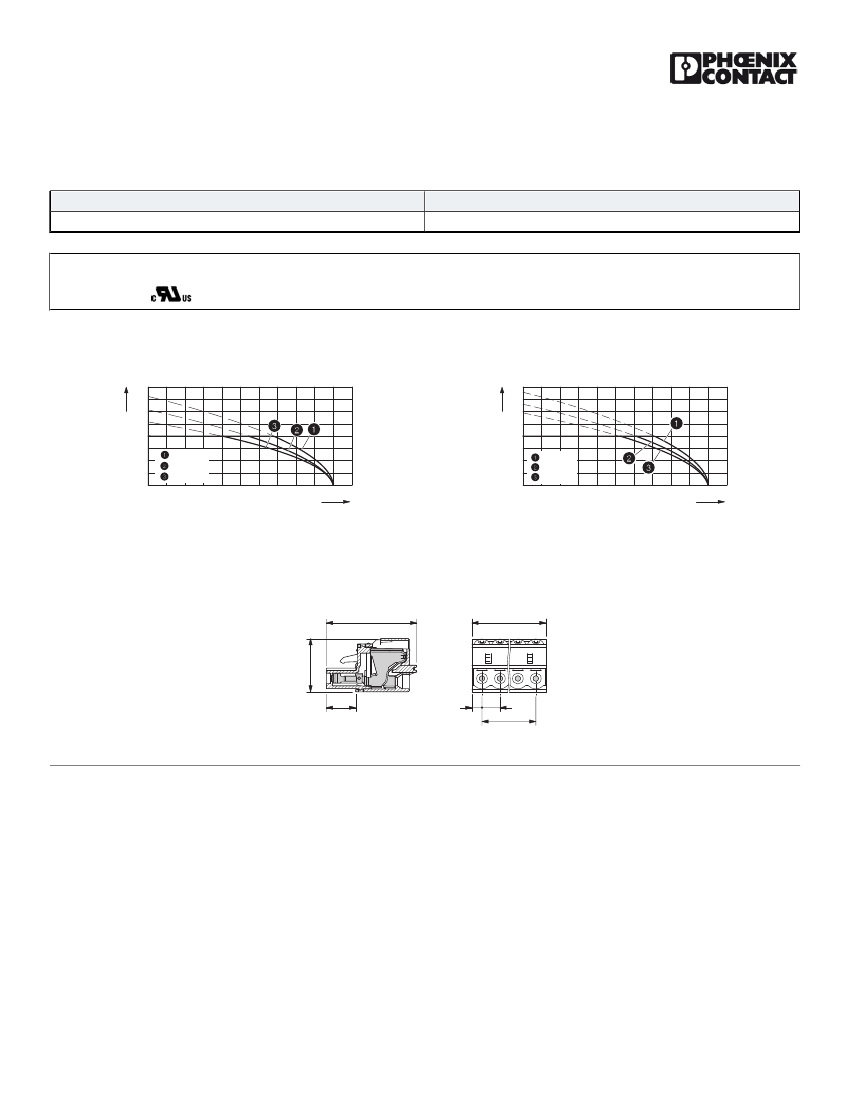

Drawings
Diagram
Operating current [A]
Current strength [A]
Diagram
32
28
24
20
16
12
8
4
0
0
32
24
16
8
0
0
10
20
30
40
50
60
70
80
90 100 110
Ambient temperature [°C]
= 2-pos.
= 5-pos.
= 12-pos.
= 2-pos.
= 5-pos.
= 12-pos.
20
40
60
80
100
Ambient temperature [°C]
Derating curve for: FKC 2,5 HC/..-ST with MSTBA 2,5 HC/..-G
Type: FKC 2,5 HC/...-ST with MSTBVA 2,5 HC/...-G
Dimensioned drawing
25,6
a+5,1
15
8,3
2,55
5
a
Phoenix Contact 2014 © - all rights reserved
http://www.phoenixcontact.com
10/27/2014 Page 5 / 5
