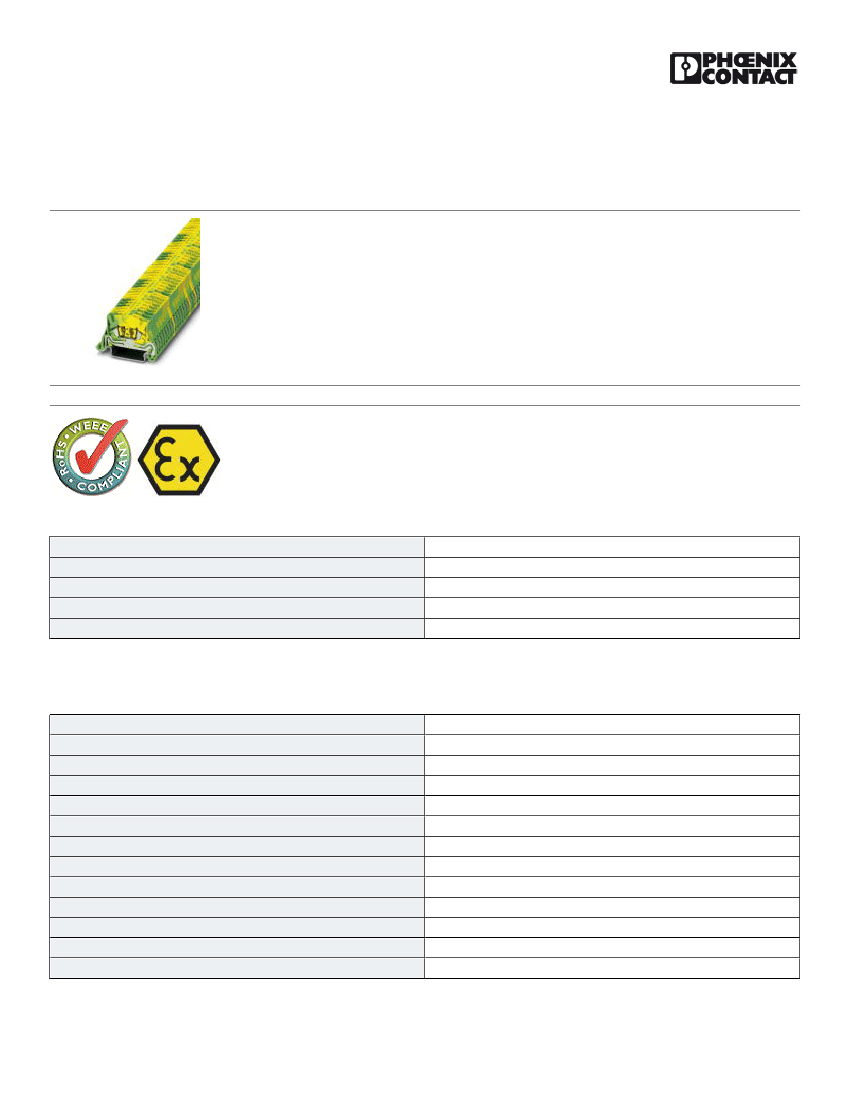

Mini feed-through terminal block - MSB 2,5-NS 35-PE - 3244148
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Mini feed-through terminal block, Connection method: Spring-cage connection, Cross section: 0.08 mm² - 4 mm²,
AWG: 28 - 12, Width: 5.2 mm, Height: 22 mm, Color: green-yellow, Mounting type: NS 35/7,5, NS 35/15
Key Commercial Data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 STK
50 STK
6.4 g
85369010
China
Technical data
General
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Open side panel
Shock protection test specification
1
2
1
2.5 mm²
green-yellow
PA
V0
8 kV
3
III
I
Yes
DIN EN 50274 (VDE 0660-514):2002-11
07/19/2016 Page 1 / 12
https://www.phoenixcontact.com/us/products/3244148
Mini feed-through terminal block - MSB 2,5-NS 35-PE - 3244148
Technical data
General
Back of the hand protection
Finger protection
Oscillation, broadband noise test result
Test specification, oscillation, broadband noise
Test spectrum
Test frequency
ASD level
Acceleration
Test duration per axis
Test directions
Shock test result
Test specification, shock test
Shock form
Acceleration
Shock duration
Number of shocks per direction
Test directions
Relative insulation material temperature index (Elec., UL 746 B)
Static insulating material application in cold
guaranteed
guaranteed
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Service life test category 1, class B, body mounted
f
1
= 5 Hz to f
2
= 150 Hz
0.02 g²/Hz
0,8 g
5h
X-, Y- and Z-axis
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Half-sine
5g
30 ms
3
X-, Y- and Z-axis (pos. and neg.)
130 °C
-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 130 °C
Dimensions
Width
End cover width
Length
Height
Height NS 35/7,5
Height NS 35/15
5.2 mm
4 mm
42.7 mm
22 mm
32 mm
39.5 mm
Connection data
Note
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Please observe the current carrying capacity of the DIN rails.
Spring-cage connection
IEC 60947-7-2
0.08 mm²
4 mm²
28
12
0.08 mm²
07/19/2016 Page 2 / 12
https://www.phoenixcontact.com/us/products/3244148
Mini feed-through terminal block - MSB 2,5-NS 35-PE - 3244148
Technical data
Connection data
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule without plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2.5 mm²
28
14
0.14 mm²
2.5 mm²
0.14 mm²
2.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, max.
Connection in acc. with standard
Stripping length
Internal cylindrical gage
IEC/EN 60079-7
8 mm
A3
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
CSA
IEC 60947-7-2
V0
Drawings
Circuit diagram
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27141117
27141117
27141126
27141126
27141126
27141126
27141120
27141120
ETIM
ETIM 2.0
ETIM 3.0
EC000902
EC000902
07/19/2016 Page 3 / 12
https://www.phoenixcontact.com/us/products/3244148
Mini feed-through terminal block - MSB 2,5-NS 35-PE - 3244148
Classifications
ETIM
ETIM 4.0
ETIM 5.0
EC000902
EC000897
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410
Approvals
Approvals
Approvals
CSA / VDE Zeichengenehmigung / IECEE CB Scheme / EAC / UL Recognized / cUL Recognized / EAC / cULus Recognized
Ex Approvals
ATEX / IECEx / EAC Ex
Approvals submitted
Approval details
CSA
mm²/AWG/kcmil
28-12
VDE Zeichengenehmigung
mm²/AWG/kcmil
2.5
07/19/2016 Page 4 / 12
https://www.phoenixcontact.com/us/products/3244148
Mini feed-through terminal block - MSB 2,5-NS 35-PE - 3244148
Approvals
IECEE CB Scheme
mm²/AWG/kcmil
2.5
EAC
UL Recognized
mm²/AWG/kcmil
B
28-12
C
28-12
D
28-12
cUL Recognized
mm²/AWG/kcmil
B
28-12
C
28-12
D
28-12
EAC
cULus Recognized
Accessories
Accessories
DIN rail
