8136R100KL.25 datasheet, PDF - EEWORLD Datasheet

8136R100KL.25: DescriptionPOTENTIOMETER; CategoryPassive components; File Size636KB，3 Pages; ManufacturerTT Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

8136R100KL.25 Overview

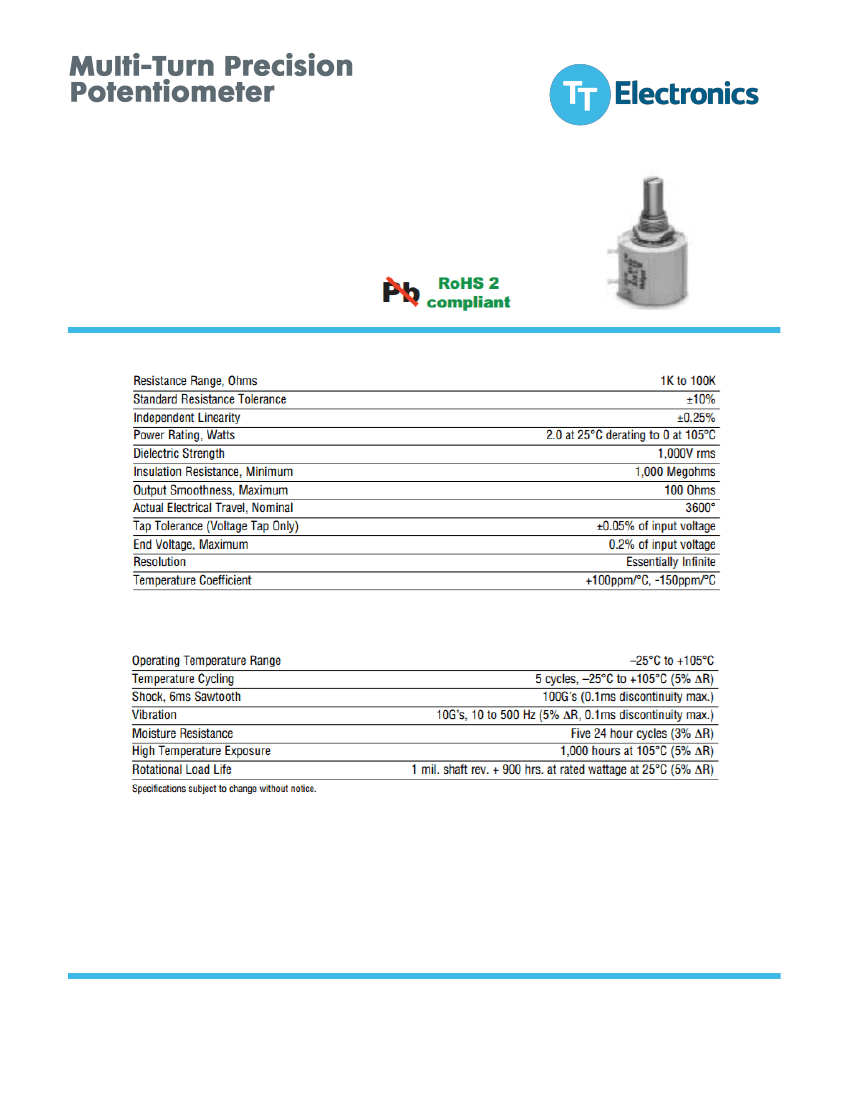

POTENTIOMETER

Model 8136

Features:



7/8” diameter



Plastic 10-turn



Hybrid

Electrical

Environmental

General Note

TT Electronics reserves the right to make changes in product specification without

notice or liability. All information is subject to TT Electronics’ own data and is

considered accurate at time of going to print.

BI Technologies

4200 Bonita Place, Fullerton, CA 92835 |Ph: +1 714 447 2300

www.bitechnologies.com | www.ttelectronics.com

Issue B

02/2015

Page 1

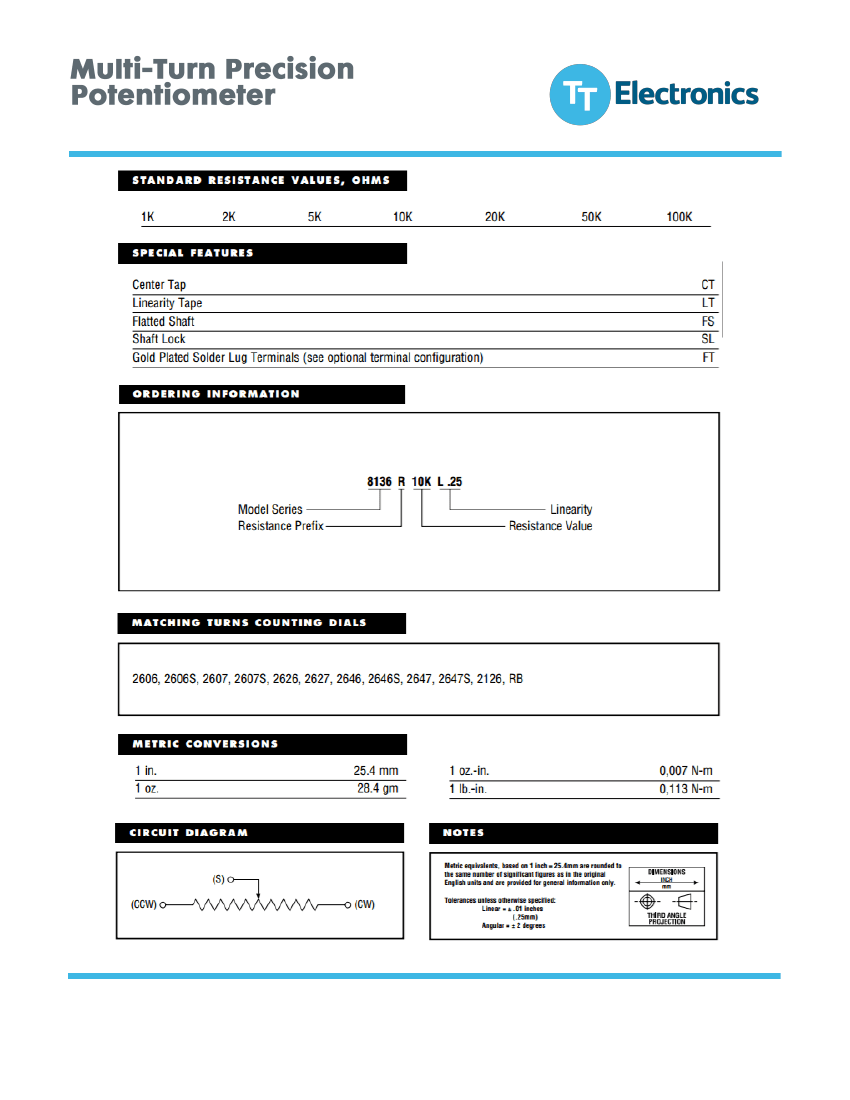

	8136R100KL.25	8136R10KL.25	8136R20KL.25	8136R2KL.25	8136R50KL.25	8136R5KL.25
Description	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER
cone	Linear	Linear	Linear	Linear	Linear	Linear
Resistance (ohms)	100k	10k	20k	2k	50k	5k
Tolerance	±10%	±10%	±10%	±10%	±10%	±10%
Number of sets	1	1	1	1	1	1
Built-in switch	none	none	none	none	none	none
Power (W)	2W	2W	2W	2W	2W	2W
Temperature Coefficient	-150ppm/°C，+100ppm/°C	-150ppm/°C，+100ppm/°C	-150ppm/°C，+100ppm/°C	-150ppm/°C，+100ppm/°C	-150ppm/°C，+100ppm/°C	-150ppm/°C，+100ppm/°C
Number of turns	10	10	10	10	10	10
rotate	3600°	3600°	3600°	3600°	3600°	3600°
Adjustment type	Custom	Custom	Custom	Custom	Custom	Custom
Resistive materials	mixture	mixture	mixture	mixture	mixture	mixture
Terminal type	welding turret	welding turret	welding turret	welding turret	welding turret	welding turret
Actuator type	Slotted type	Slotted type	Slotted type	Slotted type	Slotted type	Slotted type

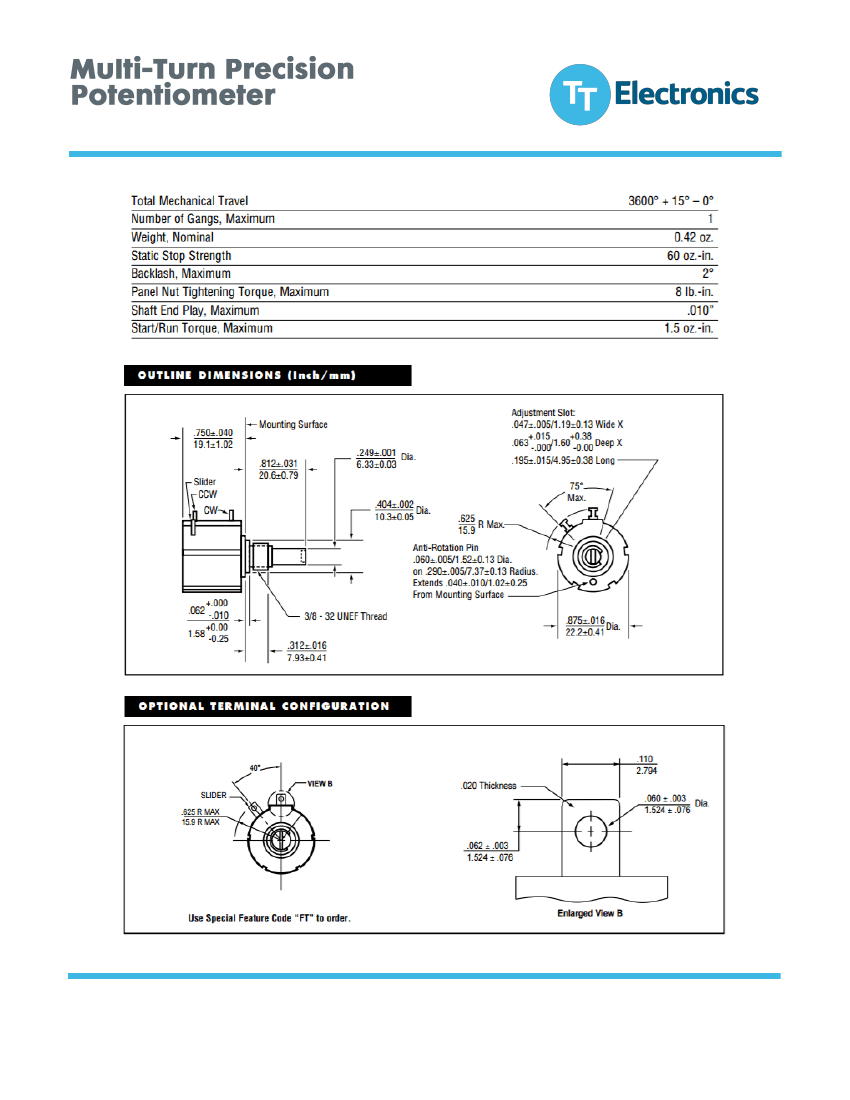

Actuator length	0.811"（20.60mm）	0.811"（20.60mm）	0.811"（20.60mm）	0.811"（20.60mm）	0.811"（20.60mm）	0.811"（20.60mm）
Actuator diameter	0.249"（6.33mm）	0.249"（6.33mm）	0.249"（6.33mm）	0.249"（6.33mm）	0.249"（6.33mm）	0.249"（6.33mm）
Bushing thread	3/8-32	3/8-32	3/8-32	3/8-32	3/8-32	3/8-32
Installation type	Panel mounting	Panel mounting	Panel mounting	Panel mounting	Panel mounting	Panel mounting
