Material
Plating
Wire Size
Wire Type
High Conductivity
Seamless Copper Tube
Electro-Tin
PANDUIT
2/0 STR/FLEX
Stranded Copper: Class B & C
Compact, Class G, H, I, K, M,
Locomotive
1-9/16 in.
1/4 in.
Yes, for applications up to 35kv.
Consult cable manufacturer for
voltage stress relief instructions
with applications greater than
2000 volts.
90 C
Yes
BLACK
.35±.04
.96±.04
Wire Strip Length
Stud Size
UL Listed Wire
Connector
2/0 STR/FLEX
LCBX2/0-14F
Wire inspection
window
.27±.02 DIA
.78±.04
UL Temperature
Rating
C.S.A Certified
Wire Connector
Panduit Color Code
on Barrel
.13±.01
90°±5°
2.18
REF
1.50±.04
PANDUIT
Panduit Die Index No. P45
on Barrel
Alternate Industry
Die Index No. ( )
on Barrel
(13)
BLACK DIE P45 (13)
.51±.01
CERTIFIED
LISTED
Wire Connector
.64±.01
1.67 REF
Beveled wire
entry
Color coded
barrel markings
CORP.
00
REV
TINLEY PARK, ILLINOIS
6/03
DATE
SAC
BY
CHK
RELEASED
DESCRIPTION
10850
ECN
LCBX2/0-14F-X

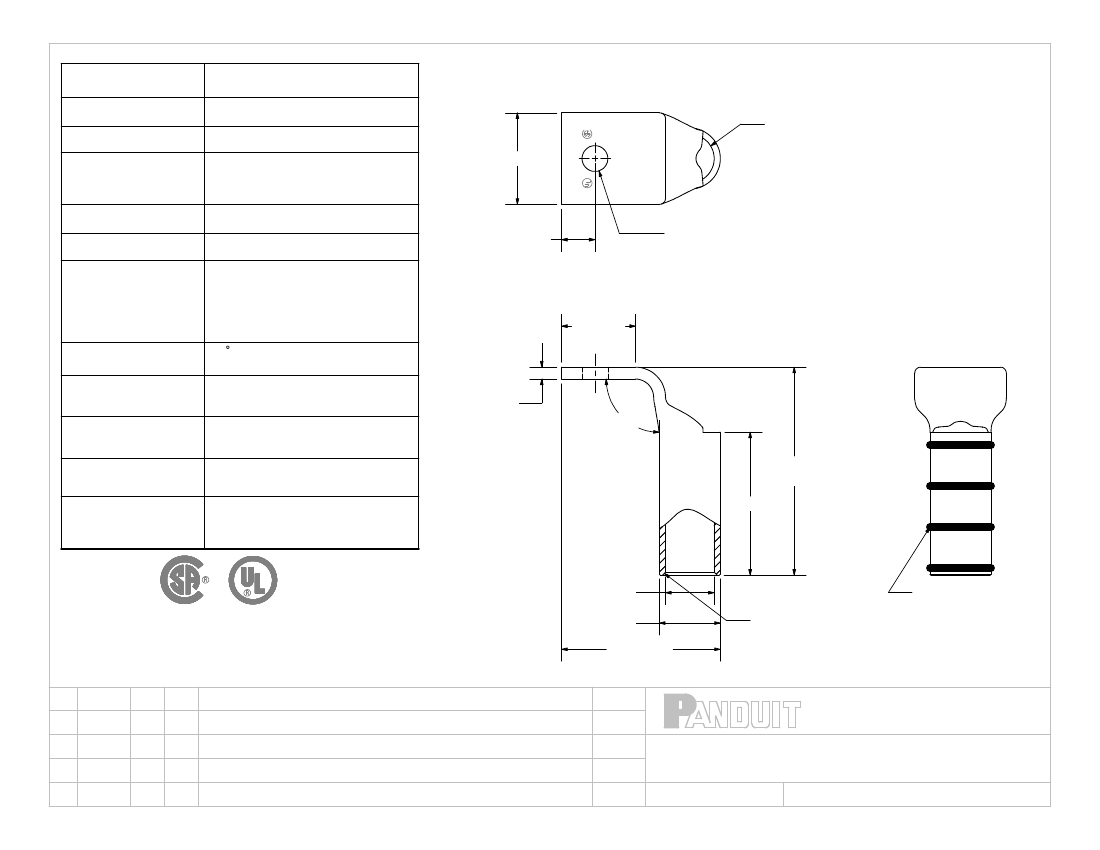

Copper Lug - One-Hole, Long Flex Barrel, 90° Angle Tongue
SCALE
N/A
DRAWING NO / CAD FILE
LCBX2_0-14F-CUST
