5452252: DescriptionTERM BLOCK PLUG 21POS STR 5.08MM; CategoryThe connector; File Size91KB，3 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com; Environmental Compliance

Download Datasheet Parametric View All

5452252 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5452252	-	-	View	Buy Now

5452252 Overview

TERM BLOCK PLUG 21POS STR 5.08MM

5452252 Parametric

Parameter Name	Attribute value
type	plug, female socket
Number of pins	21
Number of pins per level	21
Number of levels	1
spacing	0.200"（5.08mm）
Needle seat direction	-
Plug entrance	180°
Terminal type	screws
Installation type	free hanging
Current - IEC	12A
Voltage - IEC	320V
Current - UL	15A
Voltage - UL	300V
Wire Gauge or Range - AWG	12-30 AWG
Wire gauge or range - mm²	-
color	black
Operating temperature	-
Contact mating surface treatment	tin
characteristic	Fixed lock (non-wire side)
Material flammability rating	-
Intrusion protection	-
Screw size	-
Torque - Screws	0.4-0.5 Nm（3.5-4.4 Lb-In）
Wire stripping length	7mm
Contact material	-
Shell material	-
Contact tail length	-
Insulation height	0.591"（15.00mm）

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/us/products/5452252

Printed-circuit board connector - BCP-508-21 BK - 5452252

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 21, Pitch: 5.08 mm,

Connection method: Screw connection with tension sleeve, Color: black, Contact surface: Tin

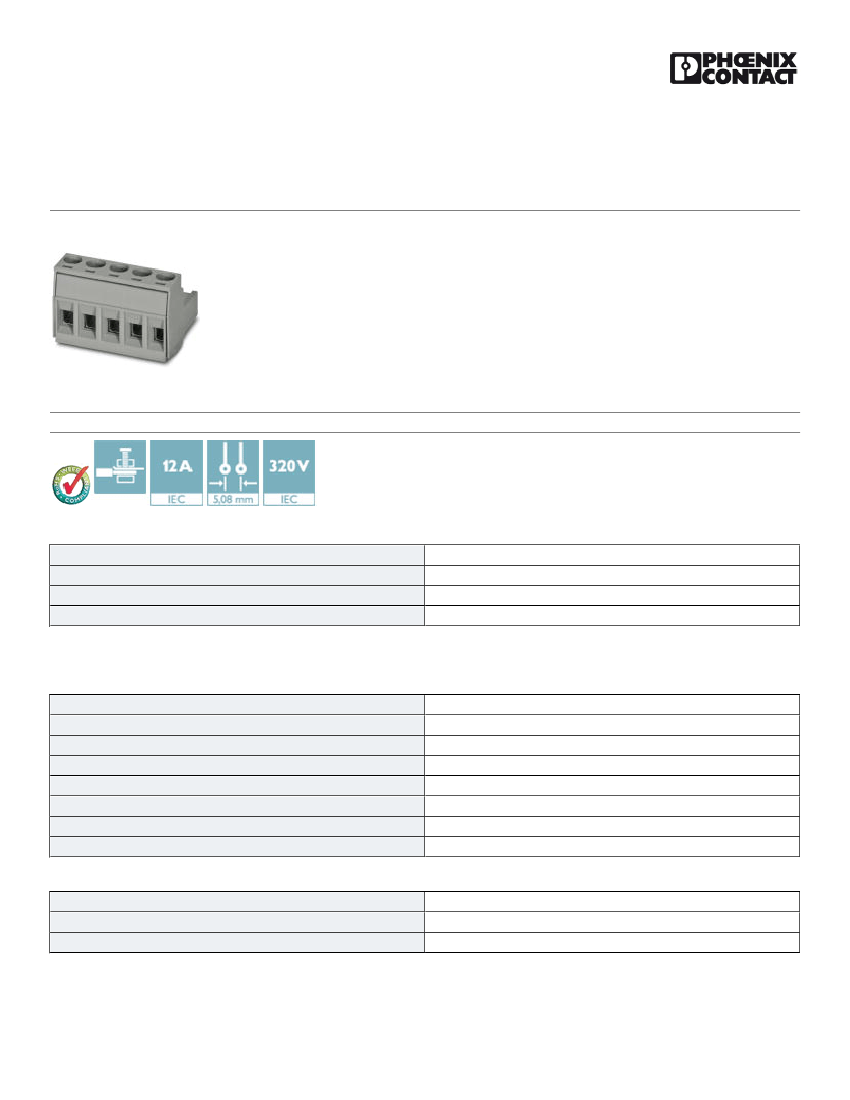

The figure shows a 5-pos. version of

the product in gray

Key Commercial Data

Packing unit

Minimum order quantity

Custom tariff number

Country of origin

1 pc

100 pc

85366990

China

Classifications

eCl@ss

eCl@ss 4.0

eCl@ss 4.1

eCl@ss 5.0

eCl@ss 5.1

eCl@ss 6.0

eCl@ss 7.0

eCl@ss 8.0

eCl@ss 9.0

272607xx

27260701

27261101

27440401

27440309

ETIM

ETIM 3.0

ETIM 4.0

ETIM 5.0

EC001121

EC002638

04/29/2016 Page 1 / 3
