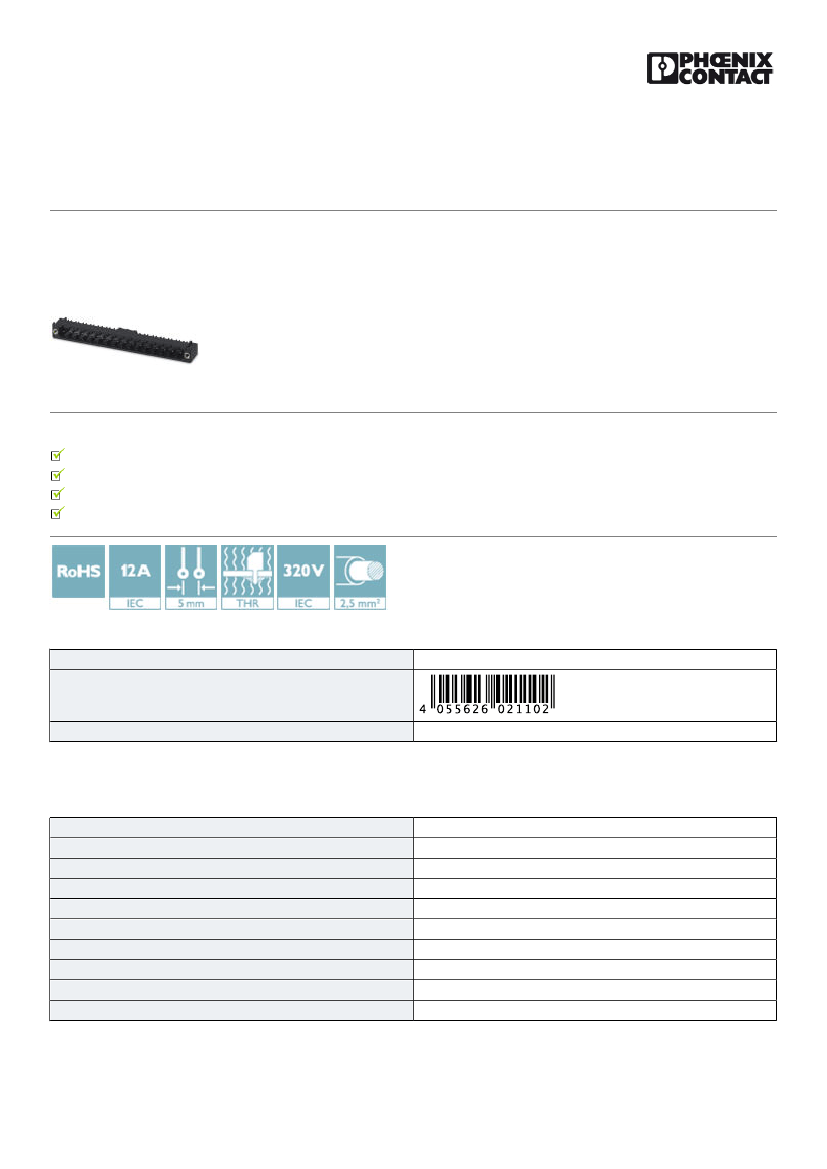

Printed-circuit board connector - CC 2,5/15-GF-LR P20 THR - 1836816
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB headers, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 15, pitch: 5 mm, color:
black, contact surface: Tin, mounting: THR soldering
The figure shows a 16-position
version
Your advantages
Designed for integration into the SMT soldering process
Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Automatic locking and intuitive release through Lock and Release operating lever in contrasting color
Screwable flange for superior mechanical stability
Key Commercial Data
Packing unit
GTIN
GTIN
4055626021102
50 pc
Technical data
Dimensions
Length [ l ]
Width
Pitch
Dimension a
Width [ w ]
Height [ h ]
Height
Length of the solder pin
Pin dimensions
Length
12 mm
85 mm
5 mm
70 mm
85 mm
10.57 mm
8.57 mm
2 mm
1 x 1 mm
12 mm
General
10/16/2018 Page 1 / 3
https://www.phoenixcontact.com/pi/products/1836816
Printed-circuit board connector - CC 2,5/15-GF-LR P20 THR - 1836816
Technical data
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Insulating material
Flammability rating according to UL 94
Color
Number of positions
CC 2,5/..-GF-LR
IIIa
4 kV
4 kV
4 kV
320 V
400 V
EN-VDE
12 A
LCP
V0
black
15
Packaging information
Type of packaging
Pieces per package
Denomination packing units
packed in cardboard
50
Pcs.
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
V0
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Diagram
24
22
20
18
16
14
12
10
8
6
4
2
0
0
Current strength [A]
= 2-pos.
= 5-pos.
= 12-pos.
= 20-pos.
10
20
30
40
50
60
70
80
90 100 110
Ambient temperature [°C]
Type: MSTB 2,5/...-STF with CC 2,5/...-GF-LR P20 THR
10/16/2018 Page 2 / 3
https://www.phoenixcontact.com/pi/products/1836816
Printed-circuit board connector - CC 2,5/15-GF-LR P20 THR - 1836816
Approvals
Approvals
Approvals
cULus Recognized
Ex Approvals
Approval details
cULus Recognized
Nominal voltage UN
Nominal current IN
D
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-19931011
B
300 V
16 A
300 V
10 A
