LFCL-UHJ-T Overview

ACS 250V CABLE LIMITER 350 CU 50

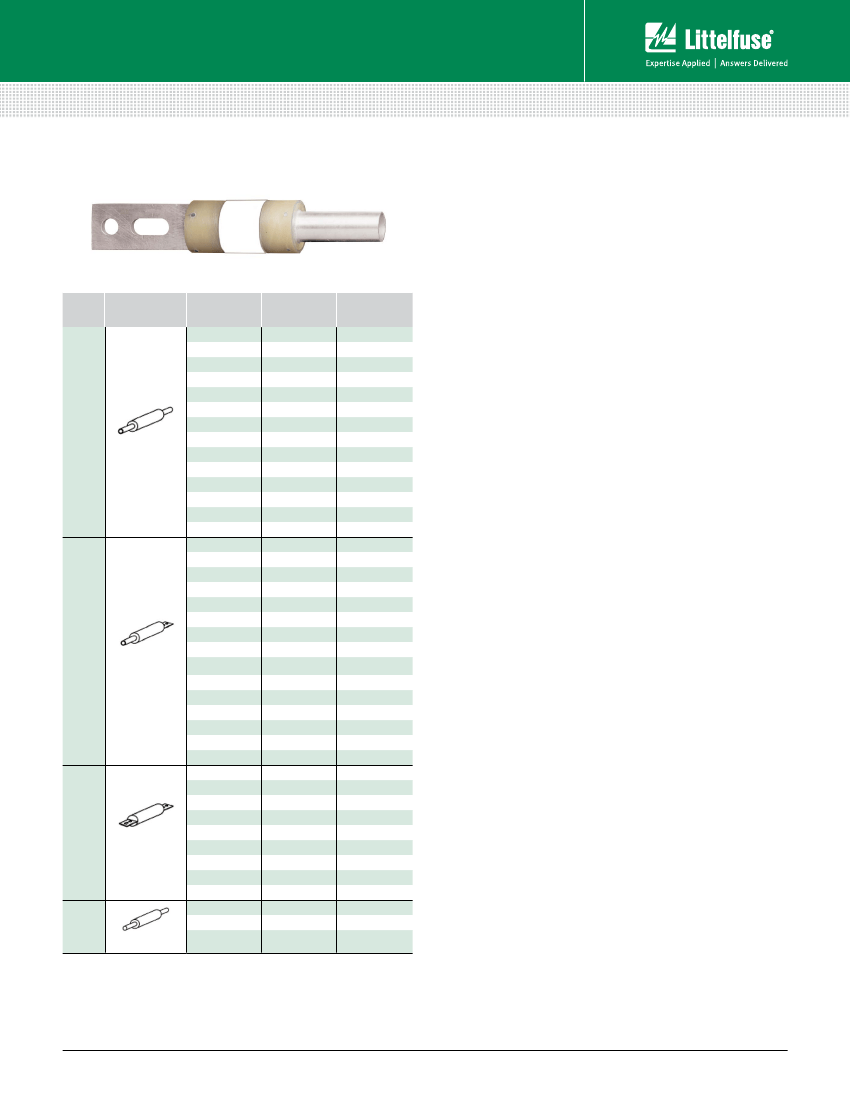

POWR-GARD
®
Fuse Datasheet
LFCL CABLE LIMITERS
250/600 VAC
Description
Cable limiters are fusible devices that provide very fast short-
circuit protection, primarily to faulted cables, but also to other
conductors such as busway. Cable limiters do not have an
ampere rating, and cannot be used to provide overload protection.
They are instead selected by cable size; for example, a 500 kcmil
cable requires a 500 kcmil cable limiter. Their main use is to
isolate faulted cables in circuits containing three or more parallel
conductors per phase. They may be installed on the line side of
the main service to provide short-circuit protection to the service
conductors. This is especially important when service conductors
are tapped from large low voltage networks or from large low
impedance transformers.
Cable limiters have terminals which permit them to be installed in a
variety of equipment. The most common configuration is the offset
blade on one end and the crimp terminal on the other end. This
permits the limiter to replace a cable terminal (lug).
TYPE
TERMINATION
VOLTAGE
RATING
600 VAC
600 VAC
600 VAC
600 VAC
600 VAC
600 VAC
600 VAC
600 VAC
600 VAC
600 VAC
600 VAC
600 VAC
600 VAC
600 VAC
600 VAC
600 VAC
600 VAC
600 VAC
600 VAC
600 VAC
600 VAC
600 VAC
600 VAC
600 VAC
600 VAC
600 VAC
600 VAC
600 VAC
600 VAC
250 VAC
250 VAC
250 VAC
250 VAC
600 VAC
600 VAC
600 VAC
600 VAC
600 VAC
600 VAC
600 VAC
600 VAC
COPPER
CABLE SIZE
4 AWG
3 AWG
2 AWG
1 AWG
1/0 AWG
2/0 AWG
3/0 AWG
4/0 AWG
250 kcmil
350 kcmil
500 kcmil
600 kcmil
750 kcmil
1000 kcmil
12 AWG
10 AWG
6 AWG
4 AWG
2 AWG
1 AWG
1/0 AWG
2/0 AWG
3/0 AWG
4/0 AWG
250 kcmil
350 kcmil
500 kcmil
600 kcmil
750 kcmil
2/0 & 3/0 AWG
3/0 AWG
350 kcmil
600 kcmil
4/0 AWG
250 kcmil
350 kcmil
500 kcmil
750 kcmil
4/0 AWG
250 kcmil
500 kcmil
ORDERING
NUMBER
LFCL0004ZC1
LFCL0003ZC1
LFCL0002ZC1
LFCL0001ZC1
LFCL01/0ZC1
LFCL02/0ZC1
LFCL03/0ZC1
LFCL04/0ZC1
LFCL0250ZC1
LFCL0350ZC1
LFCL0500ZC1
LFCL0600ZC1
LFCL0750ZC1
LFCL1000ZC1
LFCL0012ZC3
LFCL0010ZC3
LFCL0006ZC3
LFCL0004ZC3
LFCL0002ZC3
LFCL0001ZC3
LFCL01/0ZC3
LFCL02/0ZC3
LFCL03/0ZC3
LFCL04/0ZC3
LFCL0250ZC3
LFCL0350ZC3
LFCL0500ZC3
LFCL0600ZC3
LFCL0750ZC3
LFCL-UHA*
LFCL-UHJ-M*
LFCL-UHJ-T*
LFCL-UHJ-W*
LFCL04/0ZC5*
LFCL0250ZC5*
LFCL0350ZC5*
LFCL0500ZC5*
LFCL0750ZC5*
LFCL04/0ZC6
LFCL0250ZC6
LFCL0500ZC6
1
CABLE TO CABLE
Applications
• Service Entrance Conductors
• Between Transformer or network bus and bus-way terminal
boxes as secondary ties.
• Feeders with three or more conductors per phase to share
heavier load in large commercial and industrial installations
• Multiple Single conductor services, tapped from single
(utility) transformer in multi-family residential and small
commercial installations.
3
CABLE TO
OFFSET BUS
Features
• Current-limiting characteristics provide protection to conductor
insulation and reduce damage when faults occur.
• Properly applied cable limiters may permit the use of
equipment with reduced withstand ratings
• Wide variety of terminations and cable ratings permit use in
almost every situation.
5
STRAIGHT BUS TO
OFFSET BUS
Specifications
Voltage Ratings
Interrupting Rating
Cable Size Range
Approvals
Recommended
Installation Tool
250 VAC, 600 VAC
100 kA (250 VAC), 200 kA (600 VAC)
12 AWG – 1000Kcmil Copper
Contact Tech-Line at 800-TEC-FUSE
Make:
Thomas & Betts
Crimp Tool:
TBM14_, TBM15_
6
MOLE TO CABLE
*Suitable for use with aluminum cables/conductors.
For sizing contact Tech-Line at 800-TEC-FUSE.
Web Resources
For additional information, see website:
Littelfuse.com/lfcl
Littelfuse.com
1 of 3
© 2017 Littelfuse POWR-GARD
®
Products
Rev: 101017
