Automotive Power MOSFET
Selection Guide 2016
Performance, Quality, Reliability
Automotive Power MOSFETs
}
Semiconductor components play an increasingly important
role in a vehicle’s
performance, comfort and reliability.
Only suppliers with specialist knowledge and experience
can create the solutions that meet and exceed the current
and future demands of automotive electronics modules
and systems.
}
NXP is a clear leader in the area of power MOSFETs
for automotive applications. Our dedicated focus on
low-voltage MOSFET solutions,
focused technical
capability and in-depth understanding of automotive
system requirements enables us to provide power
semiconductor solutions that meet a wide spectrum
of applications. From driving a simple lamp to the
sophisticated needs of power management and control
in engine, body or chassis applications, NXP power
conductors can provide the answer to many
automotive system power problems.
}
NXP’s power products are designed and manufactured
around the key themes of
performance, quality and
reliability
and are built to withstand long-term operation in
some of the harshest environments within a typical vehicle.
}
In addition, by providing a complete
technology, device
and service capability,
NXP helps you meet the diverse and
rigorous technical demands of today’s automotive power
switching and control applications, driving the development
of tomorrow’s vehicles and keeping you ahead of the rest.
}
Put simply, NXP gives you the power to meet the challenges
of automotive power system design, every step of the way.
2
Automotive brochure
Commitment to Quality
Designed with automotive in mind
}
NXP Automotive Power MOSFETs are commonly deployed in many
critical applications such as braking, power steering and engine
management, where quality and reliability requirements go beyond
mere compliance with
AEC-Q101
standards.
}
Product qualification strategies start with a baseline of AEC-Q101, but
far exceed its requirements to reflect real automotive mission profiles.
}
NXP has more than 15 years experience qualifying automotive-grade
Trench MOSFETs in such applications, resulting in an impressive track
record of reliability.
}
All processes and plants are subject to regular internal audits, as well
as
TS16949, VDA
and specific customer audits.
}
Our rigorous attention to detail and commitment to automotive quality
has resulted in a
sub-ppm combined line, field and 0 Km failure rate
for automotive customers.
}
NXP’s
Design for Excellence (DfX)
program ensures each new
development builds on past learning and that best practices are
always employed, resulting in continual product improvement.
}
Our dedicated team of product quality, failure analysis and process
engineers supports
our zero-defects
culture at all stages of
development and production. We’re determined to find real root
causes and eliminate failure modes with widespread adoption of quality
analysis tools and methodologies. Failure analysis is supported by a
determination to find real Root Causes and eliminate failure modes with
widespread adoption of quality analysis tools and methodologies.
}
Dedicated design and manufacturing facilities focused on providing
superior automotive quality are at the heart of NXP’s manufacturing
setup. From silicon and package design, through diffusion, and over
to assembly and test, we carry out every process step for automotive
products within our internal and qualified partner facilities.
Automotive brochure
3
4 Steps to select an Automotive MOSFET
1
2
3
4
Select a voltage (e.g., 40 V)
Select a package (e.g., LFPAK56)
Choose an R
DSon
from our extensive range
Select a ‘BUK’ type and visit
www.nxp.com/automotivemosfets
to download datasheets, models and order samples

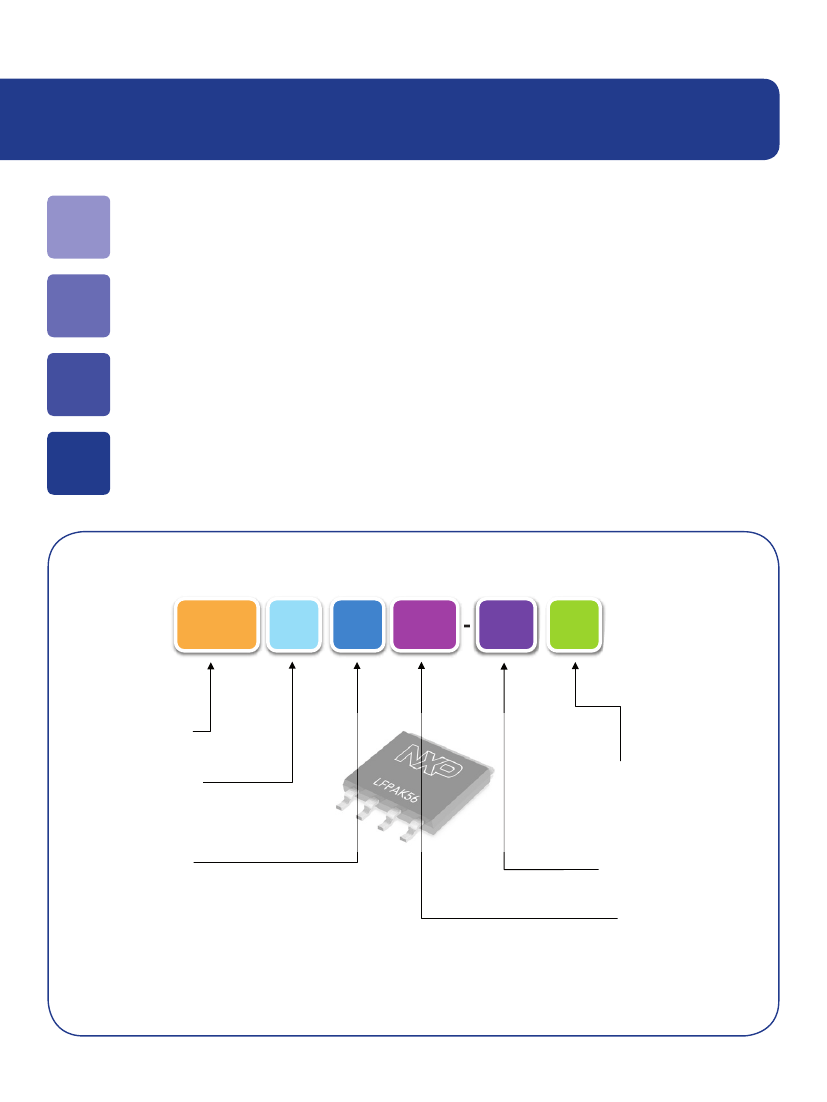

Automotive-Grade MOSFET Naming Convention
BUK
7
Y
3R5
40
E
Segment
‘BUK’ for automotive grade
Gate drive
7 = Standard level
6 = Intermediate level
9 = Logic level
Package:
6 = D
2
PAK
2 = DPAK
E = I
2
PAK
5 = TO-220
Y = LFPAK56
K = LFPAK56D
M = LFPAK33
TrenchMOS technology
A = Generation 2
B = Generation 3
C = Generation 4
E = Generation 6
Voltage rating
BV
DSS
rating
3R5 means R
DSon
<3.5mΩ
max at 25 °C
R
DSon
in mΩ
4
Automotive brochure
High-Peformance Automotive MOSFETs

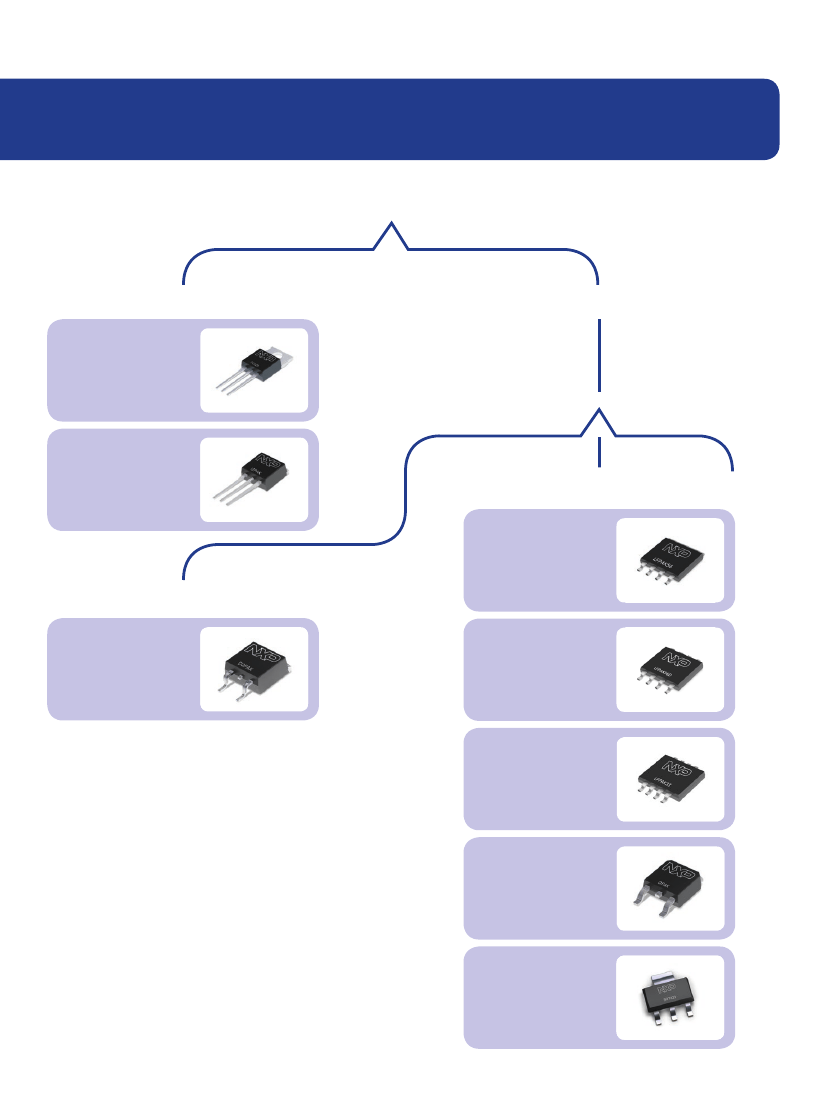

MOSFET Package Selection
Through Hole
TO220
}
Industry standard
}
120 A
Surface Mount
I
2
PAK
}
Industry standard
}
120 A
Space Saving
LFPAK56
}
Power-SO8
}
Copper clip
technology
}
100 A
Premium Performance
D
2
PAK
}
Industry standard
}
120 A
LFPAK56D
}
Dual Power-SO8
}
40 A Per channel
}
Copper clip
technology
LFPAK33
}
Power33
}
Copper clip
technology
}
70 A
DPAK
}
Industry standard
}
Proven reliability
}
100 A
SOT223
}
Industry standard
}
Proven reliability
All packages are Automotive AEC-Q101 qualified to 175 °C and RoHs compliant.
Automotive brochure
5
