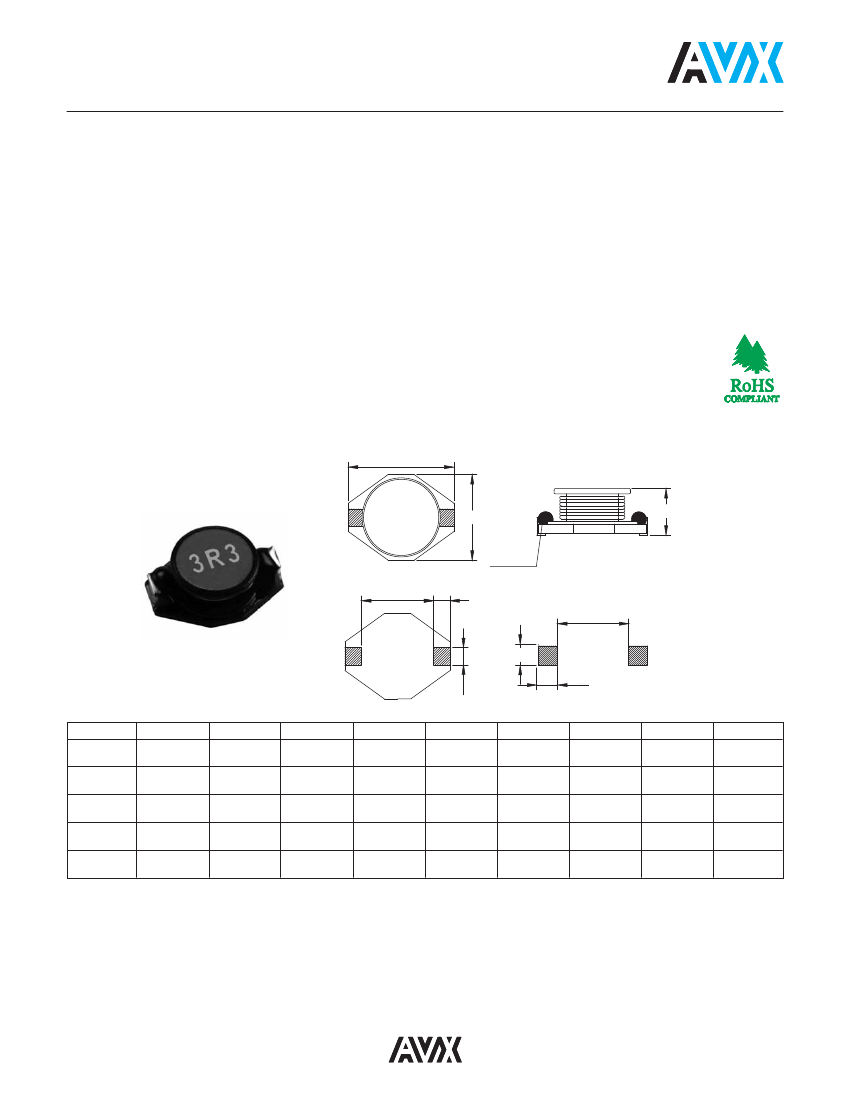

LMax SMD Power Inductor

LMXN Series – Non-Shielded Style C

FEATURES

• High power, High saturation inductors

• Ideal inductors for DC-DC converters in notebook computers,

PDAs, Step-up or step-down converters, flash memory

programmers, etc.

• 0705 has ceramic base with gold-plating

• Others have LCP plastic base

CHARACTERISTICS

• Saturation Rated Current: The current when the inductance

becomes 10% lower than its initial value. (Ta=25°C)

• Operating temperature range: -40

125°C

INDUCTANCE AND RATED

CURRENT RANGES

• 0705

1.0μH

1000μH

2.9

0.10A

• 1309

4.7μH

1000μH

4.2

0.29A

• 13E9

1.0μH

1000μH

9.0

0.30A

• 13L9

0.47μH

1000μH 40

0.8A

• 1915

1.0μH

1000μH

1.0A

• Electrical specifications at 25°C

APPLICATIONS

• Portable Telephones

• Personal Computers

• DC/DC Converters

• Various Electronic Appliances

DIMENSIONS

4R7

EPOXY

mm (inches)

Type

0705

1309

13E9

13L9

1915

A max.

6.60

(0.260)

12.95

(0.510)

12.95

(0.510)

12.95

(0.510)

18.54

(0.730)

B max.

4.45

(0.175)

9.40

(0.370)

9.40

(0.370)

9.40

(0.370)

15.24

(0.600)

C max.

2.92

(0.115)

3.00

(0.118)

5.21

(0.205)

11.43

(0.450)

7.11

(0.280)

4.32

(0.170)

7.62

(0.300)

7.62

(0.300)

7.62

(0.300)

12.7

(0.500)

1.27

(0.050)

2.54

(0.100)

2.54

(0.100)

2.54

(0.100)

2.54

(0.100)

1.02

(0.040)

2.54

(0.100)

2.54

(0.100)

2.54

(0.100)

2.54

(0.100)

3.56

(0.140)

2.79

(0.110)

2.79

(0.110)

2.79

(0.110)

2.79

(0.110)

1.40

(0.055)

2.92

(0.115)

2.92

(0.115)

2.92

(0.115)

2.92

(0.115)

4.06

(0.160)

7.37

(0.290)

7.37

(0.290)

7.37

(0.290)

12.45

(0.490)

LMXN1915M100CTAS Related Products

	LMXN1915M100CTAS	LMXN1310M4R7CTAS	LMXN1915M680CTAS	LMXN1310M680CTAS	LMXN1915M102CTAS
Description	FIXED IND 10UH 10A 31 MOHM SMD	FIXED IND 4.7UH 36 MOHM SMD	FIXED IND 68UH 130 MOHM SMD	FIXED IND 68UH 220 MOHM SMD	FIXED IND 1MH 1A 1.8 OHM SMD
Tolerance	±20%	±20%	±20%	±20%	20%
shield	No shielding	No shielding	No shielding	No shielding	NO
type	Winding	Winding	Winding	Winding	-
Material - Core	ferrite	ferrite	ferrite	ferrite	-
inductance	10µH	4.7µH	68µH	68µH	-
Current - saturation value	10A	4.2A	3.5A	1.2A	-
DC resistance (DCR)	31 milliohms max.	36 milliohms max.	130 milliohms max.	220 milliohms max.	-
Operating temperature	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-
Inductor Frequency - Test	100kHz	100kHz	100kHz	100kHz	-
Installation type	surface mount	surface mount	surface mount	surface mount	-
Package/casing	non-standard	non-standard	non-standard	non-standard	-
size/dimensions	0.730" long x 0.600" wide (18.54mm x 15.24mm)	0.520" long x 0.390" wide (13.20mm x 9.90mm)	0.730" long x 0.600" wide (18.54mm x 15.24mm)	0.520" long x 0.390" wide (13.20mm x 9.90mm)	-
Height - Installation (maximum)	0.280"（7.11mm）	0.250"（6.35mm）	0.280"（7.11mm）	0.250"（6.35mm）	-
