CUSTOMER'S PRODUCT NAME
TDK'S PRODUCT NAME
Multilayer Ceramic Chip Capacitors
High Voltage Series
Bulk and Tape packaging
【RoHS
compliant】
CGA6,CGA7,CGA8,CGA9 Type
C0G,X7R Characteristics
Please return this specification to TDK representatives with your signature.
If orders are placed without returned specification, please allow us to judge that specification is
accepted by your side.
RECEIPT CONFIRMATION
DATE:
YEAR
MONTH
DAY
Test conditions in this specification based on AEC-Q200 for automotive application.
TDK Corporation
Sales
Electronic Components
Sales & Marketing Group
Engineering
Electronic Components Business Company
Ceramic Capacitors Business Group
APPROVED
Person in charge
APPROVED
CHECKED
Person in charge
1. SCOPE
This specification is applicable to chip type multilayer ceramic capacitors with a priority over the
other relevant specifications.
Production places defined in this specification shall be TDK Corporation Japan,
TDK(Suzhou)Co.,Ltd and TDK Components U.S.A. Inc.
EXPLANATORY NOTE:
This specification warrants the quality of the ceramic chip capacitor. Capacitors should be evaluated
or confirmed a state of mounted on your product.
If the use of capacitors goes beyond the bounds of this specification, we can not afford to guarantee.

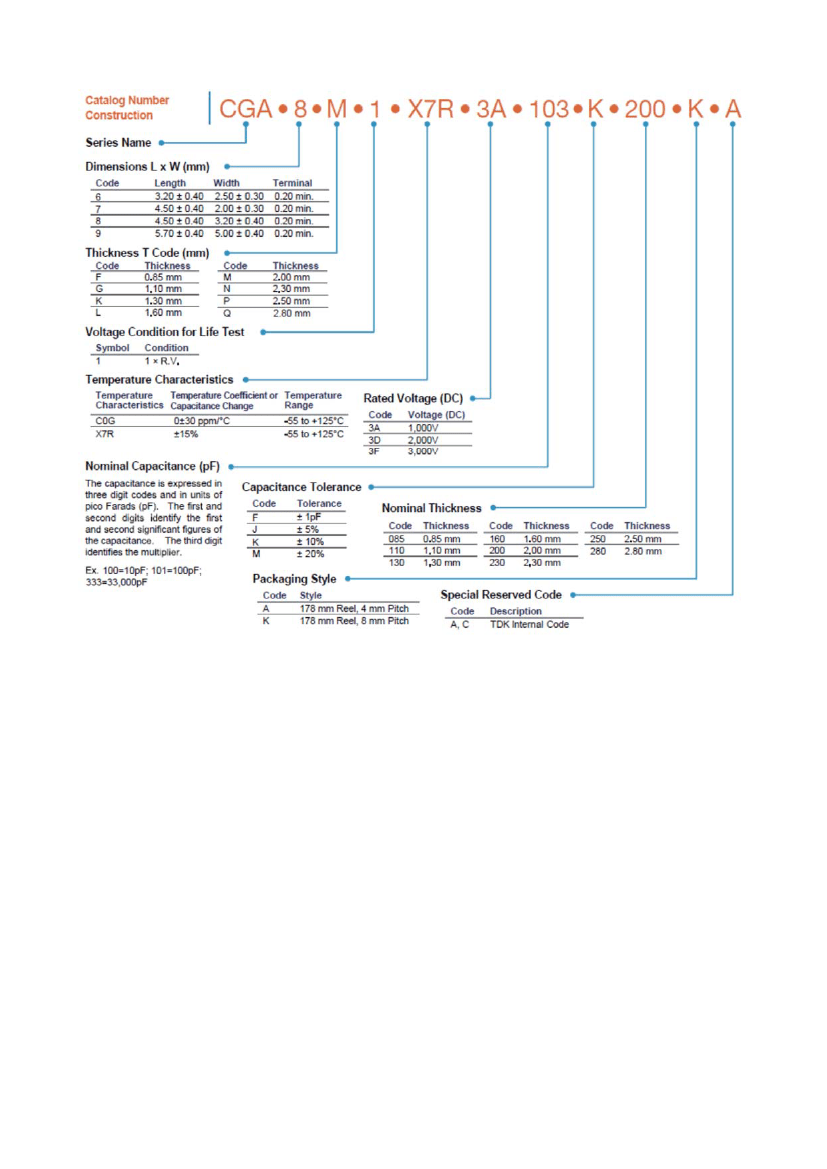

2. CODE CONSTRUCTION
(Example)
CGA
CGA
(1)
6
8
(2)
M
K
(3)
1
1
(4)
C0G
X7R
(5)
3 A
3 D
(6)
102
222
(7)
J
M
(8)
T
T
(9)
○○○○
○○○○
(10)
Series
For automotive application
(1) Series
(2) Type
Symbol
CGA
Terminal electrode
L
B
T
B
W
Internal electrode
Ceramic dielectric
Case size
Type
Symbol (EIA style)
6
CGA6
(CC1210)
L
3.20±0.40
7
CGA7
(CC1808)
4.50±0.40
8
CGA8
(CC1812)
CGA9
(CC2220)
4.50±0.40
Dimensions (Unit : mm)
W
T
2.00±0.20
2.50±0.30
2.50±0.30
0.85±0.15
1.10±0.20
1.30±0.20
2.00±0.20
1.60±0.20
2.00±0.20
1.30±0.20
1.60±0.20
3.20±0.40
2.00±0.20
2.50±0.30
5.00±0.40
2.80±0.30
B
0.20 min.
0.20 min.
0.20 min.
9
5.70±0.40
0.20 min.
*As for each item, please refer to the table A in the end of the specification.
—2—
(3) Thickness
Thickness
F
G
K
L
Dimension(mm)
0.85
1.10
1.30
1.60
Sign
1
Condition
Rated Voltage
Thickness
M
P
Q
Dimension(mm)
2.00
2.50
2.80
(4) Voltage condition in the life test
* Details are shown in table1 No.16 at 8.PERFORMANCE.
(5) Temperature Characteristics
* Details are shown in table 1 No.6 and No.7 at 8.PERFORMANCE.
(6) Rated Voltage
Symbol
3A
3D
3F
(7) Rated Capacitance
Stated in three digits and in units of pico farads (pF).
The first and second digits identify the first and
second significant figures of the capacitance, the
third digit identifies the multiplier.
(8) Capacitance tolerance
Symbol
F
J
K
M
(9) Packaging
(Example)
Rated Voltage
DC 1kV
DC 2kV
DC 3kV
Rated
Capacitance
100 pF
2,200 pF
Symbol
101
222
Tolerance
± 1 pF
±
5%
± 10 %
± 20 %
Symbol
B
T
Capacitance
10pF
Over 10pF
Packaging
Bulk
Taping
(10) TDK internal code
—3—
3. RATED CAPACITANCE AND TOLERANCE
3.1 Standard combination of rated capacitance and tolerances
Class
Temperature
Characteristics
C0G
Over 10pF
2
X7R
K (± 10 %)
E – 12 series
E – 3 series
Capacitance tolerance
10pF
1
F (±1 pF)
10
Rated capacitance
K (± 10 %)
M (± 20 %)
3.2 Capacitance Step in E series
E series
E- 3
E-12
1.0
1.0
1.2
1.5
1.8
2.2
Capacitance Step
2.2
2.7
3.3
3.9
4.7
4.7
5.6
6.8
8.2
4. OPERATING TEMPERATURE RANGE
Min. operating
Max. operating
T.C.
Temperature
Temperature
C0G
X7R
-55°C
-55°C
125°C
125°C
Reference
Temperature
25°C
25°C
5. STORING CONDITION AND TERM
5 to 40°C at 20 to 70%RH
6 months Max. upon receipt.
6. P.C. BOARD
This specification not applicable to Aluminum or some other substrate for such
application, please state so and inquire separate specification.
7. INDUSTRIAL WASTE DISPOSAL
Dispose this product as industrial waste in accordance with the Industrial Waste Law.
—4—
