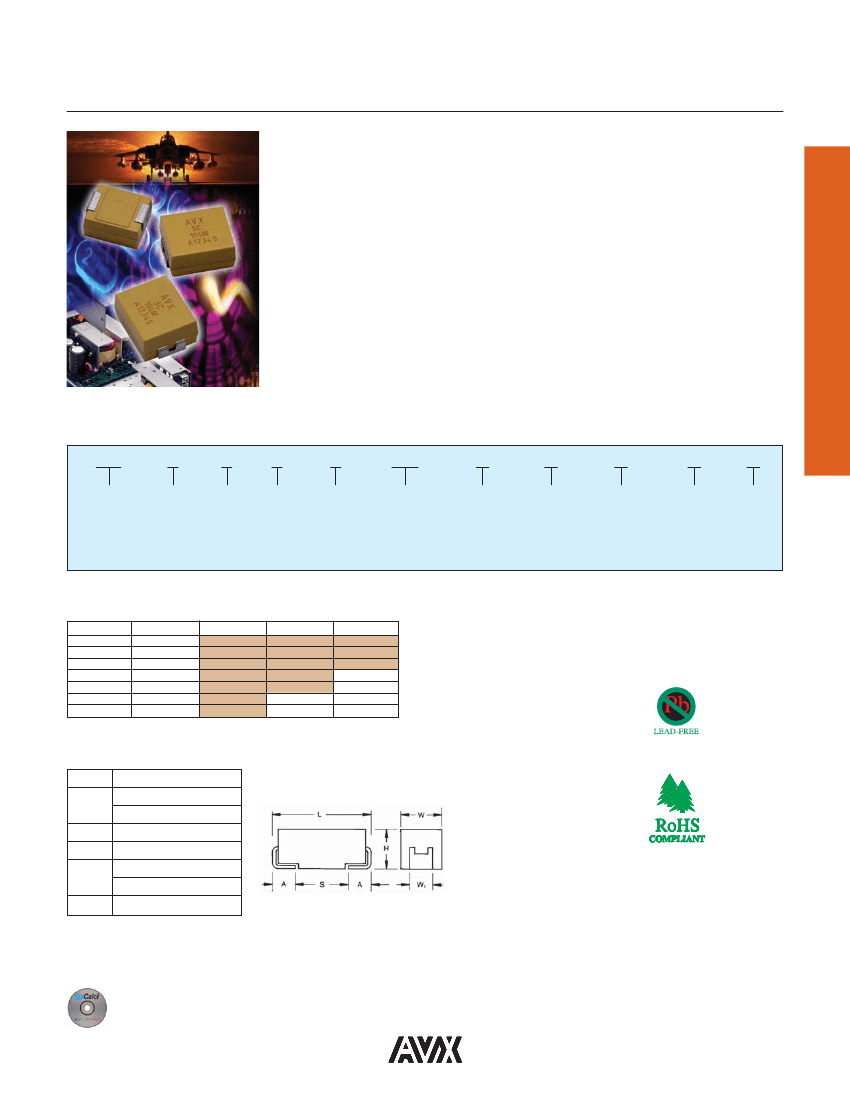

MH Ceramic Capacitor
Lead Free Ceramic Capacitor in Molded SM Leadframe
The MH components use a X7R high capacitance value ceramic capacitor in a surface mount
precision made moulded case.
The MH capacitor combine the ceramic attributes of very low ESR, non-polar construction,
excellent high frequency behaviour and voltage stress capabilities and wide temperature range;
with the enhanced mechanical protection of a moulded case. The moulded case is UL94 V-0
flame retardant and the MH is RoHs and also AEC-Q200 compliant.
The MH range provides a lead frame solution to customers who have previously been unable
to use large case ceramic capacitors because of mechanical stressing concerns.
For those applications where a tin termination is not acceptable, a Tin/Lead termination
is available.
FEATURES
•
•
•
•
Capacitance: 2.2u F – 22 μF
MHs are AEC-Q200 compliant
Voltage Range DC: 25V – 100V
Enhanced thermo mechanical stress resistance.
HOW TO ORDER
MH
MH Series
V
Case
Size
see table
below
1
MLCC
Count
1
Voltage
3 = 25V
5 = 50V
1 = 100V
C
Dielectric
C = X7R
475
Capacitance
Code (In pF)
2 Sig. Digits
+ Number of
Zeros
M
Capacitance
Tolerance
K = ±10%
M = ±20%
A
Failure
Rate
A = Not
Applicable
T
Terminations
T = Tin Plated
B = Tin/Lead
Plated
2
Packaging
2 = 7" Reel
4 = 13" Reel
6 = Waffle
Pack
A
Special
Code
A=
Std.
Product
MH X7R RANGE
225
335
475
685
106
156
226
Cap μF
2.2
3.3
4.7
6.8
10
15
22
25V
50V
100V
PACKAGING QUANTITY
7" Reels
13" Reels
Waffle Pack
400
1500
108
“V” CASE DIMENSIONS:
millimeters (inches)
L
W
H
W1
A
S Min
7.3±0.2 0 (0.287 ±0.008)
6.1 + 0.20 - 0.10
(0.24 + 0.008 – 0.004)
3.45±0.30 (0.136±0.012)
3.1±0.20 (0.120±0.008)
1.4 + 0.30 - 0.20
(0.055 + 0.012 – 0.008)
4.40 (0.173)
LEAD-FREE COMPATIBLE
COMPONENT
TS 16949, ISO 14001
Certified Manufacture
Performance of SMPS capacitors can be simulated by downloading SpiCalci software program -
http://www.avx.com/SpiApps/default.asp#spicalci
MAY 2015
■
