BD176 datasheet, PDF - EEWORLD Datasheet

BD176: DescriptionTRANSISTOR,BJT,PNP,45V V(BR)CEO,3A I(C),TO-126; CategoryThe transistor; File Size173KB，2 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

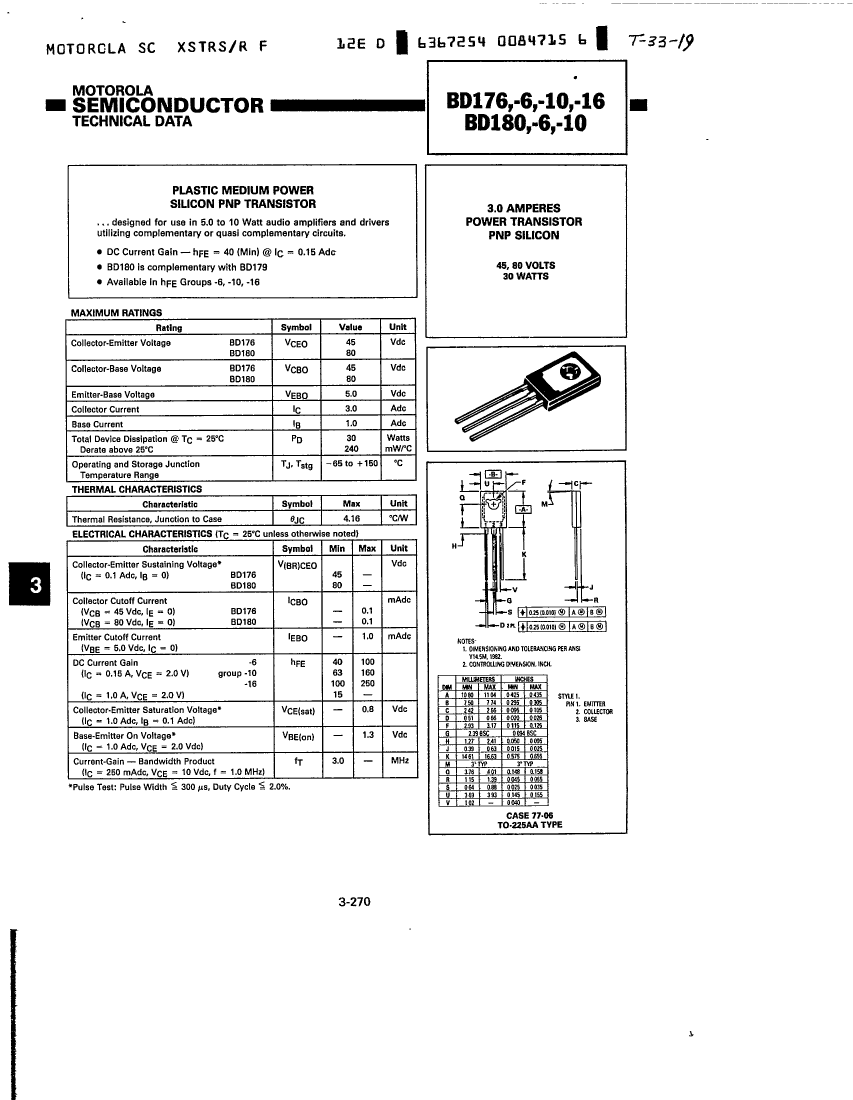

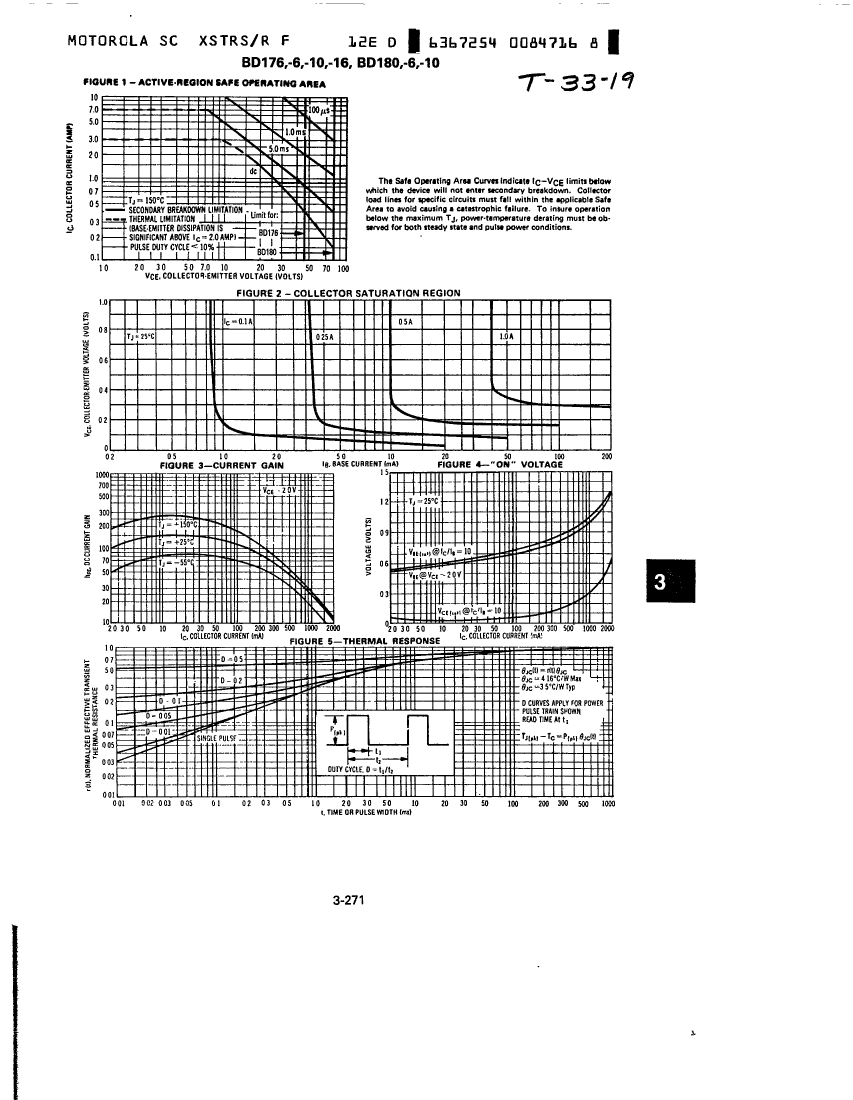

BD176 Overview

TRANSISTOR,BJT,PNP,45V V(BR)CEO,3A I(C),TO-126

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NXP
package instruction	,
Reach Compliance Code	unknown
Is Samacsys	N
Maximum collector current (IC)	3 A
Configuration	Single
Minimum DC current gain (hFE)	15
JESD-609 code	e0
Maximum operating temperature	150 °C
Polarity/channel type	PNP
Maximum power dissipation(Abs)	30 W
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	3 MHz
Base Number Matches	1

	BD176	BD176-6	BD180-6
Description	TRANSISTOR,BJT,PNP,45V V(BR)CEO,3A I(C),TO-126	TRANSISTOR,BJT,PNP,45V V(BR)CEO,3A I(C),TO-126	TRANSISTOR,BJT,PNP,80V V(BR)CEO,3A I(C),TO-126
Is it Rohs certified?	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown
Maximum collector current (IC)	3 A	3 A	3 A
Configuration	Single	Single	Single
Minimum DC current gain (hFE)	15	40	40
JESD-609 code	e0	e0	e0
Maximum operating temperature	150 °C	150 °C	150 °C
Polarity/channel type	PNP	PNP	PNP
Maximum power dissipation(Abs)	30 W	30 W	30 W
surface mount	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	3 MHz	3 MHz	3 MHz
Base Number Matches	1	1	1
Maker	NXP	NXP	-
Is Samacsys	N	N	-
