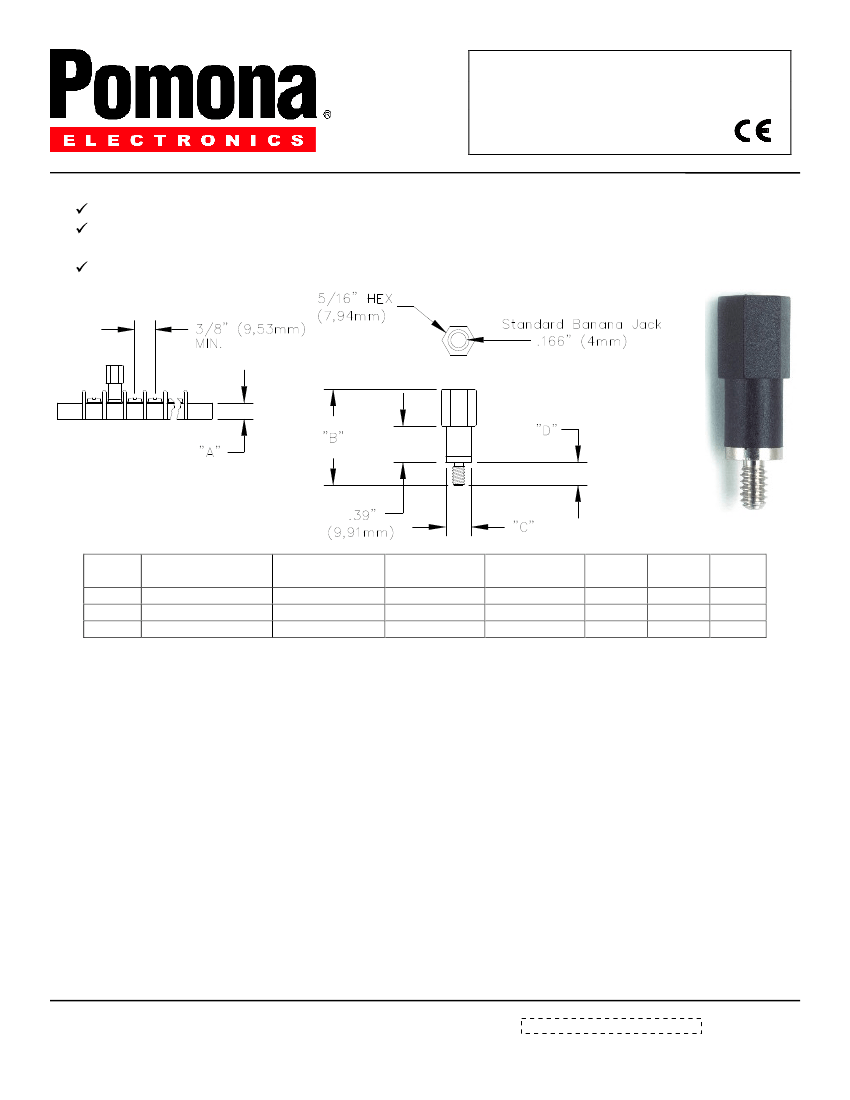

Model 5699, 5700 & 5701
Terminal Strip Banana Jack
FEATURES:
This adapter provides a banana jack connection by replacing the screw in a terminal strip.
Secure connections can be made with standard banana plug patch cords without breaking the connection
to the terminal strip.
Standard banana jack .166” and 4mm.
Model
5699
5700
5701
Dim "A"
.35” min (8,89mm)
.44” min (11,18mm)
.50” min (12,70mm)
Dim "B"
1.04” (26,42mm)
1.13” (28,70mm)
1.13” (28,70mm)
Dim "C"
.28” (7,11mm)
.38 (9,65mm)
.38 (9,65mm)
Dim "D"
.25” (6,35mm)
.32” (8,13mm)
.32” (8,13mm)
Thread
6-32
8-32
10-32
Torque
In/Lb
7
16
25
Vrms
Max
1100
1600
1700
RATINGS:
Operating Voltage see table:
Hands free usage in controlled voltage environments.
For CE compliance:
not intended for hand-held use at voltages
above 33 Vrms/70 Vdc.
Current: 25Amps Max
Power: 7500 Watts Max
Operating Temperature: +216°F (+102°C) Max.
MATERIALS:
Banana Jack and Threaded Stud: Nickel Plated Brass, Alloy 360, ½ Hard per MIL-C-26074, Class 1 200/300 microinches:
Insulation : Nylon 6, 20% glass filled
ORDERING INFORMATION:
Model: 5699-Color (6-32 thread)
Model: 5700-Color (8-32 thread)
Model: 5701-Color (10-32 thread)
Color
= 0 (Black), 2 (Red), 3 (Orange), 4 (Yellow), 5 (Green), 6 (Blue), 9 (White)
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies.
Sales: 800-490-2361 Fax: 888-403-3360 Technical Support: 800-241-2060 (technicalsupport@pomonatest.com)
For “Where to Buy” information, visit the Pomona web site at www.pomonaelectronics.com
Rev: 100
D1094624, D1094625, D1094626
Page 1 of 1
