410F0-37-1-00 datasheet, PDF - EEWORLD Datasheet

410F0-37-1-00: DescriptionCONN D-SUB RCPT 37POS STR IDC; CategoryThe connector; File Size89KB，1 Pages; ManufacturerCNC Tech; Environmental Compliance

Download Datasheet Parametric Compare View All

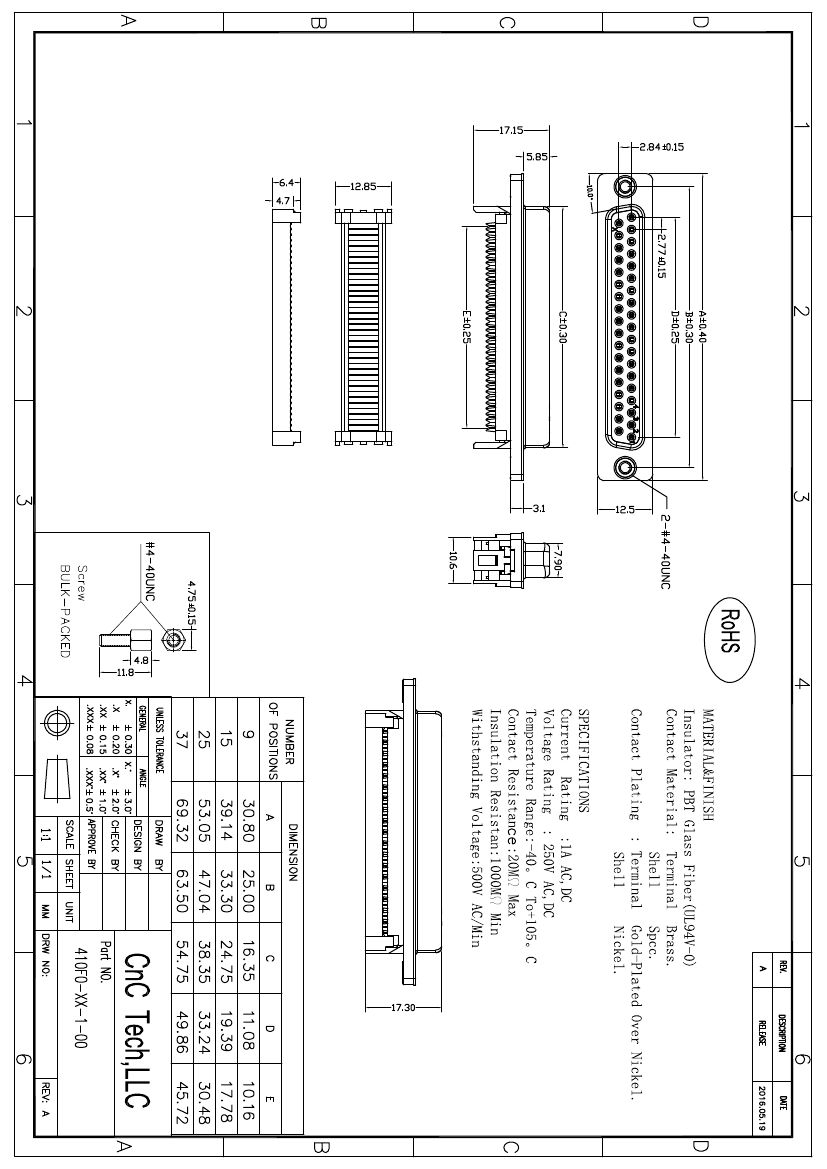

410F0-37-1-00 Overview

CONN D-SUB RCPT 37POS STR IDC

Parameter Name	Attribute value
Connector style	D-Sub
Connector type	socket, female socket
Number of pins	37
Number of rows	2
Housing size, connector layout	4（DC，C）
Contact type	Signal
Installation type	free hanging
Flange characteristics	Mating side, female anti-falling screw (4-40)
Termination	IDC, ribbon cable
characteristic	Feedthrough
Housing material, plating	Steel, nickel plated
Contact plating	gold
Contact plating thickness	-
Intrusion protection	-
Material flammability rating	UL94 V-0
Rated current	1A
Operating temperature	-40°C ~ 105°C
Rated voltage	250V
color	-
Contact shape	-
Shell material	Polybutylene terephthalate (PBT), glass fiber reinforced
Wire gauge	-
Contact material	brass
Braking device interval	-

	410F0-37-1-00	410F0-09-1-00	410F0-15-1-00	410F0-25-1-00
Description	CONN D-SUB RCPT 37POS STR IDC	CONN D-SUB RCPT 9POS STR IDC	CONN D-SUB RCPT 15POS STR IDC	CONN D-SUB RCPT 25POS STR IDC
Connector style	D-Sub	D-Sub	D-Sub	D-Sub
Connector type	socket, female socket	socket, female socket	socket, female socket	socket, female socket
Number of pins	37	9	15	25
Number of rows	2	2	2	2
Housing size, connector layout	4（DC，C）	1（DE，E）	2（DA，A）	3（DB，B）
Contact type	Signal	Signal	Signal	Signal
Installation type	free hanging	free hanging	free hanging	free hanging
Flange characteristics	Mating side, female anti-falling screw (4-40)	Mating side, female anti-falling screw (4-40)	Mating side, female anti-falling screw (4-40)	Mating side, female anti-falling screw (4-40)
Termination	IDC, ribbon cable	IDC, ribbon cable	IDC, ribbon cable	IDC, ribbon cable
characteristic	Feedthrough	Feedthrough	Feedthrough	Feedthrough
Housing material, plating	Steel, nickel plated	Steel, nickel plated	Steel, nickel plated	Steel, nickel plated
Contact plating	gold	gold	gold	gold
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Rated current	1A	1A	1A	1A
Operating temperature	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C
Rated voltage	250V	250V	250V	250V
Shell material	Polybutylene terephthalate (PBT), glass fiber reinforced	Polybutylene terephthalate (PBT), glass fiber reinforced	Polybutylene terephthalate (PBT), glass fiber reinforced	Polybutylene terephthalate (PBT), glass fiber reinforced
Contact material	brass	brass	brass	brass
