DSM K12G 1.5 3.5N C L130 PL PR datasheet, PDF

Datasheet> All Categories > accessories> DSM K12G 1.5 3.5N C L130 PL PR

DSM K12G 1.5 3.5N C L130 PL PR: DescriptionSWITCH PUSH DPST-NO 0.1A 30V; Categoryaccessories; File Size972KB，3 Pages; ManufacturerC&K; Environmental Compliance

Download Datasheet Parametric Compare View All

DSM K12G 1.5 3.5N C L130 PL PR Overview

SWITCH PUSH DPST-NO 0.1A 30V

DSM K12G 1.5 3.5N C L130 PL PR Parametric

Parameter Name	Attribute value
type	standard
circuit	DPST-NO
switch function	Off - instantaneous
Rated current	100mA（DC）
Rated voltage - DC	30V
Actuator type	Round, button, double rubber cap
Color - Actuator/Cap	black
lighting type, color	-
Lighting voltage (nominal)	-
Installation type	Panel mount, rear
Terminal type	Wire leads
Intrusion protection	IP65 - dust and water resistant
characteristic	-
Panel opening size	-
Operating temperature	-
Mechanical life	-
Electrical life	-

Preview

Download Datasheet

View All

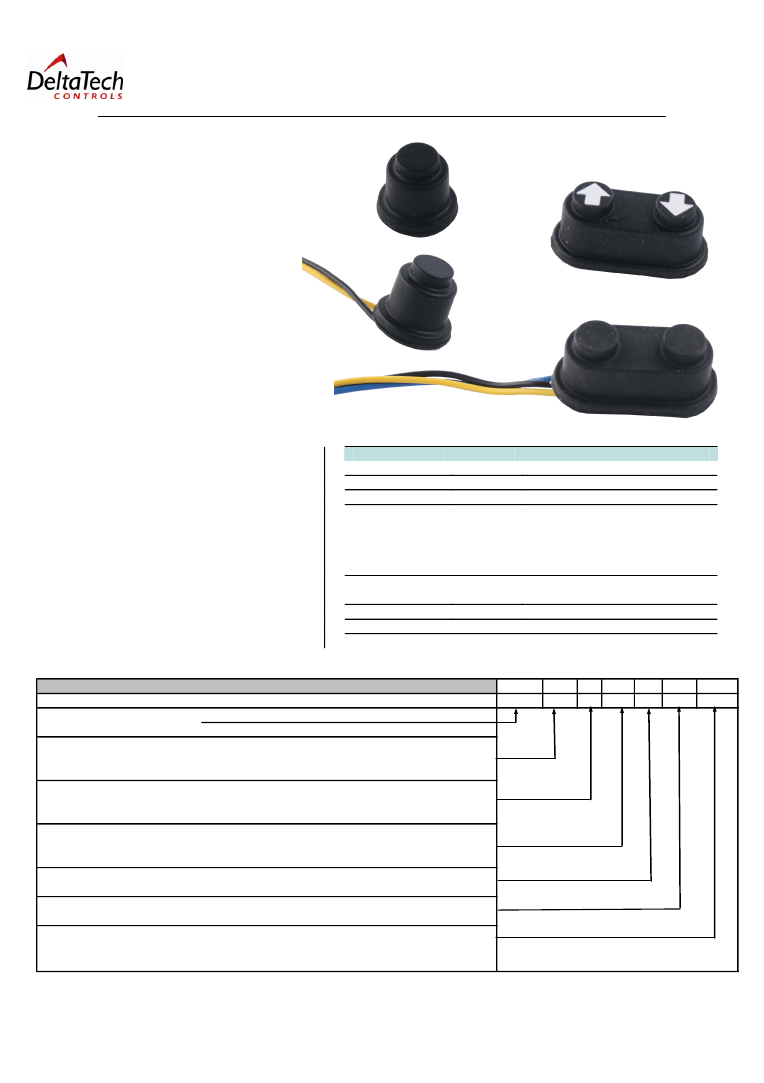

Single & Double Switch Modules –

ESM /

DSM

Switch Modules – ESM &

DSM

The single switch module ESM and

the double switch module DSM are

ready-to-install units, consisting of:

•

Switches:

K12 (for both ESM or DSM)

K12G (DSM only with two

switching-points)

PVA1H4 (ESM only)

PC board

Rubber cap

Optional cable or connector

ESM

DSM

•

The rubber cap offers the possibility

to use both switch modules under

severe ambient conditions where

dust, water, oil, solvents etc. can

effect or destroy the function of

standard switches.

With the rubber cap the two modules

are sealed to IP 65 when mounted.

Typical Applications

•

Tractors

•

Harvesting equipment

•

Industrial controls

Technical Data

Cap Material

Protection Level

Cable

Switches

Silicone rubber

IP 65 (with cap when mounted)

FLK/FLY 0.5 mm²

K12

(both ESM or DSM)

K12G

(DSM only, two

switching-points)

PVA1H4

(ESM only)

Operating

force

3.5 / 7 N

Travel (mm/inch)

1 / 0.039

1.5 / 0.0591

2.2 / 0.087

K12

K12G

PVA1H4

Ordering code

Designation

Switch

Travel of Switch

Operating force

Cap

Cable

Cap decals

(DSM)*

Exam ple

ESM = single switch module

DSM = double switch module

K12 = (for ESM and DSM)

K12G = with 2 switching-points (DSM only)

PVA = PVA1H4 (ESM only)

1 = 1 mm (K12)

1.5 = 1.5 mm (K12G)

2.2 = 2.2 mm (PVA1H4)

= 5 N (K12)

3.5N = 3.5 / 7 N (K12G)

= 3 N (PVA1H4)

N = none

C = with cap

- = none

L130 = 130 mm cable length

- = none

P = arrows:

U (down), O (Up), L (left), R (right)

DSM

K12

L130 Pu Po

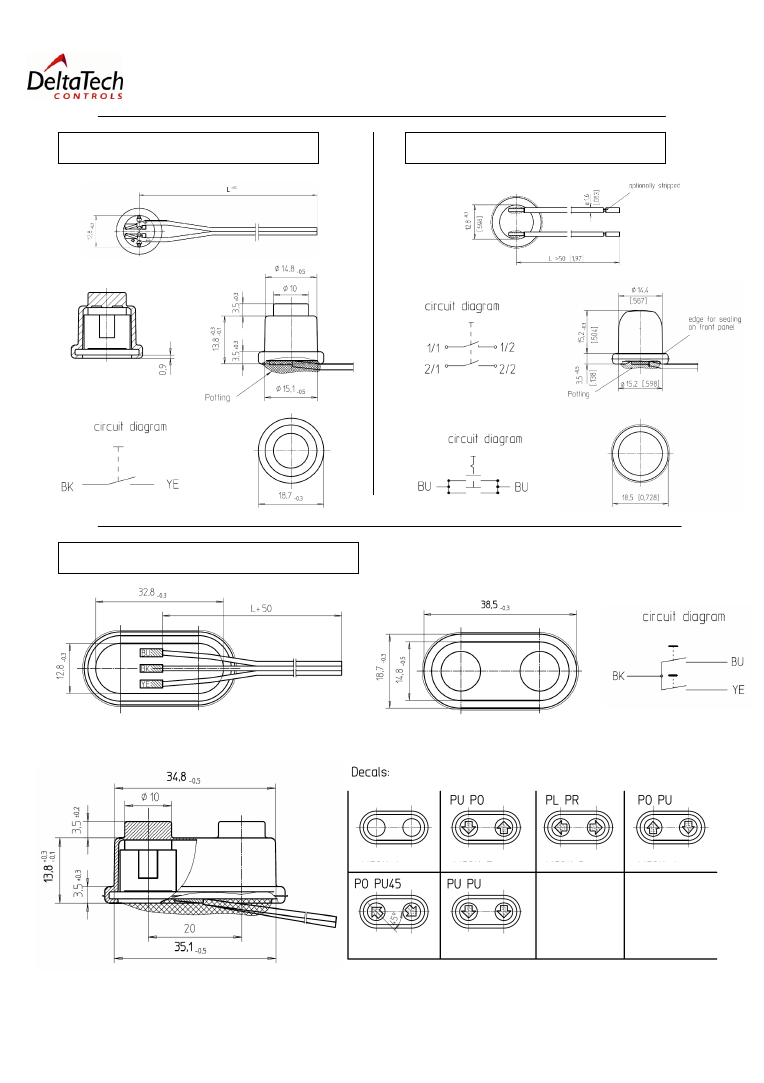

* see drawing overleaf

M-SM-0744

DeltaTech Controls

, spm-dtc@coactive-tech.com
