Relay Module - PR2-RSC3-LDP-24DC/4X21AU - 2834724
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Preassembled relay modules with screw connection, consisting of: relay base, industrial relay with integrated
LED, free-wheeling diode and engage/disengage manual actuate lever, and retaining bracket. Input voltage:
24 V DC, four PDTs with gold-plated contacts, 5 A

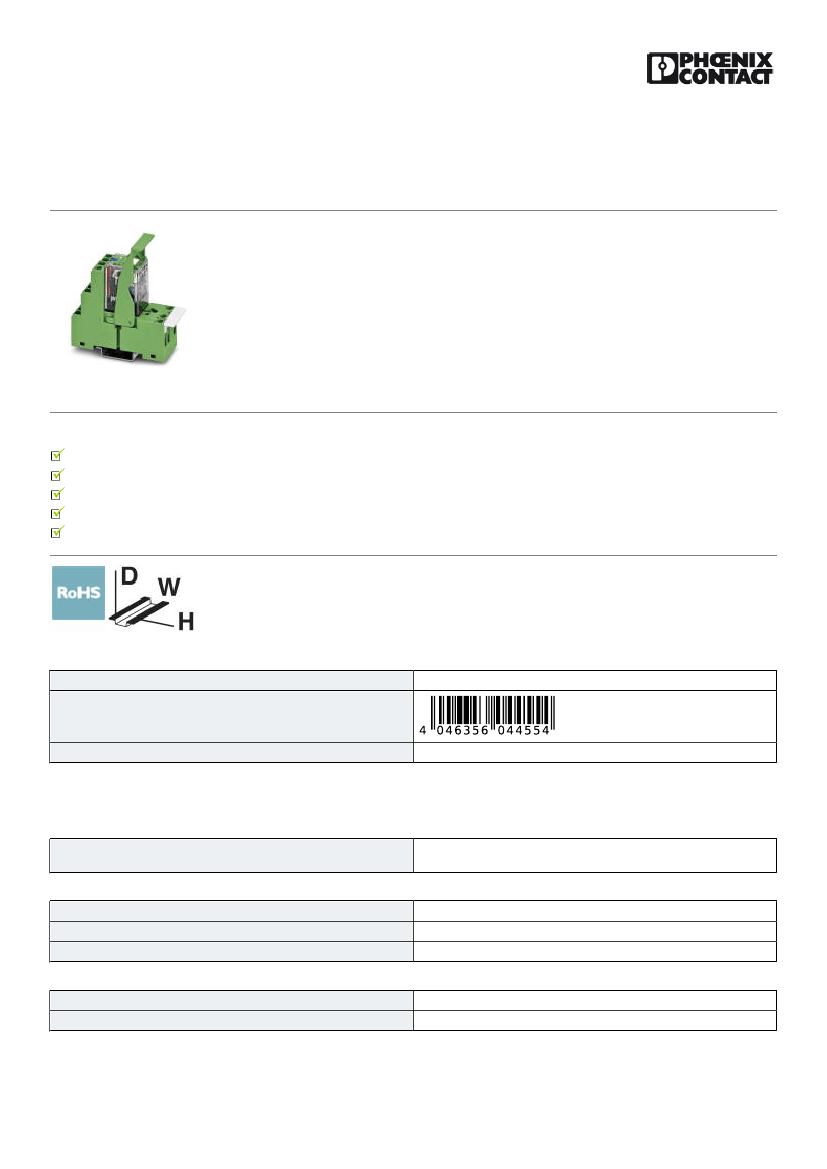

The figure shows the 24 V DC
version
Your advantages
With DC types, freewheeling diode is integrated in relay
Relay with detectable manual operation and status LED
Mechanical switch position indicator
4 PDT types with multi-layer gold contacts
Logical contact arrangement thanks to 1/3-level relay base
Key Commercial Data
Packing unit
GTIN
GTIN
4046356044554
5 pc
Technical data
Note
Utilization restriction
EMC: class A product, see manufacturer's declaration in the download
area
Dimensions
Width
Height
Depth
27 mm
78.5 mm
86 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
-25 °C ... 60 °C
-25 °C ... 70 °C
10/15/2018 Page 1 / 5
https://www.phoenixcontact.com/pi/products/2834724
Relay Module - PR2-RSC3-LDP-24DC/4X21AU - 2834724
Technical data
Coil side
Nominal input voltage U
N
Input voltage range in reference to U
N
Typical input current at U
N
Typical response time
Typical release time
Protective circuit
Operating voltage display
Power dissipation for nominal condition
24 V DC
see diagram
38 mA
13 ms
14 ms
Damping diode
Green LED
0.91 W
Contact side
Contact type
Type of switch contact
Contact material
Maximum switching voltage
Minimum switching voltage
Min. switching current
Maximum inrush current
Limiting continuous current
Interrupting rating (ohmic load) max.
4 PDTs
Single contact
AgNi, hard gold-plated
250 V AC/DC
1V
1 mA
12 A (15 ms)
5A
1250 VA (for 250 V AC)
120 W (at 24 V DC)
110 W (at 48 V DC)
78 W (at 60 V DC)
55 W (at 110 V DC)
77 W (at 220 V DC)
General
Test voltage relay winding/relay contact
Test voltage relay contact/relay contact
Operating mode
Degree of protection
Mechanical service life
Mounting position
Assembly instructions
2 kV (50 Hz, 1 min.)
2 kV (50 Hz, 1 min.)
100% operating factor
RT I (Relay)
5x 10 cycles
any
In rows with zero spacing
7
Connection data input side
Connection name
Connection method
Stripping length
Conductor cross section solid
Conductor cross section flexible
Conductor cross section AWG
Coil side
Screw connection
7 mm
0.14 mm² ... 2.5 mm²
0.14 mm² ... 2.5 mm²
26 ... 14
Connection data output side
10/15/2018 Page 2 / 5
https://www.phoenixcontact.com/pi/products/2834724
Relay Module - PR2-RSC3-LDP-24DC/4X21AU - 2834724
Technical data
Connection data output side
Connection name
Connection method
Stripping length
Conductor cross section solid
Conductor cross section flexible
Conductor cross section AWG
Contact side
Screw connection
7 mm
0.14 mm² ... 2.5 mm²
0.14 mm² ... 2.5 mm²
26 ... 14
Standards and Regulations
Standards/regulations
Degree of pollution
Overvoltage category
IEC 60664
EN 50178
2
II
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Circuit diagram
42
44
32
34
22
24
12
14
Diagram
1,8
1,6
Coil voltage U/U
N
41
31
21
11
1,4
1,2
1
0,8
0,6
0
10
20
30
40
50
60
70
Ambient temperature [°C]
80
A1+
A2-
DC coils
Operating voltage range of relay T
u
=T
coil
10/15/2018 Page 3 / 5
https://www.phoenixcontact.com/pi/products/2834724
Relay Module - PR2-RSC3-LDP-24DC/4X21AU - 2834724

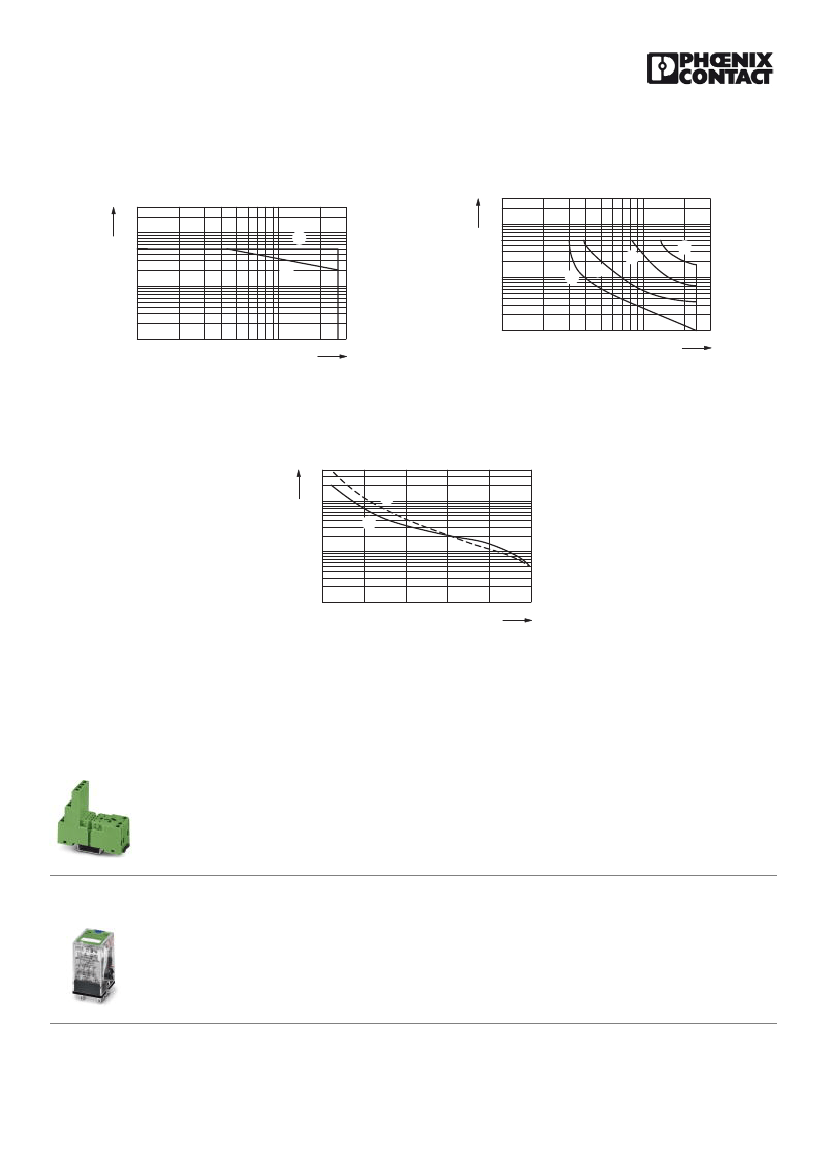

Diagram
20
20
Diagram
Switching current [A]
1
2
Switching current [A]
10
6
4
2
1
0,5
0,3
0,2
0,1
10
20
30
10
6
4
2
1
0,5
0,3
0,2
0,1
10
1
2
3
4
20
30
3
1
2
4
50 70 100
200
Switching voltage [V]
300
1
Ohmic load
2
cos
j
= 0.4
L/R < 7 ms
ohmic load
ohmic load, 2 contacts in series
ohmic load, 4 contacts in series
50 70 100
200
Switching voltage [V]
300
AC interrupting rating
DC interrupting rating
Diagram
Cycles
10
6
1
2
10
5
10
4
0
1
2
3
4
5
Switching current [A]
1
250 V AC, ohmic load
2
30 V DC, ohmic load
Electrical service life
Articles in set
Relay base - PR2-BSC3/4X21 - 2833576
Relay base PR2-B, for industrial relay REL-IR with 2 or 4 PDT, 1/3-level version, screw connections, connection
facility for input/interference suppression modules, for mounting on NS 35/7.5
Single relay - REL-IR/LDP- 24DC/4X21AU - 2834096
Pluggable industrial relays with power contacts and additional hard gold plating, 4 PDT, test button, status LED, free-
wheeling diode, mechanical switch position indicator, polarity A1+, A2-, coil voltage: 24 V DC
10/15/2018 Page 4 / 5
https://www.phoenixcontact.com/pi/products/2834724
Relay Module - PR2-RSC3-LDP-24DC/4X21AU - 2834724
Articles in set
Retaining bracket - EL2-P35 - 2833592
Relay retaining bracket, with eject function and integrated equipment marking area (8 x 25 mm), to suit relay base
PR2, for 35 mm high industrial relay
Marker labels - MP 2 - 2833644
Equipment marker, labeling surface 9 x 25 mm
Approvals
Approvals
Approvals
EAC
Ex Approvals
Approval details
EAC
RU C-
DE.A*30.B.01082
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
10/15/2018 Page 5 / 5
