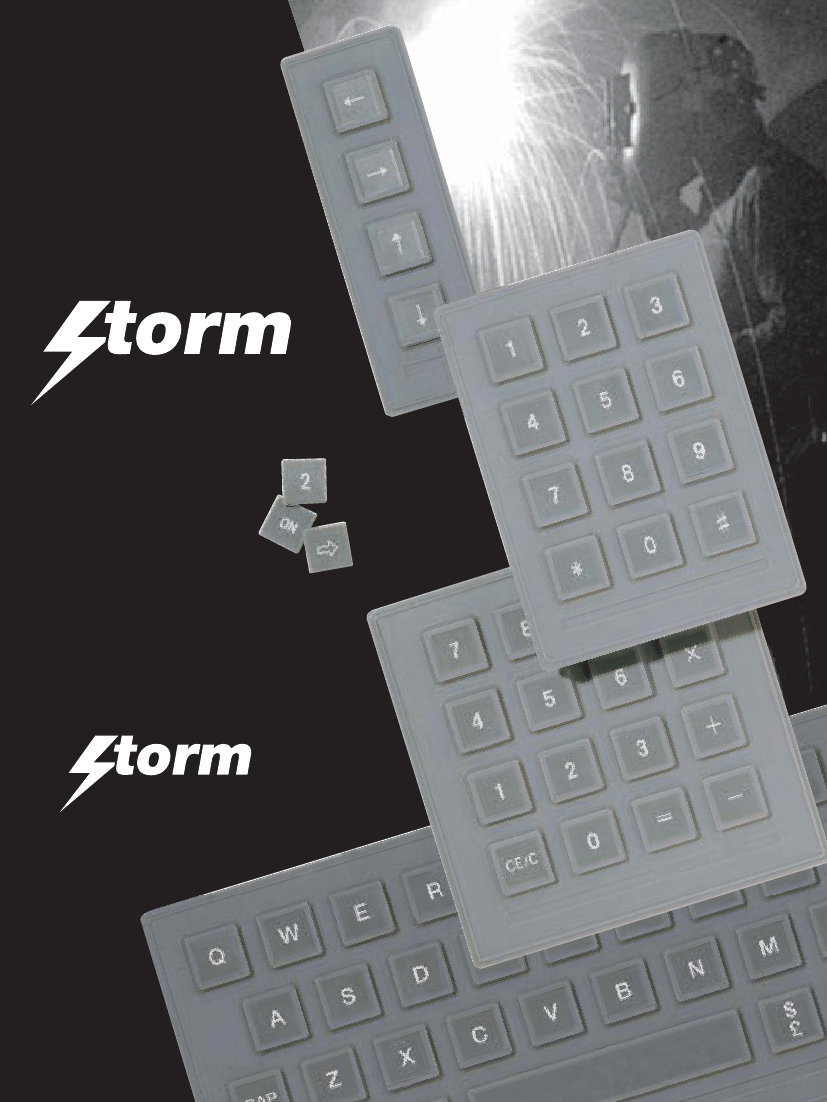

700/900 Series
– Sealed & Rugged Keypads
In demanding or hostile environments, a
keyboard operator must be confident that data
can be entered quickly and accurately. With this
objective the keys move with a positive
over-centre action ensuring rapid and reliable
data entry even in the most extreme conditions.
Storm 700 & 900 Series keypads are supplied
in 4, 12, 16, and 36 key configurations.
The keypad’s unique modular design enables
combinations of keypads to be used in the
construction of more complex keypanel layouts.
This design feature is especially useful when
the keypads are used in conjunction with the
Storm Universal Keypad Encoder.
The exceptional reliability of Storm
keypads is achieved by an ingenious
but simple method of construction.
A moulded rubber mat is secured
around a rigid circuit plate providing
its own environmental seal. Storm
keypads have been successfully
tested after submersion under 1
metre of water for periods in excess
of 1 hour. This was achieved
without using gaskets or sealing
compounds of any kind.
Interchangeable keytop legend tiles allow
the selection of keytop graphics to suit any
particular application. A comprehensive range of
keytop legend tiles, are available from your
local Storm supplier.
Storm keypads are available in non-illuminated
(700 Series) and illuminated (900 Series) versions.
The keypads can be easily mounted to a flat
surface or can be located beneath a suitable
aperture in a fascia panel.
STORM 900 Series (illuminated)
4, 12 and 16 key formats only
Using the impressive refractive properties of
silicone rubber, and the latest developments in
surface mount technology, individual keytops can
be illuminated by twin diode, two colour LEDs.
The keypad’s surface can be lit with a low level
green illumination. This provides clearly legible
keytop graphics and a visual indication of the
keypads operational boundaries. In addition,
individual keytops can be selectively lit with a high
intensity red LED providing positive status
indication or software controlled "user prompts".
•
•
•
•
•
•
Rapid & reliable data entry
Sealed against fluids, dust & corrosives
Resistant to vibration & shock
Interchangeable keytop legends
4, 12 and 16 key formats in both series
Compatible with the STORM keypad encoder

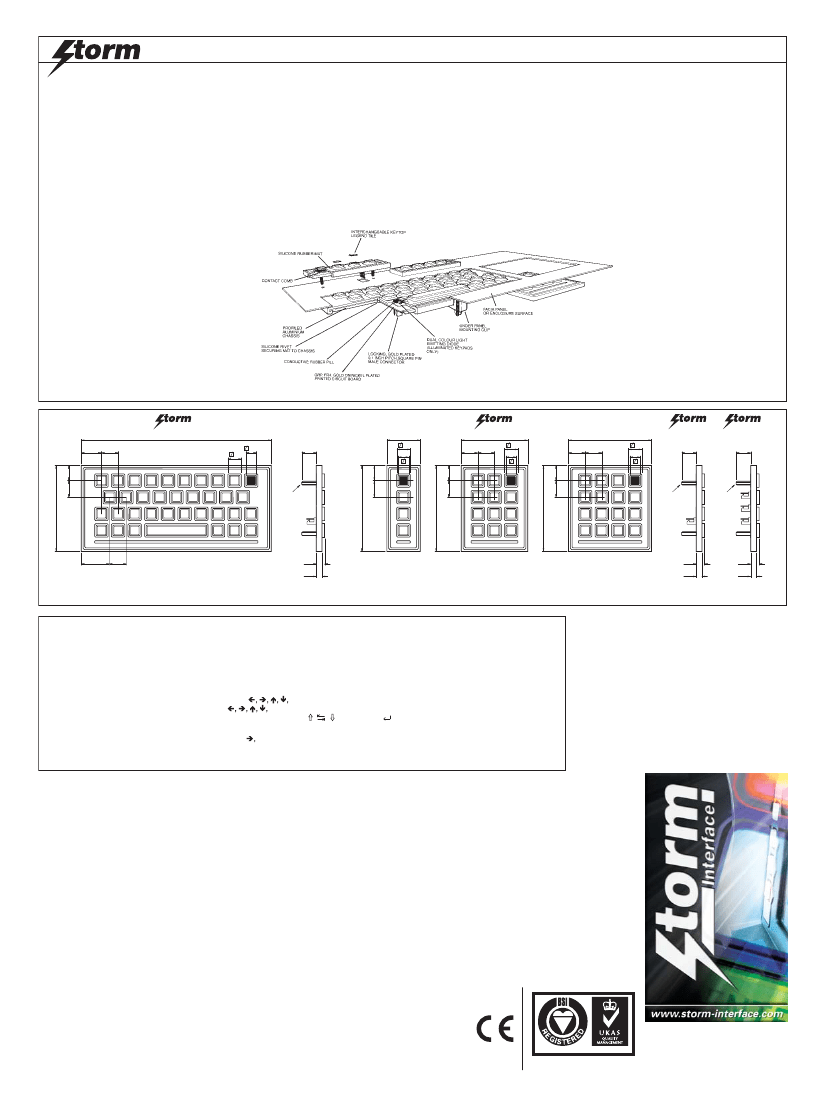

DIMENSIONS
23
19
700 Series
217
10.8
14
14 max
32
14
10.8
16
700/900 Series
70
14
19
10.8
19.5
19
96
14
10.8
700 Series
900 Series
14 max
14 max
16
16
16
P
19
19
P
19
P
19
16
P
M3
Threaded
Stud
96
M3
Threaded
Stud
M3
Threaded
Stud
96
32.5
19
8
5.4
96
96
Comprehensive dimensional, fixing and connection details
are provided with each Storm 700 & 900 Series keypad.
A comprehensive range of interchangeable keytop legend tiles, for use with
Storm 700 & 900 Series keypads, are availble from your local Storm supplier.
8
5.4
8
5.4
All dimensions are in millimetres.
ACCESSORIES FOR USE WITH STORM 700/900 SERIES KEYPADS
Item
STORM
Keypad Encoder
Legend Tile Set
Part Number
40000001
Description
Keypad interface for STORM 700/900 Series & K Range keypads.
PC XT or AT, PS2 and ASCII RS232/432 data formats configurable via an 8 way DIL switch.
A:
0 - 9,
*, #, +, -, ÷, =, ., X, AC, I/O, ENT, CE/C, SP.
B:
ENT, PRINT, DEL, INS, CAP, ESC, CTRL, ALT,
,
ON, OFF, \, /, LOCK, , , , $£, :, ;, , ., , SP.
D:
FI TO F12, £, $, ?, !, (, ), @, <, >, Fn, ", ', %, &, SP.
F:
0 - 9, A - F, CE/C, ENT, OFF, *, #, +, -, ., blank, SP.
C:
E:
J:
K:
"A TO Z"
Blank
French symbols
German symbols
70X00101
90X00101
(X denotes type,
"A to K")
Under Panel
Mounting Clips
7004CL01
1 pair for 4 key keypad, 2 pairs for 12/16 key keypads & 3 pairs for 36 key keypad.
SPECIFICATION & OPERATIONAL PERFORMANCE
ELECTRICAL
Contact Bounce
Contact Resistance
Insulation Resistance
Breakdown Voltage
(to case)
Operating Voltage
Operating Current
LED Drive Current
(900 Series only)
LED Drive Voltage
Single Diode
(900 Series only)
LED Drive Voltage
Twin Diode
(900 Series only)
5ms (max)
100 ohm (max)
50 Mohms (min) at 480V DC
500V AC (max 60 seconds)
24V DC (max)
50 mA (max)
20 mA typ 25mA (max)
3.3V typ
2.2V typ
MATERIAL
Keypad Surface
Keypad chassis
Contact Circuit
Engineering grade silicone rubber
Coated non-ferrous metal
Gold on nickel plated FR4 PCB
MECHANICAL
Operational Life
Keytop Travel
Actuation Force
Sealing Torque
Connector
2 million cycles (min)
1.5mm nominal
160gms typical
0.14 - 0.16 Nm
Locking 0.1" pitch gold-plated square
pin connector suitable for use with
Molex 2695/6471 or 7720S series
or similar female connectors
ENVIRONMENTAL
Water Sealed
Humidity
Operational Temperature
BS5490 Class IP67 / EC529 Class IP67
when panel mounted
90% RH at 40°C (104°F
10 day (max) - Non-condensing
900 Series only:
-25°C to +85°C (-13°F to +185°F)
700 Series only:
-55°C to +125°C (-67°F to +257°F)
Whilst every effort is made to ensure details
are correct at time of print, specifications
are subject to change without notice.
Storm is a trademark of Keymat Technology Ltd
Storm Interface is a trading name of Keymat Technology Ltd
003
Designed & produced by
NIK Design
www.nikdesign.co.uk
700-LIT-01 Rev 4
Nov 2008
FM 39602
Storm Interface products include
technology protected by international patents
and design registration. All rights reserved.
