APPLICATION EQUIPMENT
DUBOX™ CONTACT

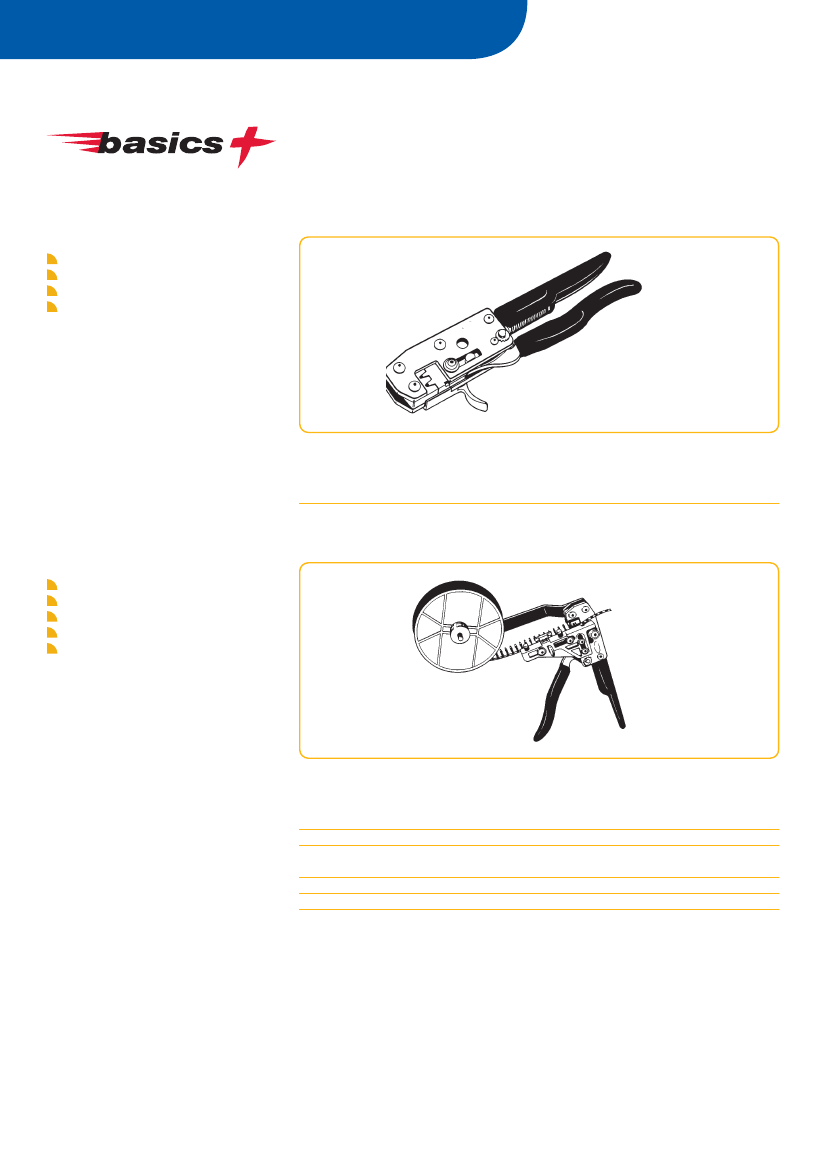

HAND TOOL HT 234
Simple and reliable
Low operation force
Lightweight hand tool
Contains two toolings (AWG 22-24,
AWG 26-30)
ORDERING DATA
For use with Dubox™ contacts, loose piece
Part number
76357-x01
AWG 22-24/26-30
HT 234
HAND TOOL HT 250 / HT 251
Simple and reliable
Low operation force
Lightweight hand tool
Reel fed
Seperate toolings:
HT 250 for AWG 22-24
HT 251 for AWG 26-30
For use with Dubox™ contacts, on reel
ORDERING DATA
For use with Dubox™ contacts, on reel
Part number
76347-x03
Part number
76347-x03
Application rate/hour
Weight
Dimensions (h x w)
AWG 22-24
AWG 26-30
HT 250
HT 251
500 (depending on operator dexterity)
1 kg
305 x 230 mm
72

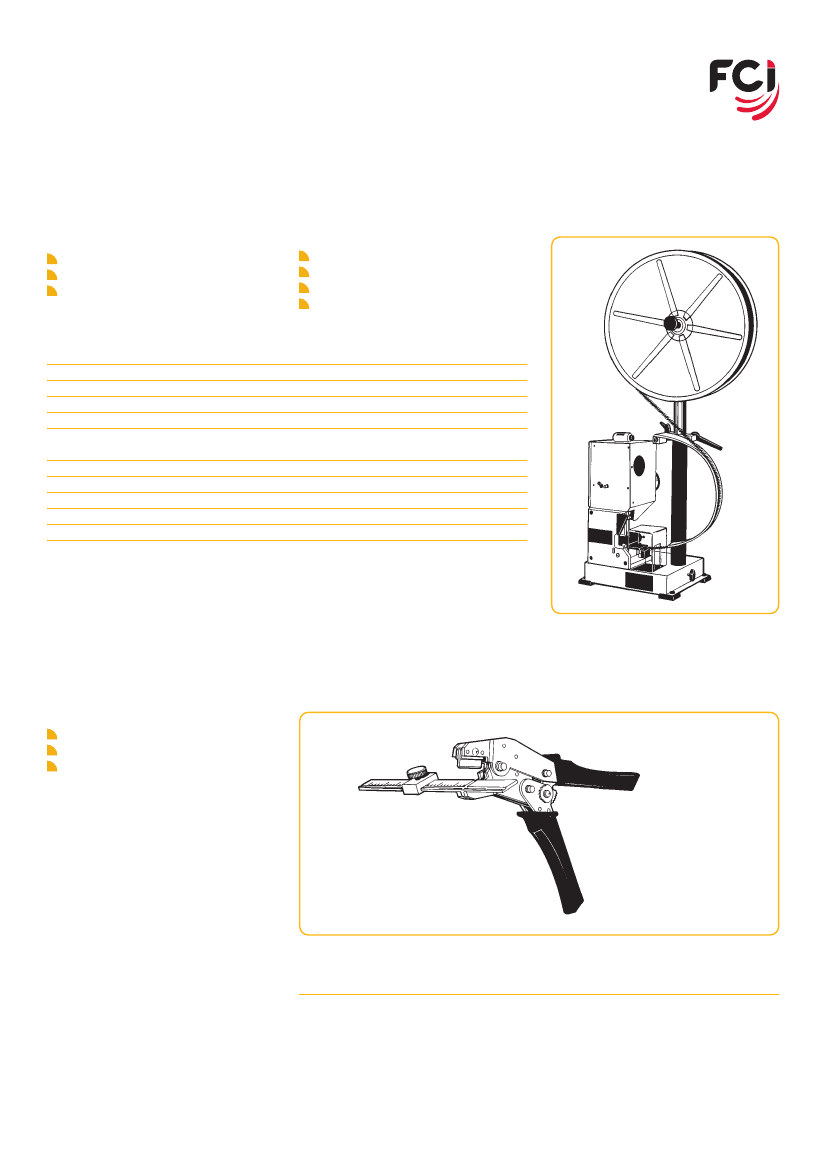

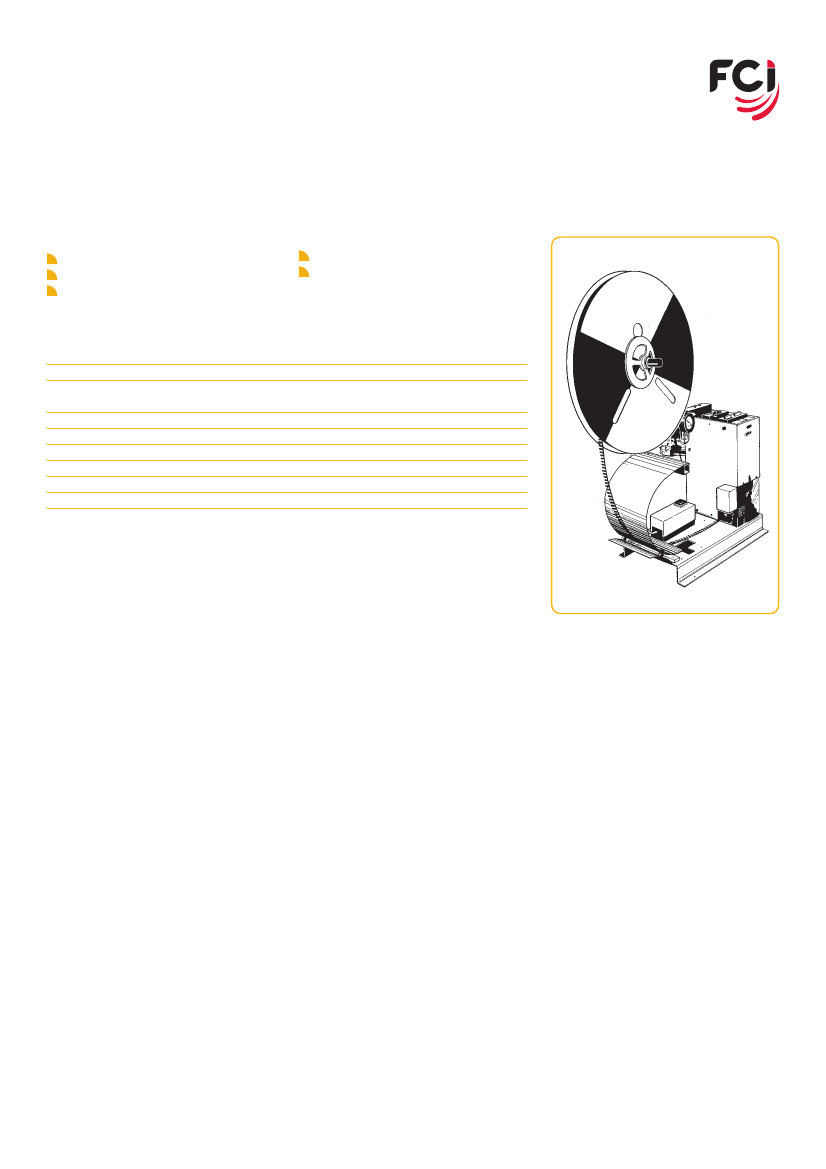

DUBOX™ CONTACT
STRIPPER-CRIMPER DX 271
Simple operation
High speed crimping
Strips and crimps the wire in one ope-
ration
Lightweight construction
Pneumatically operated
Adjustable tooling
High quality results
ORDERING DATA
DX 271 Press & Tooling
Tooling Kit
Tooling Kit, small insulation
Tooling Kit, small insulation
DX 271 Press only
Application rate/hour
Weight
Dimensions (h x w x d)
Working height above table
Air consumption / min.
Air pressure
AWG
AWG
AWG
AWG
24-26
24-26
20-22
28-32
191230-01
193830-01
193830-02
193830-03
191000-00
1800 (depending on operator dexterity)
32 kg
980 x 600 x 400 mm
85 mm
61 NI
5-6 Bar
BergStik
®
HEADER
CUTTING TOOL HT 320
Simple and reliable
Low operation force
Lightweight hand tool
ORDERING DATA
For use with BergStik
®
Headers
Part number
77311, 77313, 77315, 77317
HT 320
Technical / Application Support / Drawings / Specifications / Samples:
www.fciconnect.com/basics
73

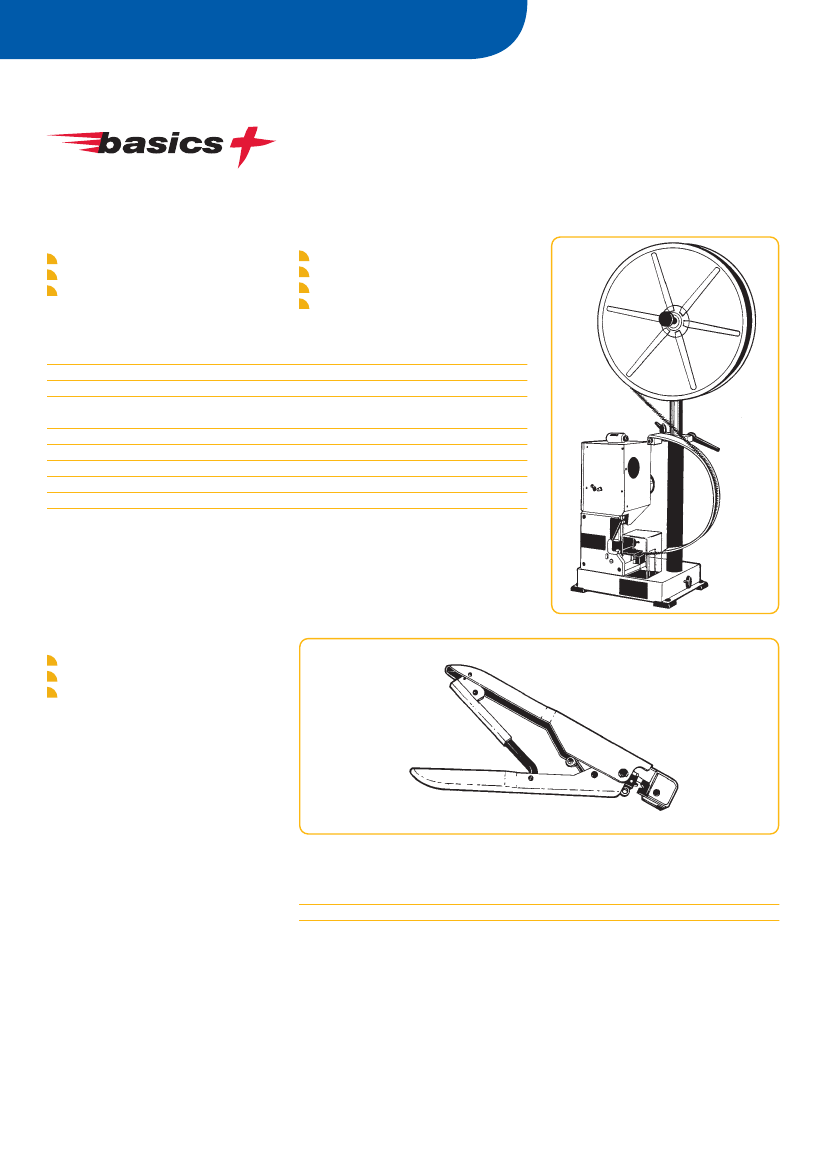

APPLICATION EQUIPMENT
MINITEK™ CONTACT
STRIPPER-CRIMPER MK 271
Simple and reliable
High speed crimping
Strips and crimps the wire
in one operation
Lightweight construction
Pneumatically operated
Adjustable tooling
High quality results
ORDERING DATA
MK 271 Press & Tooling
Tooling Kit
DX 271 Press only
Application rate/hour
Weight
Dimensions (h x w x d)
Working height above table
Air consumption / min.
Air pressure
AWG 26-30
AWG 26-30
193315-01
193317-01
193316-01
1500 (depending on operator dexterity)
32 kg
980 x 600 x 400 mm
85 mm
61 NI
5-6 Bar
HAND TOOL HT 151 / HT 152
Lightweight hand tool
Rugged
Ratched-action handle
assures complete crimp cycle
ORDERING DATA
For use with Dubox™ contacts, on reel
AWG 26-30
AWG 32-36
HT 151
HT 152
74
DUBOX™ CONTACT
STRIPPER-CRIMPER DX 271
Simple operation
Reliable
Pneumatically operated
Low maintenance cost
High quality results
ORDERING DATA
MK 411 Press & Tooling
MK 411 Press & Tooling
Application rate/hour
Weight
Dimensions (h x w x d)
Working height above table
Air consumption / min.
Air pressure
Electrical requirements
AWG 26-30
AWG 32-36
1800 (depending on operator dexterity)
25 kg
710 x 560 x 400 mm
110 mm
28 NI
5-6 Bar
220-240V, 50Hz, 0,5A
194294-01
194294-02
Technical / Application Support / Drawings / Specifications / Samples:
www.fciconnect.com/basics
75
APPLICATION EQUIPMENT
PV™ CONTACT
APPLICATION TOOLING
PV™-250A Semi-automatic Crimping
• Easy to use
• Pneumatically operated
• Low cost
• Estimated 1000 crimps per hour
Machine Part Number
• 107416-101 (18-20AWG)
• 107416-102 (22-26AWG)
• 107416-103 (28-32AWG)
OL-740 Semi-automatic Two Ton
Bench Press
• Uses quick-changing, adjustable
crimping applicators for different
terminals and wire sizes
• Most rugged construction
• Easy to use
• Electrically operated
• Estimated 2400 crimps per hour
Machine Part Number
• 133911-102
(does not include applicator)
Applicator Tooling Part Numbers
• 133867-104 (18-20AWG)
• 133867-105 (22-26AWG)
• 133867-106 (28-32AWG)
Ratcheting Hand Crimping Tool
Part Number
• HT-0073 (for 18-20 AWG Wire)
• HT-0096 (for 22-32 AWG Wire)
• HT-0112 (for 32-36 AWG Wire)
PV™ Contact Removable Tool
Part Number
• HT-0080
76
