Technical Data Sheet
BNC
50
Ω
Open Circuit
Plug
51S12L-000S3
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG

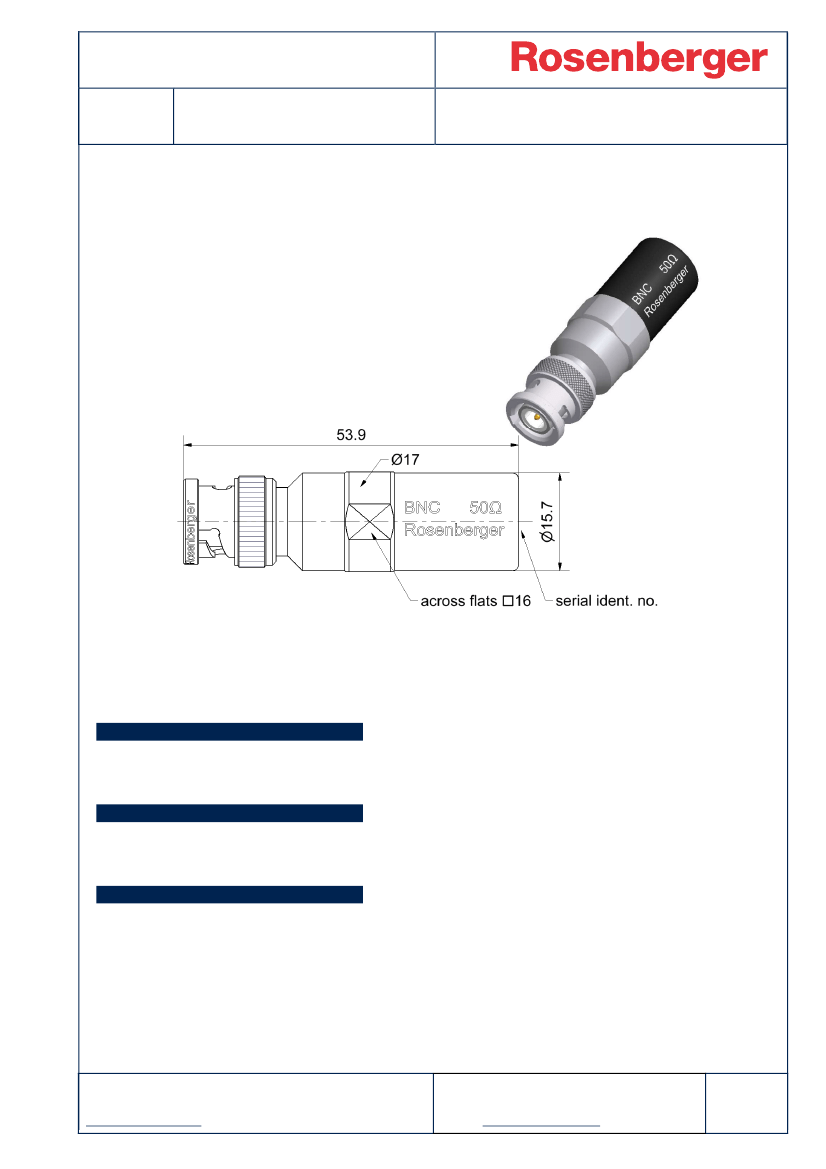

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-8, MIL-PRF-39012, CECC 22120
Documents
Application note
AN001 “Calibration Services”
Material and plating
Connector parts
Center conductor
Outer conductor
Dielectric
Material
CuBe
Stainless steel
PTFE, PS
Plating
Gold, min. 1.27 µm, over nickel
Passivated
RF_35/05.10/6.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Fax : +49 8684 18-1499
Email : info@rosenberger.de
Page
1/3
Technical Data Sheet
BNC
50
Ω
Open Circuit
Plug
51S12L-000S3
Electrical data
Frequency range
Return loss
Error from nominal phase
1
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG
1
DC to 4 GHz
≤
0.20 dB, DC to 2 GHz
≤
0.50 dB, 2 GHz to 4 GHz
≤
3.0°, DC to 2 GHz
≤
5.0°, 2 GHz to 4 GHz
The nominal phase is defined by the Offset Delay, the Offset Loss and the Fringing Capacitances
Mechanical data
Mating cycles
Gauge
≥
500
5.31 mm to 5.38 mm
General standard definitions
For proper operation the vector network analyzer (VNA) needs a model describing the electrical behaviour
of this calibration standard. The different models, units, and terms used will depend on the VNA type and they
will have to be entered into the VNA. All values are based on typical geometry and plating.
Offset Z
o
/ Impedance / Z
o
Offset Delay
Length (electrical) / Offset Length
Offset Loss
Loss
Fringing Capacitances
2
2
50
Ω
70.448 ps
21.12 mm
1.2 GΩ/s
0.0147 dB/
GHz
Fringing Capacitances are determined individually for each Open Circuit and are documented in a Calibration Certificate.
Environmental data
Operating temperature range
3
Rated temperature range of use
4
Storage temperature range
RoHS
3
4
+20 °C to +26 °C
0 °C to +50 °C
-40 °C to +85 °C
compliant
Temperature range over which these specifications are valid.
This range is underneath and above the operating temperature range, within the open circuit is fully functional
and could be used without damage.
RF_35/05.10/6.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Fax : +49 8684 18-1499
Email : info@rosenberger.de
Page
2/3
Technical Data Sheet
BNC
50
Ω
Open Circuit
Plug
51S12L-000S3
Declaration of calibration options
Factory Calibration
Standard delivery for this calibration standard includes a Factory Calibration. The Calibration Certificate
issued reports individual calibration results,
traceable to Rosenberger standards,
national / international
standards are not available. Model based standard definitions are individually optimized and reported in an
Agilent/Keysight, Rohde & Schwarz and Anritsu compatible VNA format.
Accredited Calibration
Not available.
For further, more detailed information see application note AN001 on the Rosenberger homepage.
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG
Calibration interval
Recommendation
12 months
Packing
Standard
Weight
1 pce in box
47 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
Draft
Herbert Babinger
Date
28.01.05
Approved
Martin Moder
Date
09.07.15
Rev.
e00
Engineering change number
14-1492
Name
Manfred Ruf
Date
09.07.15
RF_35/05.10/6.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Fax : +49 8684 18-1499
Email : info@rosenberger.de
Page
3/3
